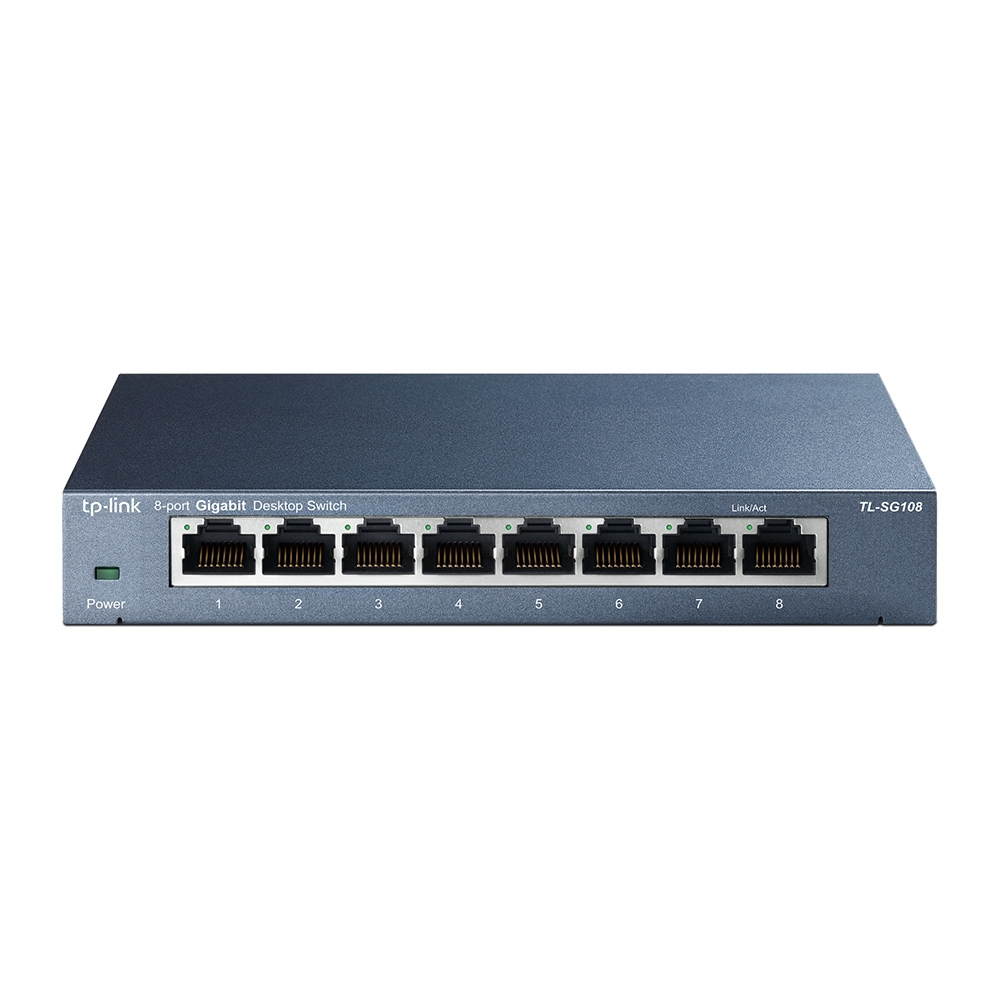

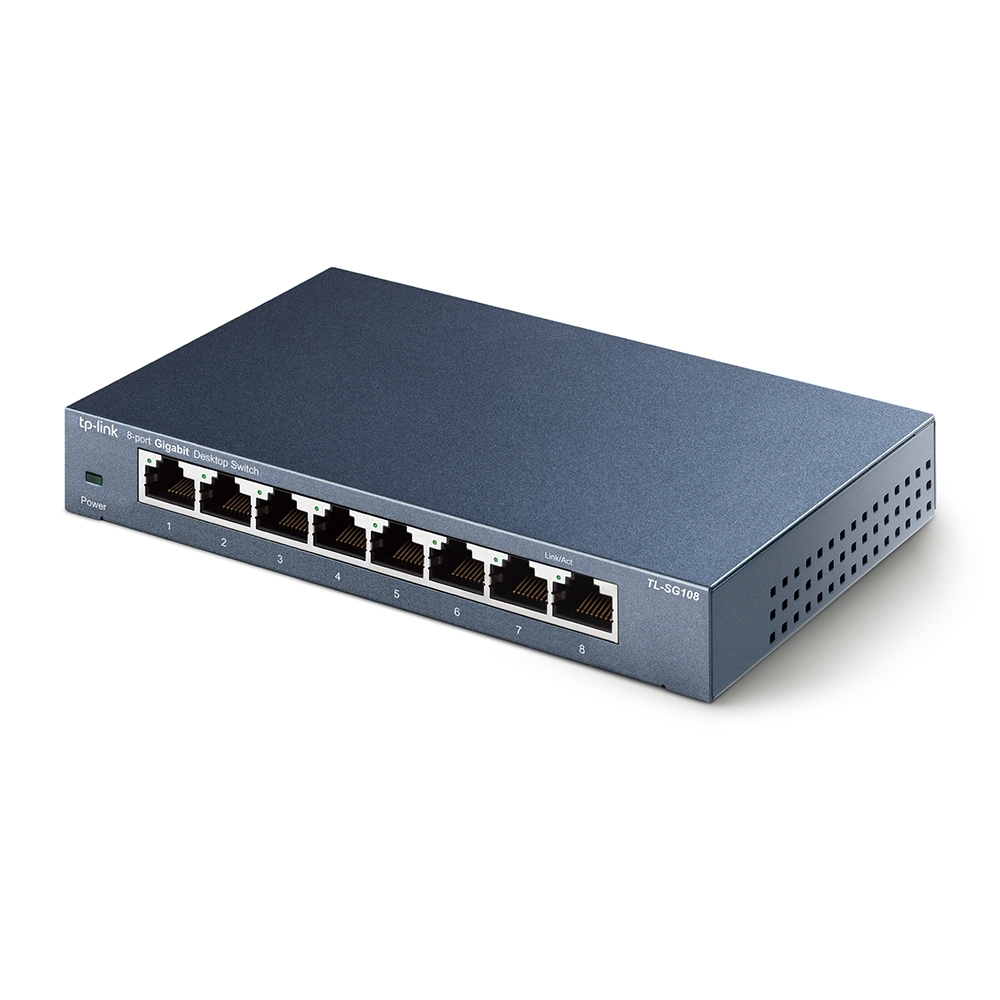

Product information for TP-Link TL-SG108:
- 8 Gigabit RJ45 ports with auto-tuning and auto-MDI/MDIX
- Flow control according to IEEE802.3x for reliable data transmission
- Metal housing for table or wall mounting
- Supports QoS according to IEEE802.1p
- Plug-and-play, no configuration necessary
- 8 ports Cu 10/100/1000
- Fanless
- Layer 2 functions - 802.1q (VLAN tagging)
- QoS - 802.1p
- Table mounting
- LED display
- Current: 0.6 A
- Output voltage: 9 V
- Input voltage : 100 - 240 V
- Color: Gray
- Height: 25 mm
- Width: 101 mm
- Depth: 158 mm
- Product type: Switch
- Standards and protocols: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
- Buffer size: 1.5 MB
- LEDs: system, power, link, speed and activity indicators for each port >System requirements
- Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10
- MacOS
- NetWare
- UNIX
- Linux
- 8-port 10/100/1000Mbps desktop switch
- voltage adapter
- installation instructions
Switch
Power supply
Basic features
Technical description
Box contents
| Certificates | |
| Certification | CE, FCC, RoHS |
| Data transmission | |
| Supported data transfer rates | 10/100/1000Mbps |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| MAC address table | 4000 entries |
| Maximum data transfer rate | 2 Gbit/s |
| Jumbo frames | 16000 |
| Packet buffer memory | 1.5 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 10G support | |
| Full duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Other features | |
| Connectivity technology | Wired |
| Bandwidth | 16 Gbit/s |
| Packet transfer speed | 14880pps/148800pps/1488000pps |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | |
| Power LED | |
| Ethernet LAN | |
| Packaging content | |
| User guide | |
| Packaging data | |
| Package width | 130 mm |
| Package depth | 191 mm |
| Package height | 92 mm |
| Package weight | 510 g |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
| Power | |
| Power source | DC |
| Input current | 0.6 A |
| Input voltage | 9 V |
| Power consumption (max) | 3.31 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Switching protocols | CSMA/CD |
| Security | |
| IGMP snooping | |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
