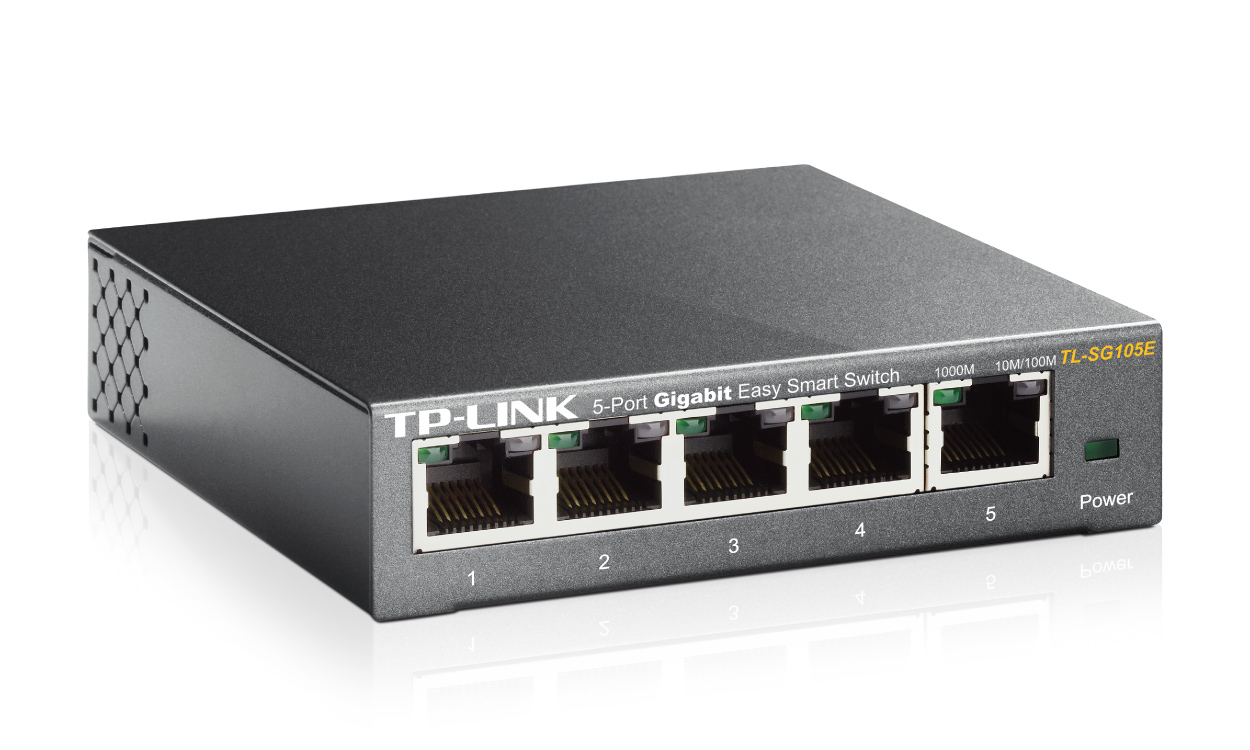

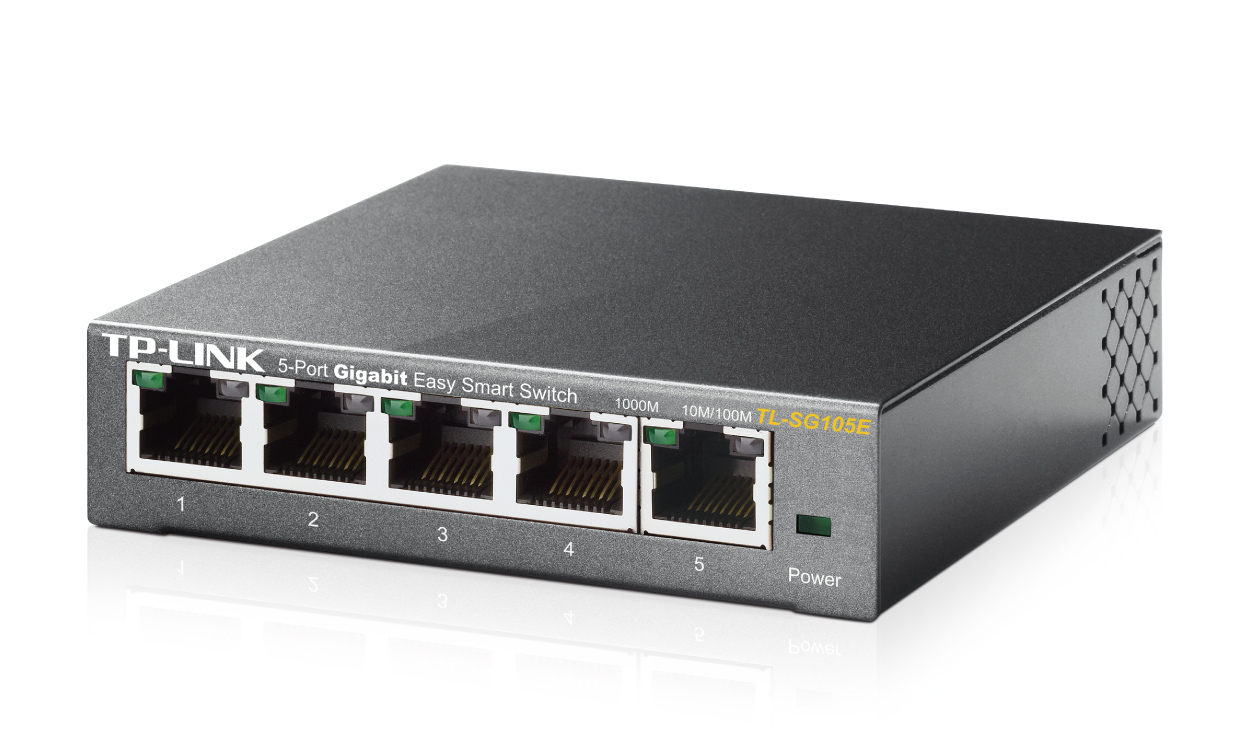

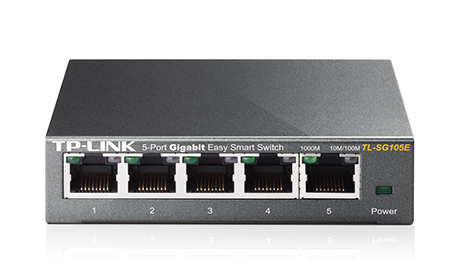

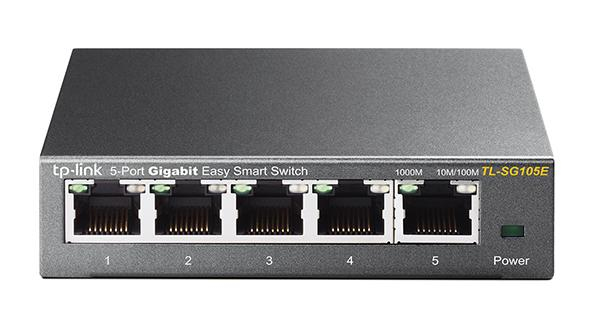

TP-LINK TL-SG105E 5-Port Gigabit Smart Switch Easy content_copy

The 5-Port Gigabit Smart Switch Easy TL-SG105E of TP-LINK provides an easy way to take the transition to managed switches. The data traffic can be easily monitored to optimize the data transfer is the Administrator Port / Tag-based QoS available thanks to port mirroring, Loop Detection and Cable Diagnostics. Furthermore, port / day / MTU-based VLAN provides through a segmentation of the network for safety.

Highlights

• 5 Gigabit RJ45 ports for fast data transfers
• The innovative Green IT saves up to 75% energy
• Supports flow control according to IEEE 802.3x for reliable data transfer
• Supports 16K Jumbo frames improves the transmission of large amounts of data
• Effective monitoring via port mirroring, loop detection and Cable Diagnostics
• port and tag-based QoS for judder transport of time-critical data
• Multiple VLAN features allow safety by segmentation
• IGMP snooping improves the transmission of multicast data
• Centralized management of all your Easy -Smart-switches via the Easy-Smart Configuration Utility

Switch

• 5 ports 10/100/1000 Cu
• 48,3 cm ( 19 inch )mounting
• Fanless
• Layer 2 functions - 802.1q (VLAN tagging)
• QoS - 802.1p
• 19-inch rack mounting
• table mounting

Basic Properties

• Color: Black
• Height: 25 mm
• Width: 98 mm
• Depth: 100 mm
• Product Type: Switch

Technical description

• MAC address table 8k messages
• Packet Buffer Memory 2Mb
• packet forwarding rate 7,4Mpps
• Jumbo Frame
16kB

Quality of Service

• Port / 802.1p based quality
• 4 priority queues
• rate limit
• Storm
Control

L2 functions

• IGMP -Snooping
• Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• Up to 32 VLANs (from 4k VLAN IDs)
• MTU / port / VLAN tag
• Transmission Method Store-and-Forward

Delivery

• TL-SG105E
• voltage cables
• Installation Instructions
• CD
• rubber feet

Certificates
Certification	FCC, CE, RoHS
Data transmission
Switching capacity	10 Gbit/s
Forwarding rate	7.44 Mpps
MAC address table	2000 entries
Jumbo frames	16000
Packet buffer memory	1 MB
Store-and-forward
Jumbo frames support
Design
Product colour	Black
LED indicators
Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support
Web-based management
Network
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Virtual LAN features	Port-based VLAN
Number of VLANs	32
10G support
Port mirroring
Link aggregation
Auto MDI/MDI-X
Auto-negotiation
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	9.07 BTU/h
Packaging content
Cables included	AC
Quick start guide
User guide
Rack mount kit
Packaging data
Package type	Box
Package width	125 mm
Package depth	128 mm
Package height	92 mm
Package weight	449 g
Performance
Compatible operating systems	Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5

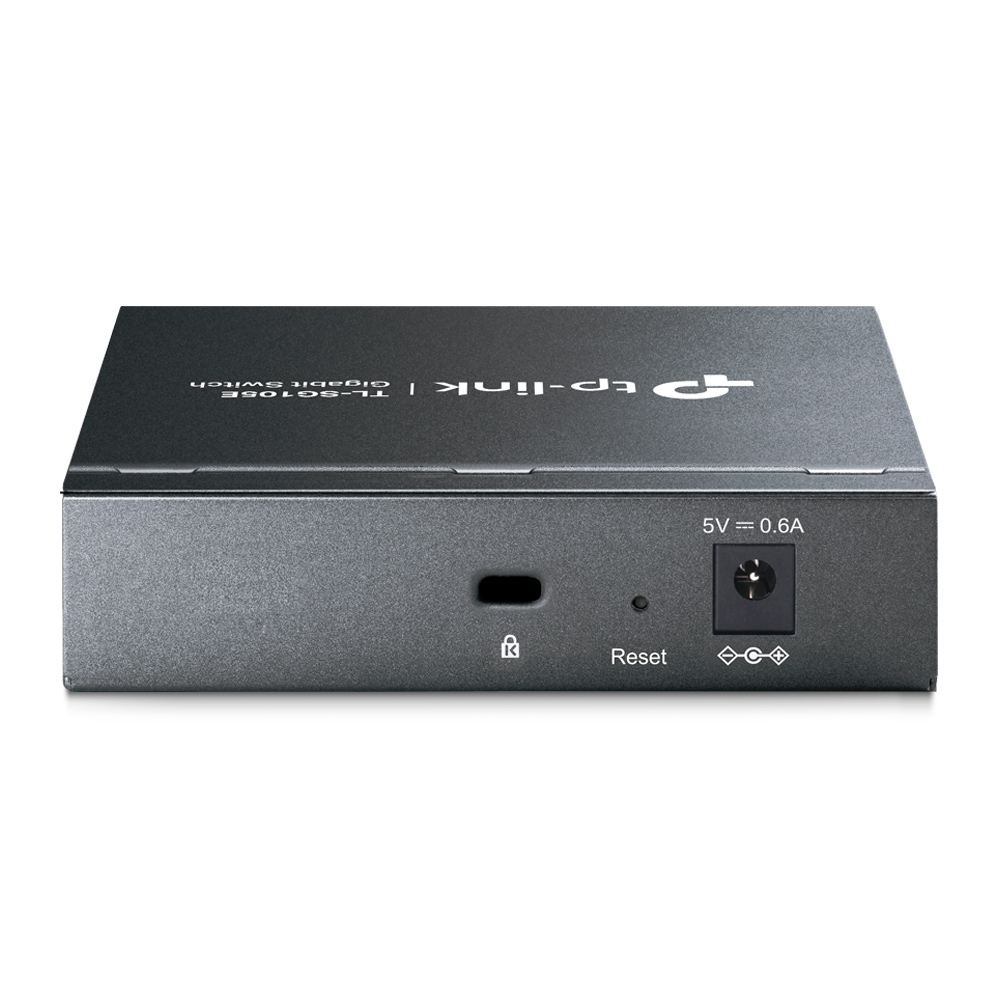

Power
Power source	DC
Input current	0.6 A
Input voltage	5 V
Power consumption (max)	2.82 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Security
IGMP snooping
Weight & dimensions
Width	100 mm
Depth	98 mm
Height	25 mm

---
