TP-LINK Konverter GBit RJ45 > GBit MM SC
|
34,03 EUR |
|
|
( 40,50 EUR incl. VAT ) ≈ £28.86 | ≈ $38.15 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| End-Of-Life: | 14. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 116620 |
| Mfg Part No: | MC200CM |
| UPC/EAN: | 6935364030438 |
| Weight: | 0.455 kg |
Further Media-Converters from TP-LinkFurther products in category Media-Converters
All products of TP-Link

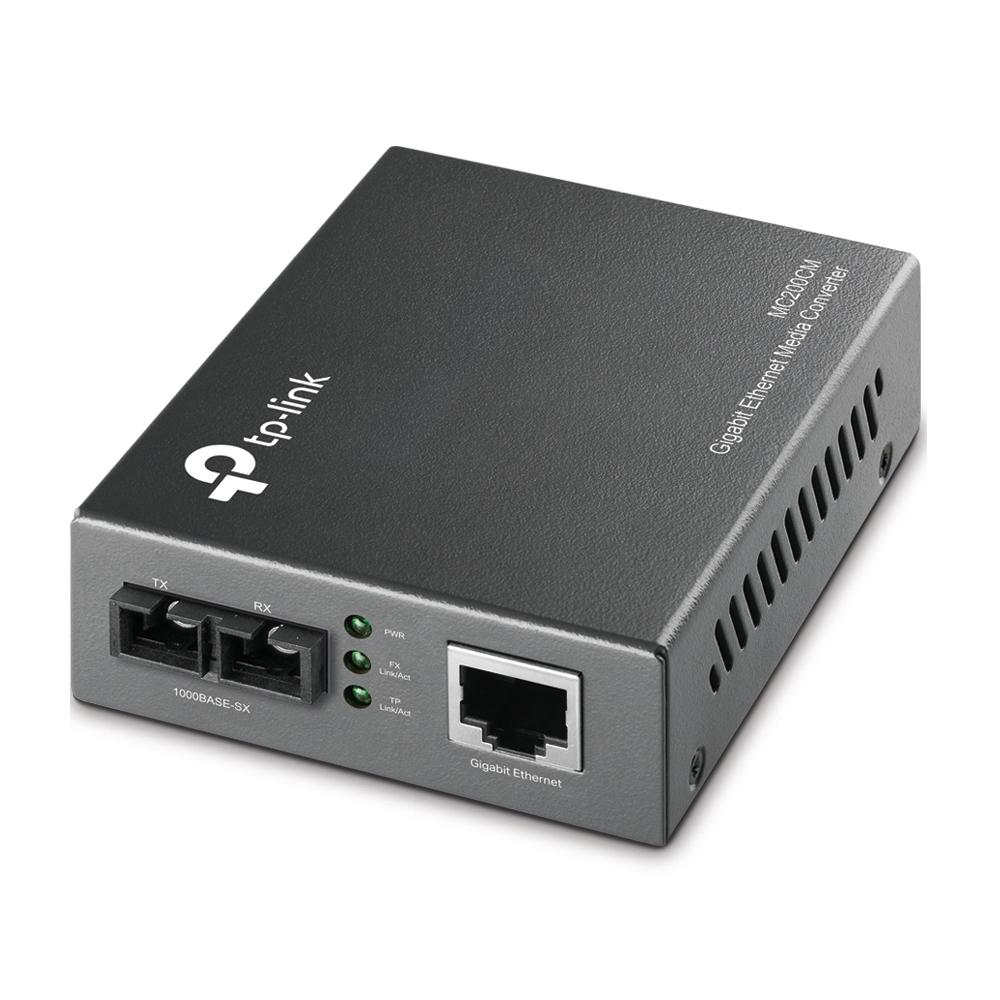

Product information for TP-Link MC200CM:

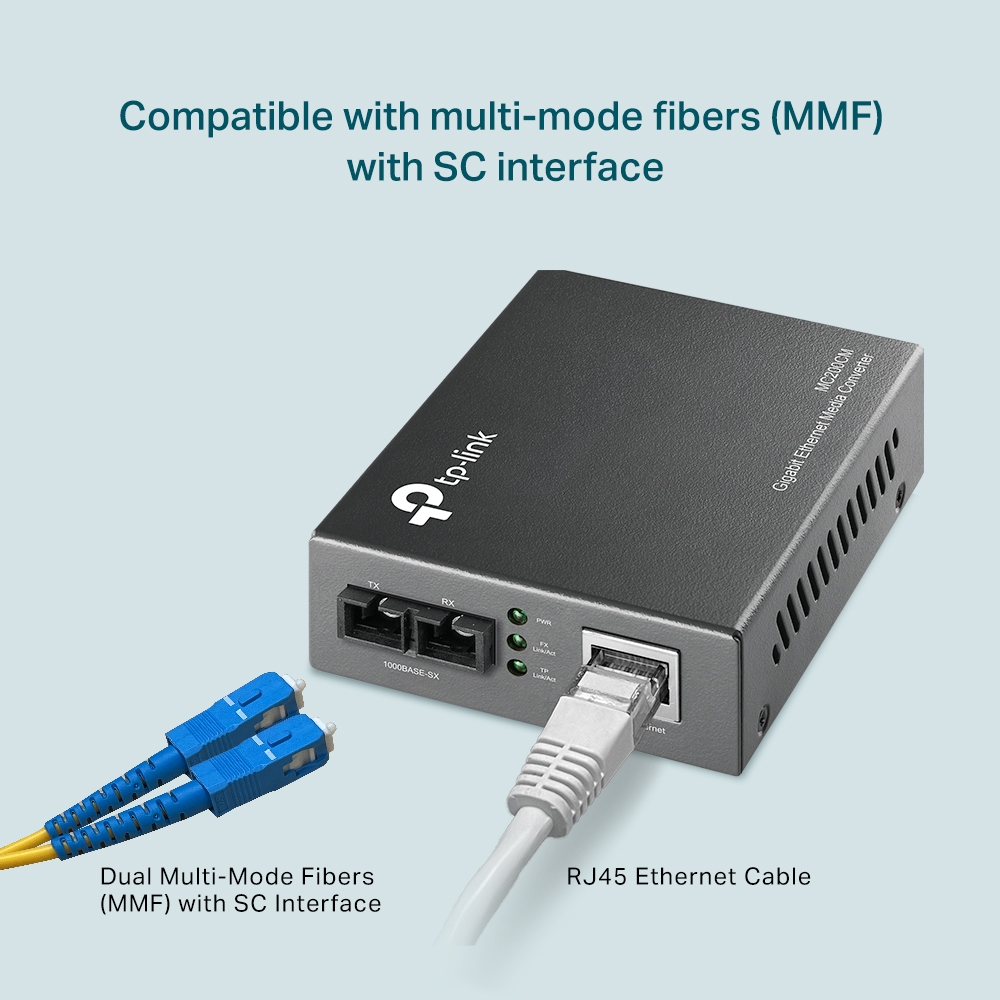

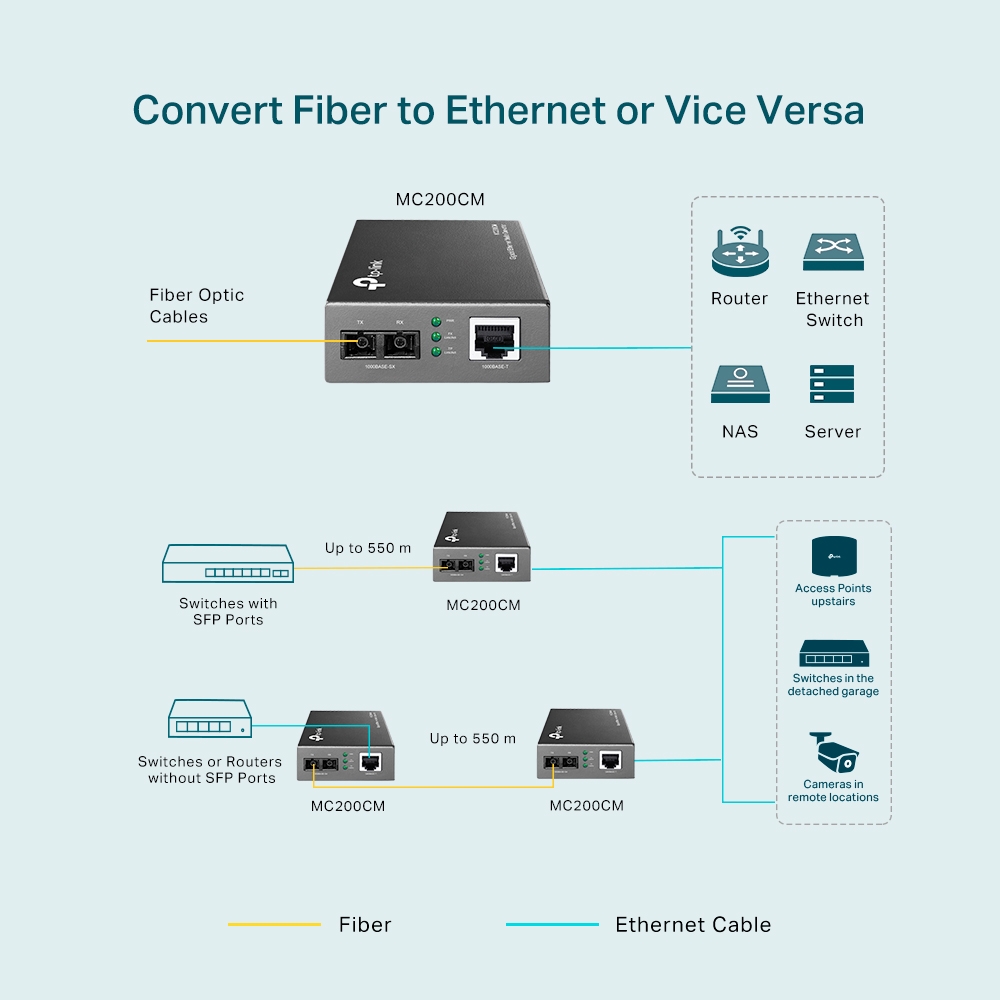

The MC200CM is a media converter which is designed to 1000BASE-SX Fiber Media in 1000Base-T copper media or to convert vice versa. The MC200CM was designed and intended for use with multimode fiber optic cables and the SC connector according to the 1000Base-T standard (IEEE802.3ab) and the 1000Base-SX standard (IEEE802.3z). The MC200CM supports shortwave (SX) laser specification at a forwarding rate, corresponding to the full bandwidth. It works at 850nm both transmitting and receiving data.
Highlights
- Meets Standards IEEE802.3ab and IEEE802.3z.
- FX port switchable between Force and Auto Mode.
- Optical fiber transmission distance up to 0,55km> System Connections - Number of Ethernet ports 10/100/1000 Mbit / s: 1> Basic characteristics - Colour: Grey - Height: 27 mm - Width: 73 mm - Depth: 94.5 mm> Technical description - Works at 1000Mbps for both TX port and the FX port in full-duplex mode - TX port with support auto MDI / MDIX - Looks switch configuration for the Force Mode and Auto-transfer modes for the FX port before - optical fiber transmission distance up to 0,55km - Easy to seeing LED displays indicate the status, so the network can be monitored easily - External power supply> delivery - Media Converters
- Power Supply
| Certificates | |
| Compliance certificates | RoHS |
| Certification | FCC, CE |
| Features | |
| LED indicators | Activity, Link |
| Product colour | Black |
| Internal | |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Fiber ethernet cabling technology | 1000BASE-FX, 1000BASE‑SX |
| Cable types supported | Cat6 |
| Auto MDI/MDI-X | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package width | 165 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 440 g |
| Performance | |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |

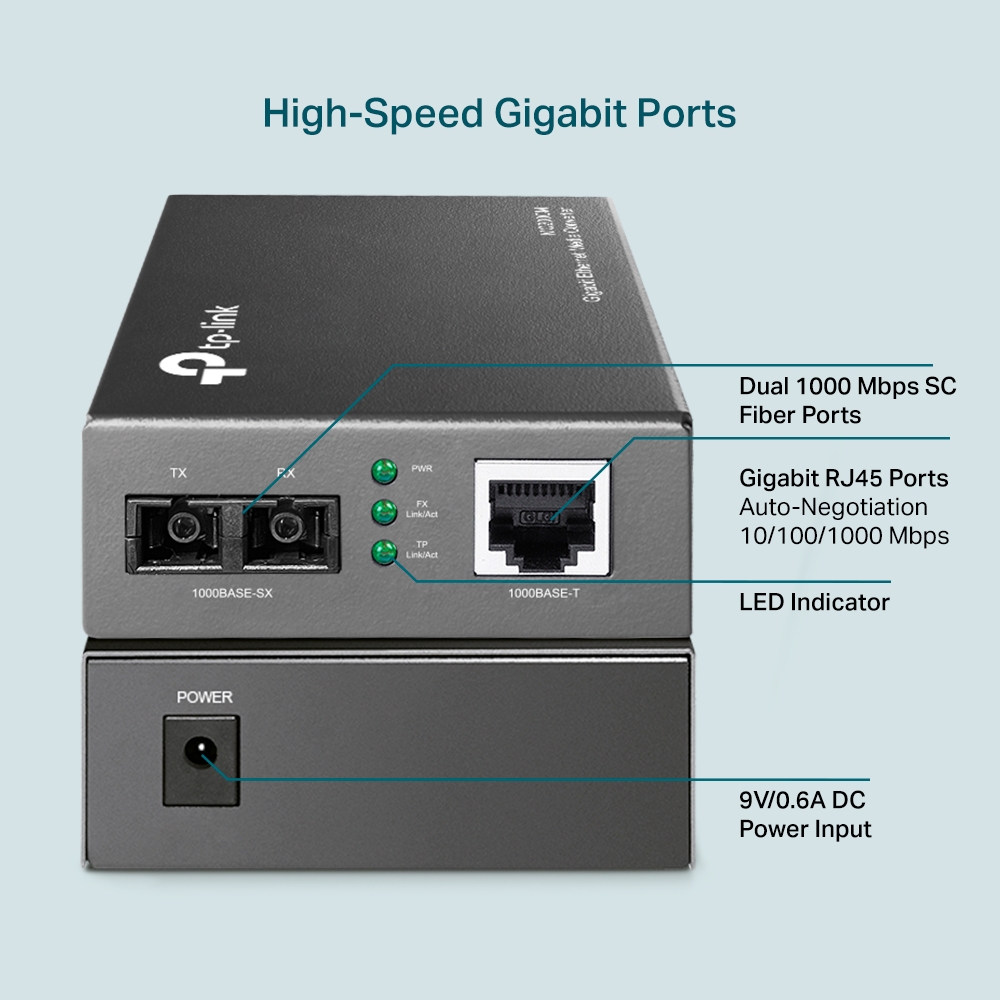

| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Power consumption (typical) | 5.5 W |

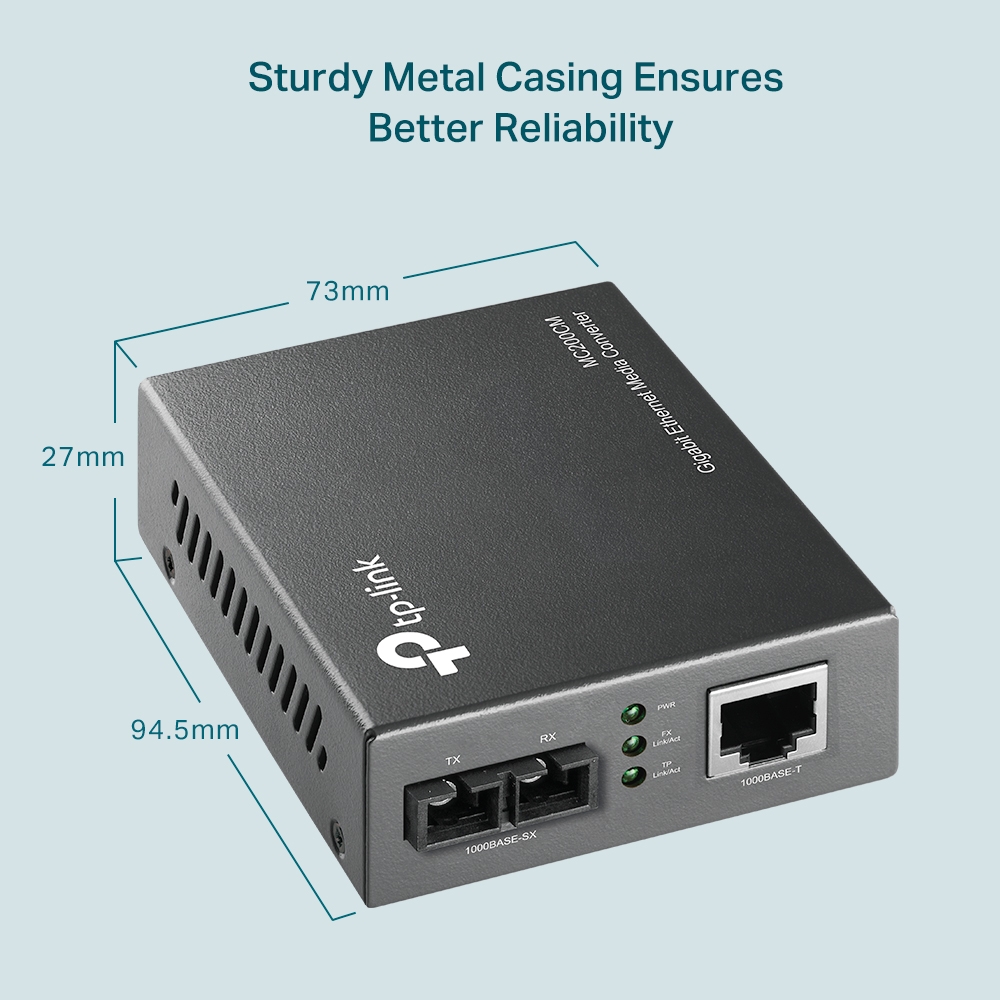

| Weight & dimensions | |
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of TP-LINK Konverter GBit RJ45 > GBit MM SC?
The article TP-LINK Konverter GBit RJ45 > GBit MM SC is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link MC200CM to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-LINK Konverter GBit RJ45 > GBit MM SC always at the best possible price. We can give you a discount of 2% on TP-LINK Konverter GBit RJ45 > GBit MM SC if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
