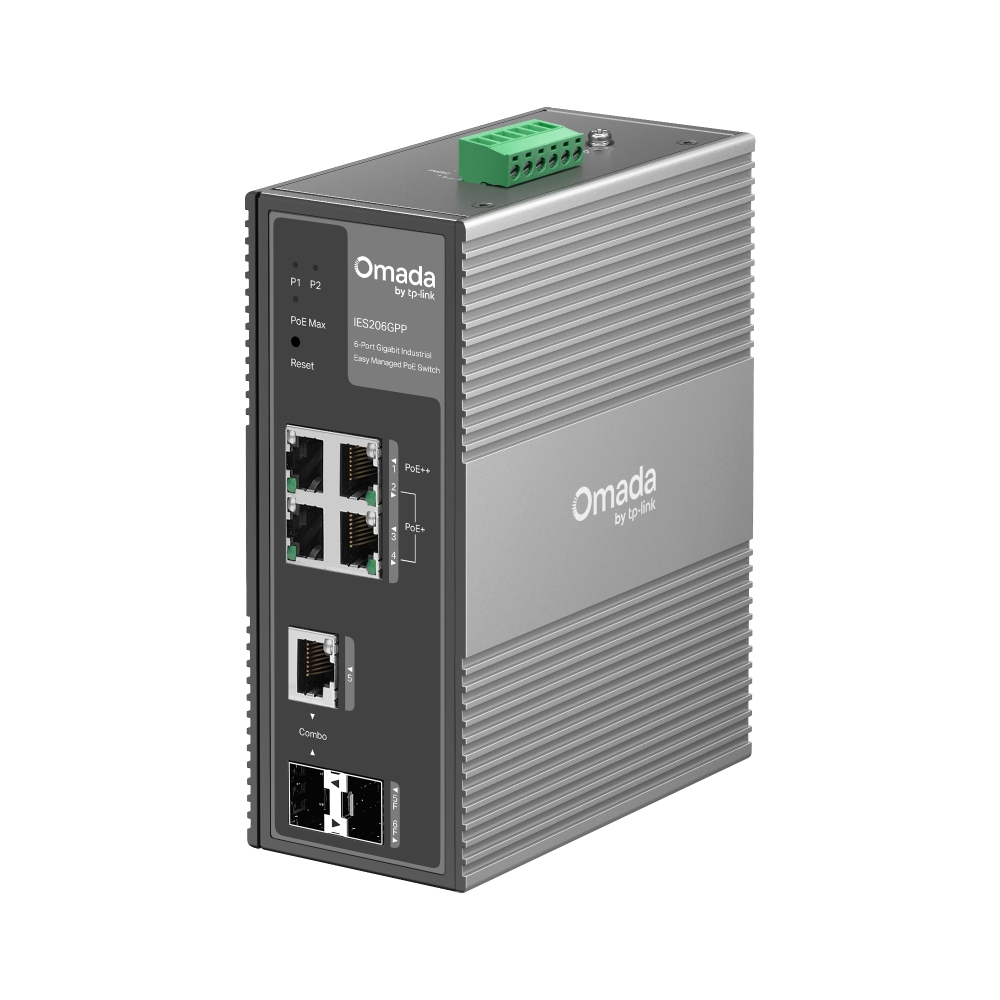

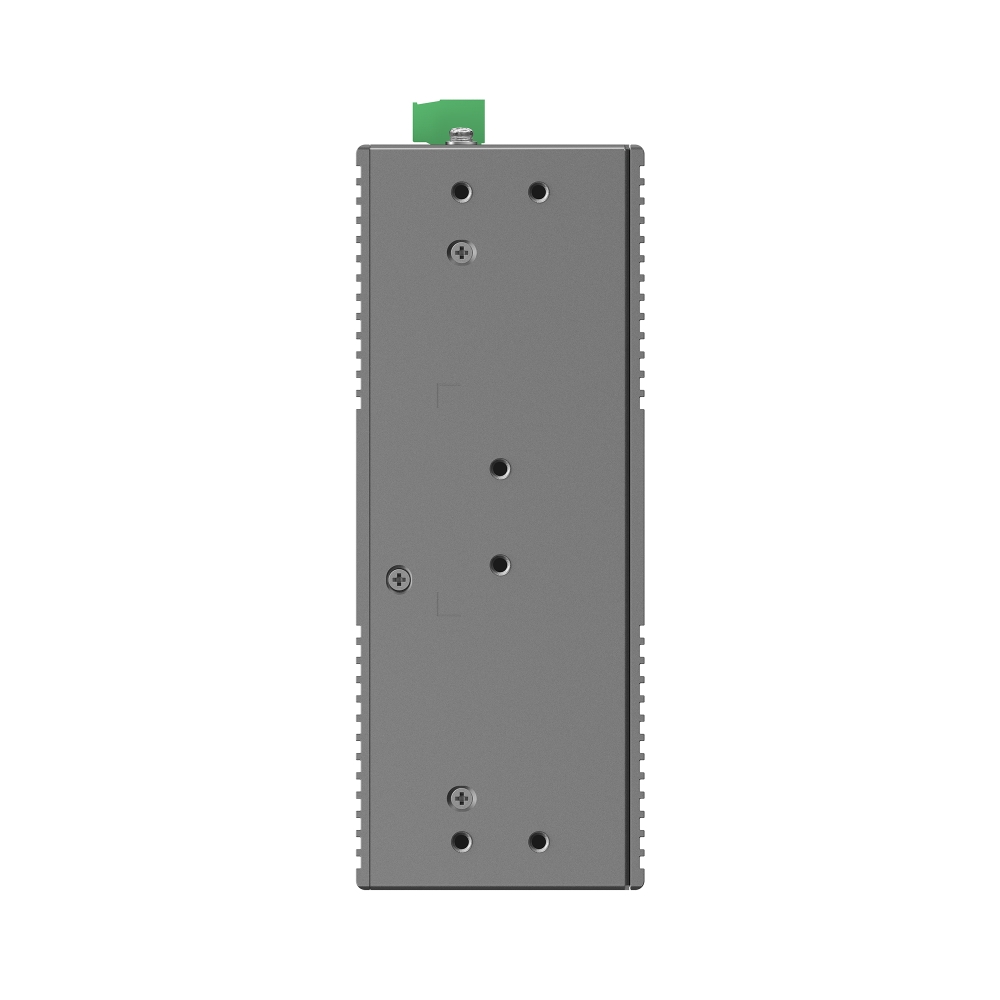

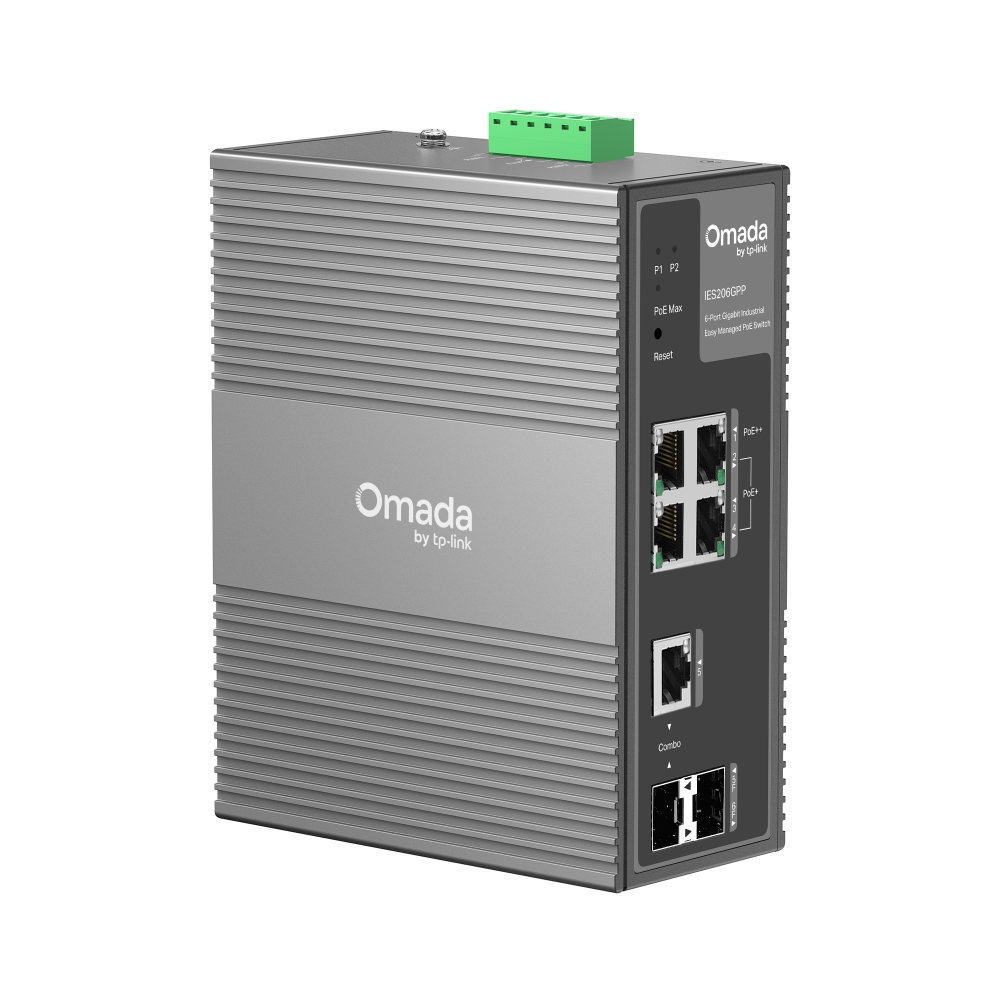

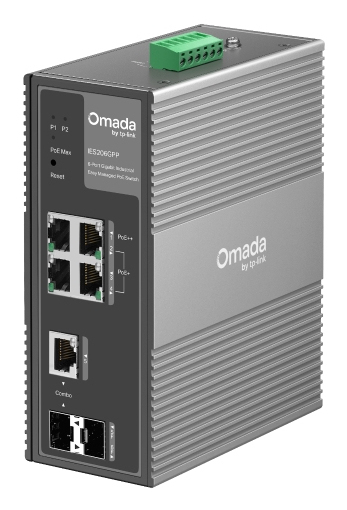

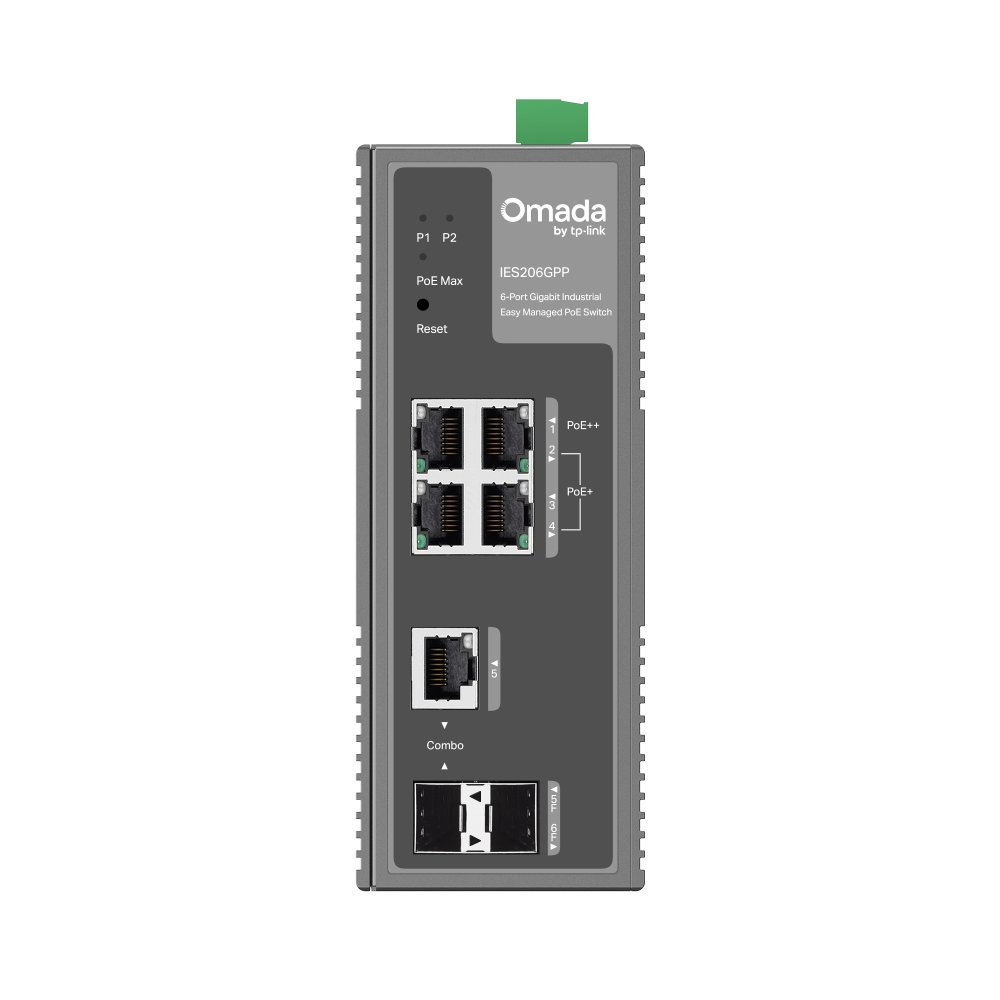

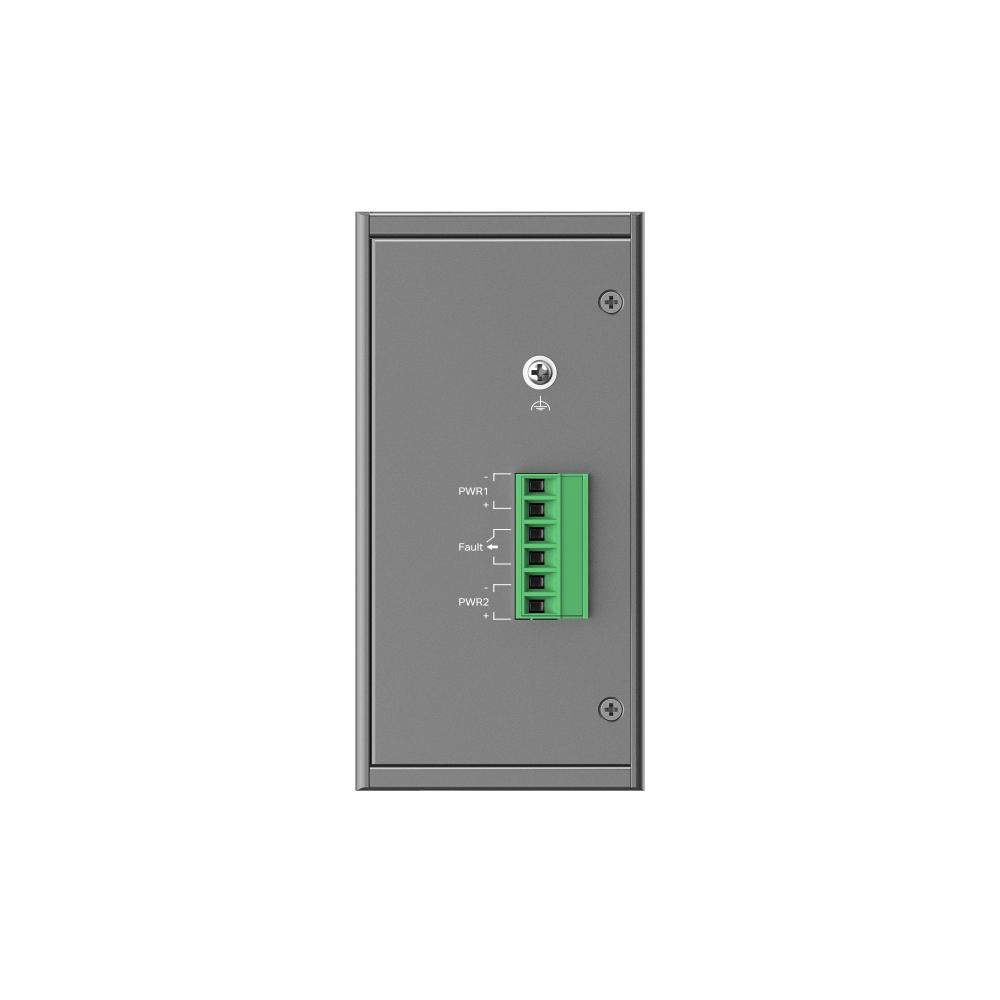

TP-LINK Omada 6-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+
|
218,66 EUR |
|
|
( 260,21 EUR incl. VAT ) ≈ £185.42 | ≈ $245.12 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 10 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| End-Of-Life: | 19. Aug 2026 |
|---|---|
| Lieske Part No.: | 598694 |
| Mfg Part No: | IES206GPP(UN) |
| UPC/EAN: | 1210002602051 |
| Weight: | 1.386 kg |
| Type: | CPNT |
Product information for TP-Link IES206GPP(UN):
Produkttyp
- Switch
- ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können
Spezifikationen
- Switchingkapazität: 12 GBit/s (Gbps)
Versand
- WEEE: 85565951
Anschlüsse
- Davon PoE-fähige Ports: 4
- PoE-Budget: 120 W
- Anzahl PoE+ (af/at) Ports: 3
- Anzahl PoE++ (bt Typ 3) Ports: 1
- Anzahl RJ45 Ports (1G): 4
- Anzahl SFP Ports (1G): 1
- Combo Ports gesamt: 1
Funktionen
- Switch managebar: Ja
Stromversorgung
- Netzteil: extern
Grundeigenschaften
- Farbe: Schwarz
- Höhe: 60 mm
- Länge/Tiefe: 120 mm
- Breite: 155 mm
Lieferumfang
- TP-Link IES206GPP Netzwerk-Switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Schwarz
| Certificates | |
| Certification | FCC, CE, RoHS |
| Data transmission | |
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8.93 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 15000 |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Rack mounting | |
| Wall mountable | |
| DIN rail mounting | |
| Management features | |
| Switch type | Managed |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 10G support | |
| Port mirroring | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| Spanning tree protocol | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Quick start guide | |
| Performance | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
| SFP module slots quantity | 1 |
| Power | |
| Power source | DC/PoE |
| DC input voltage | 12 - 57 V |
| Redundant power supply (RPS) support | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet plus (PoE+) ports quantity | 3 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | |
| Weight & dimensions | |
| Width | 155 mm |
| Depth | 120 mm |
| Height | 60 mm |
