Omada by tp-link Switch easy managed 8 Port • 8x 1 GbE • PoE Budget 64 Watt • 8x PoE at • fanless • Omada • ES208GP

Your rating:
Average rating
product review for Omada by tp-link Switch easy managed 8 Port • 8x 1 GbE • PoE Budget 64 Watt • 8x PoE at • fanless • Omada • ES208GP
( 5 / 5 ) 2 ratings
TP-Link ES208GP(UN)
This image may differ from the desired article.
TP-Link ES208GP(UN)TP-Link ES208GP(UN)TP-Link ES208GP(UN)TP-Link ES208GP(UN)TP-Link ES208GP(UN)
56,79 EUR
( 67,58 EUR incl. VAT )
≈ £47.53  |  ≈ $62.41
plus delivery charges: 55,00 €
Made to order · Expected to be available from 29.11.2026info_outline
1x Omada by tp-link Switch easy managed 8 Port • 8x 1 GbE • PoE Budget 64 Watt • 8x PoE at • fanless • Omada • ES208GP
Lieske Part No.:225862
Mfg Part No: ES208GP(UN)
Weight:0.99 kg

Product information for TP-Link ES208GP(UN):

The TP-Link ES208GP(UN) is an 8-port Gigabit Easy-Managed Switch from the Omada series, specifically designed for use in surveillance networks and small to medium-sized networks. It features eight RJ45 ports, each supporting data rates of 10/100/1000 Mbit/s and simultaneously configured as PoE+ ports (802.3af/at compliant). The device offers a PoE power budget of 64 watts, with each port capable of delivering up to 30 watts, enabling power supply to PoE-enabled cameras, access points, or other end devices. Integrated Plug-and-Play support ensures immediate network connectivity without additional configuration. For advanced settings, central cloud management via web or the Omada app is available, allowing management of multiple devices through a central interface.

Applications
This switch is particularly suitable for surveillance systems where multiple IP cameras are connected over a network. The Remote Camera Reboot function allows remote rebooting of cameras via the management portal or app, simplifying maintenance during operation. Support for QoS (Quality of Service) ensures critical data streams, such as video streaming, receive priority. Port isolation enhances network security by controlling data traffic between individual ports. Automatic loop prevention avoids network disruptions caused by redundant connections, and IGMP Snooping optimizes multicast behavior, which is beneficial for video transmissions.

Functions and Features in Detail
The device features a fanless design, ensuring silent operation and making it suitable for offices, living spaces, or other sensitive environments. The robust metal housing provides mechanical protection and improves heat dissipation. Installation can be done either on a desktop or wall-mounted, offering flexible setup options. PoE technology (Power over Ethernet) enables power supply to connected devices through the same network cable, simplifying cabling and eliminating the need for additional power sources. The maximum PoE range reaches up to 250 meters, allowing placement of cameras or access points at remote locations without additional power supply.

Technology Explained Simply
The PoE+ technology (802.3af/at) enables transmission of power and data over a single Ethernet cable. This reduces the number of cables and simplifies installation, especially for IP cameras often mounted in hard-to-reach locations. The 64-watt power budget is sufficient to supply multiple PoE devices simultaneously, with a maximum power output of 30 watts per port. VLAN (Virtual Local Area Network) support enables logical segmentation of network areas, improving network security and data traffic management. IGMP Snooping optimizes multicast transmission by activating only the ports receiving multicast data, saving bandwidth.

Compatibility and Accessories
The switch is part of the Omada product family and can be integrated with other Omada devices, such as the TP-Link ER605 router and OC200 controller, into a central management system. The kit for Omada/TP-Link ER605 + OC200 provides a compatible solution for network management. The cloud management function allows configuration and monitoring of the switch via web or the Omada app, enabling management from remote locations.

Installation and Mounting

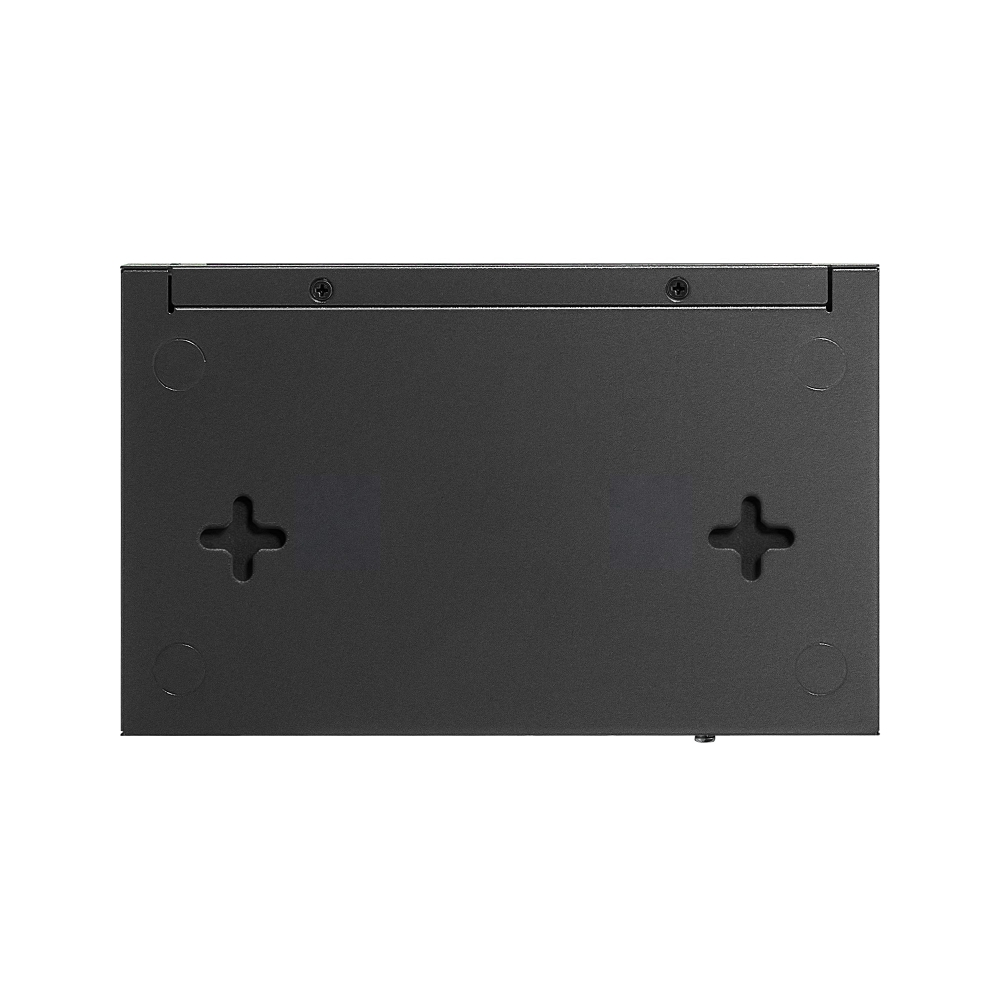

Installation is performed by connecting to an existing network via one of the RJ45 ports. The Plug-and-Play function ensures the device is immediately operational without additional settings. For advanced functions such as VLAN, QoS, or port isolation, configuration can be done via the Omada cloud platform or the Omada app. Wall mounting is possible using pre-drilled mounting holes, allowing vertical installation.

Operational Advantages
The fanless operation ensures disturbance-free use, especially in environments where noise could be disruptive. PoE support reduces the number of required power supplies and simplifies installation. Central management via the Omada platform enables efficient network management, particularly when handling multiple devices. Features such as Remote Camera Reboot and QoS enhance network reliability and maintainability, especially in surveillance systems.

General
Number of ports8
Port typeRJ45
Data rate per port10/100/1000 Mbit/s
PoE standard802.3af/at
PoE power budget64 W
Maximum PoE power per port30 W
PoE range250 m
Managementcloud management
Management platformOmada app, web interface
FunctionsPlug-and-Play, Remote Camera Reboot, QoS, Port-Isolation, Automatic loop prevention, VLAN, IGMP-Snooping
HousingMetal
Operation modefanless
MountingDesktop, wall
