TP-LINK WLAN AC1200 Access Point Dualband EAP230-Wall
|
-18% 60,26 EUR 73,43 EUR |
|
|
( 71,71 EUR incl. VAT ) ≈ £50.74 | ≈ $67.67 plus delivery charges: 53,00 € |
|
| On order · Expected to be available from 30.12.2026info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1895574 |
| Mfg Part No: | EAP230-Wall(EU) |
| UPC/EAN: | 6935364089481 |
| Weight: | 0.24 kg |
| Type: | WRLS |
Further Access Points from TP-LinkFurther products in category Access Points
All products of TP-Link

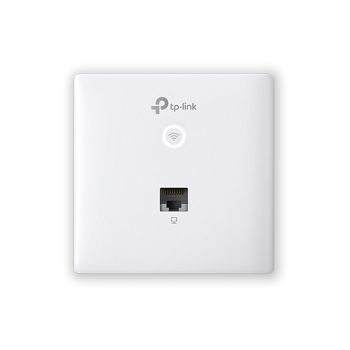

Product information for TP-Link EAP230-Wall(EU):
With its dual-band WiFi and MU-MIMO, the TP-Link EAP2230 Wall is ideal for environments with a high density of end devices, such as: B. Hotels or offices. It supports PoE according to the 802.3af/at standard and offers centralized network management with Omada.
Highlights
- Fast dual-band Wi-Fi with MU-MIMO
- Centralized management: Cloud access and Omada app for extreme convenience and easy management
- Private connection for each room: Designed to meet all network needs in environments with numerous separate rooms such as hotels and offices
- Easy to assemble design, compatible with 86 mm and EU standard junction box and 802.3af/at PoE support
- Thin design with only 11 mm, like a light switch or power strip
- Access point
- ear category (ElektroG ): relevant, Category 6: small devices in IT and telecommunications technology, small devices in IT and telecommunications technology B2C
- Operating temperature max: 40 °C
- Operating temperature min: 0 °C
- PoE standard: PoE - 802.3af
- Antenna technology: MIMO
- Reception standard: WLAN
- WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4
- Color: White
- Height: 86.8 mm
- Length/Depth: 30.2 mm
- Width: 86.8 mm
- TP-Link EAP230-Wall Omada AC1200 WLAN MU-MIMO Gigabit Access Point
- Installation instructions
- Mounting screw
Product type
Specifications
Power supply
Antenna
Data transmission
Basic properties
Scope of delivery
| Antenna | |
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 3.6 dBi |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Design | |
| Placement | Wall |
| Product colour | White |
| LED indicators | Operation |
| Reset button | |
| Features | |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| MIMO type | Multi User MIMO |
| Virtual LAN features | Port-based VLAN, VLAN mapping |
| Transmitting power (CE) | 20 - 23 dBm |
| 2.4 GHz | |
| 5 GHz | |
| 6 GHz | |
| Automatic channel selection | |
| Automatic channel scanning | |
| MIMO | |
| Wi-Fi Multimedia (WMM)/(WME) | |
| VLAN support | |
| Rate limiting | |
| Band steering | |
| Quality of Service (QoS) support | |
| BeamForming | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Web-based management | |
| Syslog | |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quantity per pack | 2 pc(s) |
| Mounting kit | |
| Quick start guide | |
| Packaging data | |
| Package width | 118 mm |
| Package depth | 130 mm |
| Package height | 47 mm |
| Package weight | 210 g |
| Performance | |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| Power | |
| Power consumption (typical) | 9 W |
| Power consumption (max) | 25.5 W |
| Power over Ethernet (PoE) | |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| MAC address filtering | |
| Access Control List (ACL) | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 86.8 mm |
| Depth | 86.8 mm |
| Height | 30.2 mm |
