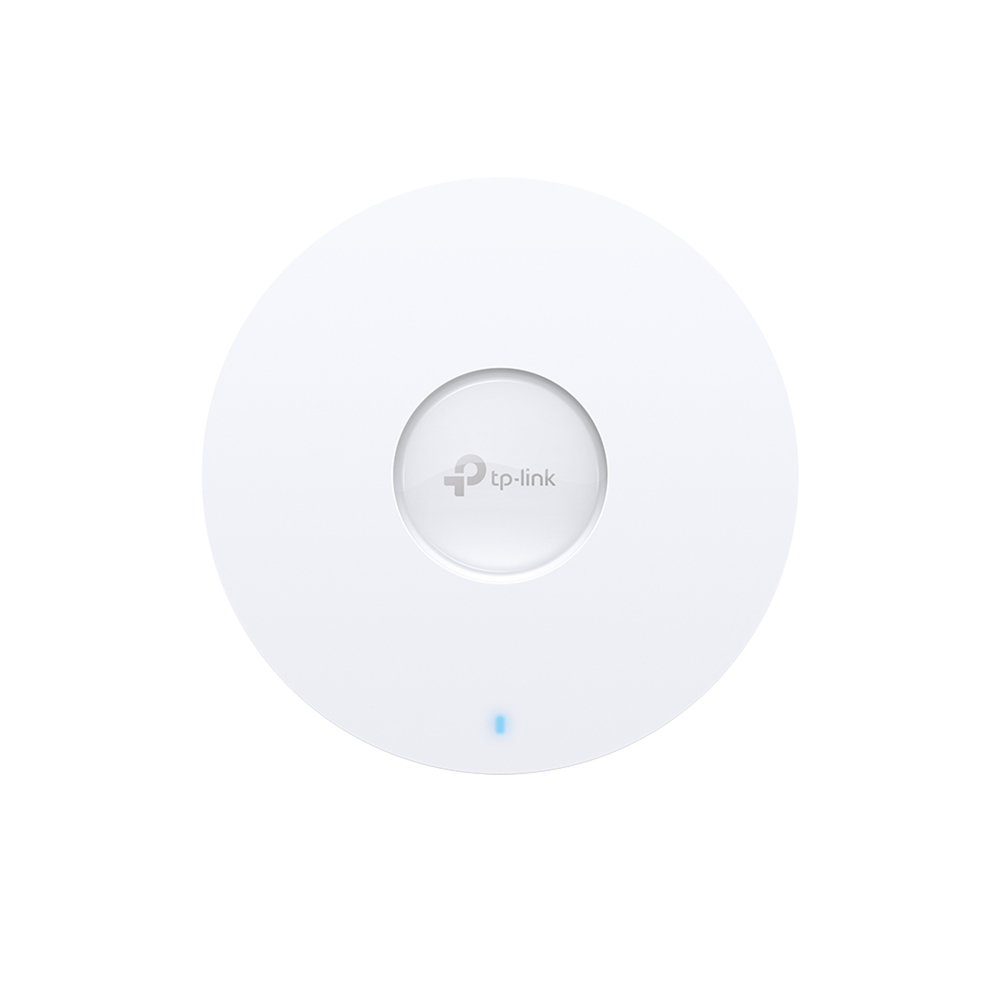

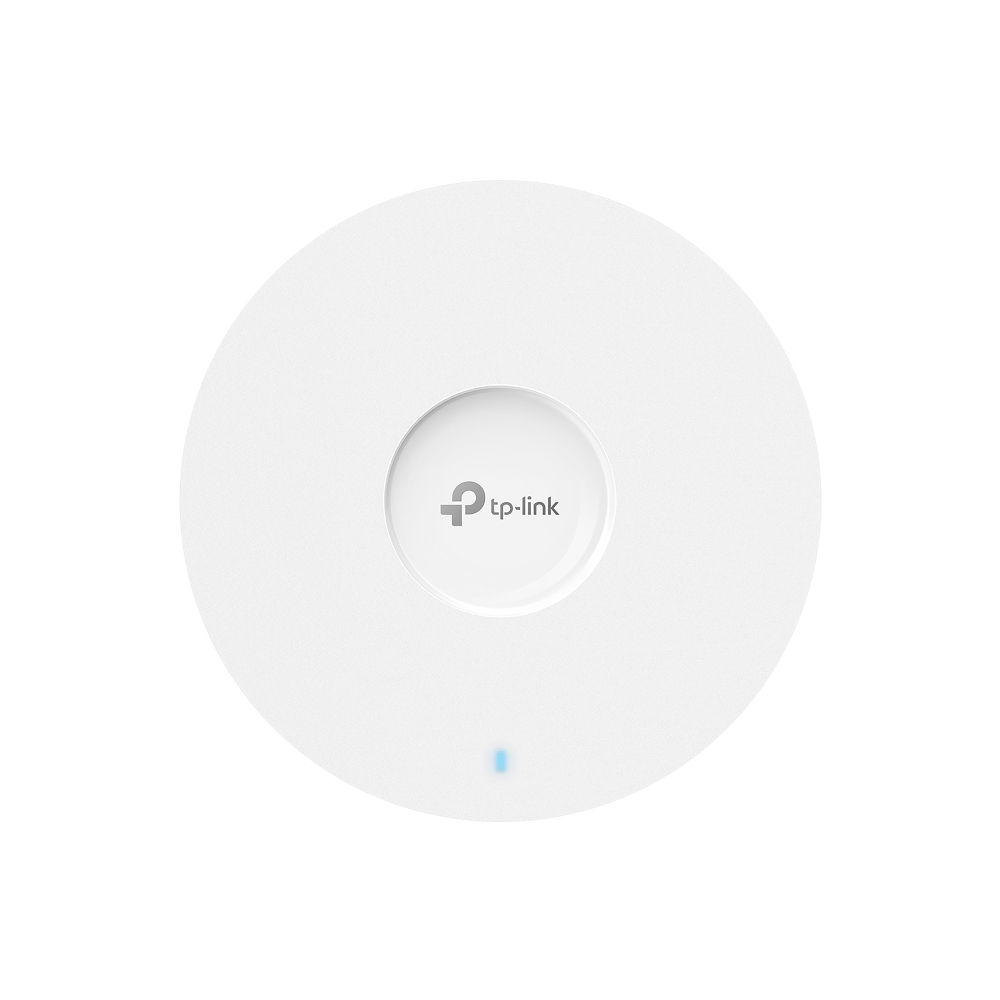

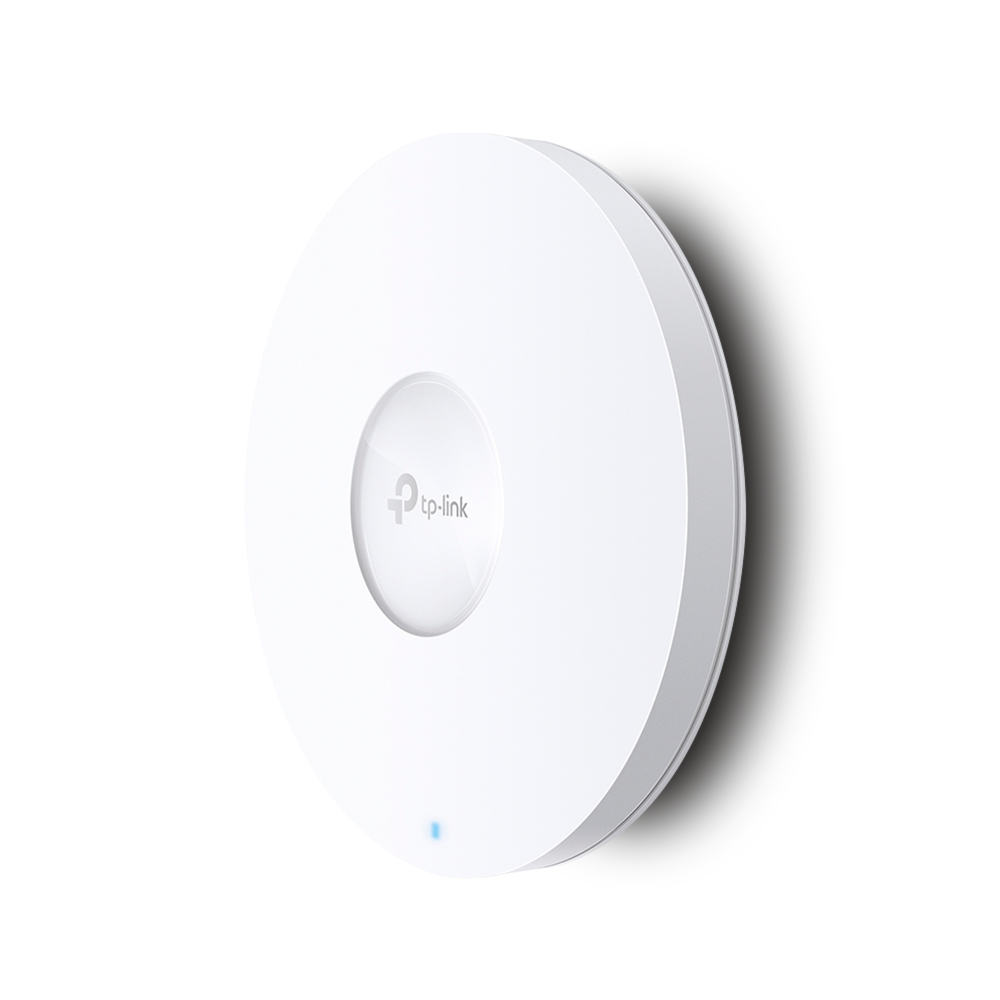

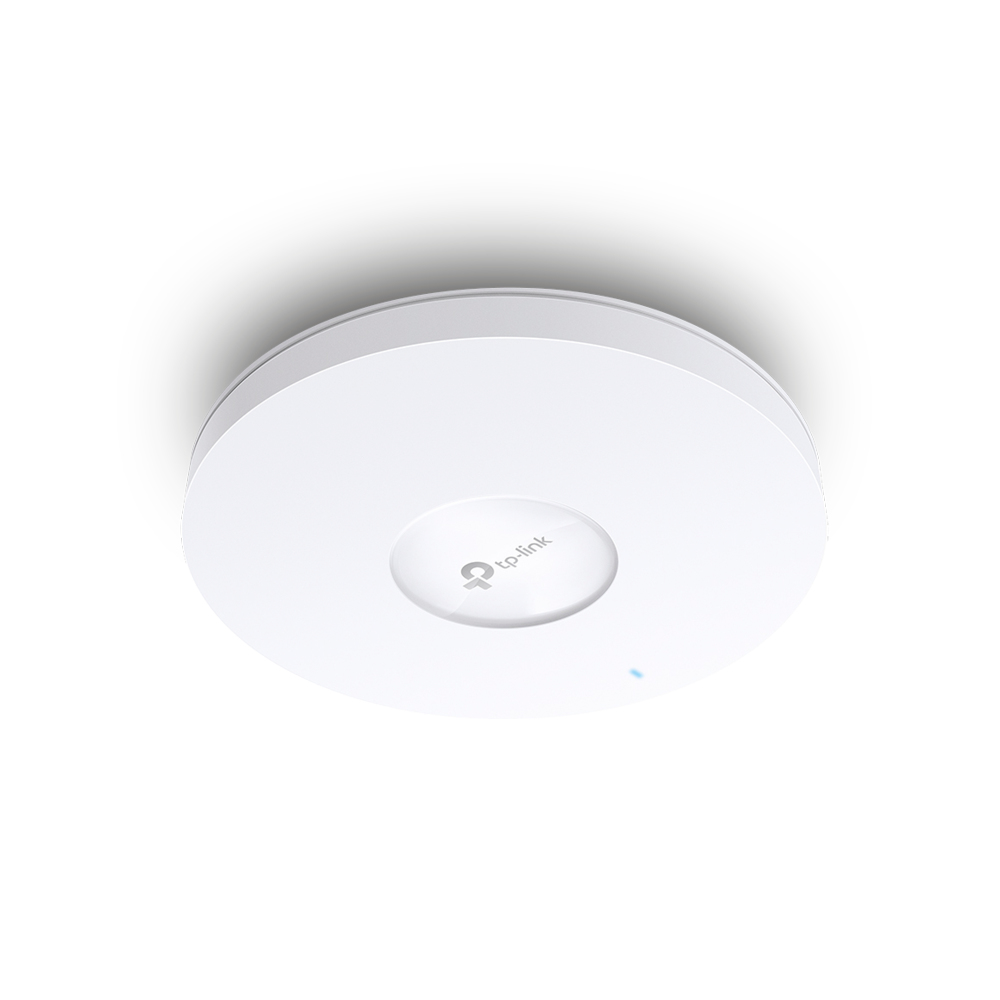

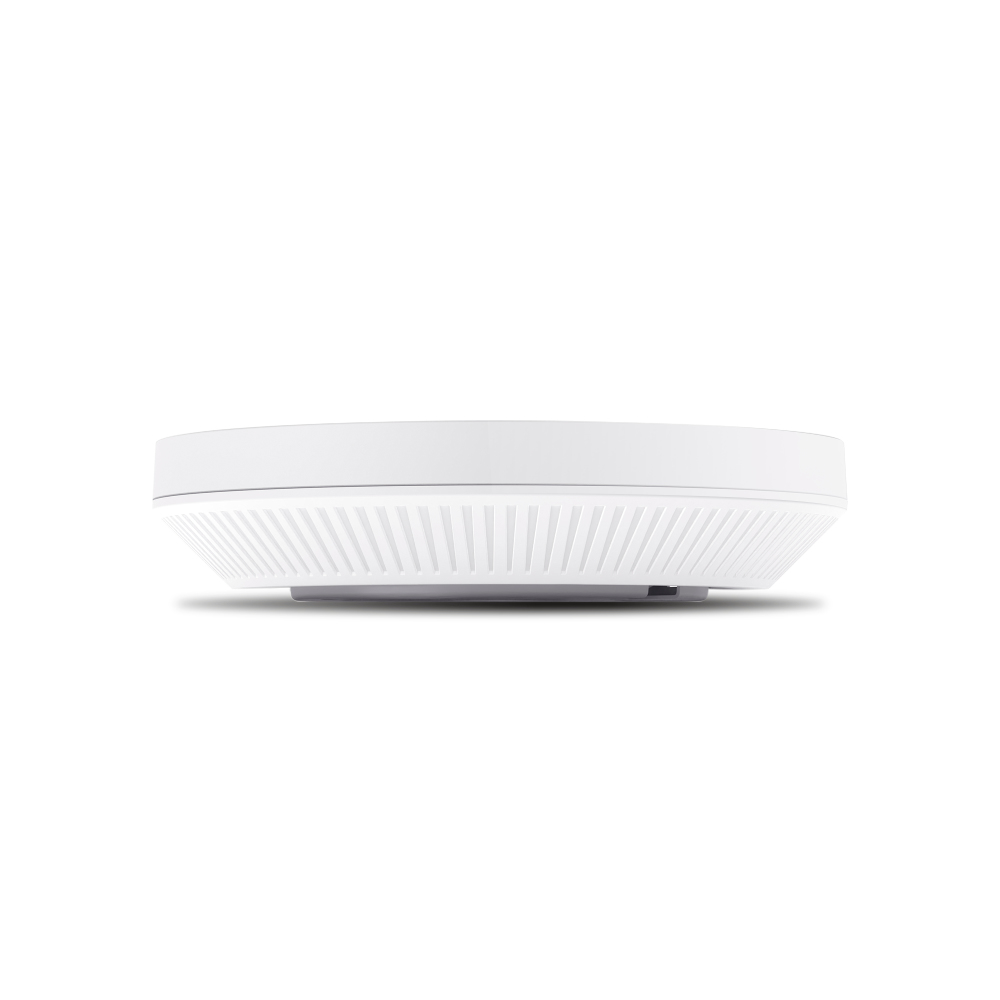

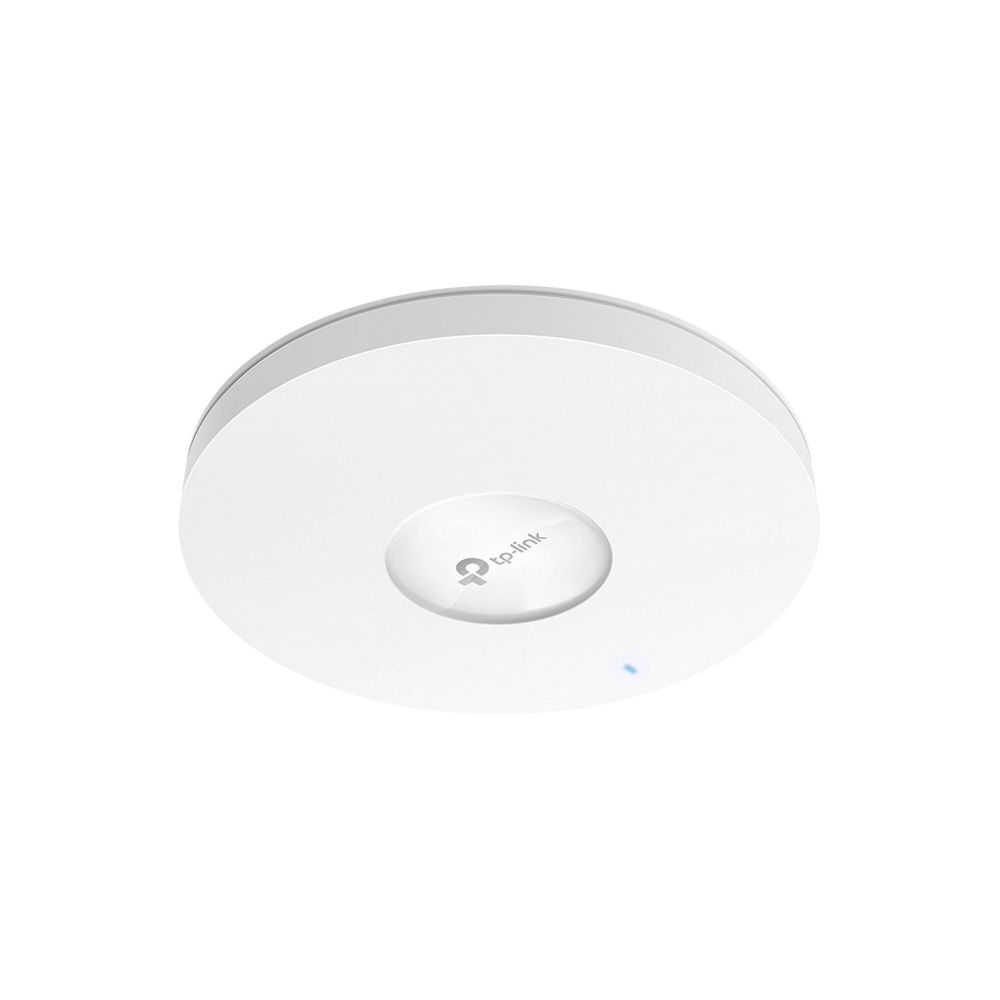

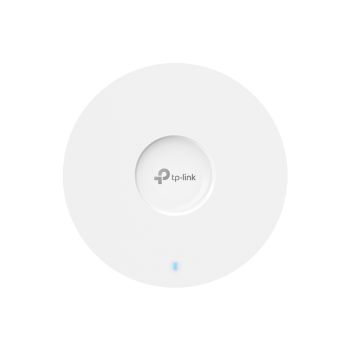

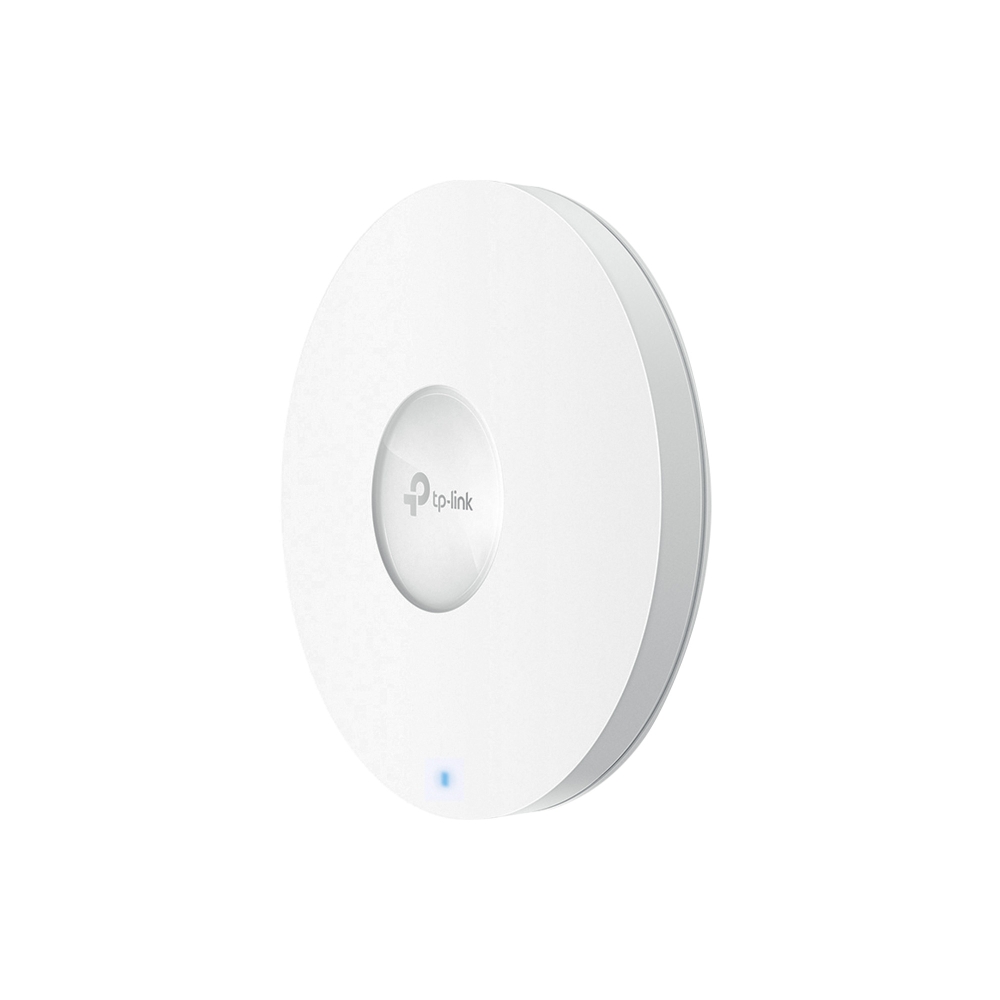

TP-LINK Omada Pro AX1800 Ceiling Mount Wi-Fi 6 Access Point
|
722,96 EUR 749,55 EUR |
|
|
( 860,32 EUR incl. VAT ) ≈ £608.73 | ≈ $811.88 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 19. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1556862 |
| Mfg Part No: | AP9635 |
| UPC/EAN: | 4895252501018 |
| Weight: | 0.71 kg |
| Type: | WRLS |
Further Access Points from TP-LinkFurther products in category Access Points
All products of TP-Link
Product information for TP-Link AP9635:
What This Product Does
AP9635, the Omada Pro AX1800 Ceiling Mount WiFi 6 Access Point, provides overall 1775 Mbps speeds for various high-density environments with WiFi 6 technologies, such as 1024 QAM, Long OFDM Symbol, and more. A built-in Gigabit Ethernet port allows an ultra-fast business network. PoE+ supported also provides flexible installations.
Integrated into the Omada Software Defined Networking (SDN) solution, AP9635 runs in an efficient management way. Centralized and remote management liberate managers and reduce maintenance costs.
High-Density Connectivity with 4× Increased Capacity
OFDMA and MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before. You can enjoy a smooth network even when you are in high-density environments, such as hospitals, restaurants, shopping malls, meeting rooms, railway stations, and more.
Advanced Wi-Fi 6 Speed with 2 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band)†. With 2 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Boosted Network Security
Customizable WIDS and adaptive WIPS assist in safeguarding critical data and network resources. Intelligent Anomaly Detection and Analysis guarantees 24/7 automatic network anomaly analysis to offer timely optimization advice. AP9635 also provides secure WiFi access along with multiple authentication options (SMS/Voucher/RADIUS) and abundant wireless security technologies, such as WPA3 for worry-free open public networks.
Auto Channel Selection and Power Adjustment provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting th
AP9635, the Omada Pro AX1800 Ceiling Mount WiFi 6 Access Point, provides overall 1775 Mbps speeds for various high-density environments with WiFi 6 technologies, such as 1024 QAM, Long OFDM Symbol, and more. A built-in Gigabit Ethernet port allows an ultra-fast business network. PoE+ supported also provides flexible installations.
Integrated into the Omada Software Defined Networking (SDN) solution, AP9635 runs in an efficient management way. Centralized and remote management liberate managers and reduce maintenance costs.
High-Density Connectivity with 4× Increased Capacity
OFDMA and MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before. You can enjoy a smooth network even when you are in high-density environments, such as hospitals, restaurants, shopping malls, meeting rooms, railway stations, and more.
Advanced Wi-Fi 6 Speed with 2 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band)†. With 2 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Boosted Network Security
Customizable WIDS and adaptive WIPS assist in safeguarding critical data and network resources. Intelligent Anomaly Detection and Analysis guarantees 24/7 automatic network anomaly analysis to offer timely optimization advice. AP9635 also provides secure WiFi access along with multiple authentication options (SMS/Voucher/RADIUS) and abundant wireless security technologies, such as WPA3 for worry-free open public networks.
Auto Channel Selection and Power Adjustment provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting th
Produkttyp
- Accesspoint
- ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können
Spezifikationen
- Betriebstemperatur max: 40 °C
- Betriebstemperatur min: 0 °C
Versand
- WEEE: 85565951
Antenne
- Antennentechnologie: intern
- Gewinn: 5 dbi
- Montageart: Decke, Wand
Datenübertragung
- Bluetooth
Grundeigenschaften
- Farbe: Weiß
- Höhe: 33.6 mm
- Länge/Tiefe: 160 mm
- Breite: 160 mm
Lieferumfang
- TP-Link Omada Pro AP9635 WLAN Access Point 1800 Mbit/s Weiß Power over Ethernet (PoE)
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 5 dBi |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | |
| Features | |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11ax, IEEE 802.11az, IEEE 802.11b, IEEE 802.11n |
| Number of users | 1000 user(s) |
| MIMO type | Multi User MIMO |
| 2.4 GHz | |
| 5 GHz | |
| 6 GHz | |
| Automatic channel selection | |
| Automatic channel scanning | |
| MIMO | |
| Wi-Fi Multimedia (WMM)/(WME) | |
| VLAN support | |
| Rate limiting | |
| Band steering | |
| Airtime Fairness (ATF) | |
| Quality of Service (QoS) support | |
| BeamForming | |
| Management features | |
| Web-based management | |
| Syslog | |
| Operational conditions | |
| Operating relative humidity (H-H) | -10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | |
| Quick start guide | |

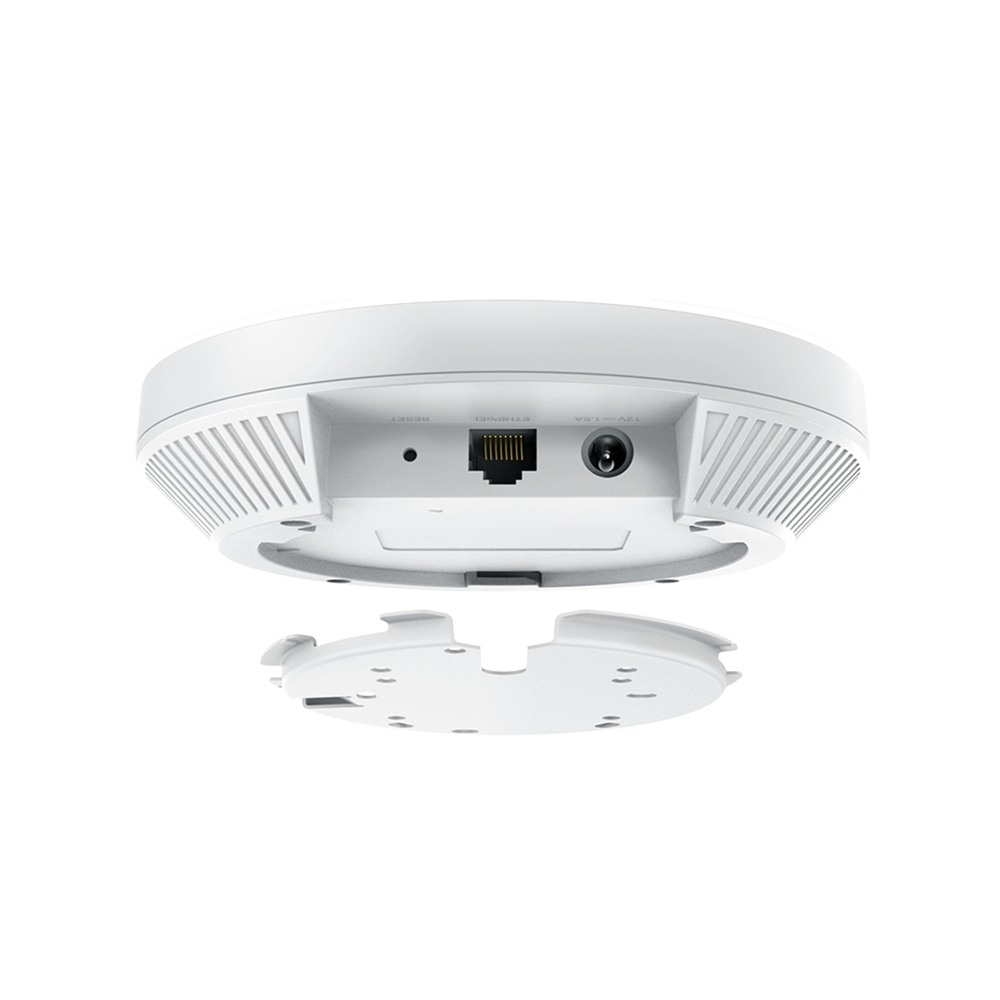

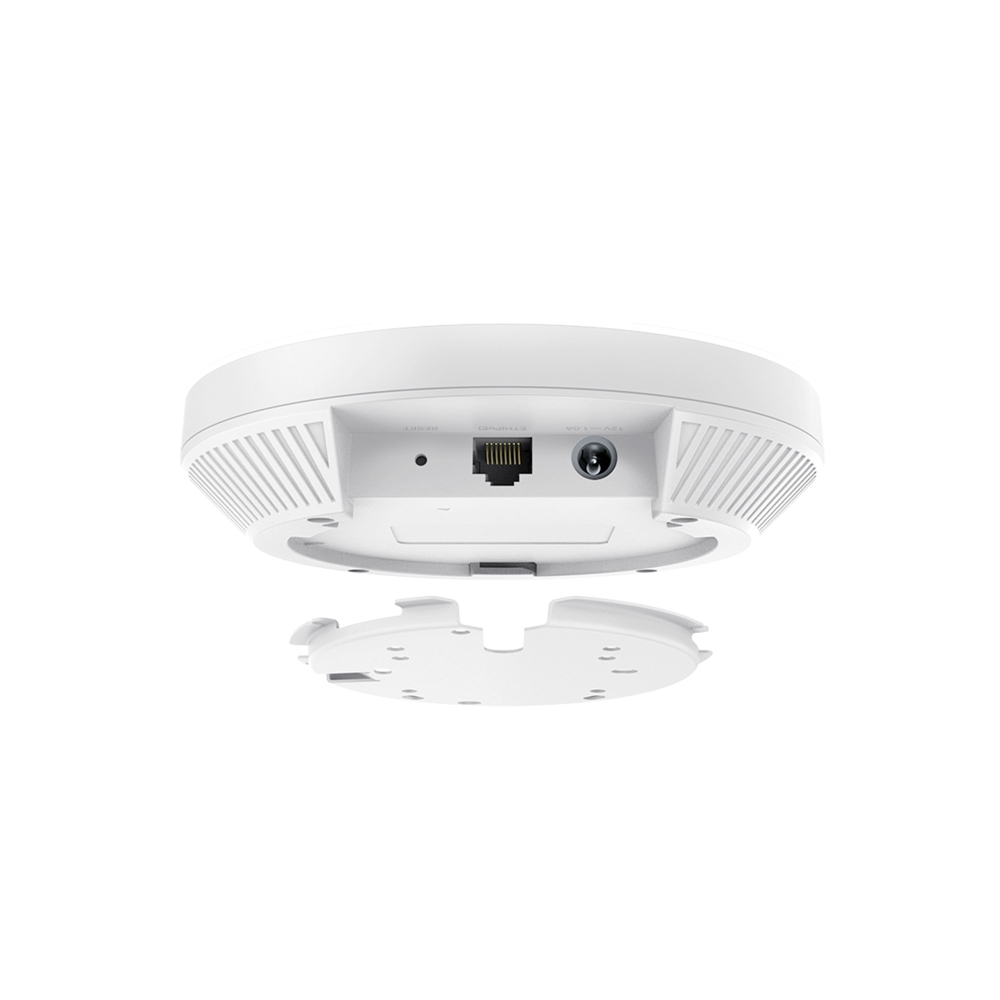

| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | |
| Power | |
| DC voltage range | 12 V |
| Input current | 1.5 A |
| Power over Ethernet (PoE) | |
| Security | |
| Security algorithms | WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| MAC address filtering | |
| Remote Authentication Dial-In User Service (RADIUS) | |
| Access Control List (ACL) | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33.6 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of TP-LINK Omada Pro AX1800 Ceiling Mount Wi-Fi 6 Access Point?
The article TP-LINK Omada Pro AX1800 Ceiling Mount Wi-Fi 6 Access Point is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link AP9635 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-LINK Omada Pro AX1800 Ceiling Mount Wi-Fi 6 Access Point always at the best possible price. We can give you a discount of 2% on TP-LINK Omada Pro AX1800 Ceiling Mount Wi-Fi 6 Access Point if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
