Tekbox TBLM1 / LISN-Mate for separating common mode and differential interference
|
-5% 276,17 EUR 290,70 EUR |
|
|
( 328,64 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Lieske Part No.: | 2113233 |
|---|---|
| Mfg Part No: | TBLM01 |
| Weight: | 0.5 kg |
Product information for Tekbox TBLM01:

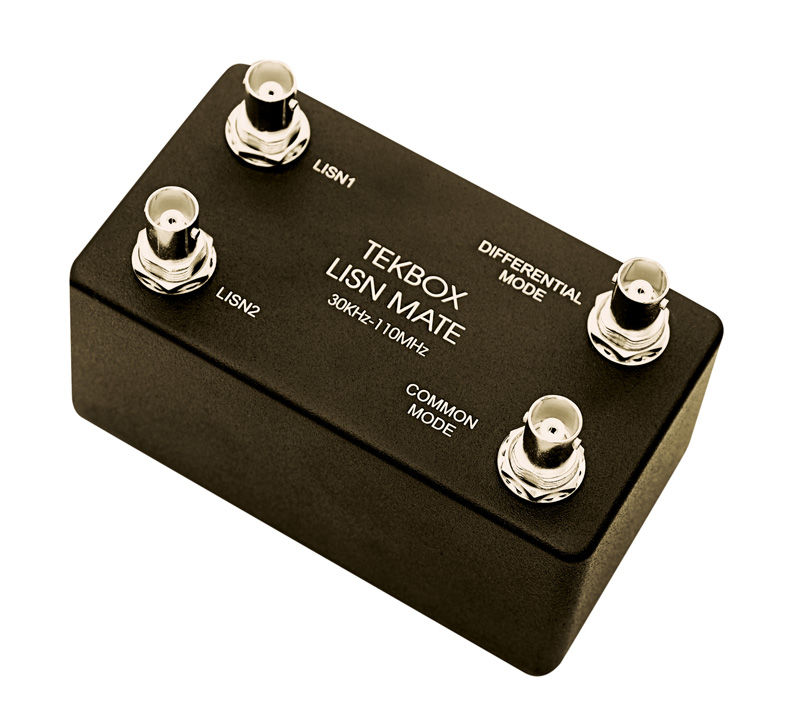

LISN-Mate allows the distinction between differential interference and common mode interference.

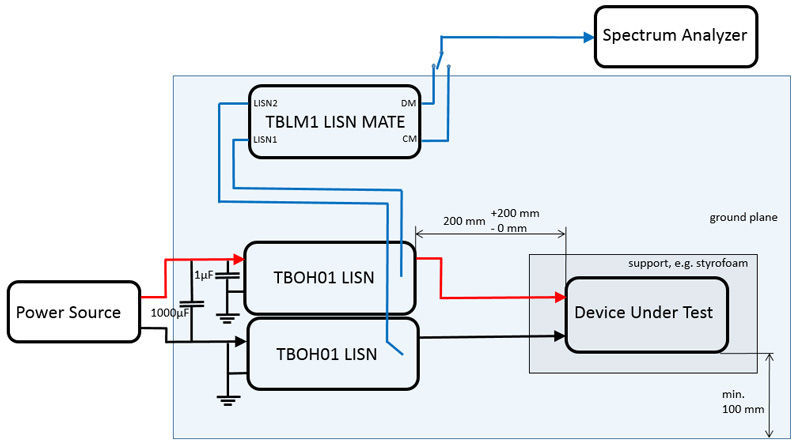

The so-called LISN-Mate TBLM1 is a passive additional device for LISNs that splits the conducted interference signal into its common mode and differential components. The LISN-Mate is connected to the HF output of the LISN in the positive supply line (LISN 1) and to the HF output of the second LISN in the negative supply line (LISN 2). The conducted interference signal at the output of the LISN is always the sum of common mode interference and differential interference signal. The LISN-Mate now splits the two interference components so that they can be measured separately at the two BNC sockets “Differential Mode” and “Common Mode”. It is important to ensure that the connecting cables between the two LISNs and the LISN-Mate are identical in length and structure and have very good HF shielding.
The TBLM1 enables efficient troubleshooting when troubleshooting EMI filters in the power supply. Once the dominant interfering component is determined, the interfering filter components can be more easily identified and specifically optimized. This saves time and costs.

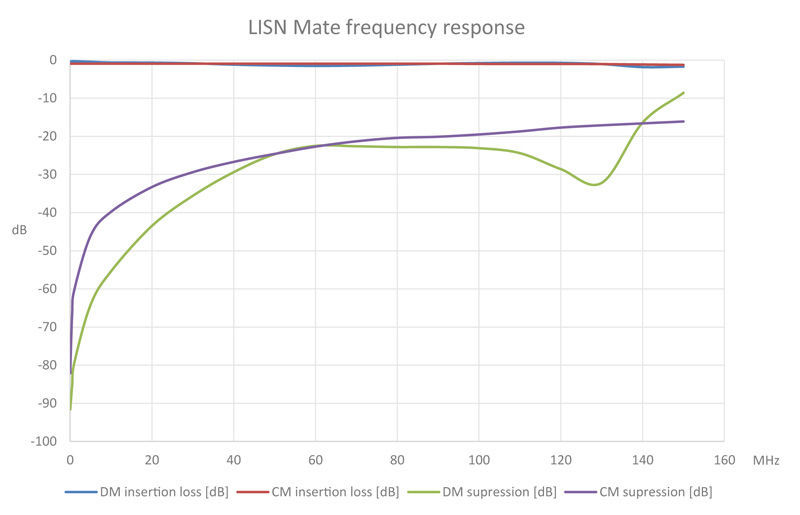

FeaturesFrequency range: 30 kHz…110 MHz RF level on the BNC ports: max. 27 dBm Direct current on the BNC ports: max. 30 mA Scope of delivery
LISN-Mate TBLM1 incl. 2 x coaxial cable (RG-223) from BNC connector to BNC connector (length: 0.35 m).
The so-called LISN-Mate TBLM1 is a passive additional device for LISNs that splits the conducted interference signal into its common mode and differential components. The LISN-Mate is connected to the HF output of the LISN in the positive supply line (LISN 1) and to the HF output of the second LISN in the negative supply line (LISN 2). The conducted interference signal at the output of the LISN is always the sum of common mode interference and differential interference signal. The LISN-Mate now splits the two interference components so that they can be measured separately at the two BNC sockets “Differential Mode” and “Common Mode”. It is important to ensure that the connecting cables between the two LISNs and the LISN-Mate are identical in length and structure and have very good HF shielding.
The TBLM1 enables efficient troubleshooting when troubleshooting EMI filters in the power supply. Once the dominant interfering component is determined, the interfering filter components can be more easily identified and specifically optimized. This saves time and costs.
FeaturesFrequency range: 30 kHz…110 MHz RF level on the BNC ports: max. 27 dBm Direct current on the BNC ports: max. 30 mA Scope of delivery
LISN-Mate TBLM1 incl. 2 x coaxial cable (RG-223) from BNC connector to BNC connector (length: 0.35 m).
Questions & answers
What is the delivery time of Tekbox TBLM1 / LISN-Mate for separating common mode and differential interference?
The article Tekbox TBLM1 / LISN-Mate for separating common mode and differential interference is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Tekbox TBLM01 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Tekbox TBLM1 / LISN-Mate for separating common mode and differential interference always at the best possible price. We can give you a discount of 2% on Tekbox TBLM1 / LISN-Mate for separating common mode and differential interference if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
