Tekbox TBL0550-1 / 5µH DC-LISN
|
-7% 598,20 EUR 640,93 EUR |
|
|
( 711,86 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 2113241 |
|---|---|
| Mfg Part No: | TBL0550-1 |
| Weight: | 2 kg |
Product information for Tekbox TBL0550-1:

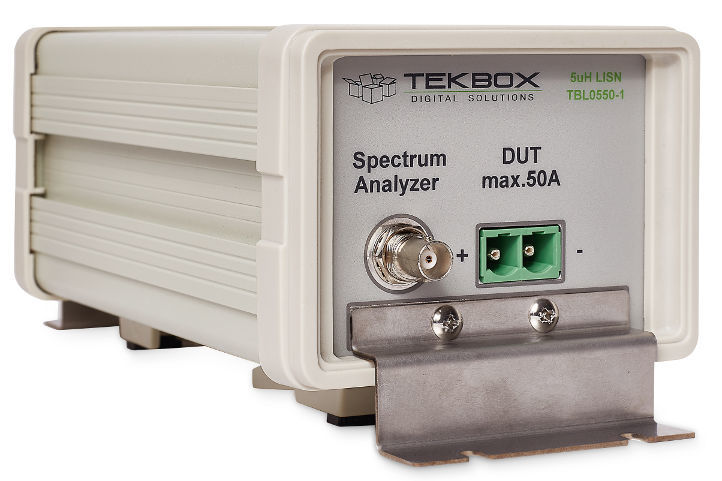

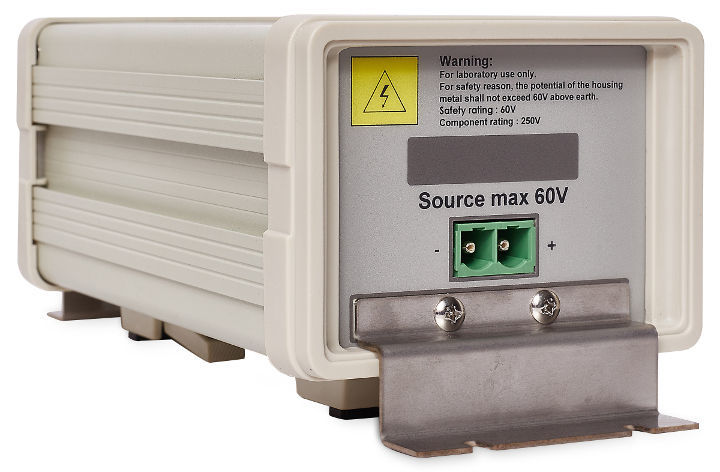

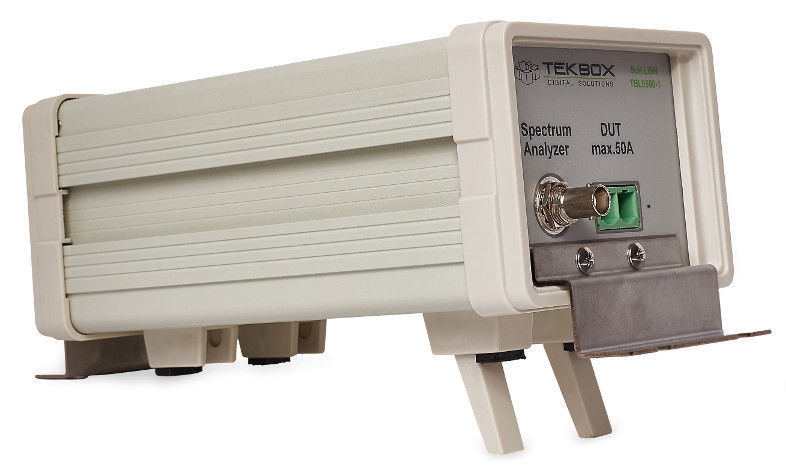

The TBL0550-1 5µH LISN is a device required for setting up conducted noise measurements of DC powered electronic devices. It is intended for measurements in the frequency range 150kHz to 110 MHz according to CISPR 16-1-2, CISPR-25, EN55025, MIL-STD-461F, ISO11452-4 and with limitations DO-160/ED-14G and ISO 7637-2 .
The LISN is inserted into the supply line of the DUT (Device Under Test). Conducted interference that is present on the supply connections of the test object can be measured on the BNC connector with a spectrum analyzer or a measurement receiver. The source (supply) terminal and the DUT terminal are decoupled by an inductance of 5µH.
Two TBL0550-1 in combination with the Tekbox LISN Mate enable the separate measurement of common mode and differential mode noise.
The device is equipped with a BNC male to N male RG232 cable, mating connectors and grounding clips for attachment to a ground plane.
Technical data:
Frequency range: 100 kHz - 150 MHz
DC Resistance: < 5 mO
Maximum current: 50A continuous, 70 A for 3 minutes
Temperature range: 0 - 60V DC
Maximum voltage: 250V
High current plug/screw terminals - male: Phoenix Contact 1998933, female : Phoenix Contact 1967375
1µF capacitor can be separated internally via jumpers.
The LISN is inserted into the supply line of the DUT (Device Under Test). Conducted interference that is present on the supply connections of the test object can be measured on the BNC connector with a spectrum analyzer or a measurement receiver. The source (supply) terminal and the DUT terminal are decoupled by an inductance of 5µH.
Two TBL0550-1 in combination with the Tekbox LISN Mate enable the separate measurement of common mode and differential mode noise.
The device is equipped with a BNC male to N male RG232 cable, mating connectors and grounding clips for attachment to a ground plane.
Technical data:
Frequency range: 100 kHz - 150 MHz
DC Resistance: < 5 mO
Maximum current: 50A continuous, 70 A for 3 minutes
Temperature range: 0 - 60V DC
Maximum voltage: 250V
High current plug/screw terminals - male: Phoenix Contact 1998933, female : Phoenix Contact 1967375
1µF capacitor can be separated internally via jumpers.
Questions & answers
What is the delivery time of Tekbox TBL0550-1 / 5µH DC-LISN?
The article Tekbox TBL0550-1 / 5µH DC-LISN is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Tekbox TBL0550-1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Tekbox TBL0550-1 / 5µH DC-LISN always at the best possible price. We can give you a discount of 2% on Tekbox TBL0550-1 / 5µH DC-LISN if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Tekbox TBL0550-1 / 5µH DC-LISN
 |
Tekbox TBLM1 / LISN-Mate for separating common mode and differential interference
LISN-Mate allows the distinction between differential interference and common mode interference. The so-called LISN-Mate TBLM1 is a passive additional device for LISNs that splits the conducted ... Lieske Part No.: 2113233 Mfg Part No: TBLM01 |
