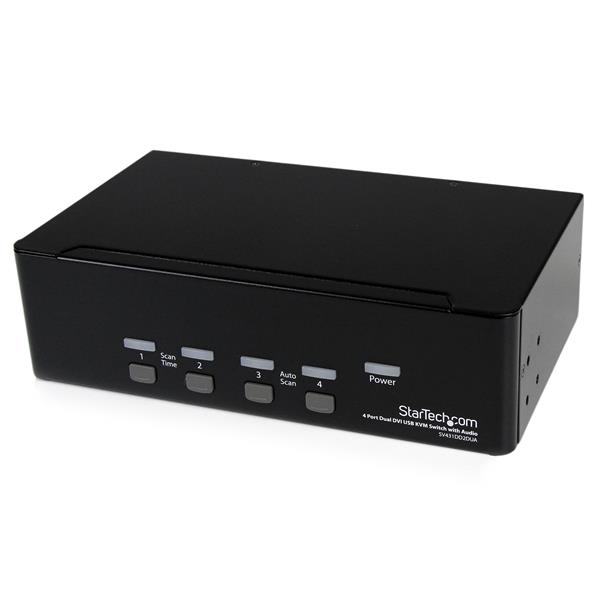

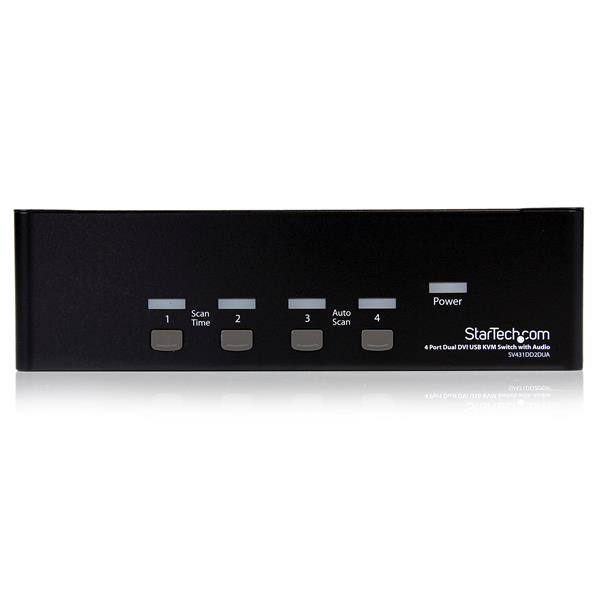

Startech.com SV431DD2DUA 4-Port Dual DVI USB KVM switch with audio and USB 2.0 hub content_copy

The SV431DD2DUA 4-port Dual DVI USB KVM Switch allows up to four PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.

An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.

While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs should output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections.

Design
Product colour	Black
Housing material	Steel
LED indicators	Power
Certification	CE, FCC, UL
Logistics data
Harmonized System (HS) code	85176200
Master (outer) case width	318 mm
Master (outer) case length	510 mm
Master (outer) case height	298 mm
Products per master (outer) case	6 pc(s)
Network
Ethernet LAN
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Other features
IP control

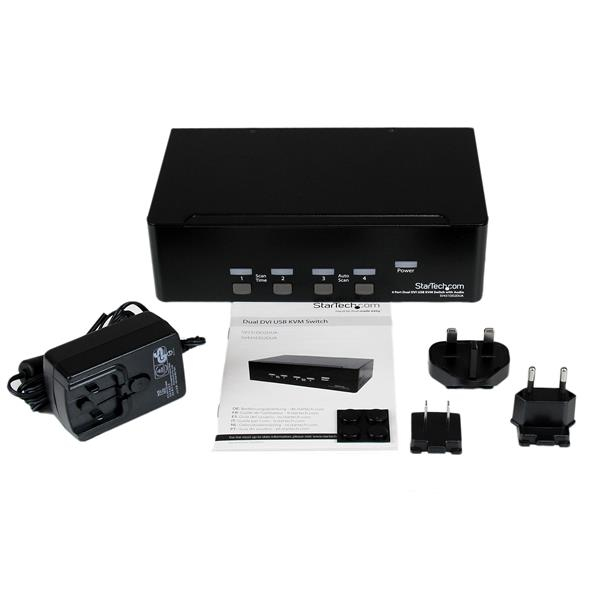

Packaging content
Manual
AC adapter included
Rubber feet
Packaging data
Package width	247 mm
Package depth	295 mm
Package height	86 mm
Package weight	1.88 kg
Performance
Maximum resolution	2048 x 1536 pixels
Maximum digital resolution	1920 x 1200 pixels
Maximum analog resolution	2048 x 1536 pixels
Number of users	1 user(s)
Daisy chain
Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I

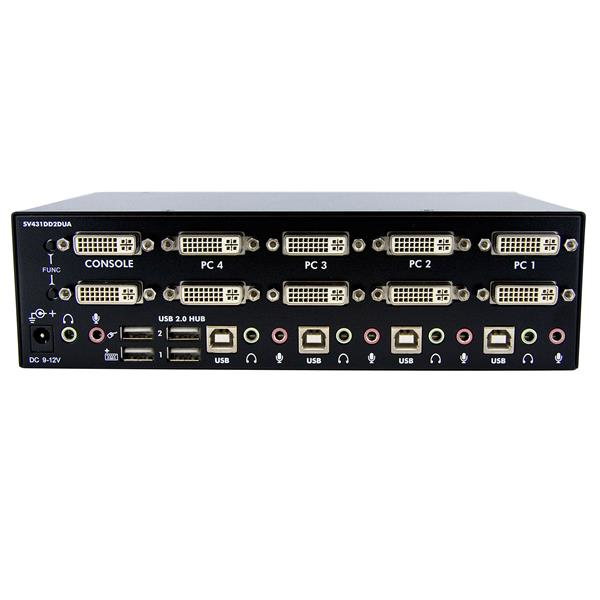

Console ports	3.5mm headphone, 3.5mm mic, DVI-I, USB A
USB 2.0 ports quantity	4
USB connector type	USB Type-A
Number of microphone inputs	1
Audio connections
DC-in jack
Power
Input voltage	100-240 V
Input current	0.8 A
Output voltage	12 V
Output current	1.5 A
Compatible power plug types	AU, EU, UK, US
Sustainability
Compliance certificates	RoHS
Weight & dimensions
Width	220 mm
Depth	130 mm
Height	60 mm
Weight	1.25 kg

---
