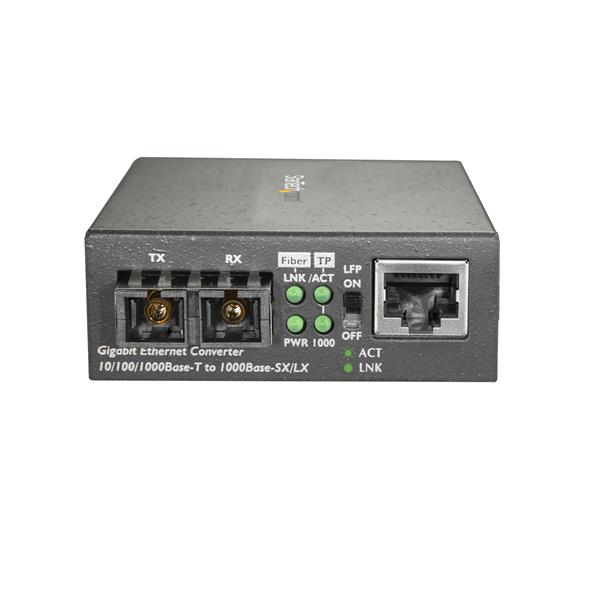

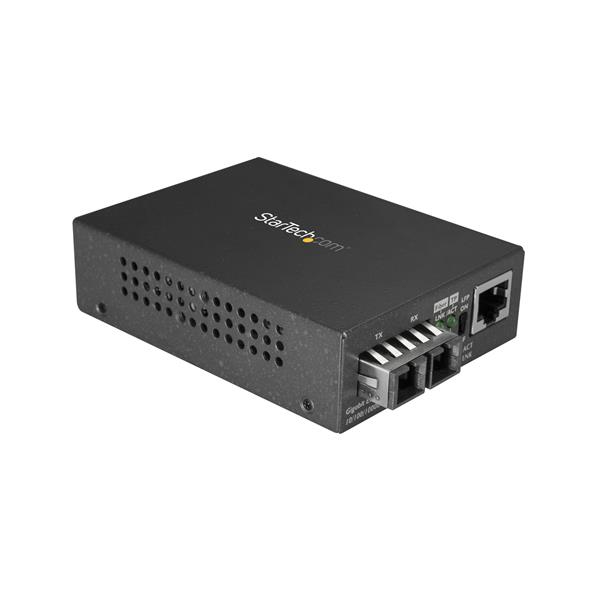

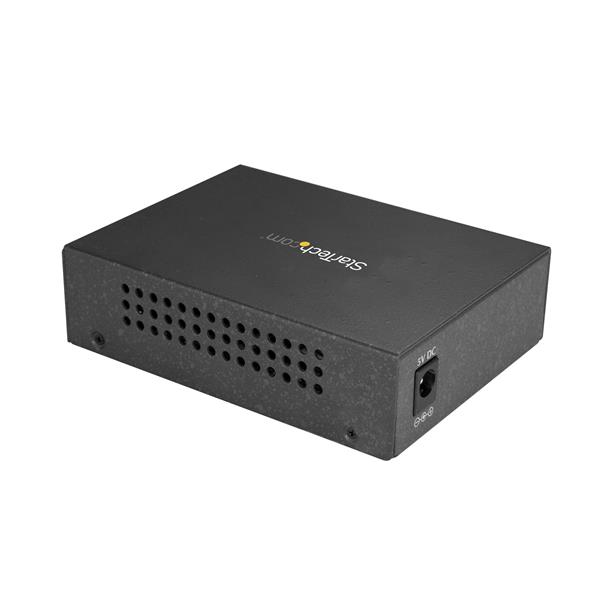

STARTECH.COM Fiber Media Converter - 1000Base-LX - 10km - Single Mode - Fiber to Ethernet Converter - Fiber to Copper Converter
|
96,48 EUR 100,89 EUR |
|
|
( 114,81 EUR incl. VAT ) ≈ £80.75 | ≈ $107.96 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1194409 |
| Mfg Part No: | MCMGBSCSM10 |
| UPC/EAN: | 0065030878241 |
| Weight: | 0.549 kg |
| Type: | PERP |
Product information for Startech.com MCMGBSCSM10:
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Features | |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Internal | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 368 mm |
| Master (outer) case length | 582 mm |
| Master (outer) case height | 306 mm |
| Products per master (outer) case | 20 pc(s) |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T |
| Converter output interface | 100Base-LX |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames | 9000 |
| Duplex system | Full |
| Jumbo frames support | |
| Auto MDI/MDI-X | |
| Store-and-forward | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |

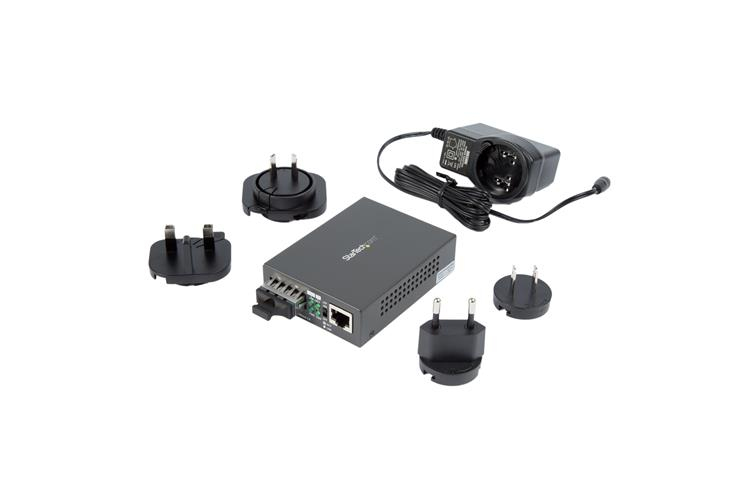

| Packaging content | |
| AC adapter included | |
| Quick installation guide | |
| Packaging data | |
| Package width | 120 mm |
| Package depth | 226 mm |
| Package height | 70 mm |
| Package weight | 560 g |
| Performance | |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 50000 h |
| Wavelength-division multiplexing (WDM) | |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Output voltage | 5 V |
| Output current | 2.6 A |
| Power plug type | Type N |
| External power adapter | |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 70 mm |
| Height | 26 mm |
| Weight | 196 g |
