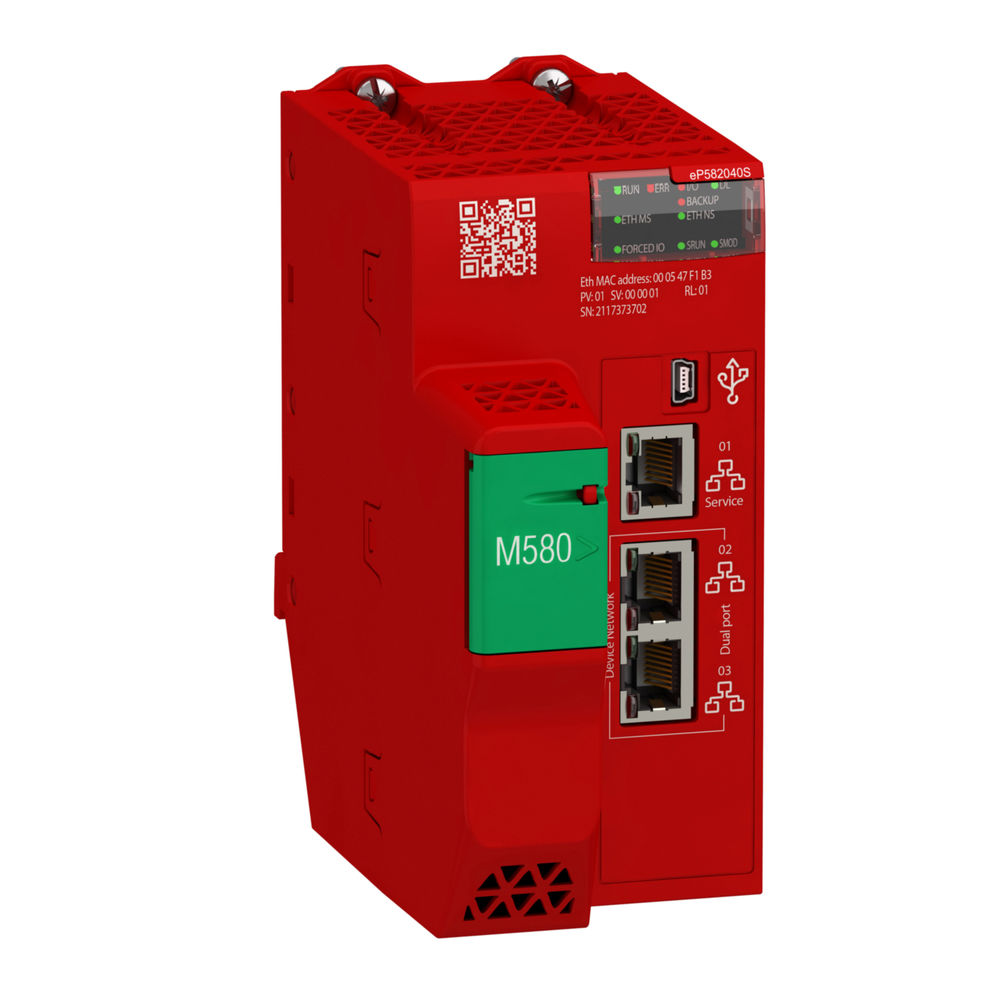

Schneider Electric BMEP582040S
Schneider M580S CPU580-20 DIO + RIO content_copy

This standalone safety processor is part of the Modicon M580 range, a range of programmable logic controllers (PAC/PLC) with integrated functional safety and with integrated Ethernet. It offers a maximum configuration of 4 local racks and 8 remote racks with up to 10,240 digital I/O channels and 2,560 analog I/O channels. This safety product is coated and is compatible with a temperature range of -25°C to +60°C/-13°F to 140°F. This controller can help hybrid manufacturers achieve a better, measurable and earlier ROI and recover up to 100% of their project investment in less than three months. It features 1 Ethernet port for service, 2 Ethernet ports for the ring remote I/O network (remote IO racks only) and 1 USB mini-B port for the programming console. It has an integrated RAM of 8 MB for programs, 768 KB for data, 10 KB for system memory. It has an expandable flash memory of 4 GB for data storage and 2 MB for program security and 512 KB for data security. This product is IP20 rated and offers an MTBF of 767,536 hours. This processor is certified by TÜV Rheinland up to SIL2/SIL3 according to IEC 61508/61511 for processes. Also up to SILCL3 according to IEC 62061 and up to Cat. 4/Ple according to ISO 13849 for machinery and up to SIL4 according to EN 50126/502128/50129 for rail. This module meets the requirements of applications in transportation, water and wastewater, consumer packaged goods, mining, minerals, metals, power generation, energy and chemicals, and data centers. It complies with CE, UL, CSA, RCM, EAC, UKCA, ATEX/IECEx Zone 2/22 and TUV/IEC61508/SIL3 standards and is certified for power generation, merchant marine, railway and hazardous area applications. The CPU must be installed in the rack slots marked 00 and 01, with 2 screws installed on the top of the CPU to hold the module in the rack. This product can be used in combination with Modicon X80 (I/O, backplane, cables) and works with EcoStruxure Control Expert programming software. Modicon M580 improves reliability and sustainability as well as productivity through high performance and increases operational profitability through efficient access to data.
