Schneider Electric BMENOP0300C
Schneider M580 IEC 61850 KOM MODULE CC content_copy

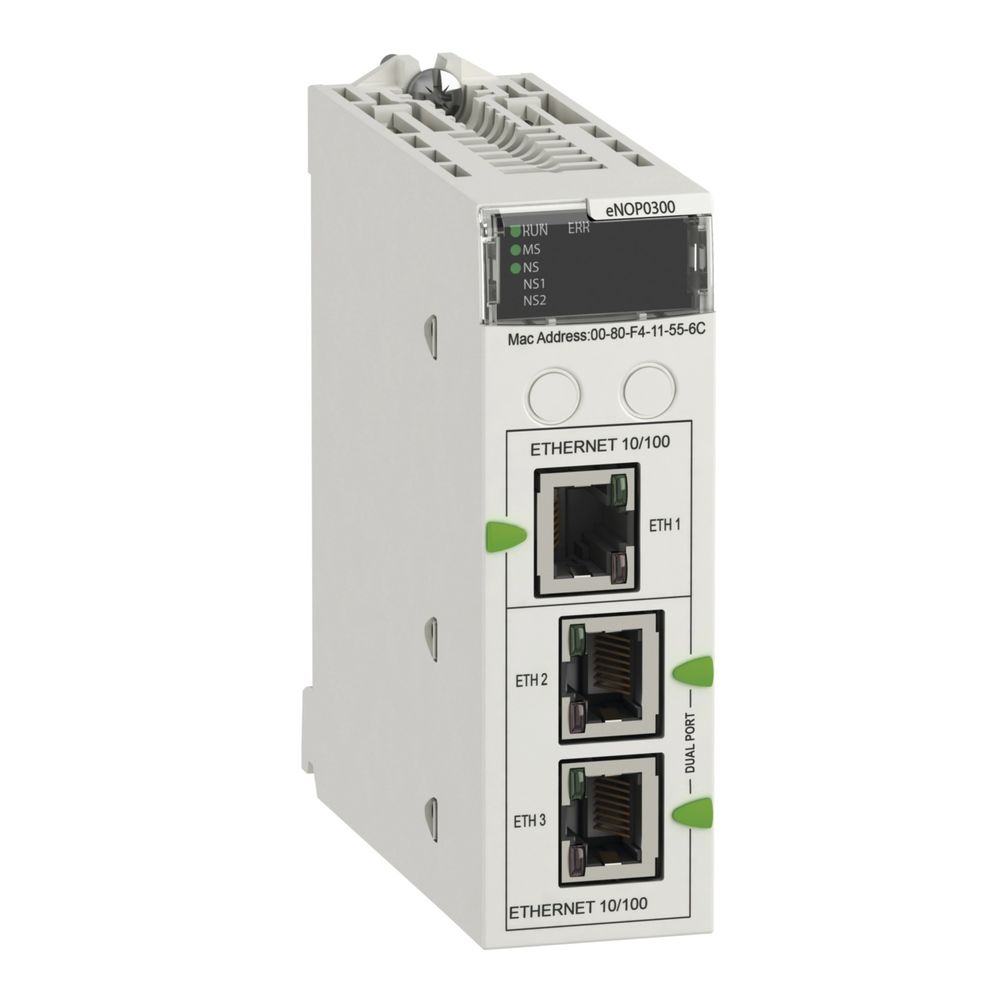

This communication module is part of the Modicon M580 range, a range of programmable automation controllers (PACs) and safety-related programmable logic controllers (PLCs) with integrated Ethernet. The BMENOP0300C module enables IEC 61850 compliant data exchange in industrial, energy and power grid applications. Thanks to a protective coating on the printed circuit board, this product can be used in harsh environments with a temperature range of -25°C to +60°C/-13°F to 140°F. This product can help hybrid manufacturers achieve a better, measurable and earlier ROI and recover their project investment by up to 100% in less than three months. The BMENOP300C module has 3 Ethernet ports. It offers an MMS messaging client for IEC 61850, an MMS messaging server for IEC 61850, Goose for IEC 61850 and Modbus TCP messaging. It measures 32x100x86mm and weighs 0.345kg. This module meets the requirements of applications in transportation, water and wastewater, consumer packaged goods, mining, minerals, metals, power generation, energy and chemicals and data centers. This product complies with CE, UL, CSA, RCM, EAC, UKCA and ATEX/IECEx standards for Zone 2/22 and is certified for power generation, merchant marine, railway and hazardous area applications. This connector assembly is compatible with the full range of M580 CPUs and must be installed on a BMEXBPxxx - Ethernet + X-Bus module carrier. The communication module occupies one slot in the rack. This product can be used in combination with Modicon X80 (I/O, module carrier, cables) and works with the EcoStruxure Control Expert programming software.
