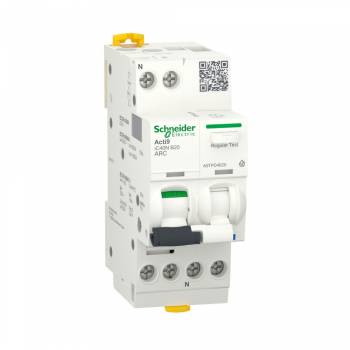

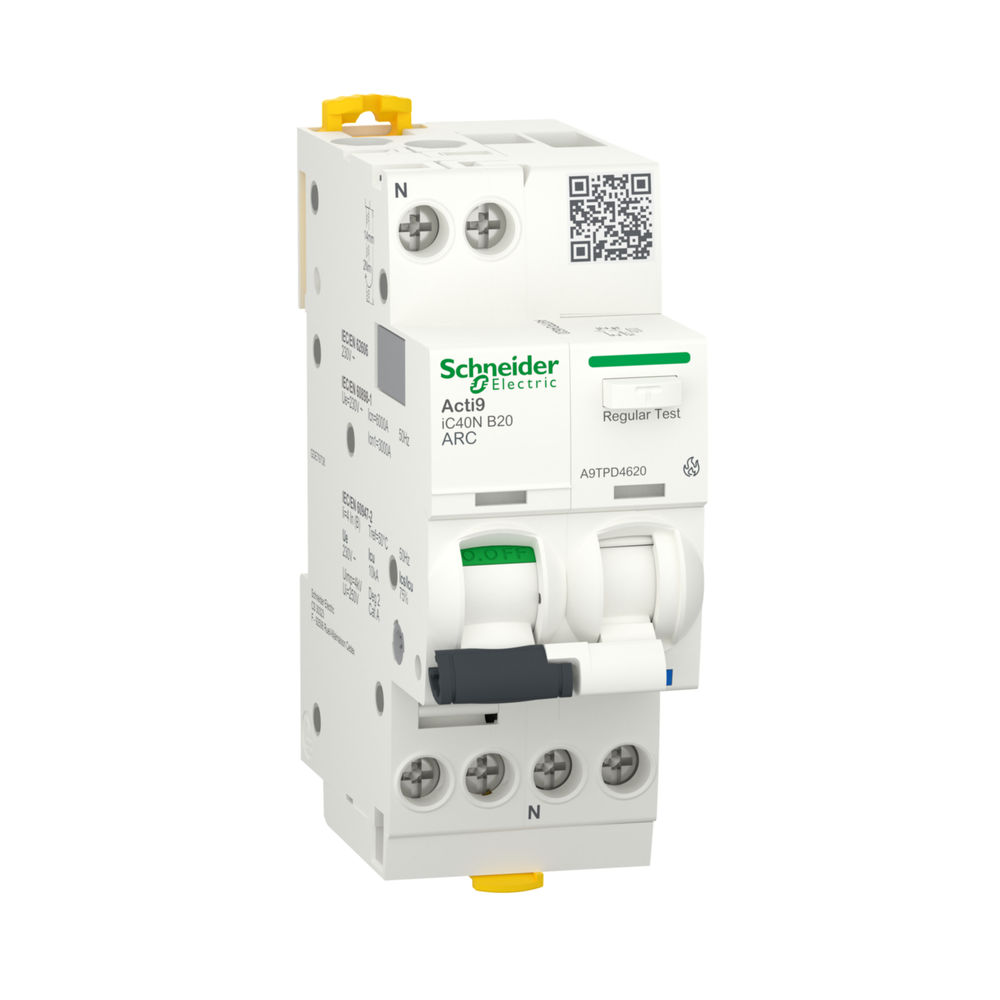

Schneider Electric A9TPD4620
Schneider ACTI9 IC40N ARC 1P+N 20A B AFDD +LS-switch
|
201,40 EUR 209,88 EUR |
|||||||||||
|
( 239,67 EUR incl. VAT ) ≈ £172.80 | ≈ $233.42 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 2106975 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | A9TPD4620 | ||||||||||
| UPC/EAN: | 3606481906243 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schneider Electric A9TPD4620:
Acti9 iC40N ARC - is an AFDD (arc fault protection device/arc protection switch) for detecting arc faults in combination with a miniature circuit breaker. 1P+N, 20A rated current and B characteristic. The rated short-circuit breaking capacity is up to 6000A at 230VAC according to EN/IEC 60898-1 and 10kA at 230VAC according to EN/IEC 60947-2. This AFDD in combination with the miniature circuit breaker protects circuits against short circuits, overload current and fire hazards caused by arc faults. The integrated snap-action switching (switching by spring force) of the switching mechanism increases the service life. The two unique VisiTrip displays of the Acti9 iArc reduce intervention time by showing the failed circuit and allowing the type of fault to be quickly identified. The electrical life is up to 10,000 and the mechanical life up to 20,000 switching cycles. The rated insulation voltage Ui is 250VAC. Limitation class 3 (according to EN/IEC60898-1). The product can be clipped onto a DIN rail. Its width is 2 HP. Pollution degree 2. Product color white (RAL9003). Dimensions (W) 36mm x (H) 91mm x (D)73mm. Degree of protection IP20 (according to IEC/EN 60529) and IP20 once installed in a modular housing. This product is compliant with standards EN/IEC 62606, EN/IEC 60898-1 and EN/IEC 60947-2.
Type: A9TPD4620
Type: A9TPD4620
Questions & answers
What is the delivery time of Schneider Electric A9TPD4620 Schneider ACTI9 IC40N ARC 1P+N 20A B AFDD +LS-switch?
The article Schneider Electric A9TPD4620 Schneider ACTI9 IC40N ARC 1P+N 20A B AFDD +LS-switch is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric A9TPD4620 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric A9TPD4620 Schneider ACTI9 IC40N ARC 1P+N 20A B AFDD +LS-switch always at the best possible price. We can give you a discount of 2% on Schneider Electric A9TPD4620 Schneider ACTI9 IC40N ARC 1P+N 20A B AFDD +LS-switch if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Schneider Electric A9TPD4620 Schneider ACTI9 IC40N ARC 1P+N 20A B AFDD +LS-switch we can offer you a price of 195,36 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
