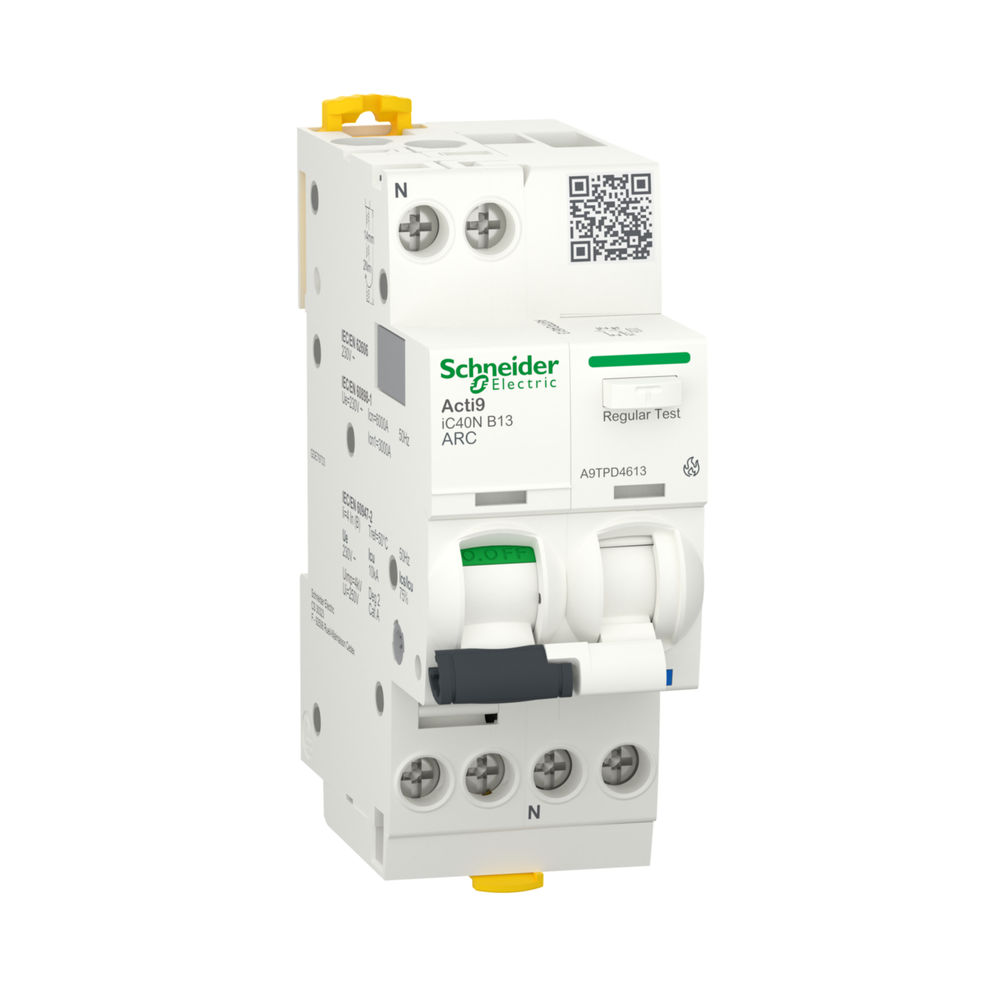

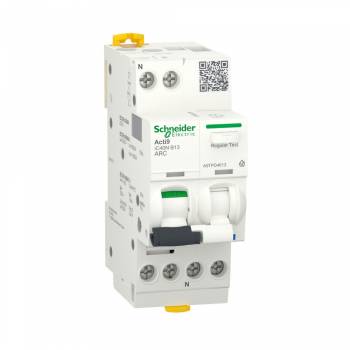

Schneider Electric A9TPD4613 Schneider ACTI9 IC40N ARC 1P+N 13A B AFDD +LS-switch

This image may differ from the desired article.

193,04 EUR

( 229,72 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry

Lieske Part No.:

2106973

Mfg Part No:

A9TPD4613

UPC/EAN:

3606481906205

Weight:

0.12 kg

Graduated prices net

From pieces	Price per pieces
5	181,46 EUR
10	169,88 EUR
15	158,29 EUR
20	146,71 EUR

All products of Schneider Electric

Product information for Schneider Electric A9TPD4613:

Acti9 iC40N ARC - is an AFDD (arc fault protection device/arc protection switch) for detecting arc faults in combination with a miniature circuit breaker. 1P+N, 13A rated current and B characteristic. The rated short-circuit breaking capacity is up to 6000A at 230VAC according to EN/IEC 60898-1 and 10kA at 230VAC according to EN/IEC 60947-2. This AFDD in combination with the miniature circuit breaker protects circuits against short circuits, overload current and fire hazards caused by arc faults. The integrated snap-action switching (switching by spring force) of the switching mechanism increases the service life. The two unique VisiTrip displays of the Acti9 iArc reduce intervention time by showing the failed circuit and allowing the type of fault to be quickly identified. The electrical life is up to 10,000 and the mechanical life up to 20,000 switching cycles. The rated insulation voltage Ui is 250VAC. Limitation class 3 (according to EN/IEC60898-1). The product can be clipped onto a DIN rail. Its width is 2 HP. Pollution degree 2. Product color white (RAL9003). Dimensions (W) 36mm x (H) 91mm x (D)73mm. Degree of protection IP20 (according to IEC/EN 60529) and IP20 once installed in a modular housing. This product is compliant with standards EN/IEC 62606, EN/IEC 60898-1 and EN/IEC 60947-2.
Type: A9TPD4613

Questions & answers

What is the delivery time of Schneider Electric A9TPD4613 Schneider ACTI9 IC40N ARC 1P+N 13A B AFDD +LS-switch?

The article Schneider Electric A9TPD4613 Schneider ACTI9 IC40N ARC 1P+N 13A B AFDD +LS-switch is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric A9TPD4613 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Schneider Electric A9TPD4613 Schneider ACTI9 IC40N ARC 1P+N 13A B AFDD +LS-switch always at the best possible price. We can give you a discount of 2% on Schneider Electric A9TPD4613 Schneider ACTI9 IC40N ARC 1P+N 13A B AFDD +LS-switch if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schneider Electric A9TPD4613 Schneider ACTI9 IC40N ARC 1P+N 13A B AFDD +LS-switch we can offer you a price of 181,46 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
