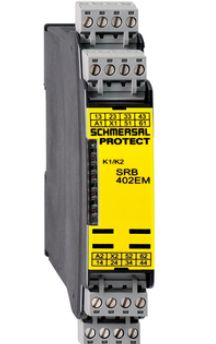

Schmersal SRB 402EM output extension 101170840
|
245,23 EUR |
|||||||||||
|
( 291,82 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1331129 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101170840 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101170840:
Order Data:
- Replaces Article Number: 101175611
- Product Type: SRB402EM
- Article Number (Order Number): 101170840
- EAN (European Article Number): 4250116201518
eCl@ss Number:
- Version 12.0: 27-37-18-19
- Version 11.0: 27-37-18-19
- Version 9.0: 27-37-18-19
ETIM Number:
- Version 7.0: EC001449
- Version 6.0: EC001449
Approvals - Regulations:
- Certificates: - cULus
- Regulations: - EN IEC 62061
- Environmental Condition: EN 60068-2-78
- Housing Material: Plastic, glass-fiber reinforced thermoplastic, ventilated
- Gross Weight: 250 g
- CCC
General Data:
- EN ISO 13849-1
- EN IEC 60947-5-1
- EN IEC 60947-5-3
- EN IEC 60947-5-5
- EN IEC 61508
- EN IEC 60204-1
- EN IEC 60947-1
General Data - Features:
- Wire Break Detection: Yes
- Removable Terminals: Yes
- Feedback Loop: Yes
- Automatic Reset Function: Yes
- Ground Fault Detection: Yes
- Integrated Status Display: Yes
- Number of Auxiliary Contacts: 2
- Number of LEDs: 1
- Number of NC Contacts: 1
- Number of Safety Contacts: 4
Safety Consideration:
- Regulations: - EN ISO 13849-1
- Stop Category: 0
- EN IEC 61508
Mechanical Data:
- Mechanical Lifespan, Minimum: 10,000,000 Switching Cycles
- Mounting: Quick Mounting on Standard Rail According to DIN EN 60715
- Connection Type: Plug-in Screw Terminals
- Connection Cross-Section, Minimum: 0.25 mm²
- Connection Cross-Section, Maximum: 2.5 mm²
- Terminal Torque: 0.6 Nm
Environmental Conditions:
- Enclosure Protection: IP40
- Installation Area Protection: IP40
- Terminal Protection: IP40
- Operating Temperature: -25 ... +45 °C
- Storage and Transport Temperature: -40 ... +85 °C
- Vibration Resistance: 10 ... 55 Hz, Amplitude 0.35 mm
- Shock Resistance: 10 g / 11 ms
Electrical Data:
- Frequency Range: 50 Hz / 60 Hz
- Operating Voltage: 24 VAC -15 % / +10 %, 24 VDC -15 % / +20 %
- Ripple: 10 %
- Rated Operating Voltage: 24 VAC / 24 VDC
- Power Consumption: 1 W / 1 VA
Status Display:
- Displayed Functions: Relay Position K1/K2
Note:
- Inductive loads (contactors, relays, etc.) must be protected by appropriate circuits.
- Power Level: 1-channel control of the expansion module suitable for contact amplification or multiplication.
Type: SRB402EM
Questions & answers
What is the delivery time of Schmersal SRB 402EM output extension 101170840?
The article Schmersal SRB 402EM output extension 101170840 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101170840 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal SRB 402EM output extension 101170840 always at the best possible price. We can give you a discount of 2% on Schmersal SRB 402EM output extension 101170840 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal SRB 402EM output extension 101170840 we can offer you a price of 241,55 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
