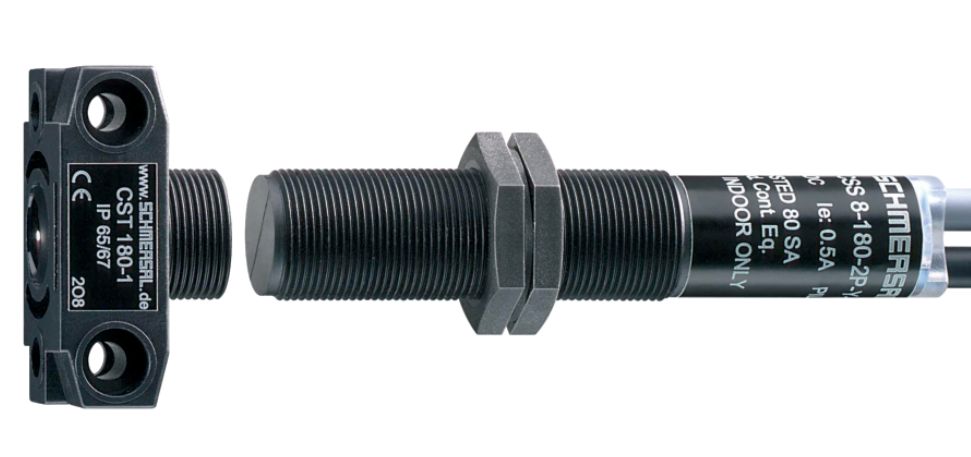

Schmersal CSS 8-180-2P+DEL safety sensor 101169552
|
268,08 EUR |
|||||||||||
|
( 319,02 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1311710 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101169552 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101169552:
This sensor features two safe digital outputs and an additional diagnostic output for status reporting. It also includes a multi-color LED that displays the sensor's status in green, red, and yellow. The switching distance is 8 mm, with secured switching distances of 7 mm (ON) and 10 mm (OFF).
The housing is made of glass-fiber reinforced thermoplastic, ensuring robustness and durability. The sensor is non-flush mountable and has an M18 thread. It connects via a 5-pin cable and operates at 24 VDC. With protection ratings of IP65 and IP65, it is suitable for industrial environments.
Technical Data:
Product Type:- CSS 8-180-2P+D-E-L
Order Number:
- 101169552
EAN:
- 4030661295954
eCl@ss Numbers:
- Version 12.0: 27-27-46-01
- Version 11.0: 27-27-24-03
- Version 9.0: 27-27-24-03
ETIM Numbers:
- Version 7.0: EC001829
- Version 6.0: EC001829
Approvals:
- TÜV
- cULus
- UKCA
Standards:
- EN IEC 60947-5-3
- EN IEC 61508
Operating Principle:
- Inductive
Housing Shape:
- Cylinder, threaded
Mounting Conditions:
- Non-flush
Housing Material:
- Plastic, glass-fiber reinforced thermoplastic
Response Time, maximum:
- 30 ms
Gross Weight:
- 150 g
Switching Distances:
- Typical switching distance: 8 mm
- Secured switching distance ON Sao: 7 mm
- Secured switching distance OFF Sar: 10 mm
Connection Technology:
- Cable Length: 2 m
- Connection Type: 5-pin cable
Safe Digital Outputs:
Diagnostic Output:
Pin Assignment:
Scope of Delivery:
Accessories:
Type: CSS 8-180-2P+D-E-L
Questions & answers
What is the delivery time of Schmersal CSS 8-180-2P+DEL safety sensor 101169552?
The article Schmersal CSS 8-180-2P+DEL safety sensor 101169552 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101169552 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal CSS 8-180-2P+DEL safety sensor 101169552 always at the best possible price. We can give you a discount of 2% on Schmersal CSS 8-180-2P+DEL safety sensor 101169552 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal CSS 8-180-2P+DEL safety sensor 101169552 we can offer you a price of 264,06 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
