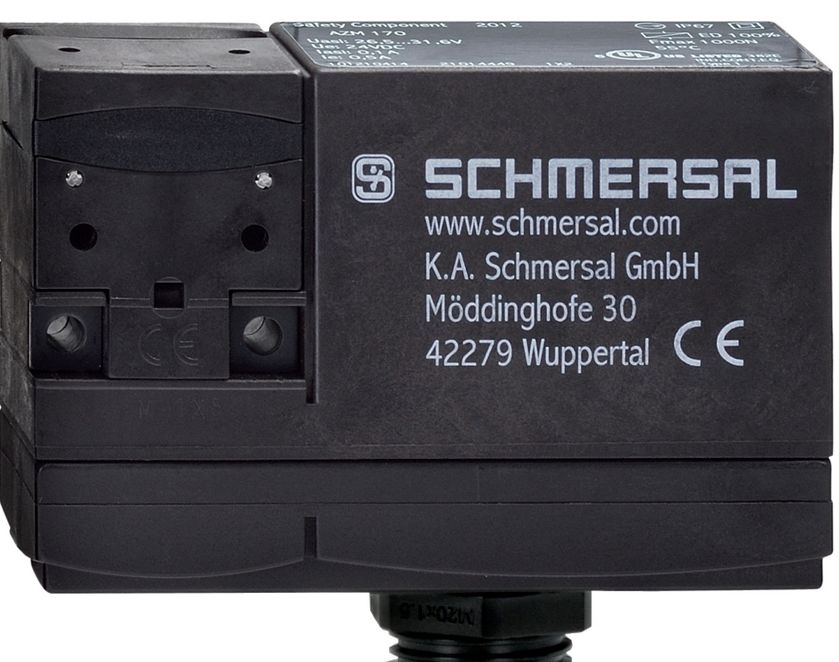

Schmersal AZM 170-02ZRK 230VAC safety locking device 101136322

Product Description in English:

The AZM 170-02ZRK 230VAC is an electromechanical safety switch designed to ensure the safety of personnel operating machinery. With a maximum holding force of 1,300 N and a robust, glass-fiber reinforced thermoplastic housing, it meets high safety standards. The device operates on the closed-circuit principle, supports up to two approach directions, and features two galvanically separated safety contacts. The cutting clamp connection technology allows for flexible wiring without additional ferrules.

Technical Data:

Product Type Designation:

• AZM 170-02ZRK 230VAC

Order Number:

• 101136322

EAN:

• 4030661056296

Approvals and Standards:

• Certifications: IFA, cULus, CCC
• Standards:
- EN ISO 13849-1
- EN ISO 14119
- EN IEC 60947-5-1


General Data:

• Coding Level per EN ISO 14119: Low
• Operating Principle: Electromechanical
• Housing Material: Plastic, glass-fiber reinforced thermoplastic
• Gross Weight: 272 g
• Closed-Circuit Principle: Yes
• Number of Approach Directions: 2
• Number of Safety Contacts: 2

Safety Considerations:

• Performance Level: Up to category c (single-channel) or d (two-channel with appropriate logic unit)
• Service Life: 20 years
• B10D NC Contacts: 2,000,000 operations

Mechanical Data:

• Mechanical Lifespan: At least 1,000,000 operations
• Holding Force (EN ISO 14119): 1,000 N
• Maximum Holding Force: 1,300 N
• Latching Force: 30 N
• Forced Opening Distance: 11 mm
• Maximum Actuation Speed: 2 m/s
• Mounting: Screws (2x M5, tightening torque 0.7–1 Nm, Torx T10)

Connection Technology:

• Cable Entry: 1 x M20 x 1.5
• Connection Type: Cutting clamp technology
• Conductor Cross-Section: 0.75–1 mm² (flexible)

Dimensions:

• Length: 30 mm
• Width: 90 mm
• Height: 84 mm

Environmental Conditions:

• Protection Class: IP67
• Operating Temperature: -25 ... +60 °C
• Relative Humidity: Non-condensing, non-freezing
• Safety Class: II
• Permissible Installation Height: Up to 2,000 m above sea level

Electrical Data:

• Rated Control Supply Voltage: 230 VAC
• Maximum Electrical Power Consumption: 12 W
• Switching Element: 2 NC, galvanically separated contact bridges
• Maximum Switching Frequency: 1,000/h
• Voltage Operating Category AC-15: 230 VAC / 4 A
• Voltage Operating Category DC-13: 24 VDC / 4 A

Additional Information:

• Application Areas:
- Sliding guards
- Removable guards
- Rotating guards


Scope of Delivery:

• Actuator not included
• Cover plate

Notes:

• Cutting clamp technology enables easy connection without ferrules.
• Manual release with triangular key M5 (available as an accessory).

Type: AZM 170-02ZRK 230VAC
