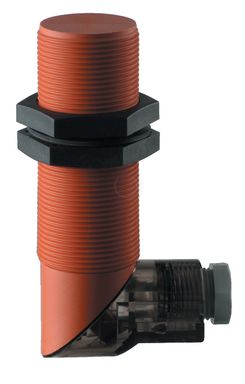

Schmersal 101126971 Inductive proximity switches, IFL 15-300L-10/01P
|
101,16 EUR |
|||||||||||
|
( 120,38 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 576784 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101126971 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101126971:
Technical Data:
Product Designation:- IFL 15-300L-10/01P
Article Number:
- 101126971
EAN:
- 4030661278032
Certifications and Standards:
- CCC
- DIN VDE 0660-208, EN IEC 60947-5-2
Housing Design:
- Cylinder, threaded
Materials:
- Housing: Plastic
- Active Face: Plastic
- Nut: Plastic
- Pressure Disk: Perbunan®
Gross Weight:
- 70 g
Features:
- Integrated Indicator: Status indicator (yellow LED)
- Number of Wires: 3
Mechanical Data:
- Nut Tightening Torque: Max. 4 Nm
- Nominal Switching Distance (Sn): 15 mm
Connection Technology:
- Connection Type: Screw terminal PG9
- Max. Conductor Cross-section: 1 x 1.5 mm²
Dimensions:
- ISO Thread: M30
- Wrench Size: 36 SW
- Sensor Length: 118 mm
Environmental Conditions:
- Protection Rating: IP65
- Ambient Temperature: -25 °C to +70 °C
- Vibration Resistance: 10 … 55 Hz, Amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
- Protection Class: II
Electrical Data:
- Voltage Type: DC
- Idle Current (typical): 5.5 mA
- Operating Voltage: 10 … 60 VDC
- Operating Current: 400 mA
- Switching Element: Normally Open (NO) or Normally Closed (NC)
- Protective Circuits: - Inductive protection
- Switching Frequency: Approx. 100 Hz
- Polarity reversal protection
Digital Outputs:
- Voltage Drop (Du): Max. 1.5 V
- Current at Voltage Drop (Du): 0.4 A
- Switching Elements: p-switching
Note:
- Nuts can be replaced with a clamping bracket upon request.
- Programming in the terminal area is possible by repositioning the connector.
Type: IFL 15-300L-10/01P
