Schmersal IFL 10-30-10/01YG Indian proximity switch 2L AC cylinder weight 101056832
|
123,42 EUR |
|||||||||||
|
( 146,87 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1312638 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101056832 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101056832:

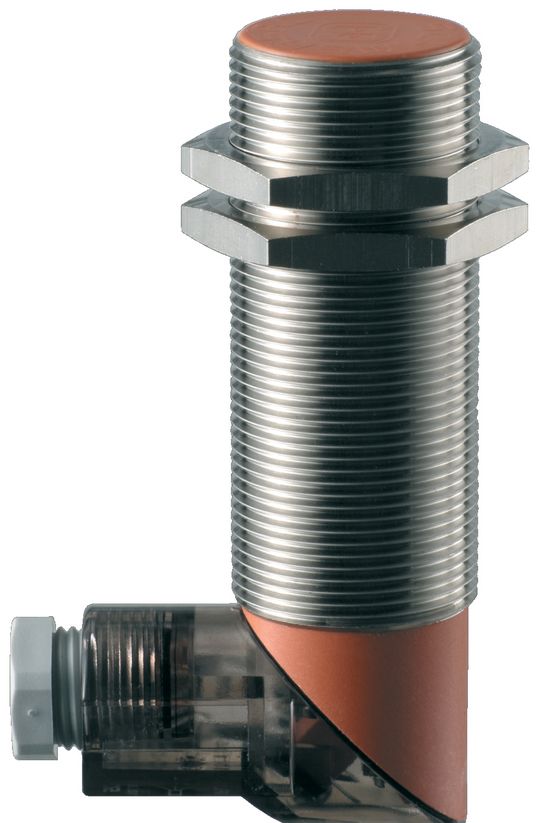

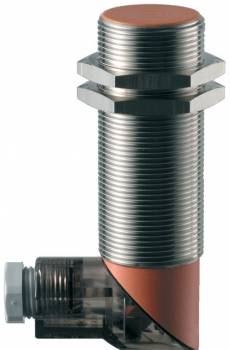

The IFL 10-30-10/01YG is a high-quality cylindrical proximity sensor with a rugged, nickel-plated brass housing suitable for flush mounting. Equipped with a yellow LED status indicator, this sensor delivers reliable performance in operating temperatures from -25 to +70 °C. It is ideal for industrial applications requiring precision and durability.
Technical Data:
Product Designation:
- IFL 10-30-10/01YG
Article Number:
- 101056832
EAN:
- 4030661022024
eCl@ss Numbers:
- Version 12.0: 27-27-40-01
- Version 11.0: 27-27-01-01
- Version 9.0: 27-27-01-01
ETIM Numbers:
- Version 7.0: EC002714
- Version 6.0: EC002714
Approvals - Regulations:
- Certificates: CCC
- Standards: DIN VDE 0660-208, EN IEC 60947-5-2
General Data:
- Housing Design: Cylinder, Thread
- Installation Conditions: Flush
- Housing Material: Brass
- Housing Coating: Nickel-plated
- Active Face Material: Plastic
- Nut Material: Brass
- Gross Weight: 156 g
Features:
- Integrated Indicator, Status: Yes
- Number of Wire Cores: 2
Mechanical Data:
- Nut Torque, max.: 30 Nm
Switching Distances per EN IEC 60947-5-3:
- Nominal Switching Distance Sn: 10 mm
Connection Technology:
- Connection Type: Screw Connection PG9
- Max. Connection Cross-Section: 1 x 1.5 mm²
Dimensions:
- ISO Thread of Sensor: M30
- Wrench Size: 36 SW
- Sensor Length: 126 mm
Environmental Conditions:
- Protection Rating: IP65
- Operating Temperature: -25 ... +70 °C
- Vibration Resistance: 10 … 55 Hz, Amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
- Protection Class: II
Insulation Properties:
- Rated Impulse Voltage Uimp: 4 kV
Electrical Data:
- Rated Supply Frequency: 45 … 65 Hz
- Voltage Type: AC
- Operating Current, min.: 10 mA
- Rated Operating Voltage: 90 ... 250 VAC
- Rated Operating Current: 500 mA
- Switching Element: Normally Open (NO) or Normally Closed (NC)
- Integrated Protective Circuit: Induction Protection
- Switching Frequency: approx. 10 Hz
Digital Outputs:
Status Indicator:
Notes:
Type: IFL 10-30-10/01YG
Questions & answers
What is the delivery time of Schmersal IFL 10-30-10/01YG Indian proximity switch 2L AC cylinder weight 101056832?
The article Schmersal IFL 10-30-10/01YG Indian proximity switch 2L AC cylinder weight 101056832 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101056832 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal IFL 10-30-10/01YG Indian proximity switch 2L AC cylinder weight 101056832 always at the best possible price. We can give you a discount of 2% on Schmersal IFL 10-30-10/01YG Indian proximity switch 2L AC cylinder weight 101056832 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal IFL 10-30-10/01YG Indian proximity switch 2L AC cylinder weight 101056832 we can offer you a price of 119,72 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
