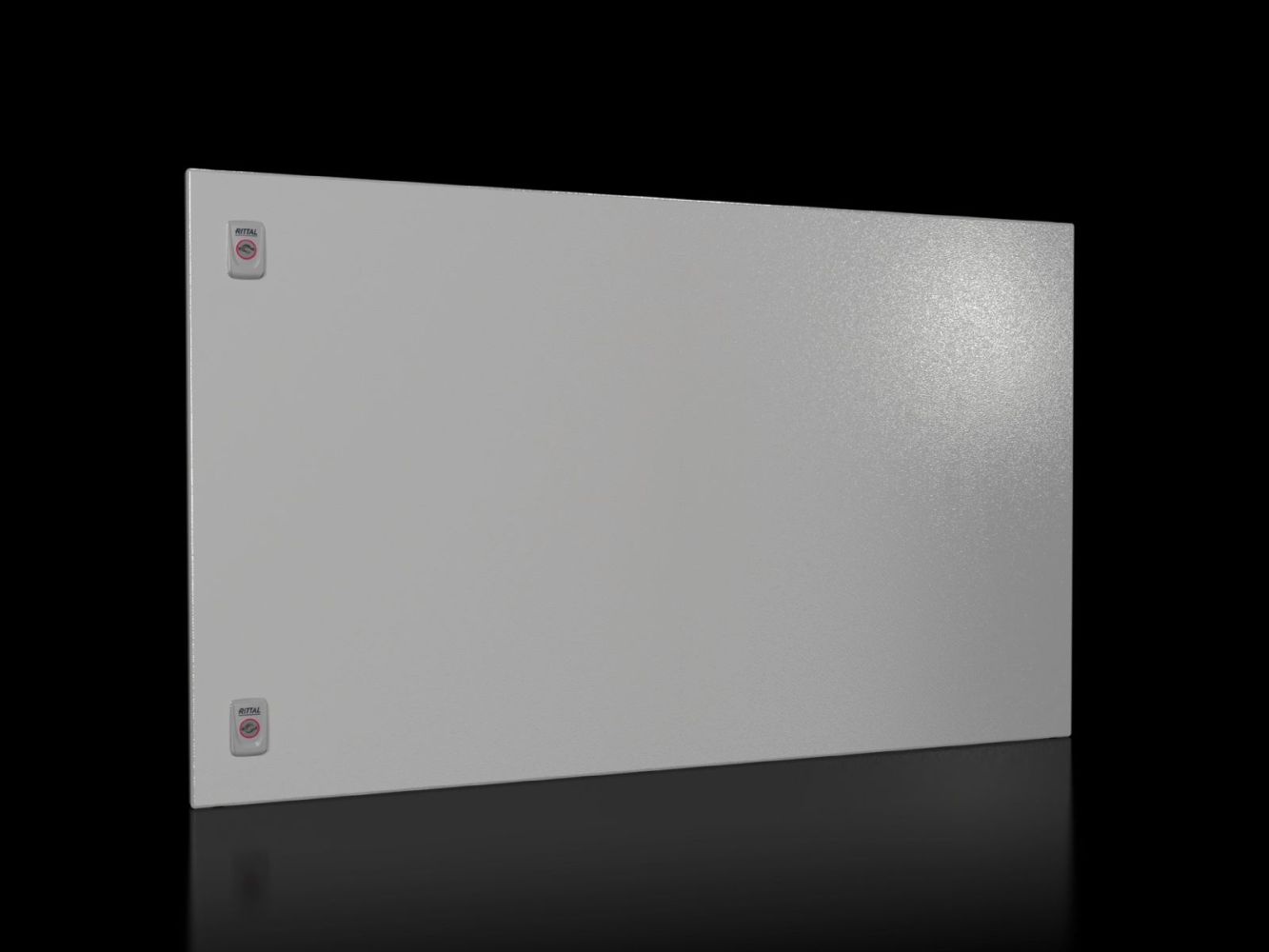

Rittal 9682106 SV partial door for VX, W x H: 1000x600 mm

Your rating:
Average rating
product review for Rittal 9682106 SV partial door for VX, W x H: 1000x600 mm
( 4 / 5 ) 3 ratings
Rittal 9682106
This image may differ from the desired article.
Rittal 9682106Rittal 9682106
101,20 EUR
( 120,43 EUR incl. VAT )
≈ £84.60  |  ≈ $111.83
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9682106 SV partial door for VX, W x H: 1000x600 mm
Datasheet:file_download Download
Lieske Part No.:1988604
Mfg Part No: 9682106
UPC/EAN: 4028177929173
Weight:12.6 kg
Type:SV 9682106

Product information for Rittal 9682106:

The Rittal SV 9682106 is a partial door for VX enclosures, designed as a replacement for a complete door or rear panel. With a width of 1,000 mm and a height of 600 mm, it fits precisely into enclosures of the corresponding width. The door is manufactured from sheet steel with a thickness of 2 mm and features a structured paint surface in the colour RAL 7035. It is designed for use in industrial environments where high mechanical stability and sufficient protection rating are required. The protection rating IP 54 according to IEC 60 529 ensures protection against dust and splashing water, making it suitable for use in indoor environments with increased contamination risk. The maximum opening angle of the partial door is 130°, providing sufficient accessibility for maintenance work.

Applications

The partial door is specifically intended for VX enclosures and can be mounted instead of a full door or rear panel. It is particularly suitable for applications where only a part of the enclosure space needs to be accessible, such as for installing control or display units. The combinability of partial doors allows for flexible configurations depending on accessibility requirements. A front trim panel is required at the top and bottom of the partial door to ensure a clean visual appearance.

Functions and Equipment in Detail

The door features a standard double-bar lock insert, ensuring secure locking. The number of locks is two, providing stable fastening. The lock insert is interchangeable with lock inserts of type A, allowing adaptation to specific security requirements. The door hinge direction can be chosen as either right or left, enabling flexible installation in various enclosure configurations. The delivery includes the partial door itself, a partition strip, hinges, locking components, and the required mounting hardware.

Technology Explained Simply

The use of sheet steel with a thickness of 2 mm ensures high mechanical strength, necessary to protect the door against mechanical stress and vibrations. The structured paint surface in RAL 7035 offers robust protection against corrosion and contamination, while also being visually appealing. The protection rating IP 54 means the door is protected against dust and splashing water, making it suitable for use in industrial indoor environments. The maximum opening angle of 130° allows good access to the interior of the enclosure without requiring the door to be fully opened.

Compatibility and Accessories

The partial door is specifically designed for VX enclosures with a width of 1,000 mm. It can be combined with other partial doors to create individual accessibility concepts. Front trim panels are required at the top and bottom for mounting. As accessories, lock inserts made of zinc die-cast (length 27 mm) and mini comfort handles AX are available, enabling more ergonomic operation. For doors without a viewing window (height 600–1000 mm), the monitor frame 2305.000 can be optionally installed to mount control or display units.

Mounting and Installation

Installation is carried out using the hinges and mounting hardware included in the delivery. The door can be hinged on the right or left side, allowing flexible adaptation to the enclosure configuration. The locking components are already integrated, enabling quick installation without additional tools.

Advantages in Operation

The partial door offers a precise fit for VX enclosures and enables modular design of accessibility. The combinability with other partial doors and the selectable hinge direction increase flexibility during planning. The protection rating IP 54 ensures reliable operation in industrial environments. The integrated locks and included mounting hardware reduce installation time and eliminate the need for additional purchases. The use of sheet steel and structured paint ensures long service life and ease of maintenance.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 2
Width1.000 mm
Height600 mm
Suitable forWidth: = 1,000 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)48 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682106, EAN: 4028177929173
