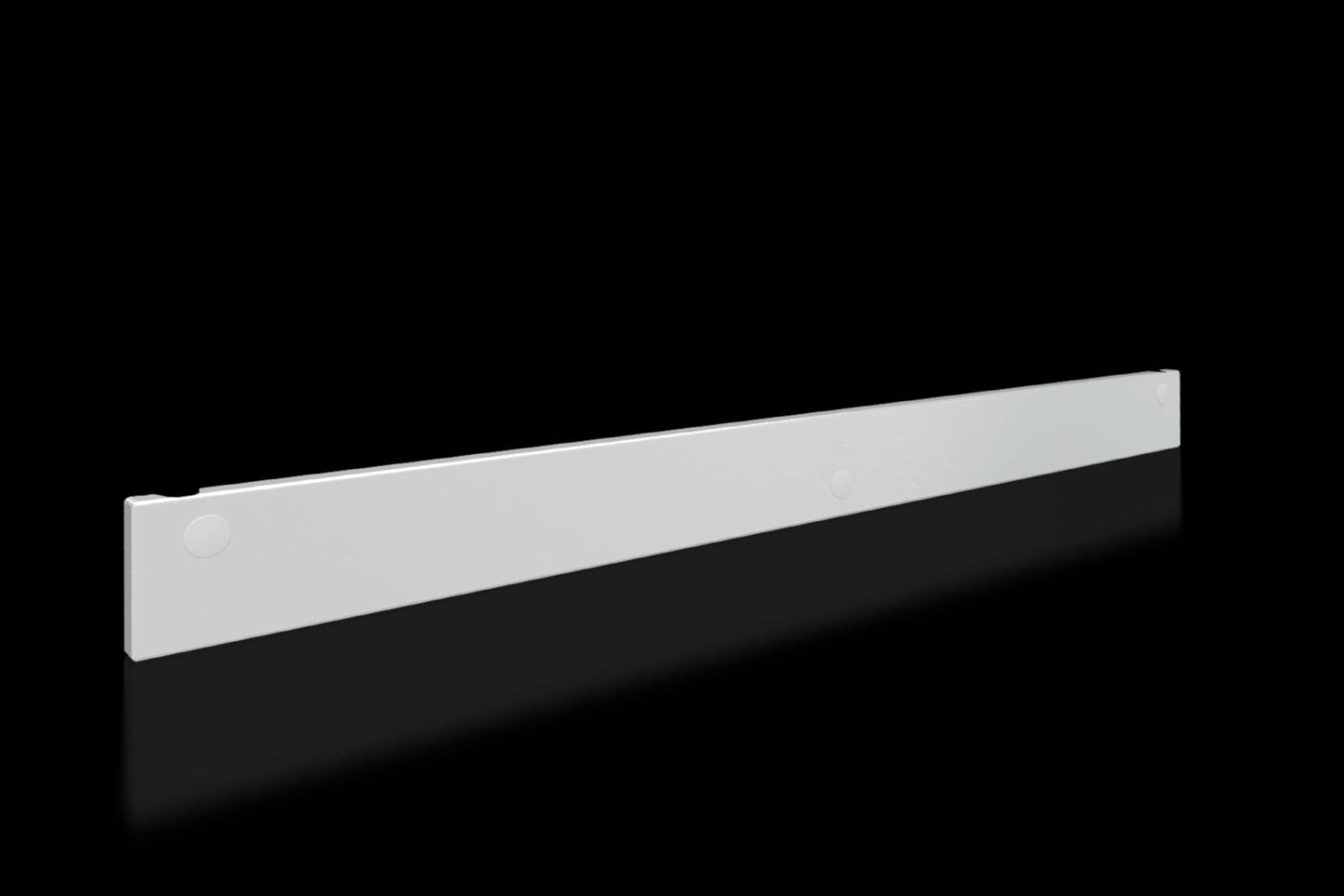

Rittal 9682330 SV front trim panel for VX, bottom, W x H: 1000x100 mm

Your rating:
Average rating
product review for Rittal 9682330 SV front trim panel for VX, bottom, W x H: 1000x100 mm
( 5 / 5 ) 2 ratings
Rittal 9682330
This image may differ from the desired article.
Rittal 9682330Rittal 9682330Rittal 9682330
73,72 EUR
( 87,73 EUR incl. VAT )
≈ £61.63  |  ≈ $81.46
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9682330 SV front trim panel for VX, bottom, W x H: 1000x100 mm
Datasheet:file_download Download
Lieske Part No.:1988611
Mfg Part No: 9682330
UPC/EAN: 4028177929913
Weight:3.28 kg
Type:SV 9682330

Product information for Rittal 9682330:

The Rittal SV 9682330 is a front trim panel for the lower closure of enclosures in the VX system. It serves as a closed termination for modular front design, particularly when partial doors are used. The front trim panel is made of sheet steel with a thickness of 1.5 mm and features a surface finish of textured paint in the colour RAL 7035. The dimensions are a height of 100 mm and a width of 1000 mm, making it specifically designed for enclosures with an exact width of 1000 mm. The front trim panel can be removed from the outside by loosening the screws, enabling easy maintenance and replaceability.

Applications

The front trim panel is intended for use in industrial enclosures, particularly in systems that employ modular front design with partial doors. It serves as an aesthetic and functional closure at the lower section of the enclosure front, ensuring a closed and clean appearance. Its use is typical in automation technology, electrical engineering, and machine building applications, where structured and secure front design is required.

Functions and Equipment in Detail

The front trim panel is equipped with a partition strip, which enables stable mounting and provides a clear visual separation within the enclosure front. The panel is secured with screws that are accessible from the outside, allowing for maintenance or replacement without disassembling the entire front. The textured paint surface offers a robust and wear-resistant coating suitable for industrial environments.

Technology Explained Simply

The sheet steel material with a thickness of 1.5 mm ensures sufficient mechanical stability and resistance to mechanical stress. The RAL 7035 colour corresponds to a grey, slightly textured finish that integrates well in industrial environments. The textured paint coating provides additional protection against scratches and contamination. The dimensions of 100 mm height and 1000 mm width are precisely matched to the standard width of VX enclosures to ensure a perfect fit.

Compatibility and Accessories

The front trim panel is specifically designed for enclosures in the VX system with a width of 1000 mm. It is intended as a lower closure when using partial doors and integrates into the modular front design. The use of partial doors requires a closed termination at the lower section, which the SV 9682330 front trim panel ensures.

Mounting and Installation

Mounting is carried out using the included mounting hardware. The front trim panel is attached to the lower edge of the enclosure front, with screws accessible from the outside. The partition strip component supports structural stability and ensures a clean visual line.

Operational Advantages

The front trim panel allows for easy replacement and quick maintenance, as it can be removed from the outside. The robust construction from sheet steel and textured paint ensures long service life and resistance to industrial stresses. The exact fit for enclosures with a width of 1000 mm guarantees a clean and professional appearance of the enclosure front. The modular design enables flexible adaptation to various configurations within the VX system.

PCF Value

The product life cycle footprint (PCF) is 12.5 kg CO2 equivalents per packaging unit (Cradle-to-Gate). This value is classified in category B and is based on the product weight, with the calculation being approximate and self-declared. The information serves transparency regarding the environmental impact of production and is not part of the product function, but an additional indicator for sustainability assessment.

Scope of Delivery

The scope of delivery includes the front trim panel, the partition strip, and the required mounting hardware. The listed components are sufficient to complete the installation without additional purchases.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryFront panel, partition, including mounting hardware
Height100 mm
Suitable forWidth: = 1,000 mm
PCF/VE (Cradle-to-Gate)12.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682330, EAN: 4028177929913

Questions & answers

What is the delivery time of Rittal 9682330 SV front trim panel for VX, bottom, W x H: 1000x100 mm?

The article Rittal 9682330 SV front trim panel for VX, bottom, W x H: 1000x100 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682330 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682330 SV front trim panel for VX, bottom, W x H: 1000x100 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682330 SV front trim panel for VX, bottom, W x H: 1000x100 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
