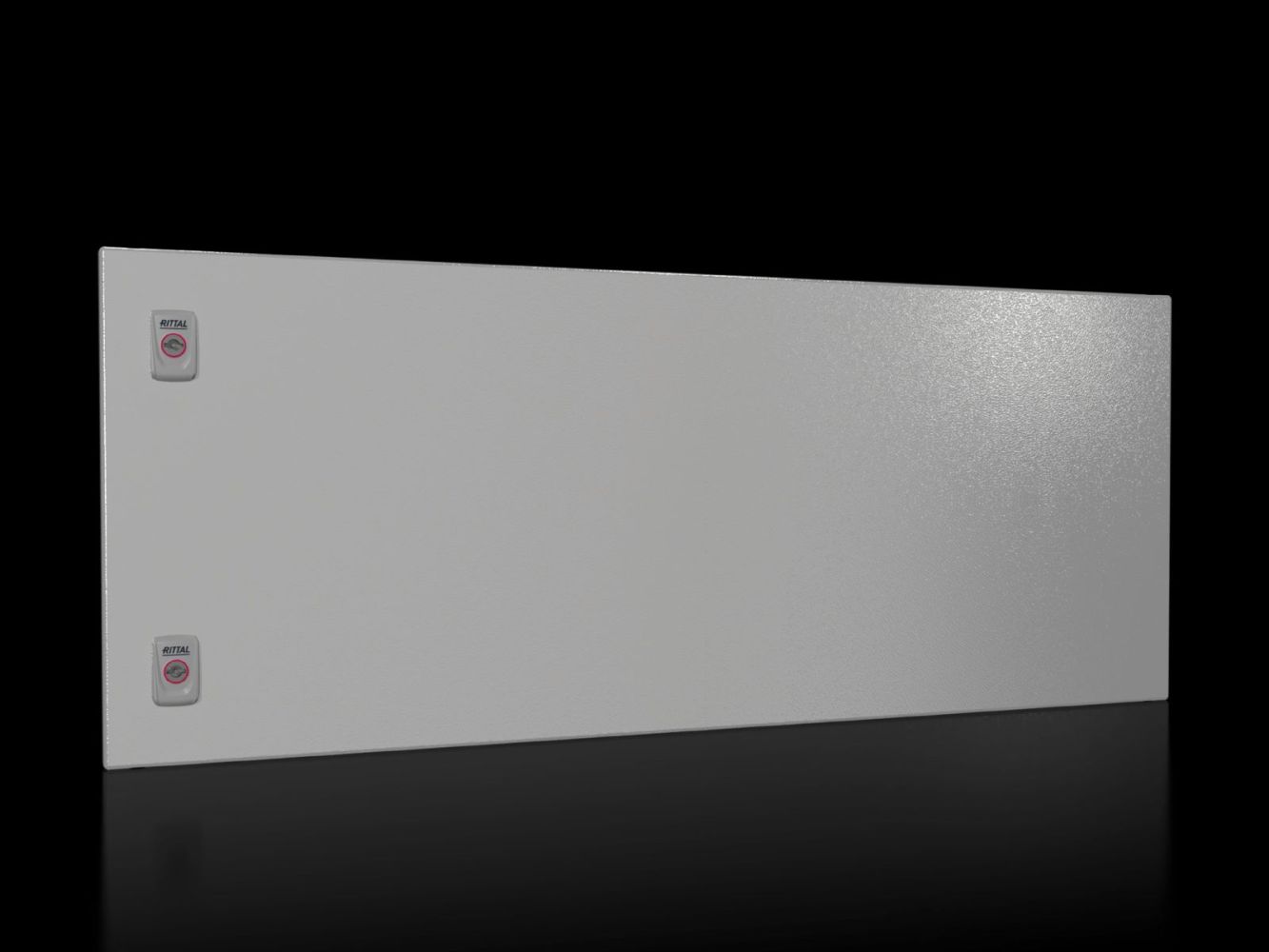

Rittal 9682104 SV partial door for VX, W x H: 1000x400 mm

Your rating:
Average rating
product review for Rittal 9682104 SV partial door for VX, W x H: 1000x400 mm
( 4.5 / 5 ) 4 ratings
Rittal 9682104
This image may differ from the desired article.
Rittal 9682104Rittal 9682104Rittal 9682104
86,83 EUR
( 103,33 EUR incl. VAT )
≈ £72.59  |  ≈ $95.95
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9682104 SV partial door for VX, W x H: 1000x400 mm
Datasheet:file_download Download
Lieske Part No.:1988603
Mfg Part No: 9682104
UPC/EAN: 4028177929043
Weight:9.16 kg
Type:SV 9682104

Product information for Rittal 9682104:

The Rittal SV 9682104 is a partial door for VX enclosures, designed as a replacement for a complete door or rear panel. With a width of 1,000 mm and a height of 400 mm, it fits exactly into enclosures with a width of 1,000 mm. The door is made of steel sheet with a thickness of 2 mm and is coated with a textured paint in the colour RAL 7035, ensuring a robust and uniform surface. The protection rating IP 54 according to IEC 60 529 protects against dust and splashing water, making it suitable for use in industrial environments.

Applications
The partial door is used in industrial electrical engineering and machine building, where flexible and modular enclosure equipment is required. It can be mounted instead of a full door or rear panel to enable access to specific areas of the enclosure without opening the entire cabinet. The combination of multiple partial doors is possible, allowing individual arrangements to be realised. At the top and bottom of the partial door, a front trim panel is required each to ensure a clean appearance.

Functions and Equipment in Detail
The SV 9682104 is supplied with a partition, hinges, lock components, and mounting materials. The door can be hinged on the right or left side, enabling flexible installation. The maximum opening angle is 130°, which is sufficient to ensure access to rear components. The door is equipped with a standard double-bar lock insert, which can be exchanged for lock inserts of type A. This allows adaptation to different security requirements.

Technology Explained Simply
The steel sheet material with a thickness of 2 mm provides sufficient mechanical stability to protect the door even with frequent use. The textured paint in RAL 7035 ensures a uniform, abrasion-resistant surface that integrates well in industrial environments. The protection rating IP 54 means the door is protected against dust and splashing water, making it suitable for use in production halls or other environments with increased contamination risk. The lock components enable secure locking, and the exchangeability of lock inserts allows adaptation to specific security needs.

Compatibility and Accessories
The partial door is specifically designed for VX enclosures with a width of 1,000 mm. As accessories, various lock inserts made of zinc die-cast are available, enabling alternative securing options. Additionally, mini comfort handles AX can be used for padlocks or with a strike plate to improve grip comfort. For external design, front trim panels for VX enclosures are available, with one front trim panel required at the top (1000x300 mm) and one at the bottom (1000x100 mm) to visually complete the partial door.

Installation and Mounting
Installation is carried out using the mounting materials included in the delivery. The hinges allow for optional right- or left-hand hinge direction, enabling the door to be adapted to the respective enclosure configuration. The partition construction ensures a stable connection between the individual parts. The maximum opening of 130° ensures sufficient access angle without the door having to open excessively.

Operational Advantages
The modular design of the partial door enables flexible use, as it can be combined freely with other partial doors. The IP 54 protection rating ensures high environmental resistance, and the exchangeable lock inserts offer flexibility in securing. The delivery with all necessary mounting components reduces installation effort. The use of steel sheet and textured paint ensures a long service life and low maintenance.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 2
Width1.000 mm
Height400 mm
Suitable forWidth: = 1,000 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)30.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682104, EAN: 4028177929043

Questions & answers

What is the delivery time of Rittal 9682104 SV partial door for VX, W x H: 1000x400 mm?

The article Rittal 9682104 SV partial door for VX, W x H: 1000x400 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682104 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682104 SV partial door for VX, W x H: 1000x400 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682104 SV partial door for VX, W x H: 1000x400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
