Rittal 9682320 SV front trim panel for VX, top, W x H: 1000x300 mm

Your rating:
Average rating
product review for Rittal 9682320 SV front trim panel for VX, top, W x H: 1000x300 mm
( 5 / 5 ) 3 ratings

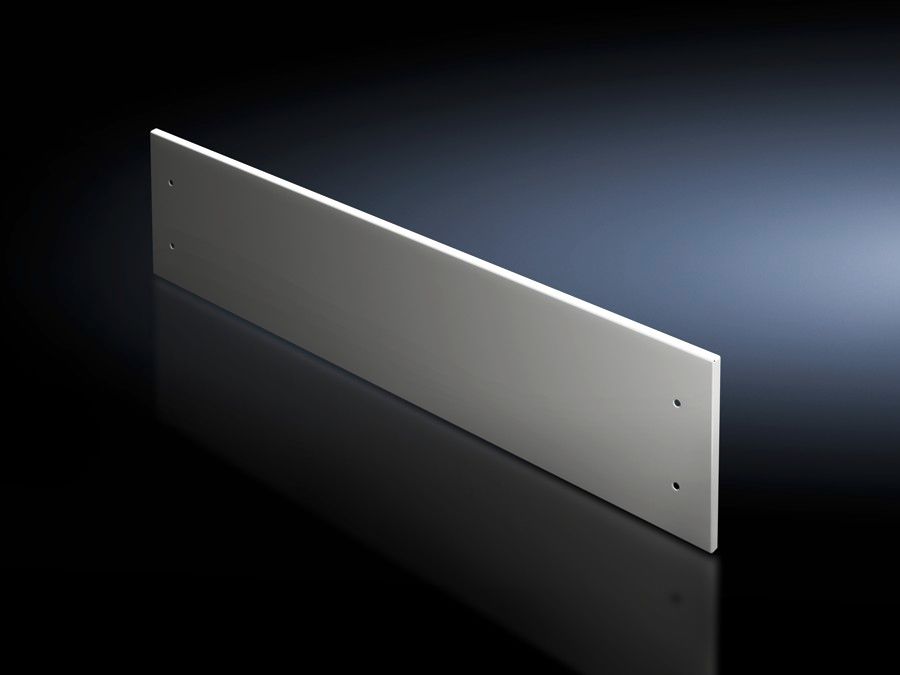

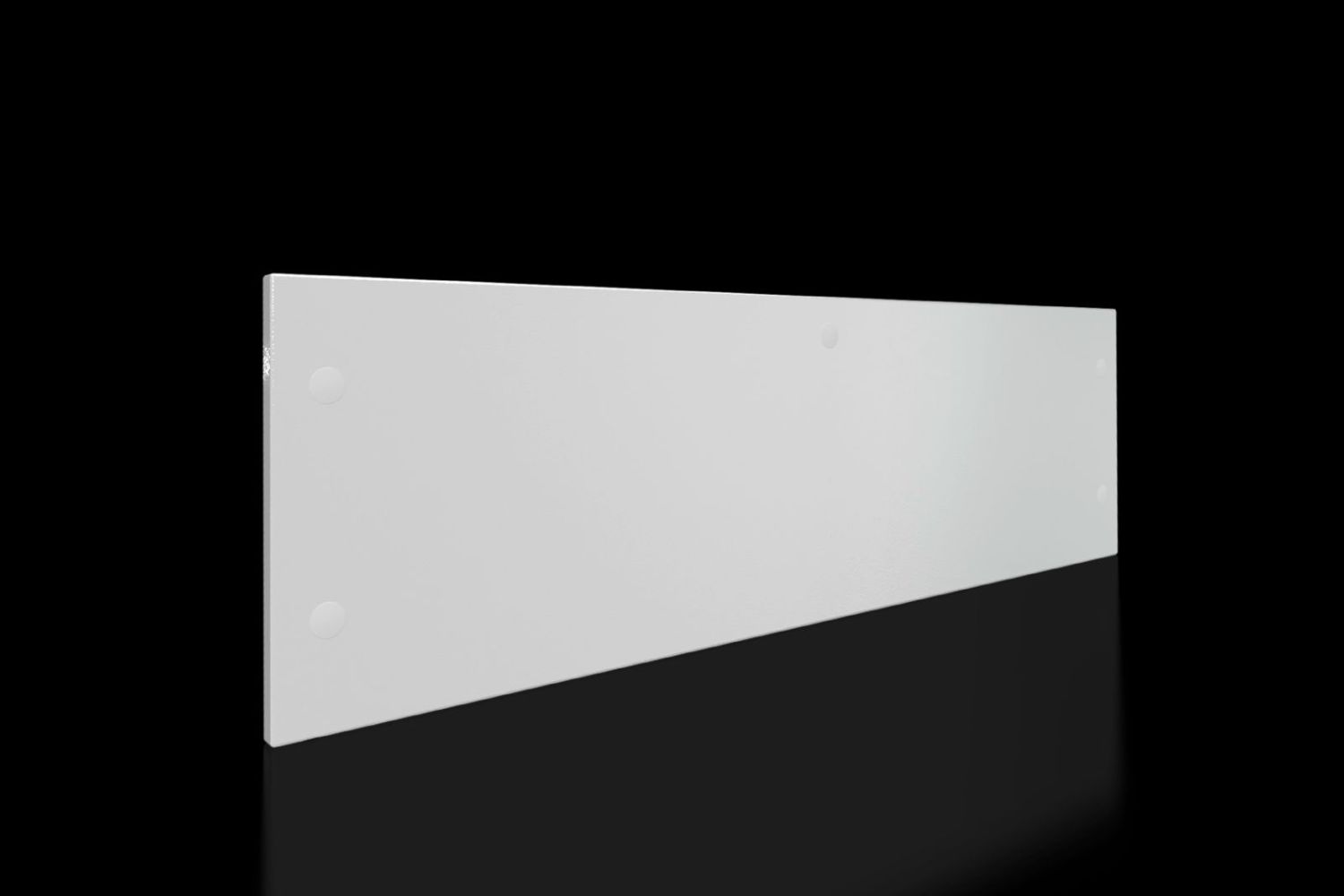

Rittal 9682320
This image may differ from the desired article.
Rittal 9682320Rittal 9682320Rittal 9682320Rittal 9682320
70,84 EUR
( 84,30 EUR incl. VAT )
≈ £59.22  |  ≈ $78.28
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9682320 SV front trim panel for VX, top, W x H: 1000x300 mm
Datasheet:file_download Download
Lieske Part No.:1988610
Mfg Part No: 9682320
UPC/EAN: 4028177929685
Weight:4.8 kg
Type:SV 9682320

Product information for Rittal 9682320:

The Rittal SV 9682320 is a front trim panel for enclosures of the VX series, specifically designed as an upper closure when using partial doors. The product serves for the aesthetic and functional closure of the front side of an enclosure, covering the upper edge of the front surface. The front trim panel is closed in design and made of sheet steel with a thickness of 1.5 mm, ensuring a robust and durable construction. The surface is coated with structured paint, providing good mechanical resistance and an attractive appearance. The colour corresponds to the standard RAL 7035, a grey-beige tone commonly used in industrial environments.

Applications
The front trim panel is intended for enclosures with a width of exactly 1,000 mm. It is used in modular front design, particularly when partial doors are installed, to close the upper section of the front. The panel is designed to be removed from the outside by loosening the screws, enabling easy maintenance and replaceability. This is especially advantageous for servicing or modifying the enclosure configuration.

Functions and Equipment in Detail
The front trim panel is designed as an upper closure for front design and fits the standard dimensions of the VX series. The height is 300 mm, which is a common dimension for upper front closure panels in this product line. Installation is carried out using the included mounting hardware, ensuring secure attachment to the enclosure front.

Technology Explained Simply
The use of sheet steel with a thickness of 1.5 mm ensures high mechanical stability and resistance to external influences. The structured paint finish not only provides a decorative effect but also protects the material against corrosion and mechanical damage. The colour RAL 7035 is a standard in industrial manufacturing and integrates well into existing installations. The front trim panel is designed for easy installation and removal, making it flexible for various application scenarios.

Compatibility and Accessories
The front trim panel is specifically designed for enclosures of the VX series with a width of 1,000 mm. It is intended as an upper closure when using partial doors. Installation is performed using the included mounting hardware. The use of partial doors requires a partition strip, which is not part of the front trim panel but belongs to the partial doors. Thus, the front trim panel is a supplementary component used in combination with other front elements of the VX series.

Installation and Mounting
The front trim panel is mounted by securing it to the enclosure front using the included mounting hardware. The screws can be loosened from the outside to remove the panel, facilitating easy maintenance. The front trim panel is designed for quick and secure installation.

Operational Advantages
The front trim panel provides a clean and professional finish for the enclosure front. The ability to remove the panel from the outside simplifies maintenance and inspection of components behind it. The use of sheet steel and structured paint ensures high durability and resistance to wear. The colour RAL 7035 integrates well into existing industrial environments and supports a uniform design of the installation.

General
ModelClosed
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Height300 mm
Suitable forWidth: = 1,000 mm
PCF/VE (Cradle-to-Gate)18.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682320, EAN: 4028177929685

Questions & answers

What is the delivery time of Rittal 9682320 SV front trim panel for VX, top, W x H: 1000x300 mm?

The article Rittal 9682320 SV front trim panel for VX, top, W x H: 1000x300 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682320 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682320 SV front trim panel for VX, top, W x H: 1000x300 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682320 SV front trim panel for VX, top, W x H: 1000x300 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
