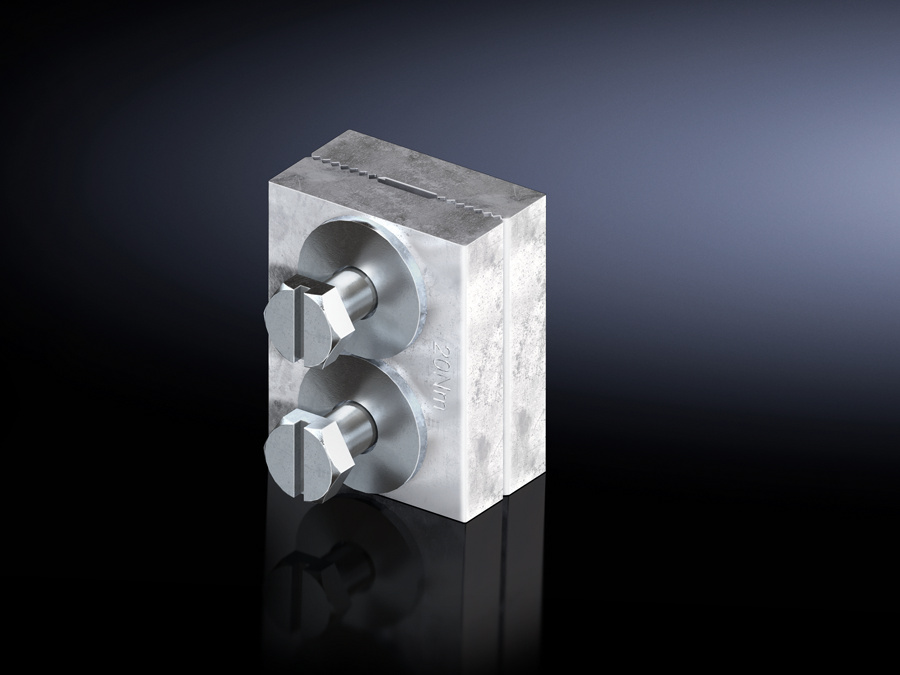

Rittal 9677620 rail connector for E-Cu 60/100/120x10 mm, W=60 mm

Your rating:
Average rating
product review for Rittal 9677620 rail connector for E-Cu 60/100/120x10 mm, W=60 mm
( 4.4 / 5 ) 7 ratings
Rittal 9677620
This image may differ from the desired article.
30,37 EUR
incl. 5,07 EUR copper surcharge
( 36,14 EUR incl. VAT )
≈ £25.42  |  ≈ $33.38
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9677620 rail connector for E-Cu 60/100/120x10 mm, W=60 mm
Datasheet:file_download Download
Lieske Part No.:1588049
Mfg Part No: 9677620
UPC/EAN: 4028177705395
Weight:0.72 kg
Type:SV 9677620

Product information for Rittal 9677620:

The SV 9677620 from Rittal is a rail connector for rectangular busbars made of E-Cu, tinned, and designed for hole-free connection of conductors in industrial applications. It is specifically designed for busbars with dimensions 60 x 10 mm, 100 x 10 mm, and 120 x 10 mm. The length of the connector piece is 60 mm, and the connection is made without drilling or additional fastening elements. The product is made of high-quality electrolytic copper (E-Cu) and tinned, ensuring good electrical conductivity and corrosion protection. The copper content per piece is 0.602 kg.

Applications

The rail connector is used in industrial electrical engineering, particularly in enclosures and distribution systems, where a secure and durable electrical connection between busbars is required. It is suitable for applications where a mechanical and electrical connection must be established without drilling into the busbar, in order to maintain the integrity of the conductor structure. It is used, for example, when extending or lengthening power distribution lines in industrial installations.

Functions and Equipment in Detail

The connector enables a direct, mechanical connection between two busbars without drilling. For the dimension 60 x 10 mm, one connector piece is sufficient; for 100 x 10 mm, also one piece is required; while for 120 x 10 mm, two connector pieces are needed. When using a 100 x 10 mm busbar, one piece 9677.610 and one piece 9677.620 are required to create a stable connection. The tinned surface ensures good contact quality and prevents oxidation.

Technology Explained Simply

The rail connector is a mechanical component that, through its shape and material selection, creates a firm, conductive connection between two busbars. The tinning of the E-Cu material improves the contact surface and prevents corrosion, increasing the lifespan and reliability of the connection. The hole-free mounting protects the structure of the busbar and avoids weakening caused by drilling. The length of 60 mm is matched to the standard dimensions of busbars to ensure a secure and sufficiently long connection.

Compatibility and Accessories

The rail connector is compatible with busbars of dimensions 60 x 10 mm, 100 x 10 mm, and 120 x 10 mm. As an accessory, a shock protection cover for rail connectors 9677 is available, which provides additional protection against accidental contact with live parts. This cover can be used additionally if required to increase operational safety.

Mounting and Installation

Installation is done without drilling. The busbars are inserted into the corresponding cutouts of the connector piece and fixed by a mechanical locking or clamping mechanism. The exact mounting instructions are described in the manufacturer’s datasheet. The connection is secure and electrically conductive after installation. No additional tools or fastening elements are required, except for the connector itself.

Operational Advantages

The use of the SV 9677620 provides a reliable, durable, and electrically conductive connection between busbars. The hole-free mounting protects the structure of the busbars and avoids weakening. The tinned surface ensures high corrosion resistance and good contact quality. Compatibility with various busbar dimensions increases flexibility in planning and installing power distribution systems. The use of two connector pieces for 120 x 10 mm busbars ensures a stable and load-bearing connection.

Certifications

The product is certified with UL and C-UL (listed), confirming compliance with the relevant safety standards for electrical components in the USA and Canada. A declaration of conformity is also available, documenting compliance with applicable EU directives.

Material and Manufacturing

The material E-Cu (electrolytic copper) is known for its high electrical conductivity and mechanical strength. The tinning protects the surface from oxidation and improves contact quality. Manufacturing is carried out according to Rittal’s standards, with dimensions and material quality precisely matching technical specifications.

General
MaterialE-Cu, tinned
For busbar with dimensions (mm) / required quantity per busbar60 x 10 / 1, 100 x 10 / 1, 120 x 10 / 2
NoteWhen using a busbar 100 x 10 mm, 1 piece each of 9677.610 and 9677.620 is required
Suitable for busbars60 x 10 mm, 100 x 10 mm, 120 x 10 mm
Length60 mm
Copper content (kg/piece)0,602


Please note...
This article contains a copper surcharge of 5,07 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9677620, EAN: 4028177705395

Questions & answers

What is the delivery time of Rittal 9677620 rail connector for E-Cu 60/100/120x10 mm, W=60 mm?

The article Rittal 9677620 rail connector for E-Cu 60/100/120x10 mm, W=60 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9677620 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9677620 rail connector for E-Cu 60/100/120x10 mm, W=60 mm always at the best possible price. We can give you a discount of 2% on Rittal 9677620 rail connector for E-Cu 60/100/120x10 mm, W=60 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
