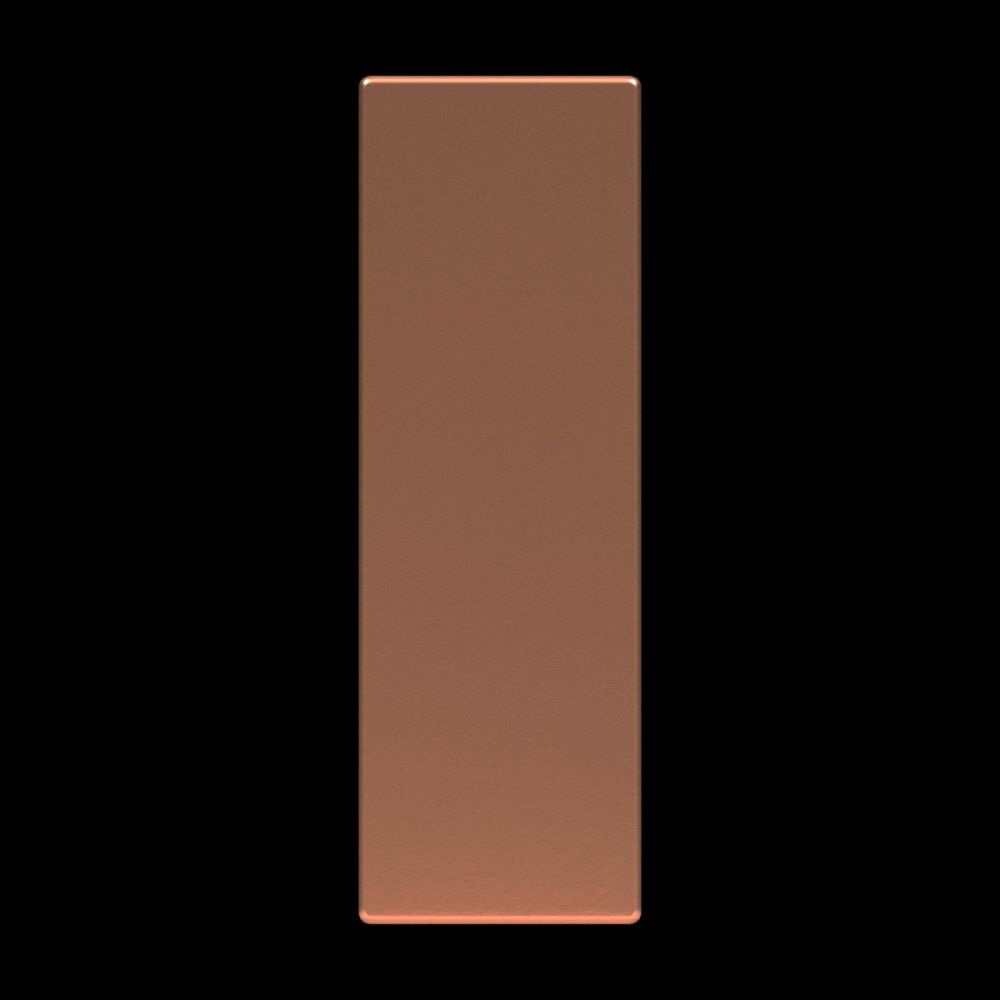

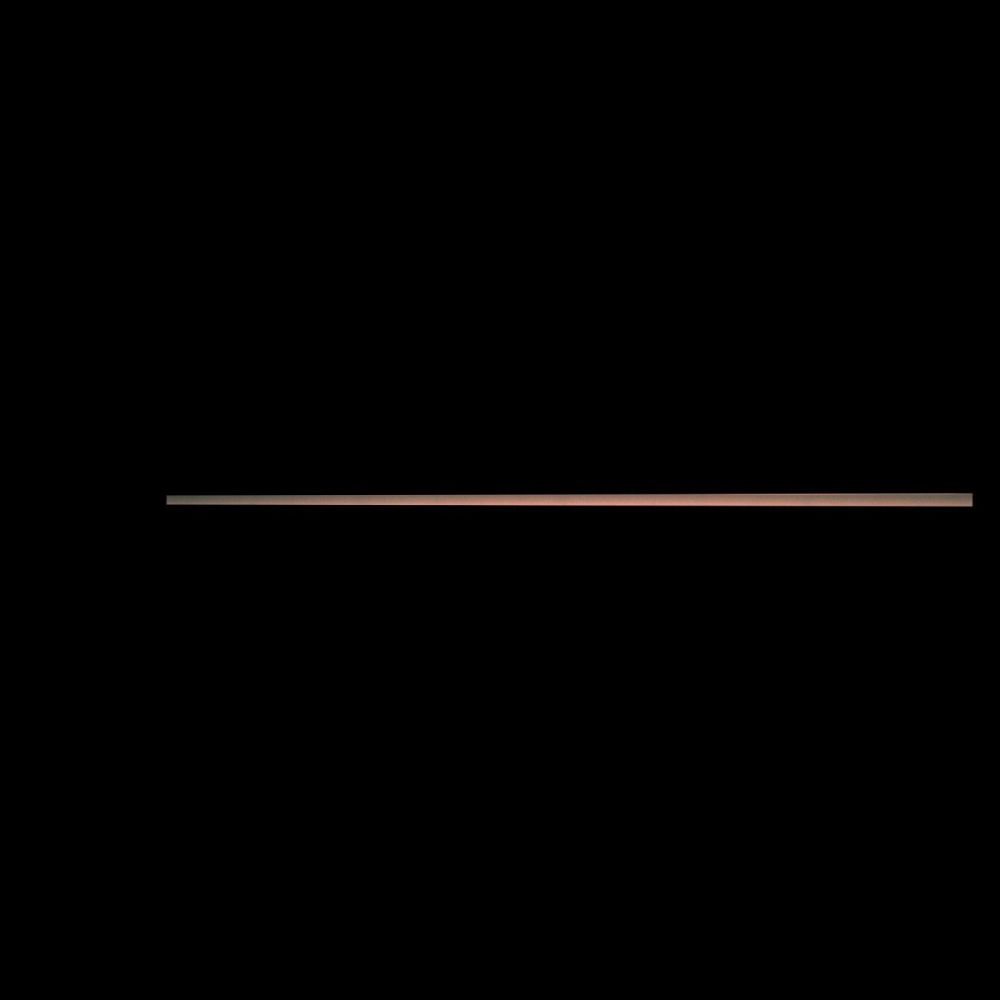

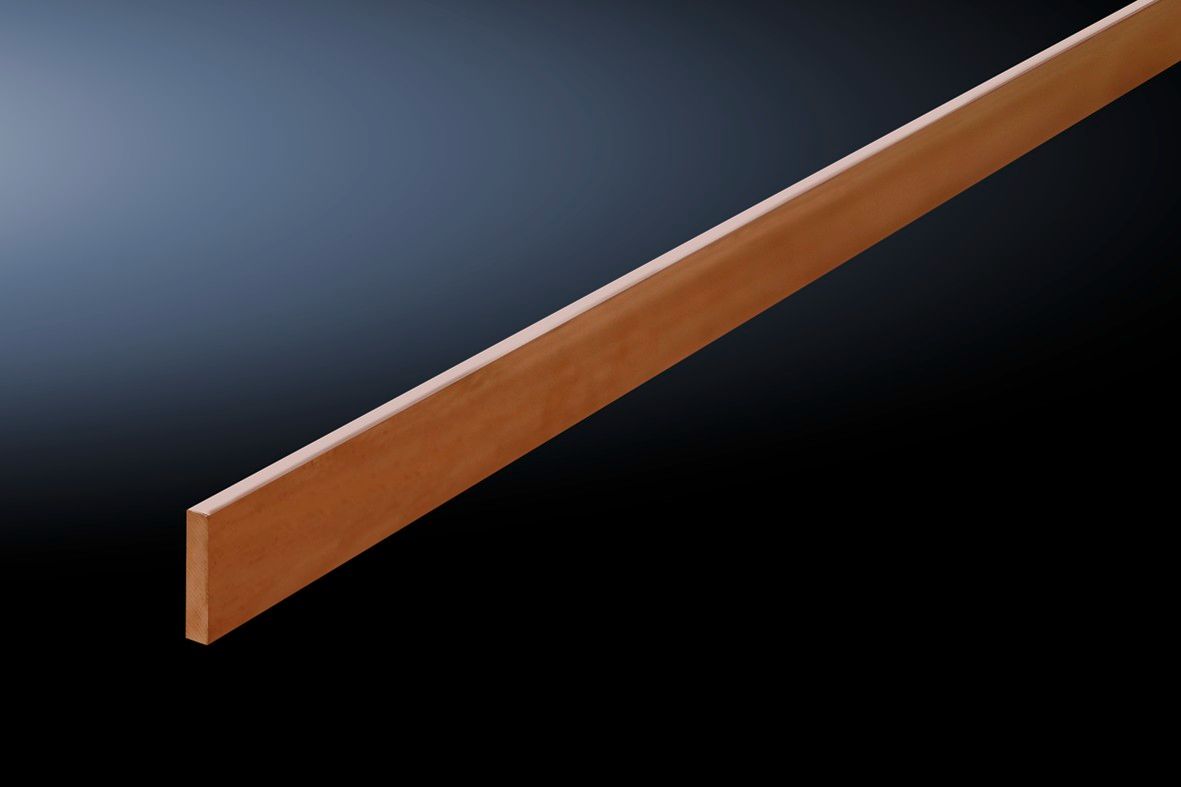

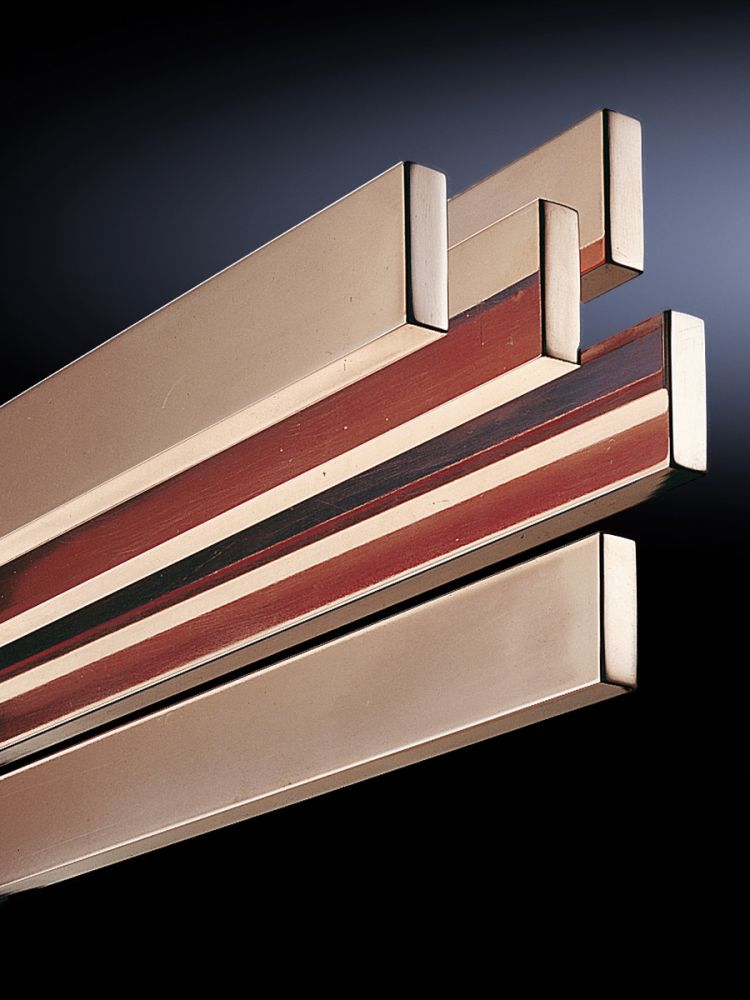

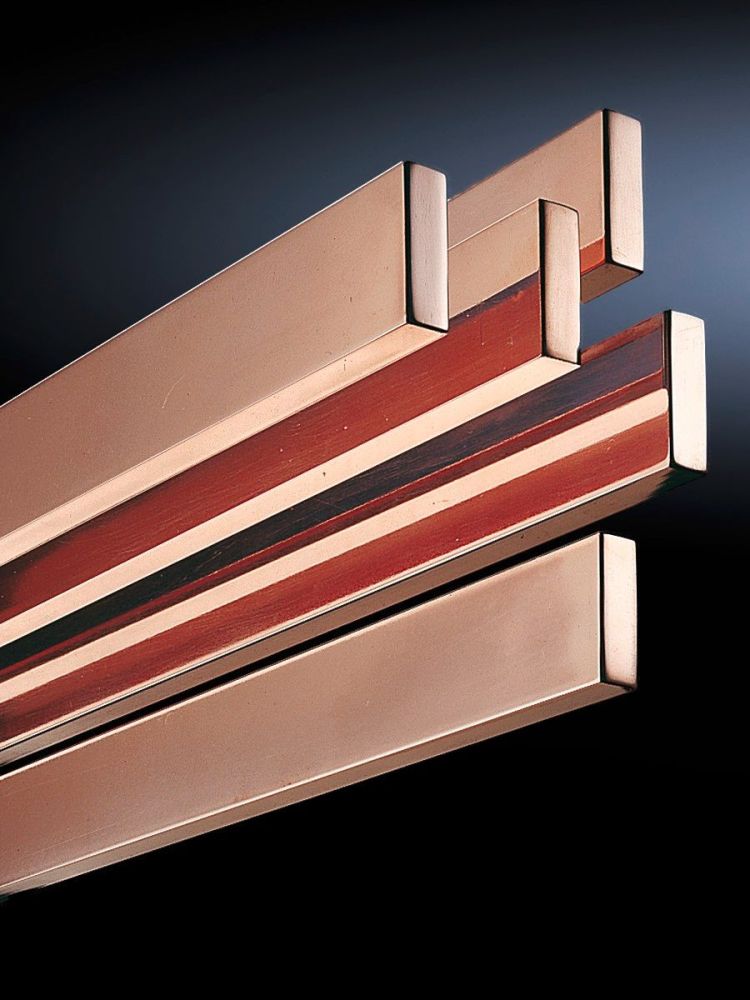

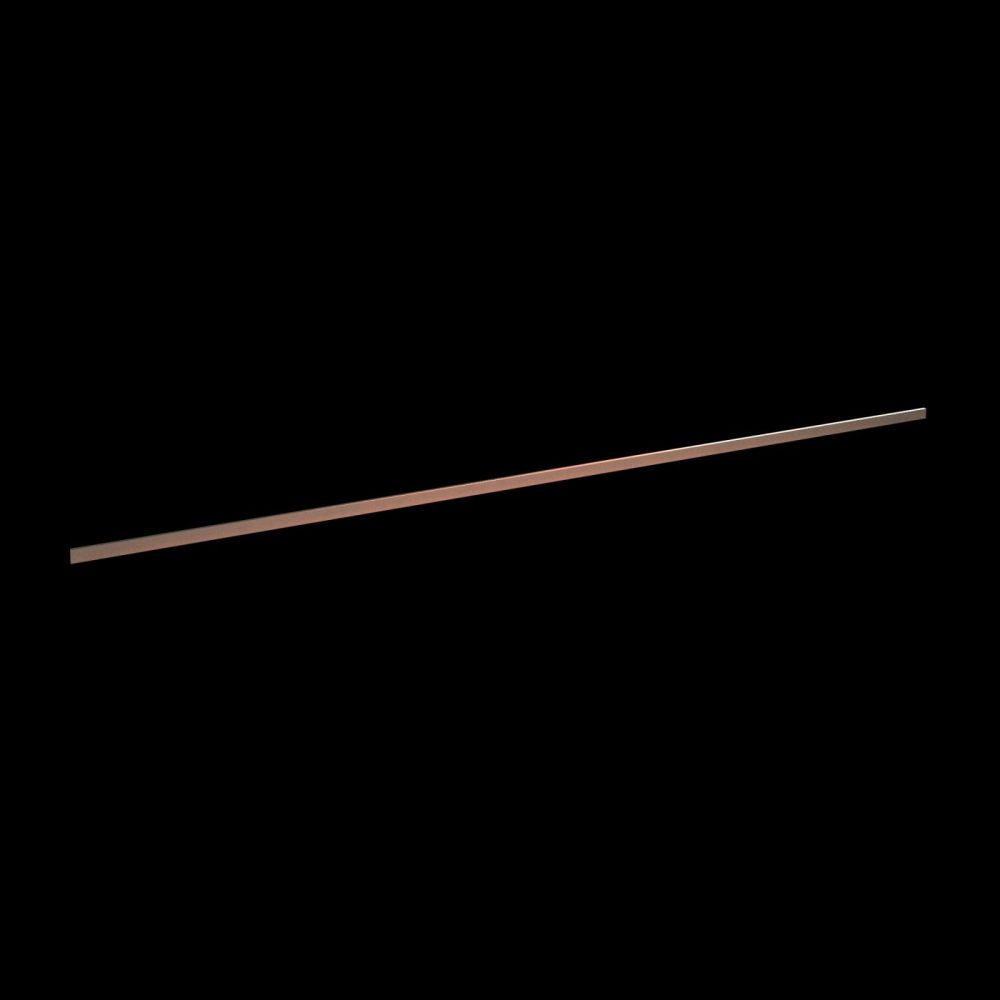

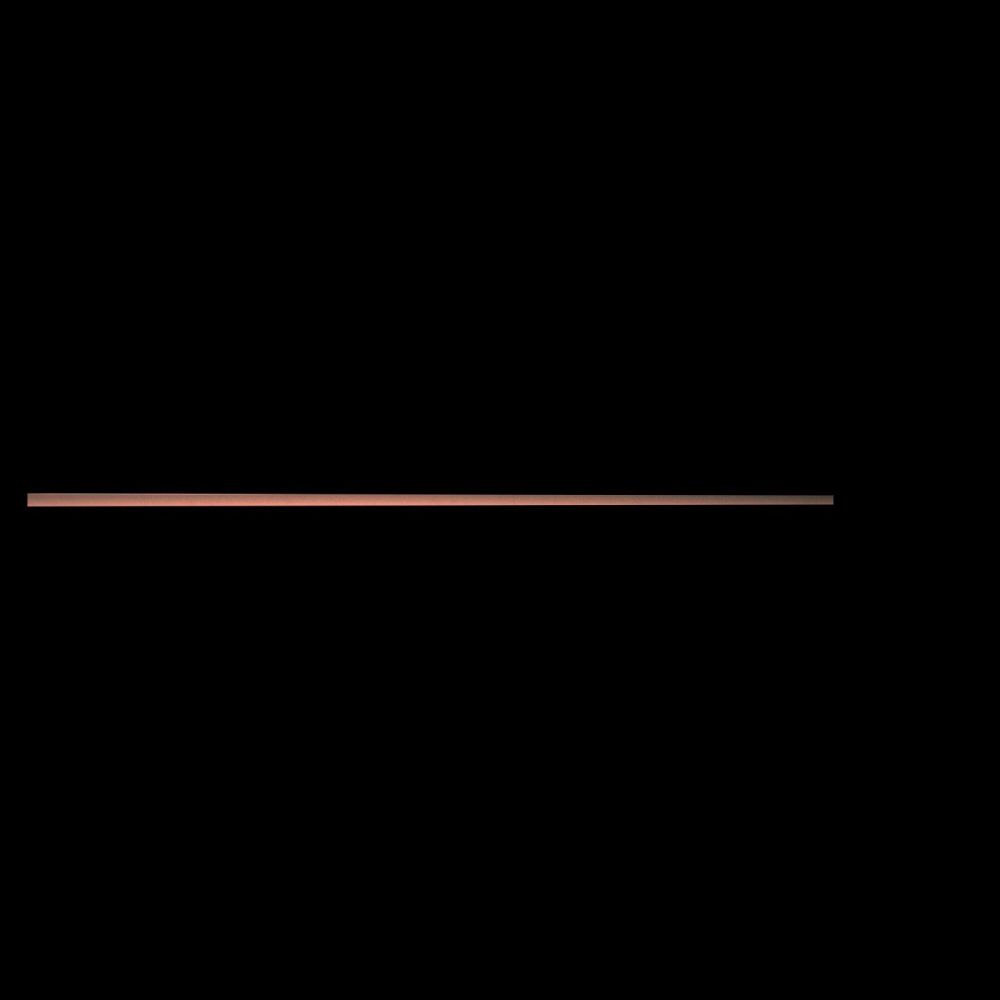

Rittal 3589005 busbar E-Cu 60x10 mm, L=2400 mm

Your rating:
Average rating
product review for Rittal 3589005 busbar E-Cu 60x10 mm, L=2400 mm
( 4.5 / 5 ) 58 ratings
Rittal 3589005
This image may differ from the desired article.
Rittal 3589005Rittal 3589005Rittal 3589005Rittal 3589005Rittal 3589005Rittal 3589005Rittal 3589005
565,66 EUR
incl. 217,21 EUR copper surcharge
( 673,14 EUR incl. VAT )
≈ £473.46  |  ≈ $621.66
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 3589005 busbar E-Cu 60x10 mm, L=2400 mm
Datasheet:file_download Download
Lieske Part No.:984583
Mfg Part No: 3589005
UPC/EAN: 4028177684607
Weight:25.88 kg
Type:SV 3589005

Product information for Rittal 3589005:

The Rittal SV 3589005 is an industrial busbar made of electrolytic copper (E-Cu F30), designed for use in enclosures and power distribution systems. With a cross-section of 60 mm x 10 mm and a length of 2,400 mm, it provides a robust and conductive base for the distribution of electrical energy. The busbar is manufactured in accordance with DIN EN 13 601, ensuring compliance with European standards for electrical equipment in the field of power distribution. The material E-Cu F30 is characterised by high electrical conductivity and mechanical strength, which is crucial for reliable current transmission in industrial applications.

Busbar

The SV 3589005 serves as a central power distribution component in enclosures. It enables efficient and safe distribution of electrical energy to multiple consumers or switching devices within an enclosure. The dimensions of 60 mm width and 10 mm height ensure sufficient cross-sectional area for the required current flow, with the exact current-carrying capacity depending on the specific application and installed switching devices. The length of 2,400 mm provides sufficient space for integration into standard enclosure sizes.

Individually cuttable

A key advantage of the busbar is the ability to cut it to the desired length. This allows precise adaptation to the specific enclosure configuration and reduces the need for additional cutting or connectors. The cutting is performed mechanically, with the material strength of E-Cu F30 ensuring clean and safe processing.

Compliance with standards

Manufacturing is carried out in accordance with DIN EN 13 601, a standard that specifies requirements for the construction, testing, and marking of power distribution components in enclosures. This standard ensures the safety, reliability, and interoperability of the component in industrial electrical installations. Compliance with this standard is essential for meeting safety requirements in electrical engineering.

Material and weight

The material E-Cu F30 is high-purity electrolytic copper, known for its excellent electrical conductivity and mechanical stability. Per piece, the copper content is 12.9 kg, indicating the high material quality and performance capability of the busbar. The packaging unit contains two pieces, with the net weight of the packaging being 25.8 kg.

Compatibility and accessories

The busbar is compatible with various accessories that ensure safe mounting and protection of the busbar. These include M12 insert nuts, used to secure the busbar to enclosure walls or other carriers. Additionally, busbar cover profiles are available for cross-sections from 40x10 to 60x10 mm, providing protection against mechanical damage and shock protection. Busbar connectors for E-Cu busbars with cross-sections of 60/100/120x10 mm (width 60 mm) enable the connection of multiple busbar sections to create longer power distribution systems.

Mounting and installation

Mounting is typically done using M12 insert nuts, which are inserted into the designated holes in the busbar. The busbar can be directly mounted to enclosure walls or to special brackets. The individual cuttability facilitates adaptation to the specific enclosure geometry. During installation, attention should be paid to a clean surface and correct fastening to ensure a safe and conductive connection.

Advantages in operation

The SV 3589005 offers reliable power distribution with high conductivity and mechanical stability. Compliance with DIN EN 13 601 ensures adherence to safety requirements. The individual cuttability and compatibility with various accessories enable flexible and application-specific integration into enclosure systems. The use of E-Cu F30 ensures a long service life and low maintenance requirements during operation.

General
MaterialE-Cu F30
NoteIndividually cuttable
StandardsDIN EN 13 601
Cross section60 mm x 10 mm
Length2.400 mm
Copper content (kg/piece)12,9


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
This article contains a copper surcharge of 217,21 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 3589005, EAN: 4028177684607
