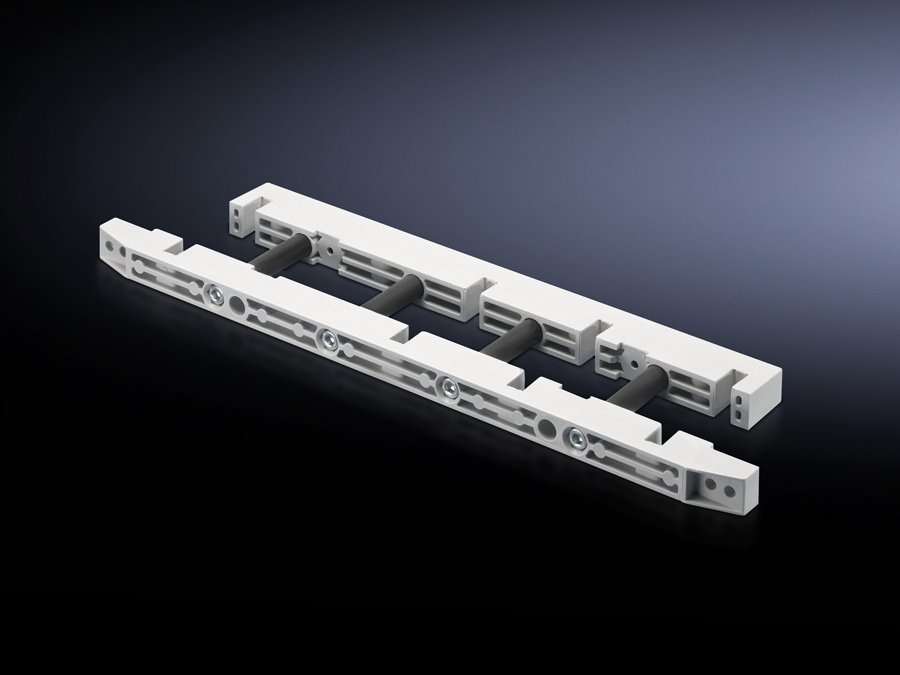

Rittal 9674416 busbar holder for E-Cu 60x10 mm, 3- and 4-pole

Your rating:
Average rating
product review for Rittal 9674416 busbar holder for E-Cu 60x10 mm, 3- and 4-pole
( 4.5 / 5 ) 2 ratings
Rittal 9674416
This image may differ from the desired article.
55,94 EUR
( 66,57 EUR incl. VAT )
≈ £46.82  |  ≈ $61.48
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9674416 busbar holder for E-Cu 60x10 mm, 3- and 4-pole
Datasheet:file_download Download
Lieske Part No.:636671
Mfg Part No: 9674416
UPC/EAN: 4028177613454
Weight:1.134 kg
Type:SV 9674416

Product information for Rittal 9674416:

The Rittal SV 9674416 is a busbar holder for the distribution busbar system in the switch disconnector field. It is designed for the secure mounting of flat copper busbars with dimensions 60 mm width and 10 mm height. The product is designed for 3-pole and 4-pole configurations and enables structured and stable installation of busbars in enclosures, particularly in systems with switch disconnectors. The holder is made of duroplastic polyester, a robust plastic that withstands mechanical stress and industrial operating conditions.

Applications

The busbar holder is used in industrial electrical engineering where reliable and secure mounting of busbars is required. It is specifically intended for the switch disconnector field, i.e., areas where switch disconnectors, fuses, or other switching and protection devices are mounted. The holder is used in enclosures, distribution boxes, or other electrical distribution systems where flat copper busbars serve as main conductors. The dimensions of the compatible busbars (60x10 mm) are standardized and commonly used in medium to high-power installations.

Functions and Equipment in Detail

The holder includes mounting brackets and screws in the delivery scope, enabling direct mounting to enclosure walls or within the enclosure frame. The mounting components are designed to ensure a firm and vibration-resistant anchoring. The holder’s construction ensures the busbar is precisely positioned and secured against displacement. The 3- and 4-pole configuration allows adaptation to different switching arrangements, such as three-phase or four-wire systems.

Technology Explained Simply

The holder is made of duroplastic polyester, a thermoplastic material suitable for electrical distribution systems due to its high strength, heat resistance, and chemical resistance. The material selection ensures long service life under industrial conditions. Mounting is done using the included brackets and screws, which are attached directly to the enclosure walls or frame. The busbar is inserted into the holder and secured by the mounting components. The design is engineered to absorb mechanical stress on the busbar and ensure a secure electrical connection.

Compatibility and Accessories

The busbar holder is specifically designed for flat copper busbars with dimensions 60 mm width and 10 mm height. Compatible accessories include the busbar E-Cu 60x10 mm with a length of 2400 mm, as well as end holders for E-Cu 60x10 mm, which are also suitable for 3- and 4-pole configurations. These components can be combined to create a complete distribution busbar system in the switch disconnector field. The use of end holders ensures secure end fixation of the busbars within the enclosure.

Mounting and Installation

Installation involves mounting the included brackets to the enclosure wall or frame using the provided screws. The flat copper busbar is then inserted into the holder and secured by the mounting components. Positioning depends on the switching arrangement and required conductor routing. Installation requires tools and no additional parts. The predefined pole count (3- and 4-pole) allows flexible adaptation to the respective switching configuration.

Operational Advantages

Using the busbar holder ensures stable and secure mounting of busbars, increasing the reliability of electrical distribution. The duroplastic polyester material provides high mechanical strength and resistance to industrial influences. Compatibility with standardized flat copper busbars (60x10 mm) and accessories such as end holders simplifies planning and implementation of switching systems.

General
MaterialDuroplastic polyester
Scope of deliveryIncluding mounting brackets and screws
Suitable for busbarsflat copper busbars
Number of poles3-pole, 4-pole


Product data sheet
Datasheet for Rittal 9674416, EAN: 4028177613454

Questions & answers

What is the delivery time of Rittal 9674416 busbar holder for E-Cu 60x10 mm, 3- and 4-pole?

The article Rittal 9674416 busbar holder for E-Cu 60x10 mm, 3- and 4-pole is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9674416 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9674416 busbar holder for E-Cu 60x10 mm, 3- and 4-pole always at the best possible price. We can give you a discount of 2% on Rittal 9674416 busbar holder for E-Cu 60x10 mm, 3- and 4-pole if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
