Rittal 9674436 End holder for E-Cu 60x10 mm, 3- and 4-pole, for switch disconnector

Your rating:
Average rating
product review for Rittal 9674436 End holder for E-Cu 60x10 mm, 3- and 4-pole, for switch disconnector
( 4.3 / 5 ) 3 ratings

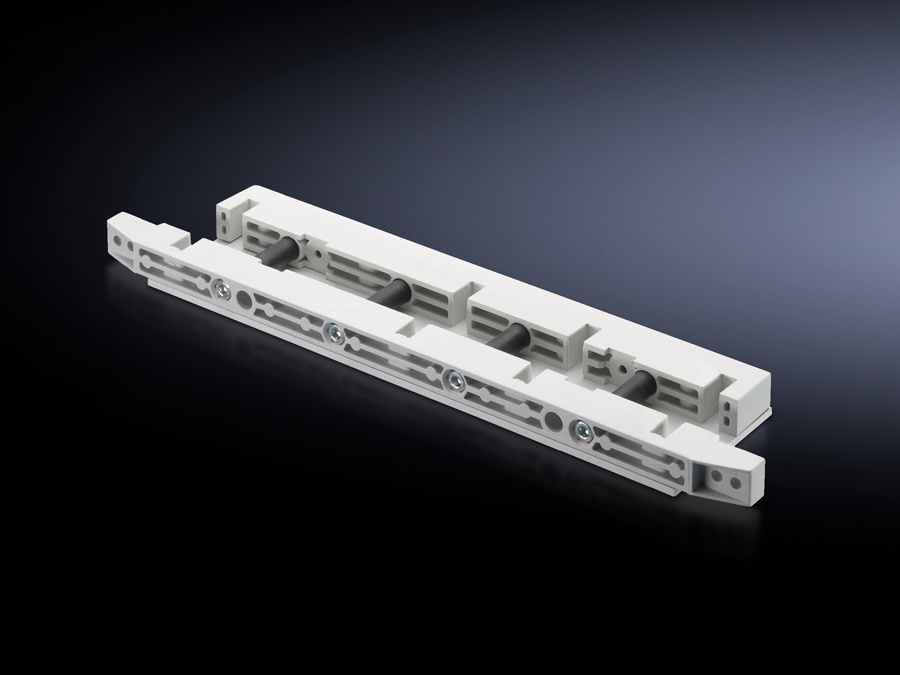

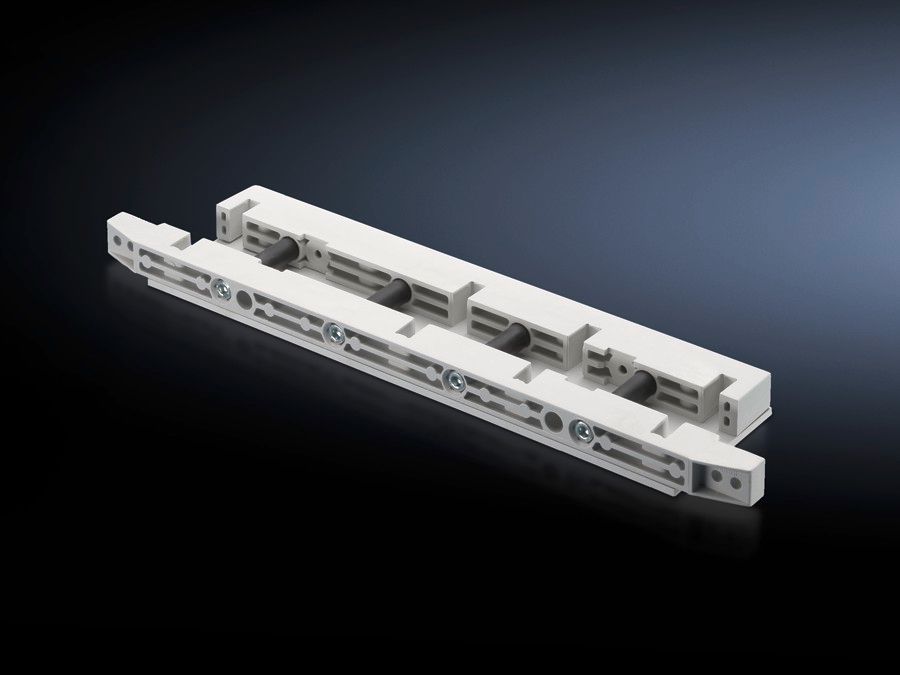

Rittal 9674436
This image may differ from the desired article.
81,88 EUR
( 97,44 EUR incl. VAT )
≈ £68.53  |  ≈ $89.99
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9674436 End holder for E-Cu 60x10 mm, 3- and 4-pole, for switch disconnector
Datasheet:file_download Download
Lieske Part No.:636673
Mfg Part No: 9674436
UPC/EAN: 4028177613539
Weight:1.48 kg
Type:SV 9674436

Product information for Rittal 9674436:

The SV 9674436 from Rittal is an end support for the distribution busbar system in the switch disconnector field. It provides vertical support for the busbar system when power is supplied from above and ensures a secure and stable installation of the busbar. The product is specifically designed for busbars with a width of 60 mm and a height of 10 mm, making it compatible with standard busbars such as E-Cu 60x10 mm. The construction from thermosetting polyester offers high mechanical strength and resistance to chemical influences, ensuring suitability for industrial environments.

End support for busbars in the switch disconnector field
The end support SV 9674436 is mounted at the end of a busbar to stabilize it against lateral or vertical loads. It is designed for 3-pole and 4-pole applications, making it suitable for a wide range of distribution systems in enclosures. Vertical support is particularly important when power supply is from above, to ensure safe load distribution and prevent bending.

Functions and equipment in detail
The product is supplied including mounting brackets and screws, enabling direct installation on the enclosure wall or within the enclosure. The fastening elements are designed to ensure a secure and durable connection between the end support and the enclosure body. The material choice of thermosetting polyester ensures high heat resistance and mechanical robustness, extending the product's service life in demanding operating environments.

Technology explained clearly
The end support provides mechanical support at the end of a busbar to prevent uncontrolled movement or deformation. The use of thermosetting polyester offers advantages such as high strength, low elongation under load, and good insulation properties. The dimensions of the compatible busbar (60 mm width, 10 mm height) are precisely specified to ensure a secure fit. The 3- and 4-pole configuration enables application in various electrical distribution systems, particularly in enclosures with switch disconnector fields.

Compatibility and accessories
The end support is specifically designed for busbars with dimensions of 60 mm width and 10 mm height. It is therefore compatible with the E-Cu 60x10 mm busbar, which is offered as suitable accessory. The combination of end support and busbar enables structured and secure power distribution in the enclosure. Use in the switch disconnector field is standard, with vertical support playing a crucial role when power is supplied from above.

Mounting and installation
Installation is carried out by securing the end support to the enclosure wall or within the enclosure using the included mounting brackets and screws. Positioning at the end of the busbar occurs after installation of the busbar, with precise alignment ensuring mechanical stability.

Advantages in operation
The use of the SV 9674436 end support ensures increased safety and reliability in the enclosure. Mechanical stability of the busbar is guaranteed, reducing the risk of short circuits or mechanical damage. The material quality of thermosetting polyester ensures long service life and resistance to environmental influences. Compatibility with standard busbars and easy installation facilitate integration into existing distribution systems.

General
MaterialDuroplastic polyester
Scope of deliveryIncluding mounting brackets and screws
Suitable for busbarsWidth: 60, Height: 10 mm
Number of poles3-pole, 4-pole


Product data sheet
Datasheet for Rittal 9674436, EAN: 4028177613539

Questions & answers

What is the delivery time of Rittal 9674436 End holder for E-Cu 60x10 mm, 3- and 4-pole, for switch disconnector?

The article Rittal 9674436 End holder for E-Cu 60x10 mm, 3- and 4-pole, for switch disconnector is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9674436 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9674436 End holder for E-Cu 60x10 mm, 3- and 4-pole, for switch disconnector always at the best possible price. We can give you a discount of 2% on Rittal 9674436 End holder for E-Cu 60x10 mm, 3- and 4-pole, for switch disconnector if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
