Rittal 3590015 busbar E-Cu 100x10 mm, L=2400 mm

Your rating:
Average rating
product review for Rittal 3590015 busbar E-Cu 100x10 mm, L=2400 mm
( 4.6 / 5 ) 49 ratings

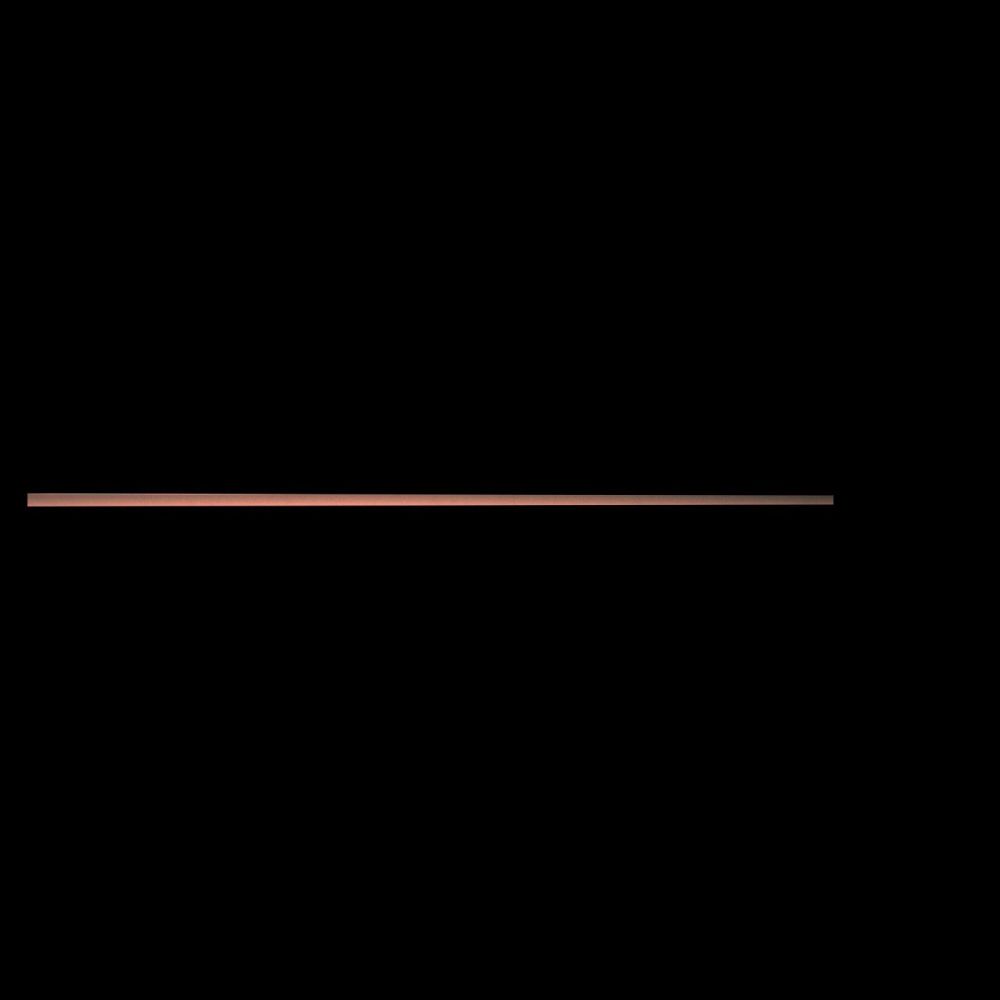

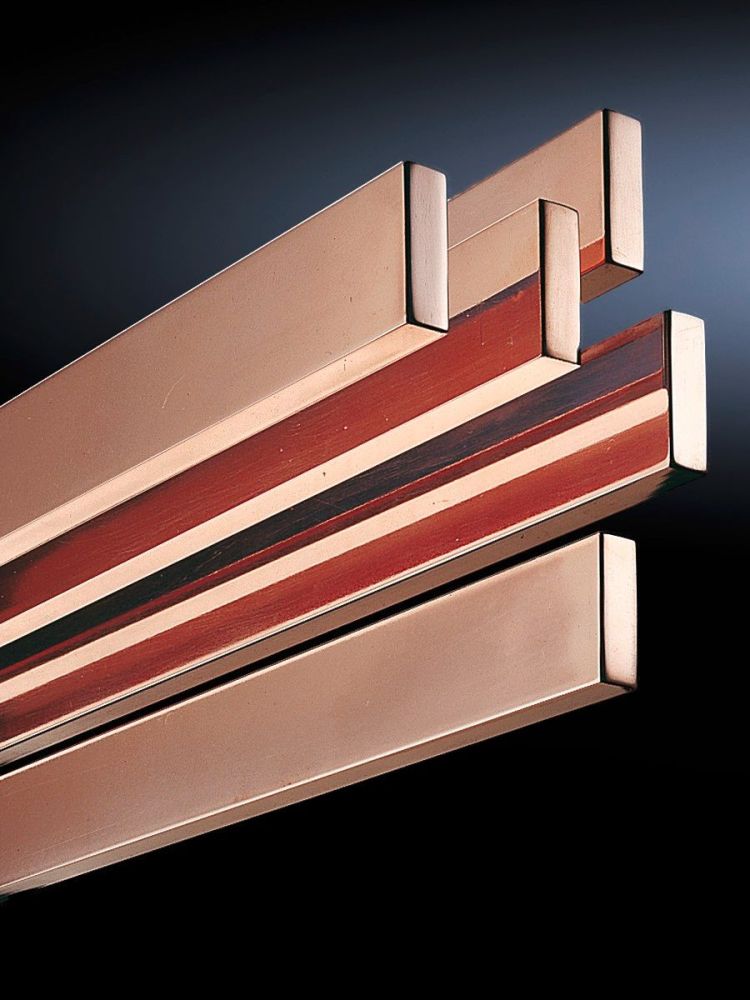

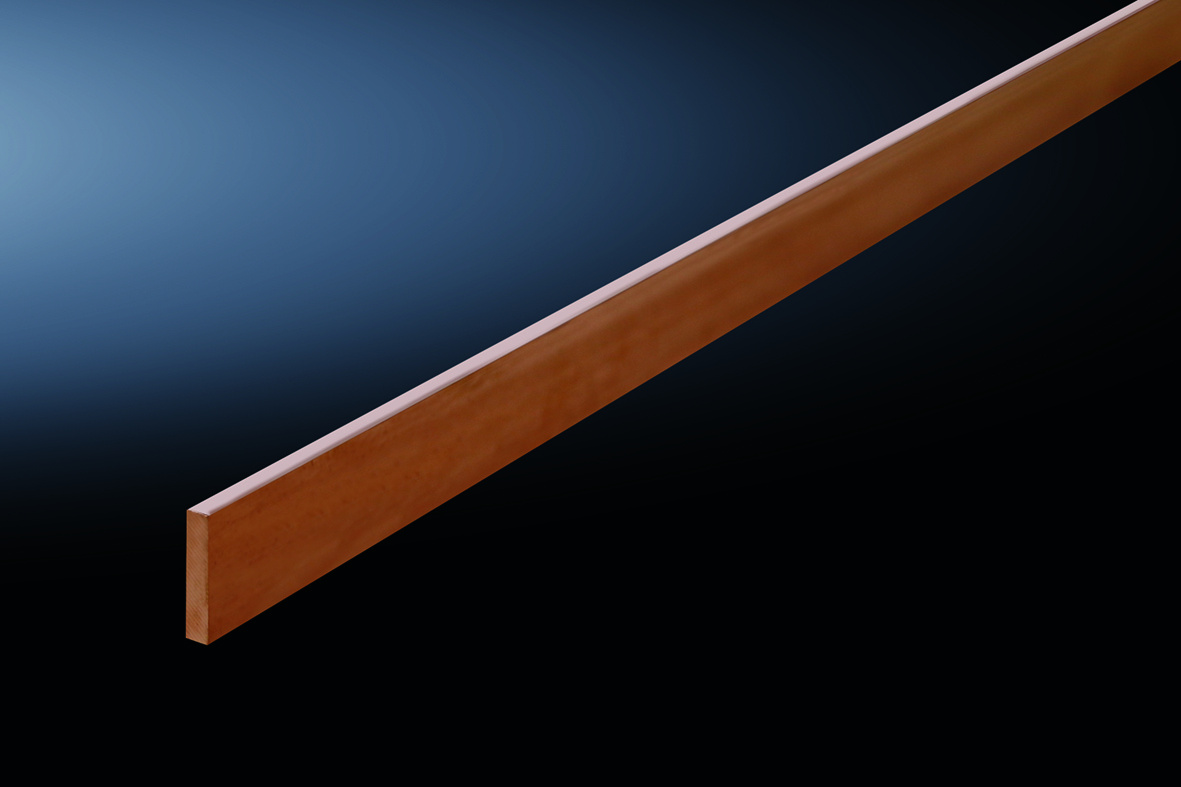

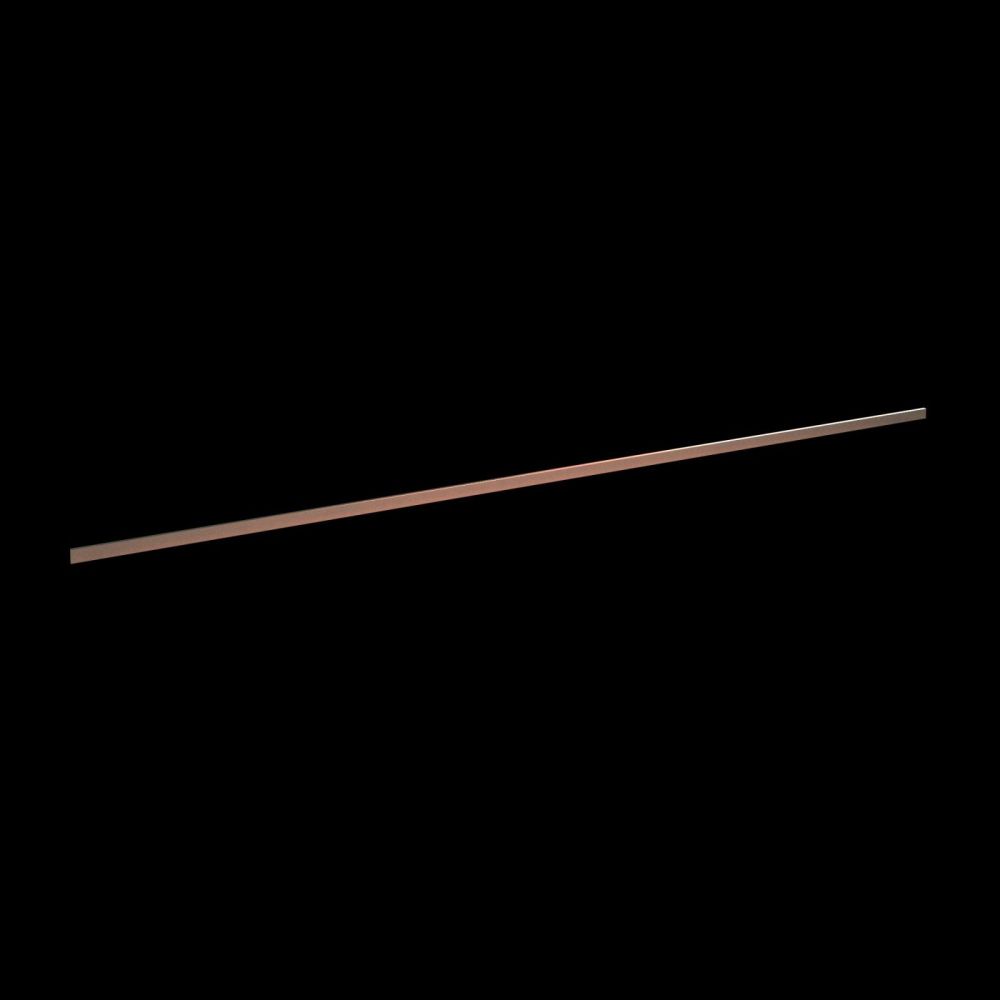

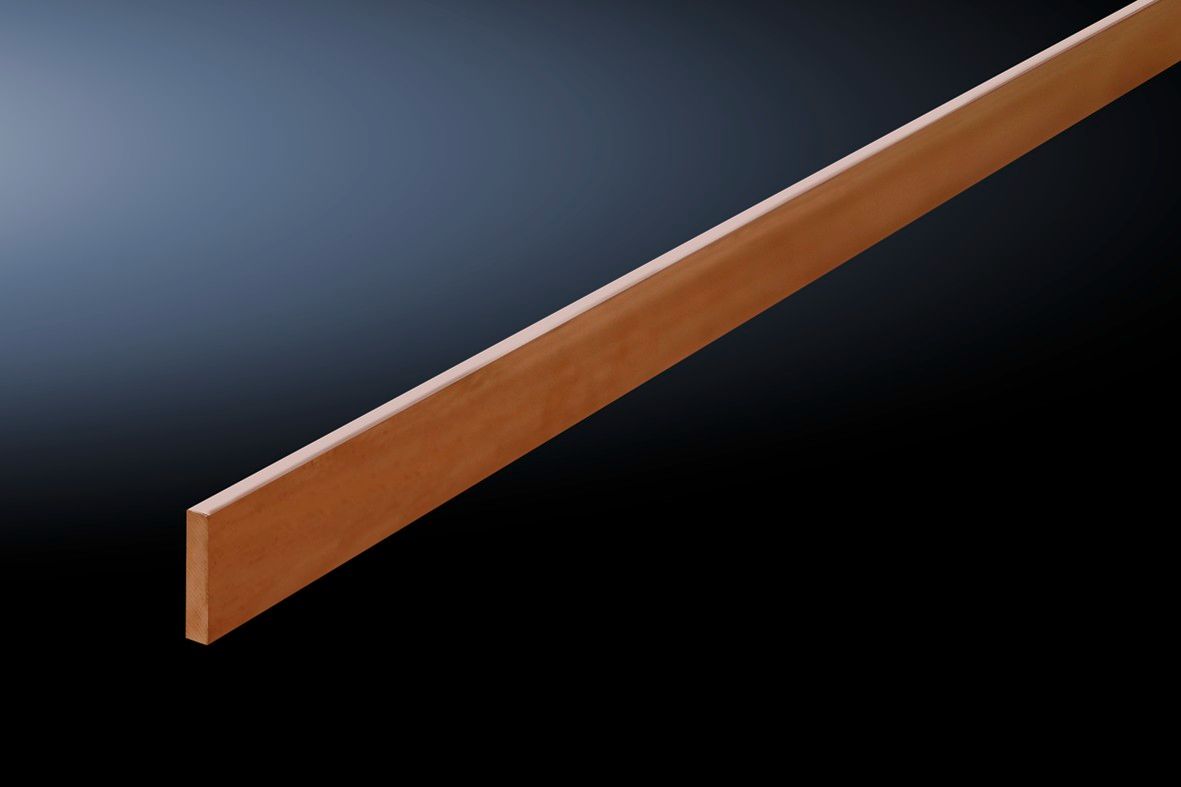

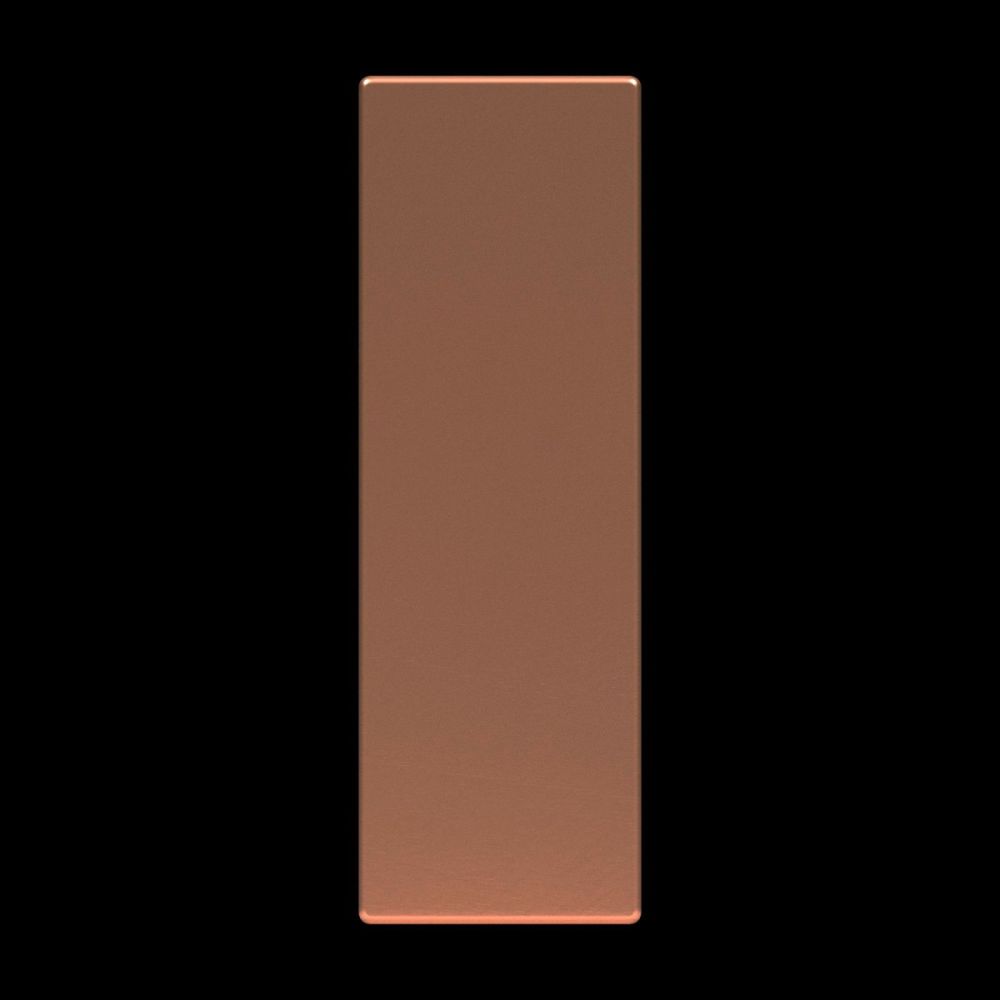

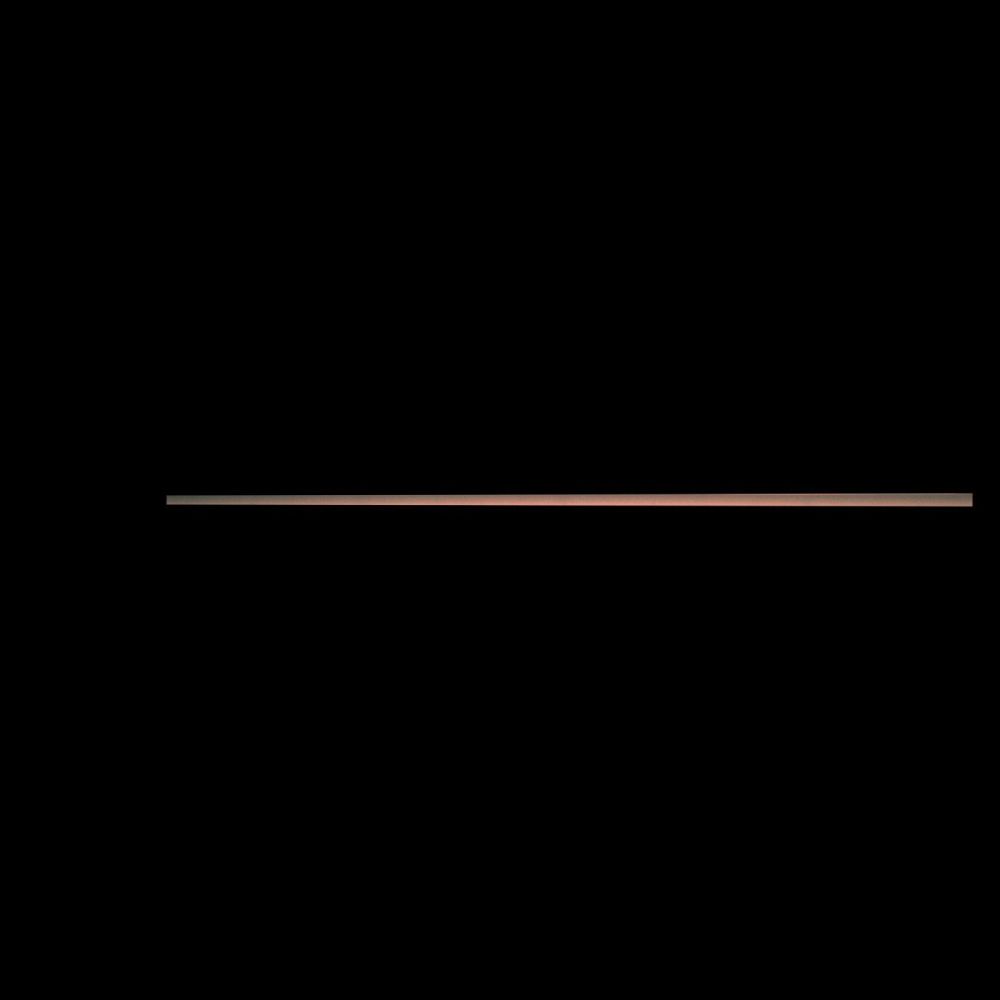

Rittal 3590015
This image may differ from the desired article.
Rittal 3590015Rittal 3590015Rittal 3590015Rittal 3590015Rittal 3590015Rittal 3590015Rittal 3590015Rittal 3590015
476,46 EUR
incl. 180,68 EUR copper surcharge
( 566,99 EUR incl. VAT )
≈ £398.80  |  ≈ $523.63
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 3590015 busbar E-Cu 100x10 mm, L=2400 mm
Datasheet:file_download Download
Lieske Part No.:984585
Mfg Part No: 3590015
UPC/EAN: 4028177684621
Weight:21.64 kg
Type:SV 3590015

Product information for Rittal 3590015:

The Rittal SV 3590015 is a busbar made of E-Cu F30 copper, designed for use in power distribution components and enclosures. With a cross-section of 100 mm x 10 mm and a length of 2,400 mm, it provides a robust and conductive connection for electrical wiring in industrial installations. The busbar is manufactured in accordance with DIN EN 13 601, ensuring compliance with European standards for electrical equipment in industrial applications. The material quality E-Cu F30 ensures high electrical conductivity and mechanical strength, which is crucial for reliability in demanding environments.

Applications
The busbar is suitable for use in industrial enclosures, distribution boxes, and power distribution systems, where stable and conductive power distribution is required. It is commonly used in electrical installations, machine and plant construction, and energy technology. The dimensions of 100 mm width and 10 mm thickness allow for high current-carrying capacity and are designed for standard applications in industrial electrical engineering.

Functions and Equipment in Detail
The busbar is individually cuttable, allowing it to be adapted to the specific requirements of the installation. This enables flexible use in different enclosure sizes and configurations. Processing is done by mechanical cutting, preserving the metallic structure of the busbar. The copper content is 21.46 kg per piece, highlighting the high material quality and conductivity. The busbar is supplied in a packaging unit of one piece.

Technology Explained Simply
The designation E-Cu F30 stands for electrolytic copper of strength class F30, which exhibits high electrical conductivity and good mechanical properties. The standard DIN EN 13 601 specifies requirements for electrical equipment in industry, particularly regarding safety, performance, and material quality. The cross-sectional dimensions of 100 mm x 10 mm ensure sufficient current-carrying capacity for typical industrial applications. The length of 2,400 mm allows for efficient installation in standard enclosure sizes.

Compatibility and Accessories
Various accessories are available for secure mounting and connection of the busbar. These include busbar connectors for E-Cu busbars with cross-sections of 60/100/120x10 mm (width 60 mm) and 40/60/80/100x10 mm (width 40 mm). These connectors enable a secure electrical connection between multiple busbar sections. Additionally, M12 stand-off nuts are available for securing the busbar to mounting points within the enclosure.

Mounting and Installation
Mounting is typically done by fastening to enclosure walls or mounting profiles using appropriate fastening elements. The individual cuttability allows for precise adaptation to the specific enclosure geometry. The busbar should be cut cleanly and without deformation to ensure electrical conductivity and mechanical stability. Connections to other components are made via busbar connectors or directly at connection points.

Advantages in Operation
The Rittal SV 3590015 provides reliable power distribution with high conductivity and mechanical strength. Compliance with DIN EN 13 601 ensures adherence to safety and quality standards. The individual cuttability increases flexibility during installation, while the high-quality E-Cu F30 copper ensures long service life and low resistance values. The busbar is thus a high-performance component for industrial power distribution systems.

General
MaterialE-Cu F30
NoteIndividually cuttable
StandardsDIN EN 13 601
Cross section100 mm x 10 mm
Length2.400 mm
Copper content (kg/piece)21,46


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
This article contains a copper surcharge of 180,68 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 3590015, EAN: 4028177684621

Questions & answers

What is the delivery time of Rittal 3590015 busbar E-Cu 100x10 mm, L=2400 mm?

The article Rittal 3590015 busbar E-Cu 100x10 mm, L=2400 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3590015 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3590015 busbar E-Cu 100x10 mm, L=2400 mm always at the best possible price. We can give you a discount of 2% on Rittal 3590015 busbar E-Cu 100x10 mm, L=2400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
