Rittal 9674410 busbar holder for E-Cu 100x10 mm, 3- and 4-pole

Your rating:
Average rating
product review for Rittal 9674410 busbar holder for E-Cu 100x10 mm, 3- and 4-pole
( 4.8 / 5 ) 4 ratings

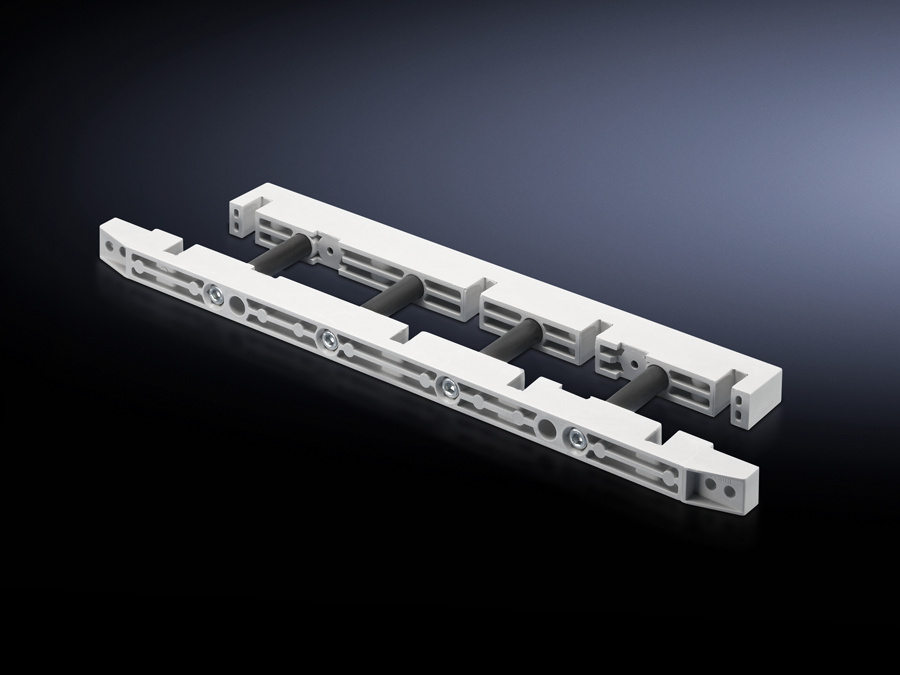

Rittal 9674410
This image may differ from the desired article.
Rittal 9674410Rittal 9674410
58,65 EUR
( 69,79 EUR incl. VAT )
≈ £49.09  |  ≈ $64.46
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9674410 busbar holder for E-Cu 100x10 mm, 3- and 4-pole
Datasheet:file_download Download
Lieske Part No.:467149
Mfg Part No: 9674410
UPC/EAN: 4028177613430
Weight:1.313 kg
Type:SV 9674410

Product information for Rittal 9674410:

The Rittal SV 9674410 is a busbar holder, specifically designed for the distribution busbar system in switch disconnector fields. It is used for the secure mounting of flat copper busbars with dimensions of 100 mm width and 10 mm height. The product is suitable for 3-pole and 4-pole applications and enables structured and stable installation of busbars in enclosures and distributors. The holder is made of duroplastic polyester, a material known for its high mechanical strength and heat resistance in industrial electrical installations.

Busbar holder for switch disconnector fields
The SV 9674410 is an integral part of the distribution busbar system, used in industrial electrical installations for power distribution. It enables precise and secure mounting of flat copper busbars, which serve as main conductors for power supply. The use of duroplastic polyester ensures high mechanical stability and resistance to thermal stress, which is crucial for reliability in continuously operated systems.

Functions and equipment in detail
The busbar holder is designed for mounting busbars with dimensions 100x10 mm. It is used in 3-pole and 4-pole configurations, making it flexible for various distribution requirements. The delivery includes mounting brackets and screws, enabling easy and secure installation in the enclosure. The provided mounting elements ensure that the busbar is firmly and vibration-resistant fixed within the housing.

Technology explained simply
The holder is made of duroplastic polyester, a thermosetting plastic used in electrical engineering for its high strength, heat resistance, and electrical insulation properties. The material selection ensures long service life and reliability under industrial operating conditions. Mounting is done using the included brackets and screws, enabling quick and secure installation.

Compatibility and accessories
The SV 9674410 is specifically designed for flat copper busbars with dimensions 100x10 mm. It is compatible with the distribution busbar system of the switch disconnector field. Suitable accessories include end holders for E-Cu 100x10 mm, 3- and 4-pole, as well as the busbar E-Cu 100x10 mm, length 2400 mm. These components enable complete and secure installation of power distribution components in the enclosure.

Mounting and installation
The installation of the busbar holder is carried out using the included mounting brackets and screws. The holder is fixed at the designated position in the enclosure, with the exact positioning of the busbar ensured by the shape of the holder.

Advantages in operation
The use of the Rittal SV 9674410 ensures stable and secure mounting of busbars, increasing the reliability of power distribution in the enclosure. The use of duroplastic polyester provides high mechanical strength and heat resistance, extending the product's service life. The provided mounting elements allow for quick and easy installation, reducing installation time. Compatibility with the distribution busbar system of the switch disconnector field ensures seamless integration into existing systems.

The flat copper busbars with dimensions 100x10 mm are the appropriate conductors to be connected with the holder. The pole count of 3- and 4-pole defines the number of conductors that can be routed through the holder. The distribution busbar system is the overall system in which the holder is used to enable power distribution in the enclosure. The mounting brackets and screws included in the delivery are necessary for installation and ensure stable anchoring in the enclosure.

General
MaterialDuroplastic polyester
Scope of deliveryIncluding mounting brackets and screws
Suitable for busbarsflat copper busbars
Number of poles3-pole, 4-pole


Product data sheet
Datasheet for Rittal 9674410, EAN: 4028177613430

Questions & answers

What is the delivery time of Rittal 9674410 busbar holder for E-Cu 100x10 mm, 3- and 4-pole?

The article Rittal 9674410 busbar holder for E-Cu 100x10 mm, 3- and 4-pole is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9674410 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9674410 busbar holder for E-Cu 100x10 mm, 3- and 4-pole always at the best possible price. We can give you a discount of 2% on Rittal 9674410 busbar holder for E-Cu 100x10 mm, 3- and 4-pole if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
