Rittal 3590020 busbar E-Cu 120x10 mm, L=2400 mm

Your rating:
Average rating
product review for Rittal 3590020 busbar E-Cu 120x10 mm, L=2400 mm
( 4.5 / 5 ) 17 ratings

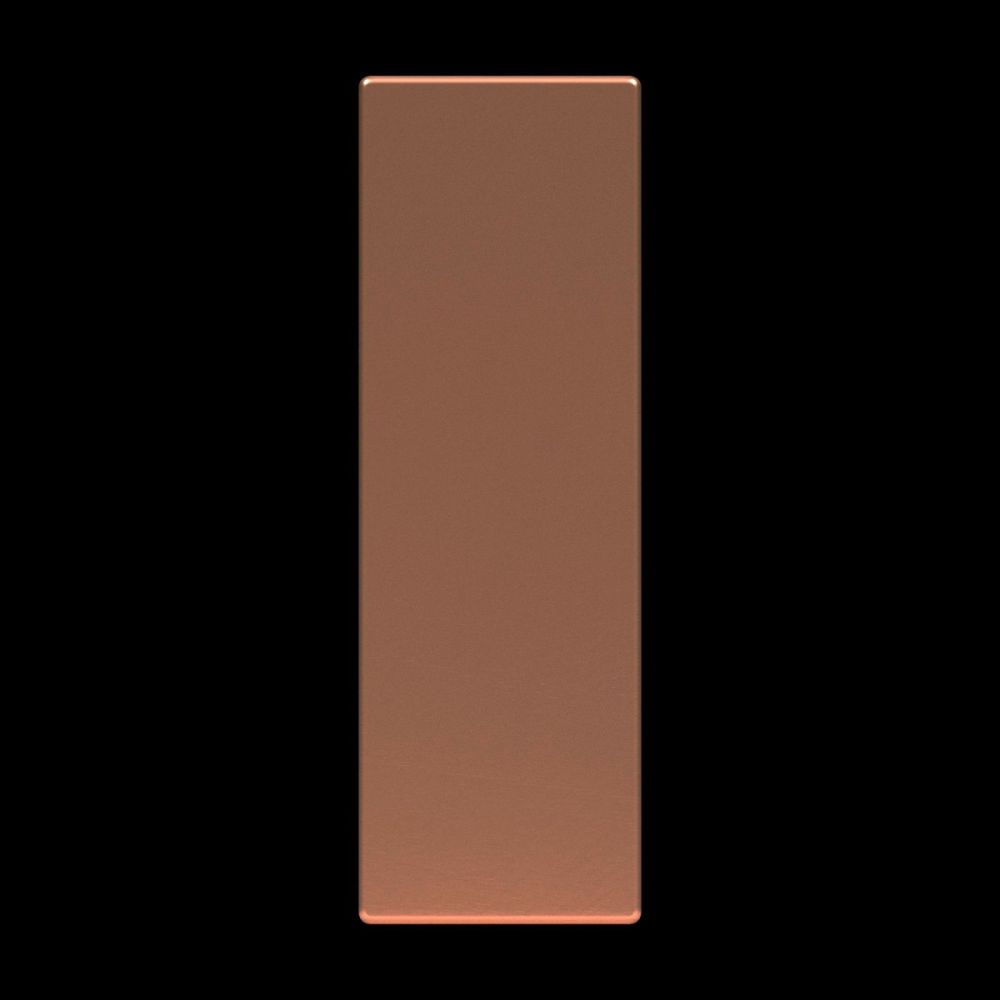

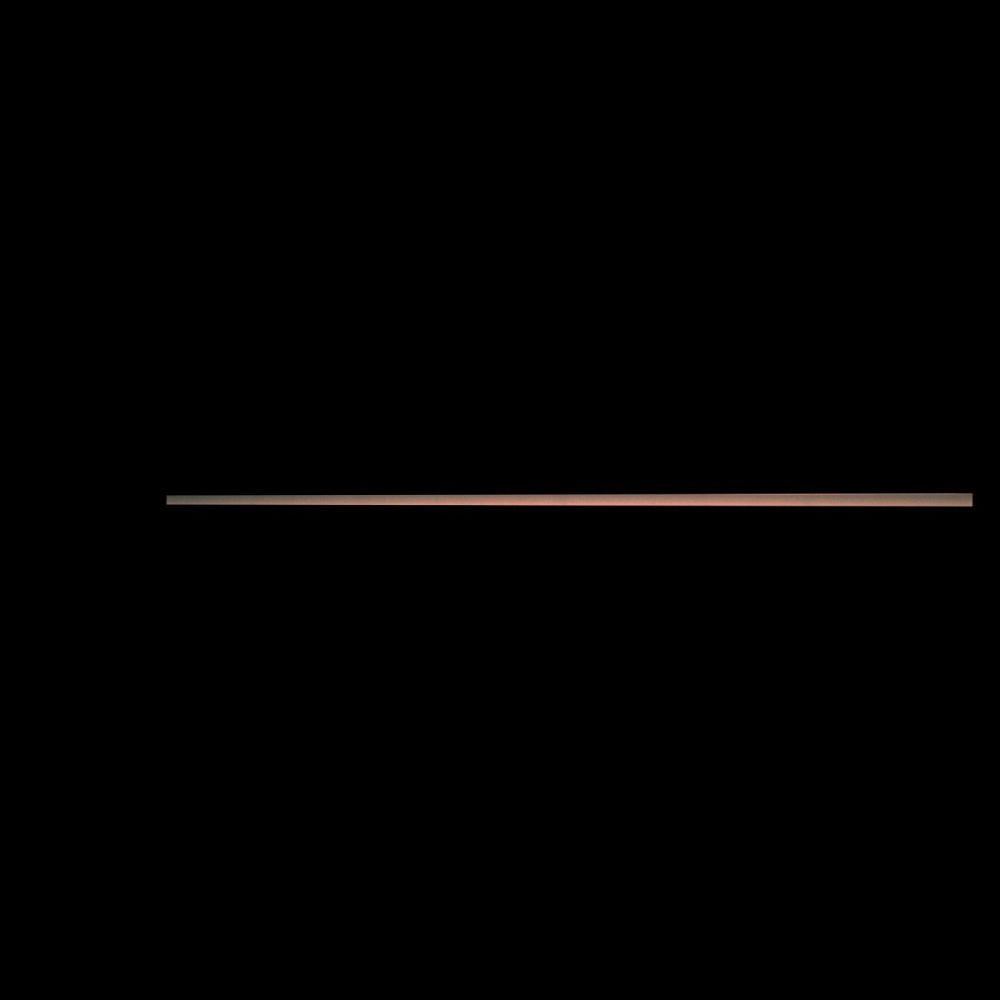

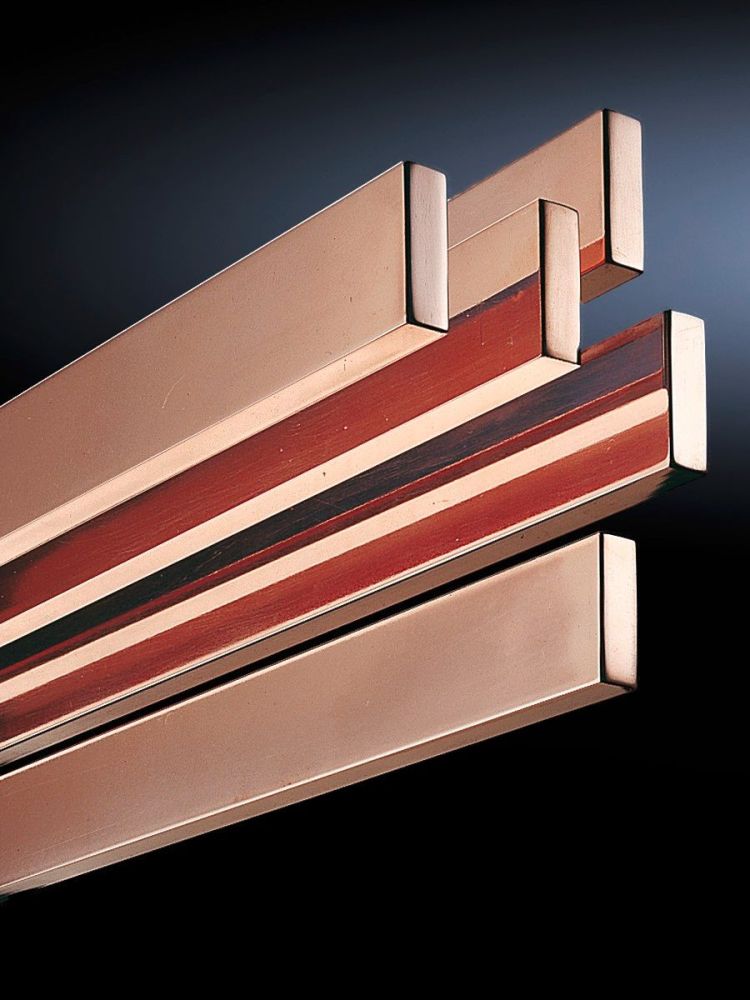

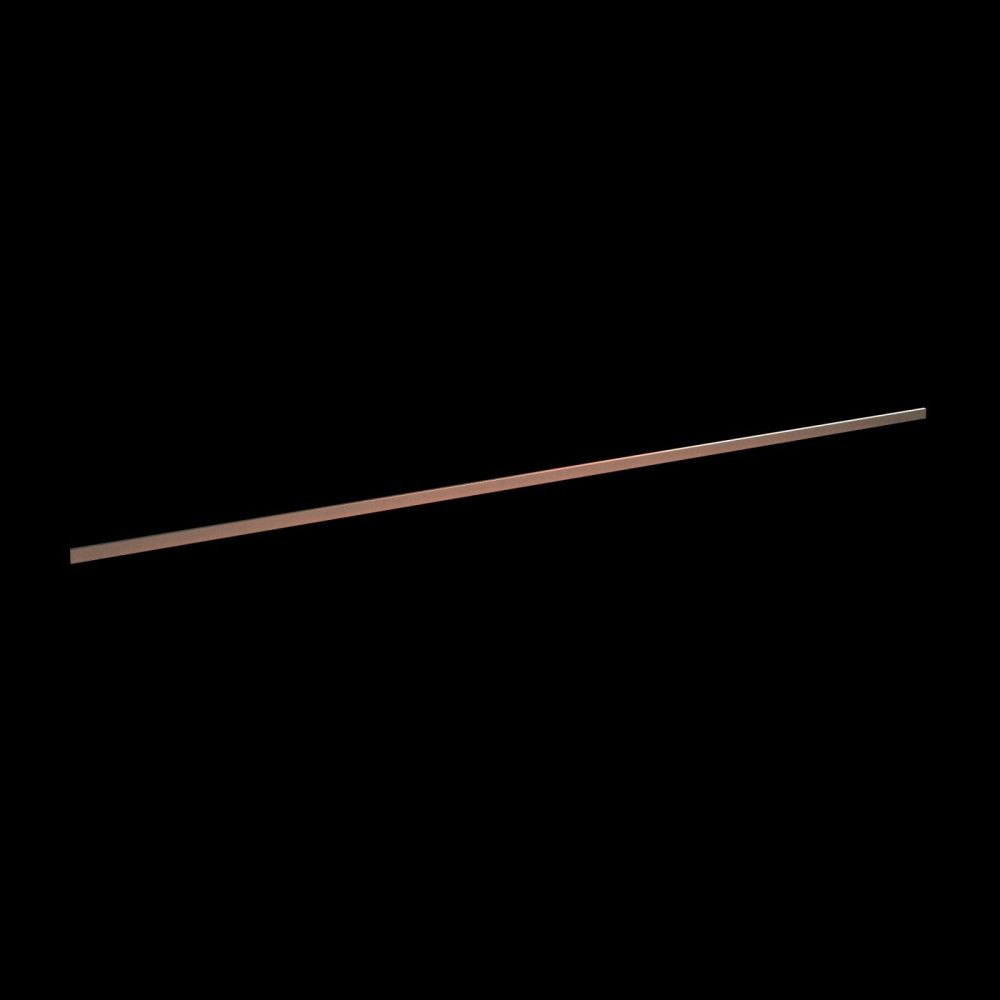

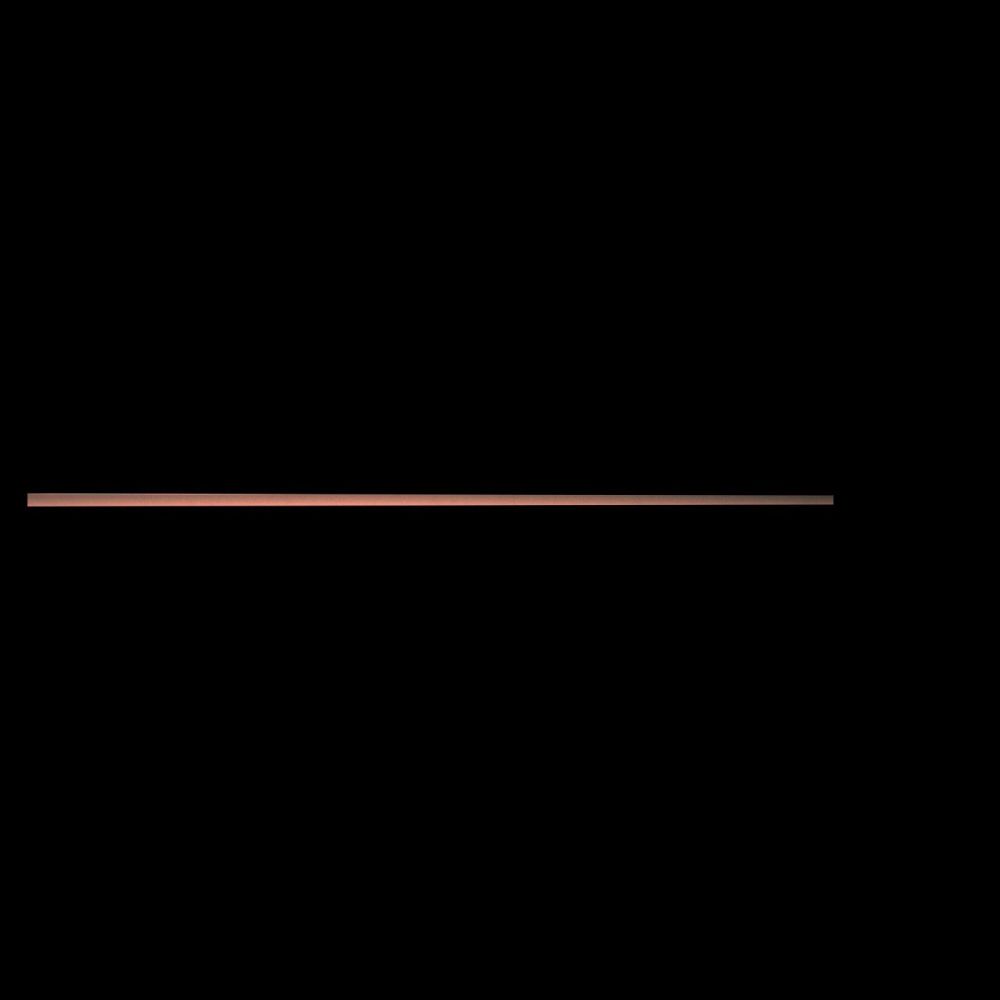

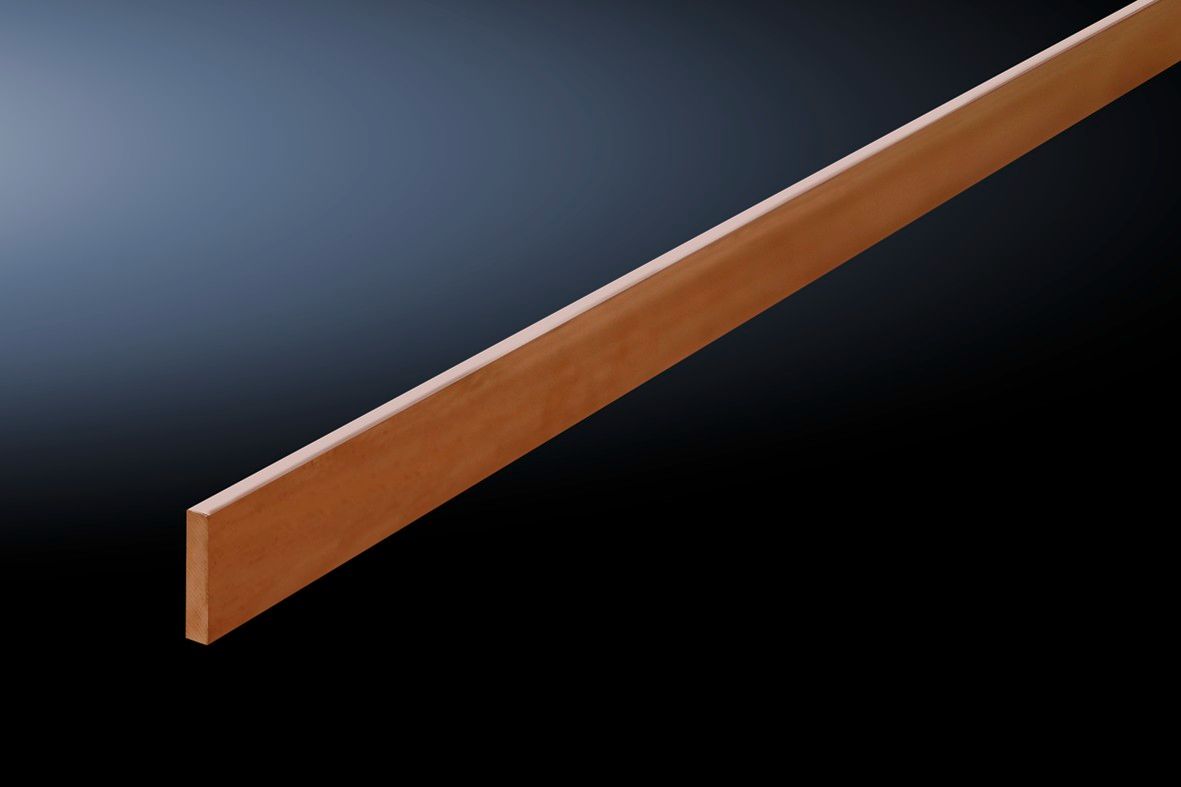

Rittal 3590020
This image may differ from the desired article.
Rittal 3590020Rittal 3590020Rittal 3590020Rittal 3590020Rittal 3590020Rittal 3590020Rittal 3590020Rittal 3590020
568,95 EUR
incl. 217,05 EUR copper surcharge
( 677,05 EUR incl. VAT )
≈ £476.21  |  ≈ $625.28
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 3590020 busbar E-Cu 120x10 mm, L=2400 mm
Datasheet:file_download Download
Lieske Part No.:1131511
Mfg Part No: 3590020
UPC/EAN: 4028177705135
Weight:25.7 kg
Type:SV 3590020

Product information for Rittal 3590020:

The Rittal SV 3590020 is a busbar made of E-Cu F30 copper, designed for use in power distribution components and enclosures. With a cross-section of 120 mm x 10 mm and a length of 2,400 mm, it provides a robust foundation for safe and efficient power distribution in industrial installations. The busbar is individually cuttable, allowing it to be adapted to the specific requirements of each installation. It is manufactured in accordance with the standard DIN EN 13 601, which defines requirements for the quality and safety of power distribution components. The copper content is 25.78 kg per piece, ensuring high conductivity and electrical reliability of the busbar.

Applications
The busbar is used in industrial electrical installations, particularly in enclosures, distribution boxes, and power distribution systems. It serves as a main conductor for distributing electrical energy to various consumers or switching devices. Due to its dimensions and material quality, it is especially suitable for applications with high current loads. The busbar can be mounted in various configurations, for example as a main conductor in a distribution unit or as a connecting element between multiple switching devices.

Functions and Equipment in Detail
The busbar features a cross-section of 120 mm x 10 mm, enabling high current-carrying capacity. The material quality E-Cu F30 is an unalloyed copper with high electrical conductivity and mechanical strength, ideal for use in industrial electrical engineering. The length of 2,400 mm provides sufficient clearance for mounting in standard enclosure sizes. The individual cuttability allows precise adaptation to the specific enclosure geometry, minimizing material waste and installation effort.

Technology Explained Simply
The busbar serves as a central power distribution unit, conducting electrical energy from a source (e.g., a main distributor) to multiple consumers or switching devices. The high conductivity of the E-Cu F30 material ensures low voltage drops and minimal heat losses at high current levels. The DIN EN 13 601 standard ensures that the busbar meets requirements for safety, reliability, and performance in industrial installations. The cuttability allows flexible use without requiring additional tools or special manufacturing steps.

Compatibility and Accessories
For secure mounting and connection of the busbar, suitable accessories are available, including M12 insert nuts and busbar connectors for E-Cu 60/100/120x10 mm, W=60 mm. These components enable a firm and electrically reliable connection between the busbar and other parts, such as switches, fuses, or other busbars. Using busbar connectors ensures homogeneous current distribution and avoids contact resistance.

Mounting and Installation
Mounting typically takes place in enclosures or distribution boxes. The busbar can be secured at designated mounting points using appropriate fastening elements, such as insert nuts or busbar connectors. The individual cuttability allows precise adaptation to the enclosure depth. During installation, care must be taken to mount the busbar cleanly and without mechanical damage to ensure electrical conductivity and mechanical stability.

Operational Advantages
The Rittal SV 3590020 offers high electrical conductivity, resulting in low energy losses and stable power supply. The E-Cu F30 material quality ensures long service life and high reliability under industrial conditions. The cuttability reduces material consumption and enables flexible adaptation to different enclosure sizes. Compatibility with standard accessories such as insert nuts and busbar connectors simplifies mounting and maintenance.

General
MaterialE-Cu F30
NoteIndividually cuttable
StandardsDIN EN 13 601
Cross section120 mm x 10 mm
Length2.400 mm
Copper content (kg/piece)25,78


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
This article contains a copper surcharge of 217,05 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 3590020, EAN: 4028177705135

Questions & answers

What is the delivery time of Rittal 3590020 busbar E-Cu 120x10 mm, L=2400 mm?

The article Rittal 3590020 busbar E-Cu 120x10 mm, L=2400 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3590020 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3590020 busbar E-Cu 120x10 mm, L=2400 mm always at the best possible price. We can give you a discount of 2% on Rittal 3590020 busbar E-Cu 120x10 mm, L=2400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
