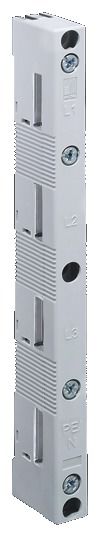

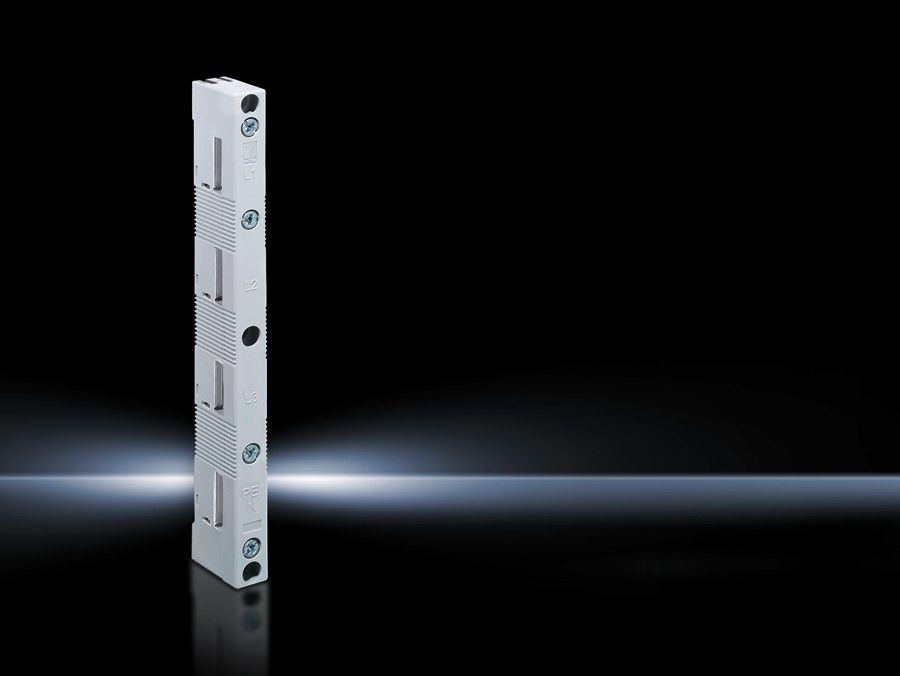

Rittal 9340004 SV Busbar support, 4-pole, 60 mm bar centre distance, for busbar WH: 12x5-30x10 mm, UL design
|
-7% 45,50 EUR 48,69 EUR |
|||||||||||
|
( 54,15 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 298713 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 9340004 | ||||||||||
| UPC/EAN: | 4028177536715 | ||||||||||
| Weight: | 0.0009 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 9340004:
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Note: The use of a base tray is required for UL applications
UL approval only applies in conjunction with AC application
Note on Model No.: If 12 x 5/10 mm busbars are used, the spacer 9340.090 is additionally required
Packs of: 4 pc(s).
EAN: 4028177536715
Customs tariff number: 85469010
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400607
ETIM 6.0: EC001166
To fit busbars: Type: Flat copper busbars
with cross-section width: 12 mm
with cross-section width: 12 mm
with cross-section width: 15 mm
with cross-section width: 15 mm
with cross-section width: 20 mm
with cross-section width: 20 mm
with cross-section width: 25 mm
with cross-section width: 25 mm
with cross-section width: 30 mm
with cross-section width: 30 mm
with cross-section height: 5 mm
with cross-section height: 10 mm
with cross-section height: 5 mm
with cross-section height: 10 mm
with cross-section height: 5 mm
with cross-section height: 10 mm
with cross-section height: 5 mm
with cross-section height: 10 mm
with cross-section height: 10 mm
with cross-section height: 5 mm
Number of poles: 4-pole
Centre-to-centre spacing of busbars: 60 mm
Internal attachment: yes
Weight/pack: 0.92 kg
Type: SV 9340.004
Questions & answers
What is the delivery time of Rittal 9340004 SV Busbar support, 4-pole, 60 mm bar centre distance, for busbar WH: 12x5-30x10 mm, UL design?
The article Rittal 9340004 SV Busbar support, 4-pole, 60 mm bar centre distance, for busbar WH: 12x5-30x10 mm, UL design is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9340004 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9340004 SV Busbar support, 4-pole, 60 mm bar centre distance, for busbar WH: 12x5-30x10 mm, UL design always at the best possible price. We can give you a discount of 2% on Rittal 9340004 SV Busbar support, 4-pole, 60 mm bar centre distance, for busbar WH: 12x5-30x10 mm, UL design if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Rittal 9340004 SV Busbar support, 4-pole, 60 mm bar centre distance, for busbar WH: 12x5-30x10 mm, UL design we can offer you a price of 44,82 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
