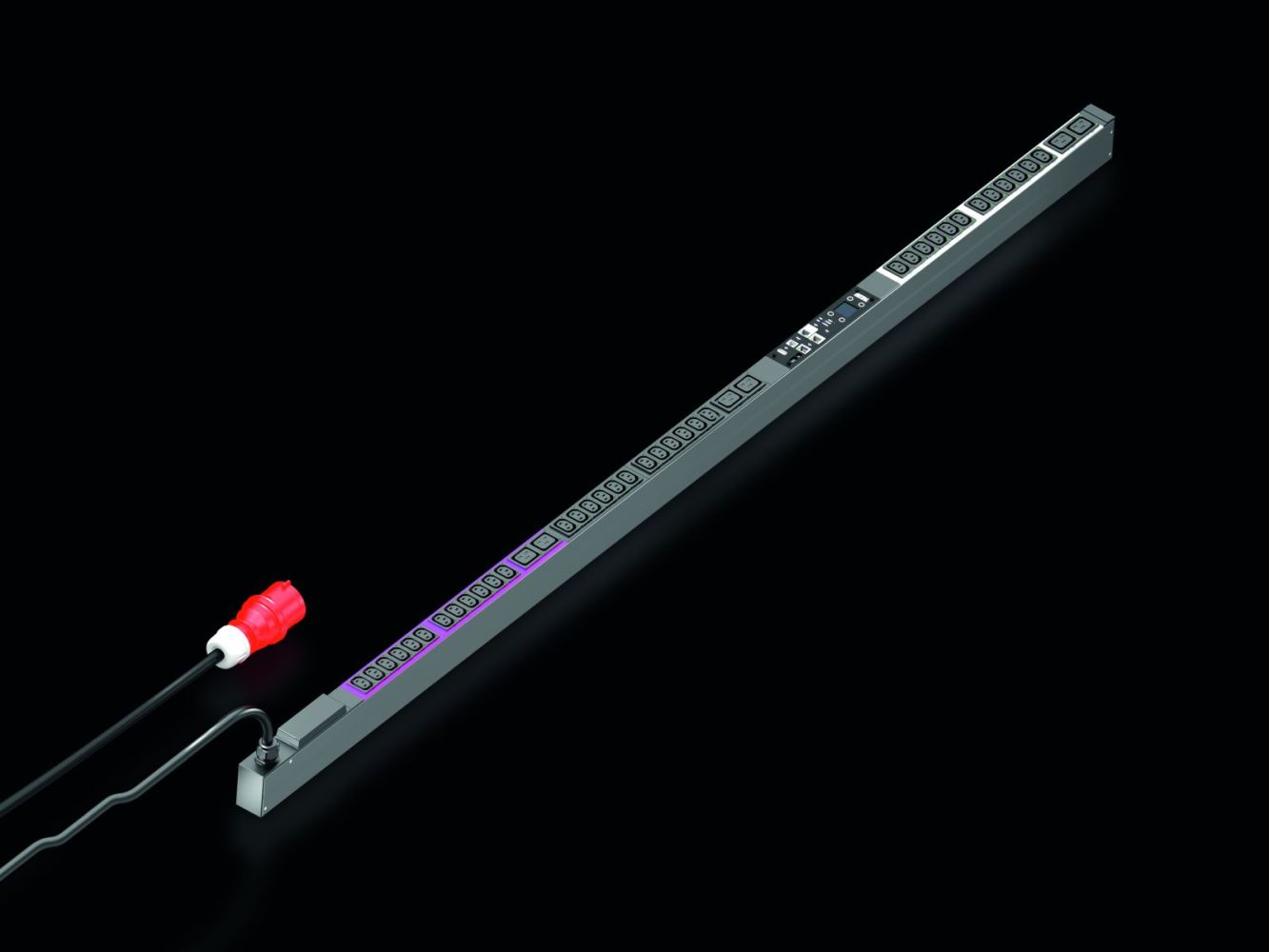

Rittal 7979540 PDU metered plus, 16A/400V, 3~, 36 x C13 + 6 x C19

Your rating:
Average rating
product review for Rittal 7979540 PDU metered plus, 16A/400V, 3~, 36 x C13 + 6 x C19
( 4.5 / 5 ) 2 ratings
Rittal 7979540
This image may differ from the desired article.
Rittal 7979540Rittal 7979540Rittal 7979540Rittal 7979540Rittal 7979540Rittal 7979540Rittal 7979540Rittal 7979540
1.876,25 EUR 1.903,60 EUR
( 2.232,74 EUR incl. VAT )
≈ £1,570.42  |  ≈ $2,062.00
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979540 PDU metered plus, 16A/400V, 3~, 36 x C13 + 6 x C19
Datasheet:file_download Download
Lieske Part No.:1101084
Mfg Part No: 7979540
UPC/EAN: 4028177948464
Weight:0.001 kg
Type:DK 7979540

Product information for Rittal 7979540:

The Rittal DK 7979540 is a PDU (Power Distribution Unit) of the metered plus type, specifically designed for use in IT network and server racks. It serves as an intelligent power distribution unit with integrated energy measurement for each individual output socket, enabling monitoring of the power demand of individual consumers. The device is housed in a compact aluminium profile with a black anodized surface and has a length of 1,895 mm, a width of 44 mm, and a depth of 70 mm. Power supply is via a CEE connection cable with a length of 3 m, designed for three-phase input (3~) with a rated operating voltage of 400 V (AC). The maximum rated current is 16 A, corresponding to a rated power of 11 kW.

Applications

The PDU is designed for use in racks of the VX IT type, particularly in cabinet frames with a minimum length of 2,000 mm or in 48,3 cm ( 19 inch ) profile rails with a minimum length of 2,200 mm. When mounted vertically, it can be installed tool-free in Zero-U-Space, making it ideal for use in existing IT infrastructures. The phase colour coding (L1=pink, L2=black, L3=white) facilitates assignment and maintenance.

Functions and Equipment in Detail

The DK 7979540 features 36 C13 sockets and 6 C19 sockets, all made of plastic. The measurement functions include energy measurement per phase or input, as well as additional measurement per output socket. Measurement accuracy is ±1 % (kWh) according to standard EN 62053-21. An integrated real-time clock with battery backup (up to 10 years, replaceable) ensures precise timestamping of measurement data. An integrated electromagnetic buzzer enables acoustic alarm triggering in case of exceedances. Adjustable thresholds for voltage, current, and power can be individually configured for each output socket.

Technology Explained Simply

The PDU is equipped with a powerful CPU (ARM Cortex A8) that enables processing of measurement data and control of interfaces. The power supply is self-sufficient, requiring no external power source. The power supply is fault-tolerant and redundant across all phases, ensuring high availability. A bright TFT display with 128x128 pixels (RGB) and backlighting shows power data and basic configuration. The display unit is rotatable by 180° and replaceable, allowing optimal visibility in various mounting positions. Multicoloured LEDs (green/yellow/red) indicate the switching state and thresholds for each output socket.

Compatibility and Accessories

The PDU supports connection of CMC III CAN-Bus sensors for environmental monitoring, with up to 16 sensors connectable. Optionally, a Type 3 surge protection device with replaceable discharge elements during operation and status monitoring can be integrated. Differential current measurement (Type B) is available per input, phase, or fuse. Accessories include CAN-Bus cables in various lengths (0.5 m, 1.0 m, 1.5 m), covers for C13 and C19 sockets, mounting adapters, and a PDU universal locking device for C14/C20 plugs.

Mounting and Installation

Mounting is tool-free in the Zero-U-Space of VX IT racks. The delivery includes the required mounting hardware. Vertical mounting is possible without tools, simplifying installation in existing racks. The PDU is designed for use in IT infrastructures requiring high availability and monitoring of energy distribution.

Operational Advantages

The DK 7979540 offers high measurement accuracy and detailed energy measurement per output socket, facilitating energy consumption optimization and fault localization. The integrated network interface enables remote monitoring and control via various protocols such as SNMP, Modbus/TCP, OPC-UA, and web server (HTTP/HTTPS). Support for TLS 1.2, LDAP(S), Radius, Active Directory, and Syslog server connection (up to 2 servers) enables secure and flexible integration into existing IT infrastructures. The fully redundant Ethernet interface (10/100/1000 Mbit/s) ensures stable communication. The PDU is designed for operating temperatures from 5 °C to 50 °C and humidity from 10 % to 95 % (non-condensing). The storage temperature range is from -20 °C to 70 °C.

The PDU complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21. Protocols include web server (HTTP, HTTPS, SSL), SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer). An integrated digital input (potential-free contact) and an additional alarm output/relay output (changeover) are also provided. The email alert function in case of alarm (SMTP) and user management with rights management support central monitoring and control.

General
ModelPDU, metered plus
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsOvervoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available
Description of measurement functionsMeasurement per phase or input, additional measurement per output socket, powerful CPU (ARM Cortex A8), digital input (potential-free contact), additional alarm output/relay output (changeover contact)
Width44 mm
Depth70 mm
Length1.895 mm
Number of sockets and type36 x C13 / 6 x C19
Socket outlets36 x C 13, 6 x C 19
Rated operating voltage400 V (AC)
Rated current (max.)16 A
Nominal power11 kW
Power suppliesNumber: 1, phases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forCabinet type: VX IT cabinet frame: ≥ 2,000 mm, cabinet type: VX IT 19"-profile rails: ≥ 2,200 mm


Product data sheet
Datasheet for Rittal 7979540, EAN: 4028177948464

Questions & answers

What is the delivery time of Rittal 7979540 PDU metered plus, 16A/400V, 3~, 36 x C13 + 6 x C19?

The article Rittal 7979540 PDU metered plus, 16A/400V, 3~, 36 x C13 + 6 x C19 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7979540 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7979540 PDU metered plus, 16A/400V, 3~, 36 x C13 + 6 x C19 always at the best possible price. We can give you a discount of 2% on Rittal 7979540 PDU metered plus, 16A/400V, 3~, 36 x C13 + 6 x C19 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
