Rittal 7979535 PDU metered plus, 16A/400V, 3~, 18 x C13 + 3 x C19

Your rating:
Average rating
product review for Rittal 7979535 PDU metered plus, 16A/400V, 3~, 18 x C13 + 3 x C19
( 4.7 / 5 ) 3 ratings

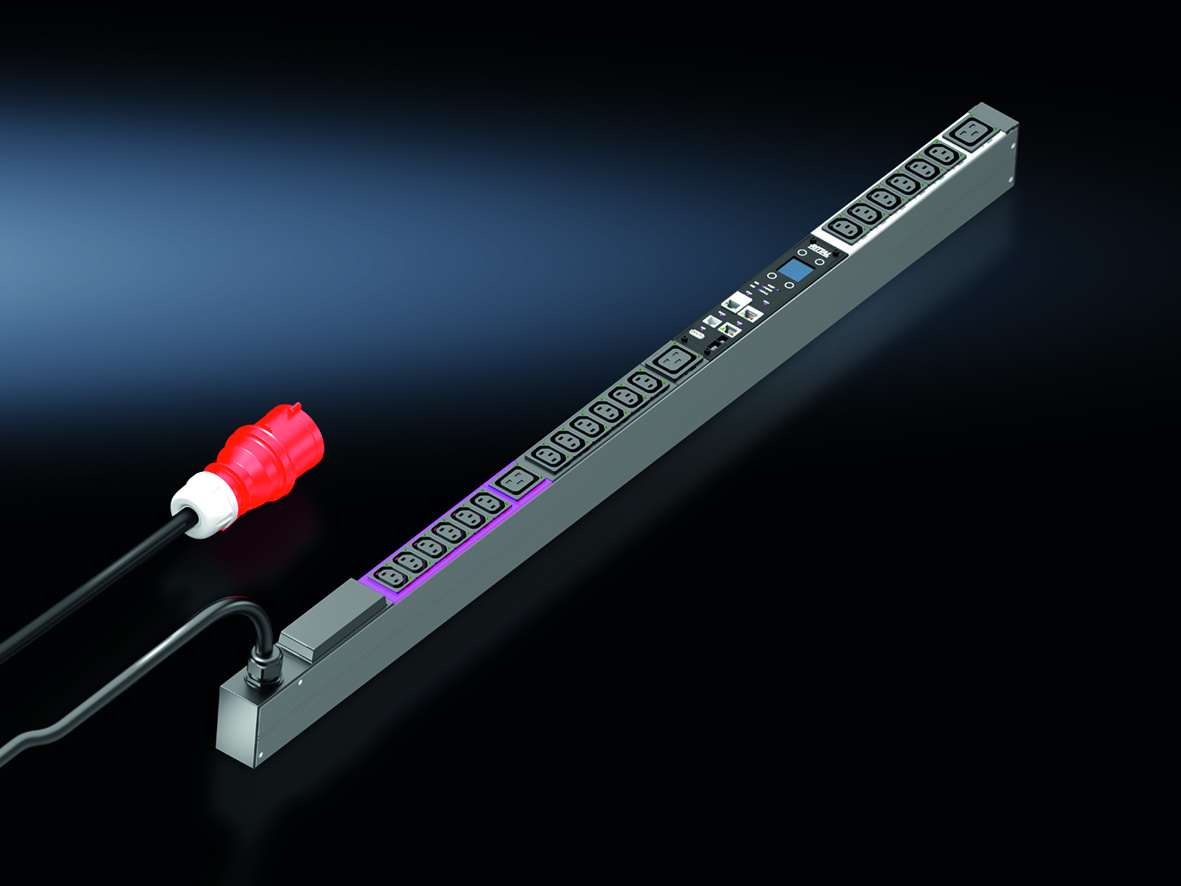

Rittal 7979535
This image may differ from the desired article.
Rittal 7979535Rittal 7979535Rittal 7979535Rittal 7979535Rittal 7979535Rittal 7979535Rittal 7979535Rittal 7979535
-8% 1.501,44 EUR 1.640,88 EUR
( 1.786,71 EUR incl. VAT )
≈ £1,256.71  |  ≈ $1,650.08
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979535 PDU metered plus, 16A/400V, 3~, 18 x C13 + 3 x C19
Datasheet:file_download Download
Lieske Part No.:1101083
Mfg Part No: 7979535
UPC/EAN: 4028177948419
Weight:0.001 kg
Type:DK 7979535

Product information for Rittal 7979535:

The Rittal DK 7979535 is a PDU (Power Distribution Unit) of the metered plus type, specifically designed for use in IT network and server racks. It serves as an intelligent power distribution unit with integrated energy measurement, capturing consumption values for each individual outlet socket. The device is housed in a compact aluminium profile with a black anodized surface and provides a total power of 11 kW at a rated operating voltage of 400 V (AC) and a maximum rated current of 16 A. Power supply is via a CEE connection cable with a length of 3 m, and the PDU is self-powered, requiring no external power supply.

Applications

The PDU is designed for use in IT infrastructures, particularly in racks of the Rittal VX IT type, where it can be mounted toollessly in Zero-U-Space. It is suitable for server and network environments requiring precise power distribution and monitoring. The phase colour coding (L1=pink, L2=black, L3=white) supports assignment and safety during installation. Mounting is intended for enclosure types with a cabinet frame ≥ 1,200 mm or 48,3 cm ( 19 inch ) profile rails ≥ 1,800 mm.

Functions and Equipment in Detail

The PDU features 18 C13 sockets and 3 C19 sockets, made of plastic. Measurement functions include voltage, current, frequency, active power, active energy, apparent power, apparent energy, power factor (cosPhi), phase angle, and neutral conductor current measurement for unbalanced load detection. Measurement accuracy is ±1 % (kWh) according to EN 62053-21. Additionally, fuse monitoring is supported for PDUs with integrated fuses.

A bright TFT display with 128x128 pixels (RGB) and backlighting shows performance data and basic configuration. The display is rotatable by 180° and replaceable, ensuring optimal visibility in various mounting positions. Multicoloured LEDs (green/yellow/red) indicate the switching state and threshold values for each outlet socket. An integrated electromagnetic buzzer enables acoustic alarm signalling. Adjustable thresholds for voltage, current, power, and warning/alarm per outlet socket allow individual configuration.

Technology Explained Simply

The PDU is equipped with a powerful CPU (ARM Cortex A8) ensuring data processing and transmission. Power supply is redundant across all phases, ensuring fault-tolerant and reliable operation. The integrated real-time clock with battery backup (up to 10 years, replaceable) ensures accurate time display even during power failure. The device includes a digital input (potential-free contact) and an additional alarm output/relay output (changeover contact) for external controls.

Compatibility and Accessories

The PDU supports connection to CMC III CAN-Bus sensors for environmental monitoring, with up to 16 sensors connectable. Interfaces include a USB 2.0 port (USB-A) for mass configuration, firmware updates, and data logging, a CAN-Bus interface (RJ45) for sensors, a serial interface RS232 (RJ12) for LTE unit, scripting, and CLI, and a fully redundant Ethernet interface 10/100/1000 Mbit/s. Protocol support includes web server (HTTP, HTTPS, SSL), SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, and FTP/SFTP for updates and file transfers. User management with rights management, LDAP(S)/Radius/Active Directory integration, and Syslog server integration (up to 2 servers) enables secure and central administration. Integrated email alerting on alarm (SMTP) is also available.

Mounting and Installation

Mounting is toolless in the Zero-U-Space of Rittal VX IT or TS IT racks. The delivery includes mounting materials required for installation. The PDU is designed for vertical mounting and fits the specified enclosure types. The integrated power supply and redundant power supply across all phases ensure high availability.

Operational Advantages

The PDU offers precise energy measurement per outlet socket, enabling detailed consumption analysis and optimization. The integrated network interface and support for multiple protocols facilitate integration into existing IT infrastructures and DCIM systems. The energy-saving design with low self-consumption reduces the device’s own energy usage. The ability to configure thresholds individually per outlet socket increases flexibility and safety. The integrated real-time clock with battery backup ensures time accuracy even during power failure. Toolless mounting and phase colour coding support quick and safe installation.

Options

Additional options include surge protection Type 3 with replaceable discharge devices during operation, status monitoring, residual current measurement (Type B) per input/phase/fuse, monitoring of optional surge protection, and connection of CMC III CAN-Bus sensors for environmental monitoring. Other enclosure colours may also be available.

Standards and Regulations

The PDU complies with standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21. It meets the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. The operating temperature range is between 5 °C and 50 °C, with non-condensing humidity between 10 % and 95 %. The storage temperature range is from -20 °C to 70 °C.

General
ModelPDU, metered plus
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsOvervoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available
Description of measurement functionsMeasurement per phase or input, additional measurement per output socket, powerful CPU (ARM Cortex A8), digital input (potential-free contact), additional alarm output/relay output (changeover contact)
Width44 mm
Depth70 mm
Length1.095 mm
Number of sockets and type18 x C13 / 3 x C19
Socket outlets18 x C 13, 3 x C 19
Rated operating voltage400 V (AC)
Rated current (max.)16 A
Nominal power11 kW
Power suppliesNumber: 1, phases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,200 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm
