Rittal 7979436 PDU Managed 16A/3P CEE 24xC13 / 6xC19

Your rating:
Average rating
product review for Rittal 7979436 PDU Managed 16A/3P CEE 24xC13 / 6xC19
( 4.5 / 5 ) 2 ratings

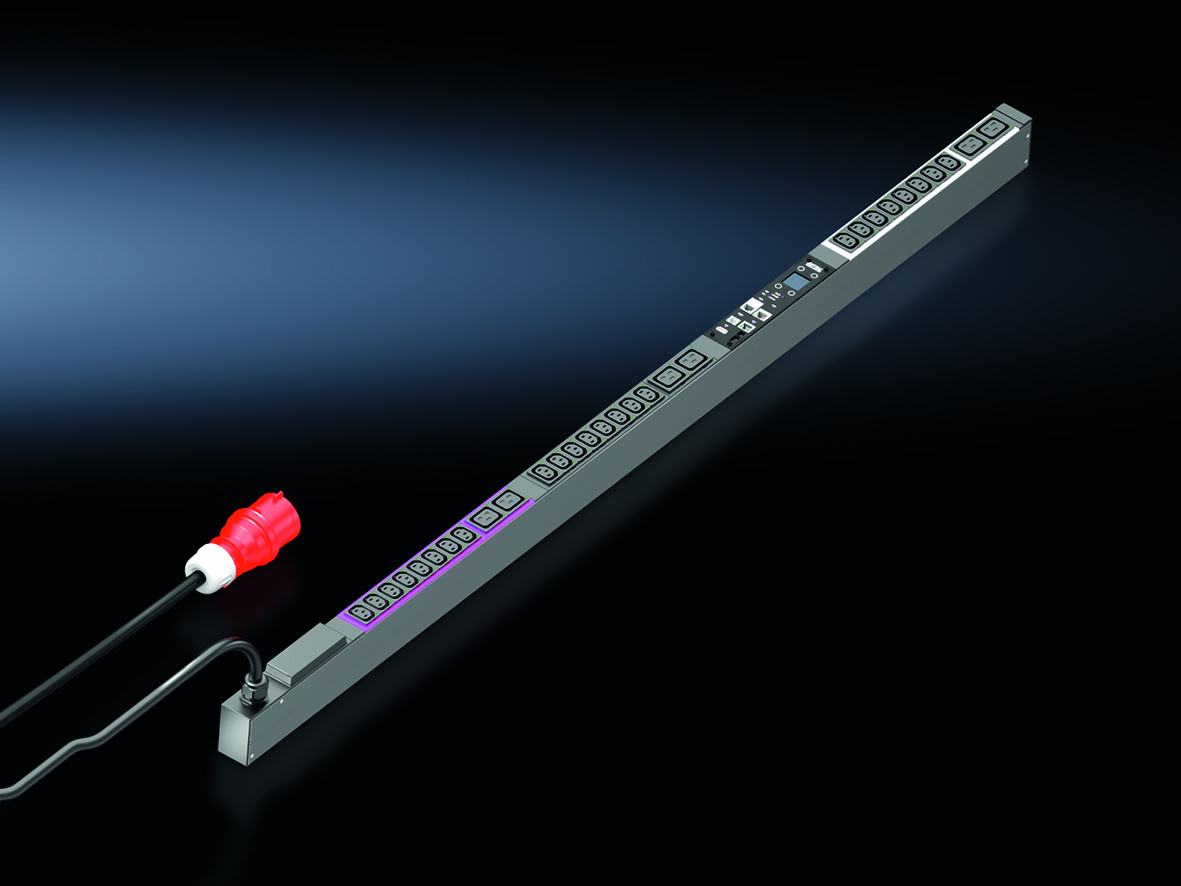

Rittal 7979436
This image may differ from the desired article.
Rittal 7979436Rittal 7979436Rittal 7979436Rittal 7979436Rittal 7979436Rittal 7979436Rittal 7979436Rittal 7979436
1.904,17 EUR
( 2.265,96 EUR incl. VAT )
≈ £1,593.79  |  ≈ $2,092.68
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 7979436 PDU Managed 16A/3P CEE 24xC13 / 6xC19
Datasheet:file_download Download
Lieske Part No.:1910667
Mfg Part No: 7979436
UPC/EAN: 4028177948204
Weight:6.02 kg
Type:DK 7979436

Product information for Rittal 7979436:

The Rittal DK 7979436 is a managed PDU (Power Distribution Unit) for use in IT network and server racks. It is designed for power distribution and offers comprehensive energy measurement and monitoring functions for each individual output socket. The PDU is constructed in a compact aluminium profile, black anodized, with an overall length of 1,495 mm, a width of 44 mm, and a depth of 70 mm. Power supply is via a CEE plug (16 A/32 A) with a rated operating voltage of 400 V (AC) and a maximum rated current of 16 A, corresponding to a rated power of 11 kW. The PDU is designed for three-phase input and features 24 C13 sockets and 6 C19 sockets, all made of plastic.

Applications
This PDU is specifically designed for use in IT infrastructures, particularly in Rittal VX IT or TS IT racks. When mounted vertically, it can be installed tool-free in Zero-U-Space, minimizing rack space requirements. The phase color coding (L1=pink, L2=black, L3=white) facilitates identification and maintenance. The PDU is suitable for enclosure types with a minimum length of 1,800 mm and can be mounted on cabinet frames or 48,3 cm ( 19 inch ) profile rails.

Functions and Equipment in Detail
The PDU features an integrated, fully redundant power supply fed from all phases, ensuring fault-tolerant and reliable operation. Measurement accuracy is ±1 % (kWh) according to EN 62053-21. Energy measurement is performed per output socket and includes voltage, current, frequency, active power, active energy, apparent power, apparent energy, power factor (cosPhi), phase angle, and neutral conductor current measurement for unbalanced load detection. Fuse monitoring is available for PDUs with integrated fuses.

Technology Explained Simply
The PDU is equipped with a bright TFT display (128x128 pixels, RGB, with backlight) showing performance data and basic configuration. The display is rotatable by 180° and replaceable, ensuring optimal readability in different mounting positions. Multicolored LEDs (green/yellow/red) indicate the switching status and thresholds per output socket. An integrated electromagnetic buzzer enables acoustic alarm signaling. The PDU includes an integrated real-time clock with battery backup (up to 10 years, replaceable), retaining time information even during power failure.

Compatibility and Accessories
The PDU supports connection to CMC III CAN-Bus sensors for environmental monitoring, with up to 16 sensors connectable. Optionally, a Type 3 surge protection device with replaceable discharge elements during operation and status monitoring can be integrated. Differential current measurement (Type B) is available per input, phase, or fuse. The PDU can be combined with an optional surge protection device (part number 7979723), which also has a rated power of 11 kW and a rated current of 50 A. Additional compatible accessories include CAN-Bus cables in various lengths (0.5 m, 1.0 m, 1.5 m), covers for C13 and C19 sockets, mounting adapters, a universal lock for C14/C20 plugs, and a numeric code lock for CMC III.

Mounting and Installation
Installation is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks. The delivery includes mounting hardware to facilitate installation. The PDU is self-powered, requiring no external power supply. The supply cable is 3 m long and fitted with a CEE plug.

Operational Advantages
The PDU offers programmable switching functions, including programmable power-on behavior after voltage recovery (on/off/last state) and programmable switching behavior (time/programmable logic). Relay states are retained during power failure, and the bistable relays enable low power consumption and high switching capacity, even for inrush currents up to 300 A. The grouping function allows simultaneous switching of multiple outputs. Emergency power supply for the web server via PoE enables sequential shutdown of outputs during power failure. The PDU features a powerful CPU (ARM Cortex A8), a digital input (potential-free contact), and an additional alarm output/relay output (changeover contact).

Interfaces and Protocols
The PDU includes a fully redundant Ethernet interface (10/100/1000 Mbit/s), a USB 2.0 port (USB-A) for mass configuration, firmware updates, and data logging, a CAN-Bus interface (RJ45) for environmental sensors, and a serial interface RS232 (RJ12) for LTE unit, scripting, and CLI. Communication is supported via protocols such as web server (HTTP, HTTPS, SSL), SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, and FTP/SFTP for updates and file transfers. User management includes rights management, LDAP(S)/Radius/Active Directory integration, and Syslog server integration (up to 2 servers). Email alerts on alarm (SMTP) are also possible. The PDU is designed for environments with an operating temperature of 5 °C to 50 °C and relative humidity of 10 % to 95 % (non-condensing). Storage temperature ranges from -20 °C to 70 °C. The PDU complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21.

General
ModelPDU, managed
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsOvervoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available
Width44 mm
Depth70 mm
Length1.495 mm
Number of sockets and type24 x C13 / 6 x C19
Socket outlets24 x C 13, 6 x C 19
Rated operating voltage400 V (AC)
Rated current (max.)16 A
Nominal power11 kW
Power suppliesNumber: 1, phases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979436, EAN: 4028177948204
