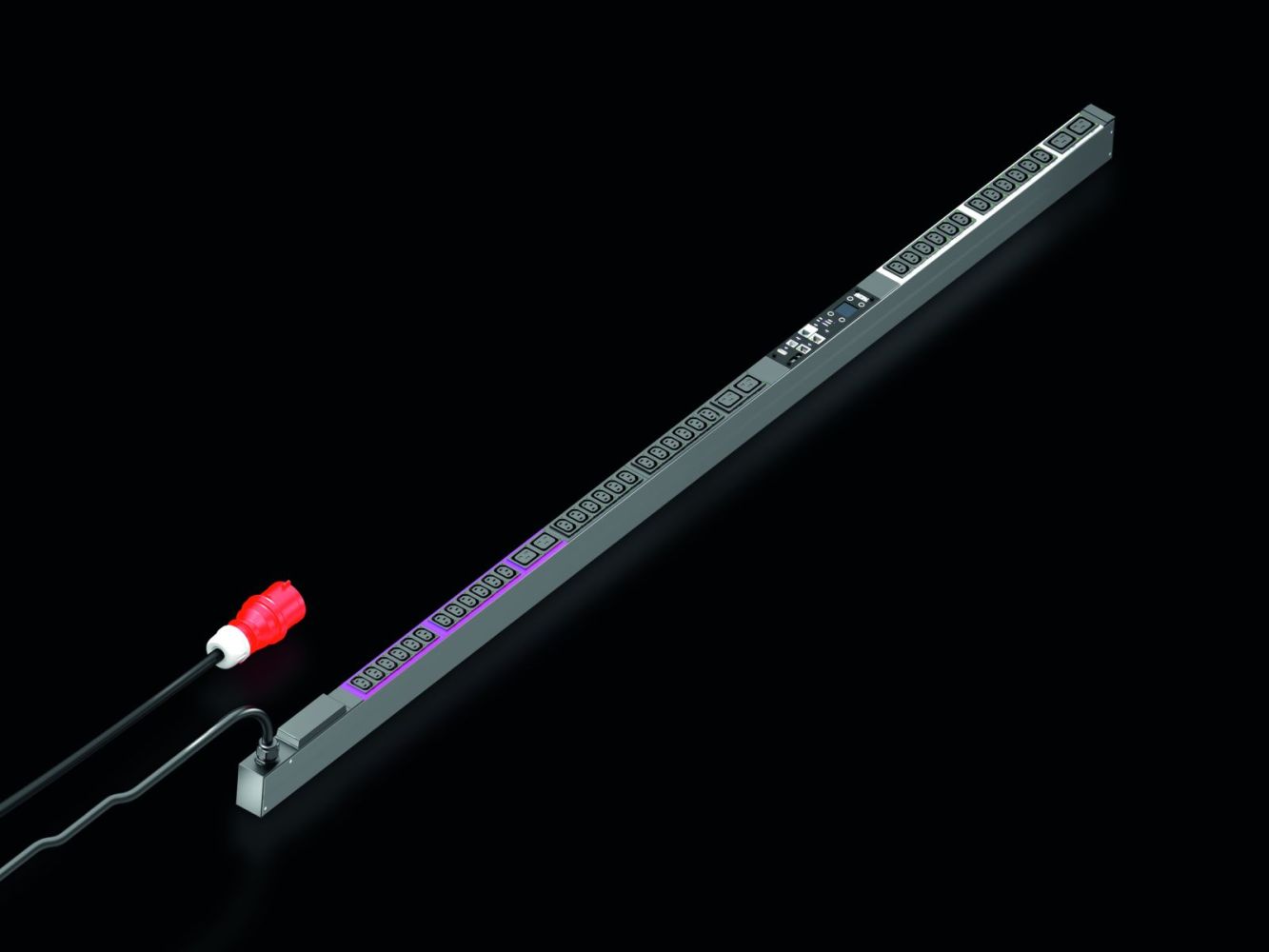

Rittal 7979340 PDU switched, 16A/400V, 3~, 36 x C13 + 6 x C19

Your rating:
Average rating
product review for Rittal 7979340 PDU switched, 16A/400V, 3~, 36 x C13 + 6 x C19
( 4.4 / 5 ) 5 ratings
Rittal 7979340
This image may differ from the desired article.
Rittal 7979340Rittal 7979340Rittal 7979340Rittal 7979340Rittal 7979340Rittal 7979340Rittal 7979340Rittal 7979340
-9% 1.595,74 EUR 1.756,63 EUR
( 1.898,93 EUR incl. VAT )
≈ £1,335.63  |  ≈ $1,753.72
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979340 PDU switched, 16A/400V, 3~, 36 x C13 + 6 x C19
Datasheet:file_download Download
Lieske Part No.:1101069
Mfg Part No: 7979340
UPC/EAN: 4028177948020
Weight:0.001 kg
Type:DK 7979340

Product information for Rittal 7979340:

The Rittal DK 7979340 is a switched PDU (Power Distribution Unit) for use in IT network and server racks. It serves intelligent power distribution and monitoring in 19-inch enclosures and enables individual control and measurement of connected devices. The PDU is designed for a rated operating voltage of 400 V (AC) and supports a maximum rated power of 11 kW at a rated current of 16 A. Power supply is via a 3-phase input with CEE connector and a supply cable of 3 m length. The device is manufactured in an aluminum profile with black anodized surface, with the socket outlets made of plastic.

Applications

The PDU is specifically designed for use in Rittal VX IT and TS IT racks. When mounted vertically, it can be installed toollessly in the Zero-U-Space, minimizing rack space requirements. Compatibility is provided for enclosure types with a cabinet frame from 2,000 mm or 19-inch profile rails from 2,200 mm. The phase color coding (L1=pink, L2=black, L3=white) facilitates assignment and maintenance.

Functions and Equipment in Detail

The PDU features 36 C13 socket outlets and 6 C19 socket outlets, each individually switchable. The switching function is performed via bistable relays, enabling low power consumption and high switching capacity even with inrush currents up to 300 A. Relay states are retained even during power failure. The PDU offers programmable switching logic, which can be time-controlled or controlled via logic rules. Additionally, a programmable power-on behavior after voltage recovery (on, off, last status) is integrated to avoid overloads.

Technology Explained Simply

Power distribution is handled by an integrated, fully redundant power supply unit, fed from all phases, ensuring fault-tolerant power supply. Energy measurement is performed per phase and includes voltage, current, frequency, active power, active energy, apparent power, apparent energy, power factor (cosPhi), phase angle, and neutral conductor current measurement for unbalanced load detection. Measurement accuracy is ±1 % (kWh) according to EN 62 053-21. A bright TFT display with 128x128 pixels (RGB) and backlighting shows performance data and basic configuration. The display is rotatable by 180° and replaceable. Multicolored LEDs (green/yellow/red) indicate switching states and warning or alarm thresholds per phase. An integrated electromagnetic buzzer enables acoustic alarm signaling.

Compatibility and Accessories

The PDU supports a variety of protocols, including web server (HTTP, HTTPS, SSL), SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into DCIM software, and FTP/SFTP for updates and file transfers. Interfaces include a USB 2.0 port (USB-A) for mass configuration, firmware updates, and data logging, a CAN-Bus interface (RJ45) for up to 16 environmental sensors (CMC III), a serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), and a fully redundant Ethernet interface 10/100/1000 Mbit/s. Optional CMC III CAN-Bus sensors can be connected to monitor environmental data such as temperature or humidity. A Type 3 surge protection device with replaceable discharge elements during operation can be integrated into the enclosure. The PDU is self-powered; no external power supply is required.

Mounting and Installation

Mounting is toolless in the Zero-U-Space of Rittal VX IT or TS IT racks. The delivery includes the required mounting hardware. The PDU is designed for an operating temperature of 5 °C to 50 °C and a humidity of 10 % to 95 % (non-condensing). Storage temperature is -20 °C to 70 °C. Dimensions are 44 mm (width) × 1,895 mm (length) × 70 mm (depth).

Operational Advantages

The PDU offers high operational reliability through redundant power supply and an integrated real-time clock with battery backup (up to 10 years, replaceable). Operating hour counters are total and cyclically resettable. Emergency power supply for the web server is provided via PoE, enabling sequential shutdown of outputs during power failure. The integrated CPU (ARM Cortex A8) enables powerful data processing. The PDU is designed for use in IT infrastructures with high requirements for energy efficiency, monitoring, and control. Integration into existing DCIM systems is possible via supported protocols and MIBs. The PDU complies with standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21, as well as directives EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

General
ModelPDU, switched
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
Width44 mm
Depth70 mm
Length1.895 mm
Number of sockets and type36 x C13 / 6 x C19
Socket outlets36 x C 13, 6 x C 19
Rated operating voltage400 V (AC)
Rated current (max.)16 A
Nominal power11 kW
Power suppliesPhases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forCabinet type: VX IT cabinet frame: ≥ 2,000 mm, cabinet type: VX IT 19"-profile rails: ≥ 2,200 mm


Product data sheet
Datasheet for Rittal 7979340, EAN: 4028177948020
