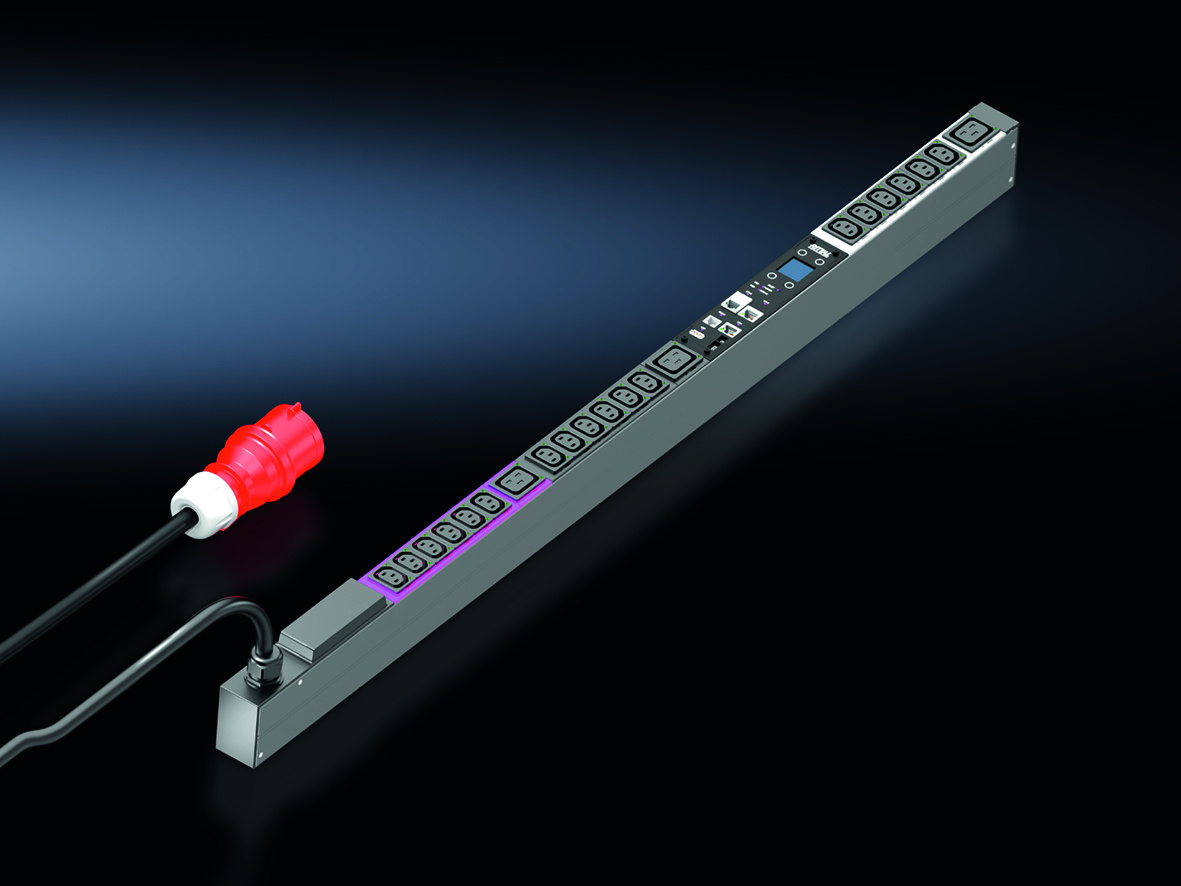

Rittal 7979335 PDU Switched 16A/3P CEE 18xC13 / 3xC19
|
1.255,77 EUR 1.278,69 EUR |
|
|
( 1.494,37 EUR incl. VAT ) ≈ £1,051.08 | ≈ $1,380.09 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101067 |
| Mfg Part No: | 7979335 |
| UPC/EAN: | 4028177947979 |
| Weight: | 4.5 kg |
| Type: | DK 7979335 |
Product information for Rittal 7979335:
Applications
The PDU is designed for use in professional IT infrastructures, particularly in server and network racks, where precise power distribution and monitoring are required. It is suitable for applications requiring central control and measurement of power consumers, for example in data centres, data hubs, or critical IT systems. The integrated energy measurement per phase enables detailed analysis of energy consumption and supports efficiency improvements in IT infrastructure.
Functions and Equipment in Detail
The PDU features a total of 21 sockets: 18 x C13 and 3 x C19, each individually switchable. The sockets are made of plastic. Power supply is via a 3-phase input (3~) with a rated operating voltage of 400 V (AC) and a maximum rated current of 16 A, corresponding to a rated power of 11 kW. The PDU is self-powered, meaning it does not require an external power supply for its control and measurement functions. The supply cable has a length of 3 m and is equipped with a CEE plug.
Technology Explained Simply
The PDU integrates a powerful CPU (ARM Cortex A8) and features a fully redundant Ethernet interface (10/100/1000 Mbit/s), ensuring a reliable network connection. Measurement accuracy is ±1 % (kWh) according to standard EN 62053-21. The integrated real-time clock is buffered by a replaceable battery (maximum 10-year lifespan) to maintain time and operating hour counting even during power failure. The PDU offers programmable switching logic, for example enabling sequential switching of outputs after power restoration to avoid overloading peaks. Relay states are stored even during power failure. An integrated electromagnetic buzzer provides acoustic alarm notification for warning or alarm thresholds.
Compatibility and Accessories
The PDU is designed for racks with a cabinet frame ≥ 1,200 mm and 48,3 cm ( 19 inch ) profile rails ≥ 1,800 mm. It is supplied with a tool-free mounting kit for VX IT racks. The sockets are colour-coded (L1=pink, L2=black, L3=white) to facilitate phase assignment. Available accessories include various CAN-Bus cables for the CMC III monitoring system, covers for C13 and C19 sockets, mounting adapters, and a PDU surge protector (Type 3, 11 kW, 50 A). The PDU supports connection of up to 16 environmental sensors via CAN-Bus.
Mounting and Installation
Mounting is tool-free in the Zero-U-Space of VX IT or TS IT racks. The device is supplied with mounting hardware required for installation in the rack. The display/controller unit is rotatable and replaceable within the housing by 180°, allowing flexible adaptation to the mounting position. The supply cable is integrated and has a length of 3 m.
t
Operational Advantages
The PDU offers high operational reliability through redundant power supply from all phases and fault-tolerant power supply. The integrated energy measurement per phase enables precise consumption analysis. The switching function per output socket allows flexible control of connected devices. Support for protocols such as SNMP, Modbus/TCP, OPC-UA, and MIB enables integration into DCIM software and other monitoring systems. The PDU also supports email alerts (SMTP), Syslog server connection (up to 2 servers), user management with rights management, and integration with LDAP(S)/Radius/Active Directory. The operating temperature range is between 5 °C and 50 °C, and the relative humidity (non-condensing) is between 10 % and 95 %.
The PDU is certified in accordance with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21. Interfaces include USB 2.0 (USB-A), CAN-Bus (RJ45), RS232 (RJ12), and a fully redundant Ethernet interface. Protocol support includes HTTP, HTTPS, SSL, SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, FTP/SFTP, and MIB for integration into external systems.
Note: Batteries are not included in the delivery scope.
| General | |
| Model | PDU, switched |
| Material | Aluminium profile, black anodised, mounting slots: plastic |
| Scope of delivery | Including mounting hardware |
| Width | 44 mm |
| Depth | 70 mm |
| Length | 1.095 mm |
| Number of sockets and type | 18 x C13 / 3 x C19 |
| Socket outlets | 18 x C 13, 3 x C 19 |
| Rated operating voltage | 400 V (AC) |
| Rated current (max.) | 16 A |
| Nominal power | 11 kW |
| Power supplies | Phases per input: 3~ |
| Connection cable length | 3 m |
| Electrical connection type | CEE |
| Interfaces | USB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s |
| Policies | EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU |
| Standards | EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21 |
| Protocols | Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer) |
| Operating temperature range | 5 °C...50 °C |
| Humidity (non-condensing) | 10...95 % |
| Storage temperature range | -20 °C...70 °C |
| Suitable for | Housing type: VX IT cabinet frame: ≥ 1,200 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm |
