Rittal 7979235 PDU Metered 16A/3P CEE 18xC13 / 3xC19

Your rating:
Average rating
product review for Rittal 7979235 PDU Metered 16A/3P CEE 18xC13 / 3xC19
( 4.5 / 5 ) 2 ratings

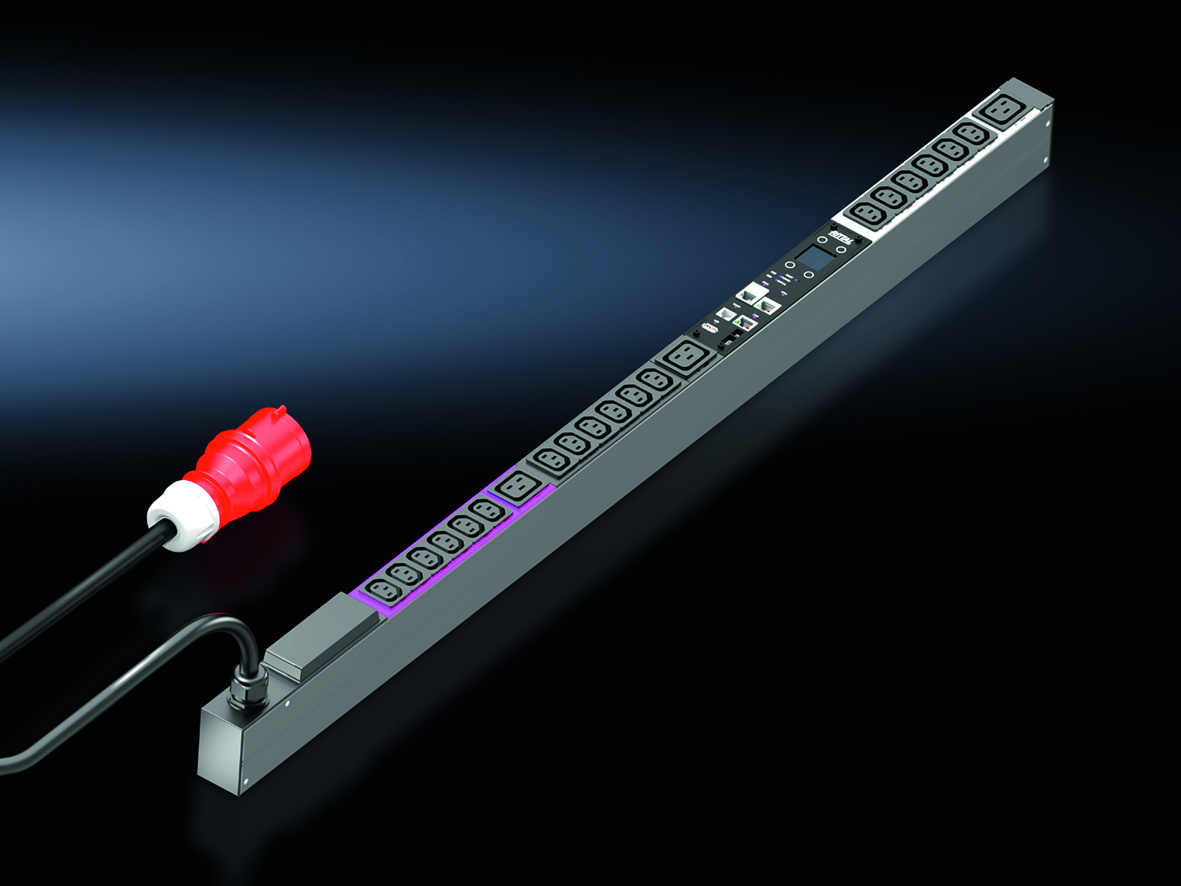

Rittal 7979235
This image may differ from the desired article.
Rittal 7979235Rittal 7979235Rittal 7979235Rittal 7979235Rittal 7979235Rittal 7979235Rittal 7979235Rittal 7979235
745,78 EUR
( 887,48 EUR incl. VAT )
≈ £624.22  |  ≈ $819.61
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 7979235 PDU Metered 16A/3P CEE 18xC13 / 3xC19
Datasheet:file_download Download
Lieske Part No.:1910548
Mfg Part No: 7979235
UPC/EAN: 4028177947757
Weight:4.22 kg
Type:DK 7979235

Product information for Rittal 7979235:

The Rittal DK 7979235 is a PDU (Power Distribution Unit) with integrated energy measurement, specifically designed for use in IT network and server racks. As a metered model, it offers detailed power distribution and monitoring per phase, enabling precise measurement of the total energy demand of a rack. The device features a compact design with dimensions of 44 mm (width) × 1,095 mm (length) × 70 mm (depth) and is suitable for vertical mounting in the Zero-U-Space of Rittal VX IT- or TS IT-racks, with tool-free installation. Power supply is provided by an integrated, fully redundant power supply unit fed from all phases, ensuring fault-tolerant operation. The PDU is self-powered and does not require an external power supply.

Applications

The DK 7979235 is designed for use in professional IT infrastructures, particularly in data centres, server rooms, and network racks. It is suitable for power distribution and monitoring of IT systems requiring high reliability and transparency of energy consumption values. The integrated energy measurement enables precise recording of voltage, current, frequency, active power, apparent power, power factor, and phase angle. Additionally, neutral conductor current is measured to detect unbalanced loads. Measurement accuracy is ±1 % (kWh) according to standard EN 62053-21. The PDU is rated for an operating voltage of 400 V (AC) and supports a nominal current of up to 16 A and a nominal power of 11 kW.

Functions and Equipment in Detail

The PDU features 18 C13 sockets and 3 C19 sockets, made of plastic. The socket positions are colour-coded (L1=pink, L2=black, L3=white) to facilitate assignment to phases and fuse circuits. A bright TFT display with 128x128 pixels (RGB) and backlighting shows performance data and basic configuration. The display is rotatable 180° within the housing and replaceable. An integrated electromagnetic buzzer enables acoustic alarm notification. The PDU includes an operating hour counter, which is resettable both cumulatively and cyclically. Adjustable thresholds for voltage, current, and power allow for individual alarm configuration. The integrated real-time clock is powered by a replaceable battery (maximum 10 years of backup).

Technology Explained Simply

The PDU is based on a powerful CPU (ARM Cortex A8) that handles measurement and control functions. Power supply is via a CEE cable with a length of 3 m. The PDU is equipped with a fully redundant Ethernet interface (10/100/1000 Mbit/s) ensuring stable network connectivity. Additionally, a USB 2.0 interface (USB-A) is available for mass configuration, firmware updates, and data logging, as well as a CAN-Bus interface (RJ45) for connecting up to 16 CMC III environmental sensors. A serial RS232 interface (RJ12) supports connections to LTE modules, scripting, and CLI. The PDU supports protocols such as HTTP, HTTPS, SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, and FTP/SFTP. Integration into DCIM software is possible via MIBs. User management includes rights management, LDAP(S), Radius, and Active Directory integration. Integrated email alerts (SMTP) and Syslog server connection (up to 2 servers) are also available.

Compatibility and Accessories

The DK 7979235 is designed for Rittal VX IT enclosures, requiring a cabinet frame of at least 1,200 mm and 48,3 cm ( 19 inch ) profile rails of at least 1,800 mm in length. As an option, a Type 3 surge protection device with replaceable discharge elements during operation and status monitoring is available and can be integrated into the PDU housing. Differential current measurement (Type B) per input, phase, or fuse is also possible. The PDU can be connected to CMC III CAN-Bus sensors for environmental monitoring. Compatible accessories include CAN-Bus cables in various lengths (0.5 m, 1.0 m, 1.5 m), covers for C13 and C19 sockets, mounting adapters, a universal locking device for C14/C20 plugs, a numeric code lock for CMC III, a CMC III transponder reader (RAL 9005), and a PDU surge protection device (article number 7979723) with a nominal current of 50 A.

Installation and Mounting

Mounting is tool-free in the Zero-U-Space of Rittal VX IT- or TS IT-racks. The delivery includes the necessary mounting hardware. The PDU is designed for vertical mounting and can be installed in the designated mounting areas of the enclosures. The power supply cable (CEE, 3 m) allows flexible positioning of the input connection.

Operational Advantages

The DK 7979235 offers high operational reliability through redundant power supply and integrated alarm functions. Precise energy measurement enables efficient energy management and cost control. Network interfaces and protocol support facilitate integration into existing IT infrastructures and DCIM systems. Low self-consumption and energy-saving design reduce the PDU’s own energy requirements. The integrated real-time clock and operating hour counter support maintenance planning and documentation of operational behaviour. The PDU is designed for operating temperatures from 5 °C to 50 °C and humidity from 10 % to 95 % (non-condensing). The storage temperature range is -20 °C to 70 °C. The PDU complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21.

Note: Batteries are not included in the delivery scope.

General
ModelPDU, metered
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsOvervoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available
Description of measurement functionsmeasurement per phase or input, powerful CPU (ARM Cortex A8), digital input (potential-free contact), additional alarm output/relay output (changeover contact)
Width44 mm
Depth70 mm
Length1.095 mm
Number of sockets and type18 x C13 / 3 x C19
Rated operating voltage400 V (AC)
Rated current (max.)16 A
Nominal power11 kW
Power suppliesNumber: 1, phases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,200 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979235, EAN: 4028177947757

Questions & answers

What is the delivery time of Rittal 7979235 PDU Metered 16A/3P CEE 18xC13 / 3xC19?

The article Rittal 7979235 PDU Metered 16A/3P CEE 18xC13 / 3xC19 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7979235 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7979235 PDU Metered 16A/3P CEE 18xC13 / 3xC19 always at the best possible price. We can give you a discount of 2% on Rittal 7979235 PDU Metered 16A/3P CEE 18xC13 / 3xC19 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
