Rittal 7979142 PDU basic 16A/3P CEE 42xC13

Your rating:
Average rating
product review for Rittal 7979142 PDU basic 16A/3P CEE 42xC13
( 4.7 / 5 ) 3 ratings

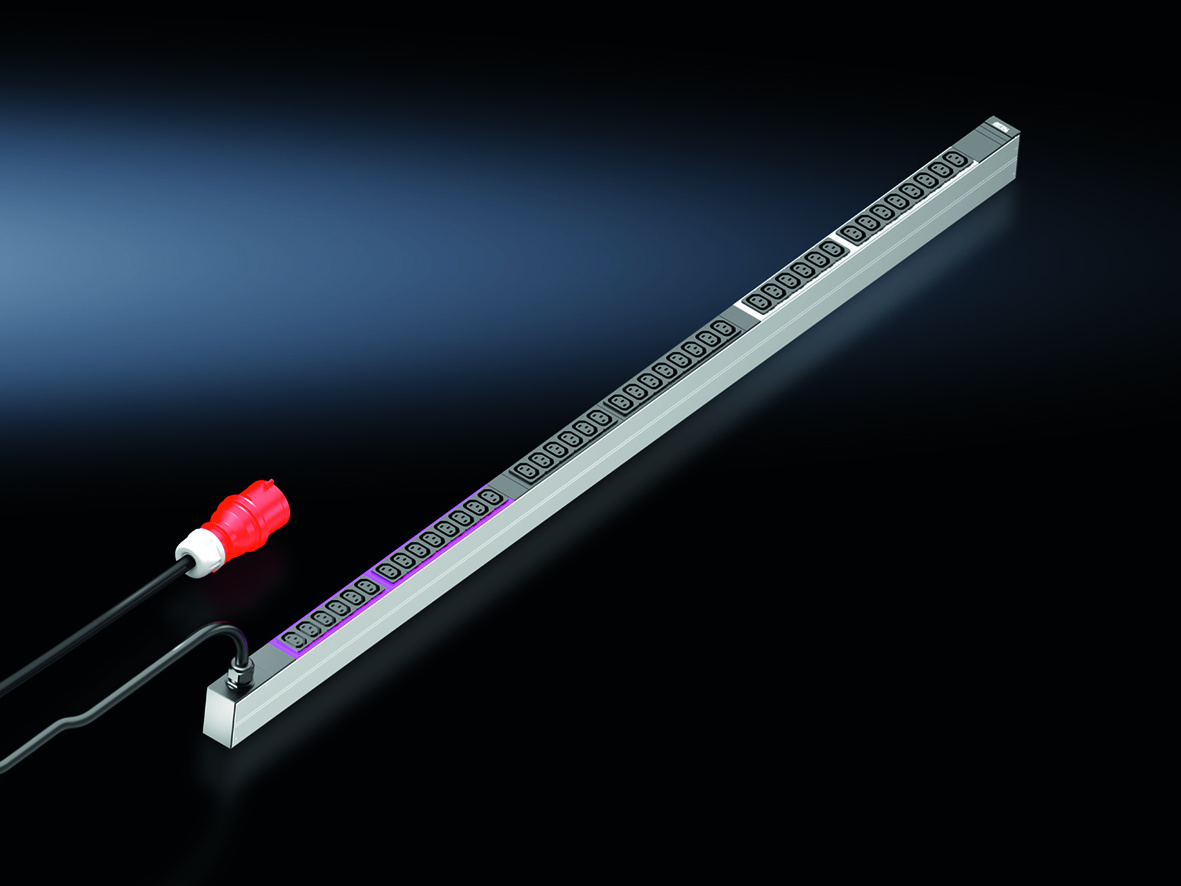

Rittal 7979142
This image may differ from the desired article.
Rittal 7979142Rittal 7979142Rittal 7979142Rittal 7979142Rittal 7979142Rittal 7979142Rittal 7979142Rittal 7979142
297,51 EUR
( 354,04 EUR incl. VAT )
≈ £249.02  |  ≈ $326.96
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 7979142 PDU basic 16A/3P CEE 42xC13
Datasheet:file_download Download
Lieske Part No.:1056062
Mfg Part No: 7979142
UPC/EAN: 4028177947580
Weight:4.6 kg
Type:DK 7979142

Product information for Rittal 7979142:

The Rittal DK 7979142 is a PDU Basic power distribution unit, specifically designed for use in IT server and network enclosures. It serves as a compact basic power distribution unit, equipping every IT rack with a professional power supply. The unit features 42 sockets of type IEC 60320/C13, rated for an operating voltage of 400 V (AC). The maximum rated current is 16 A, corresponding to a rated power of 11 kW. Power supply is via a single input with three phases (3~), with the supply cable having a length of 3 m and equipped with a CEE plug. The PDU is designed for use in VX IT enclosures, with mounting possible both horizontally in the 48,3 cm ( 19 inch )-plane and vertically—including in the Zero-U-Space. Vertical mounting in the Zero-U area is tool-free, with a special Plug-&-Play mounting kit for VX IT racks included.

Applications

The PDU basic is designed for use in IT infrastructures, particularly in server and network enclosures, where reliable and structured power distribution is required. It is suitable for racks with an enclosure frame or 48,3 cm ( 19 inch )-profile rails with a minimum length of 1,800 mm. The robust construction made of aluminum extrusion profile, anodized, ensures high mechanical stability and heat dissipation. The socket outlets are made of plastic and are fixed-mounted, ensuring a long-lasting and secure connection.

Functions and Equipment in Detail

The power distribution unit features color-coded phase marking (L1 = pink, L2 = black, L3 = white) to enable clear identification of circuits. This supports maintenance and prevents incorrect connections. The delivery includes a socket lock for IEC C14 and C20 plugs, preventing accidental disconnection of plugs. Additionally, mounting hardware is included to enable installation in Rittal VX IT or TS IT racks. Unused sockets can be sealed with optional covers available as accessories, preventing unintentional overloading of individual phases or circuits.

Technology Explained Simply

The PDU basic is designed for an operating temperature range of 5 °C to 50 °C and can be used in environments with humidity levels from 10 % to 95 % (non-condensing). Storage is possible at temperatures from -20 °C to 70 °C. The unit complies with standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21, as well as the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Power supply is via a fixed-mounted supply cable with CEE plug, making the PDU immediately ready for use. The power distribution is designed for 3-phase input, with phases evenly distributed across the 42 C13 sockets (14 per phase).

Compatibility and Accessories

The PDU basic is specifically designed for Rittal VX IT enclosures and can be mounted in enclosure frames or 48,3 cm ( 19 inch )-profile rails with a minimum length of 1,800 mm. Various accessory options are available, including a Type 3 surge protection device with replaceable discharge modules during operation, which can be integrated into the PDU enclosure. This protection can be equipped with status monitoring. Additionally, covers for C13 and C19 sockets, mounting adapters, CAN-Bus cables for monitoring systems such as CMC III, and numeric code locks are available. The PDU can also be combined with a PDU RCM 48,3 cm ( 19 inch )-Inline Meter to perform power consumption measurements.

Mounting and Installation

Mounting is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks using the included Plug-&-Play mounting kit. Vertical mounting is particularly advantageous as it optimizes rack space usage. Horizontal mounting in the 48,3 cm ( 19 inch )-plane is also possible, with the PDU attached to the 48,3 cm ( 19 inch )-profile rails. Mounting is performed using the included mounting materials.

Operational Advantages

The PDU basic offers reliable power distribution with high capacity and good heat dissipation. The color-coded phase marking and socket locking increase safety and prevent incorrect connections. Tool-free mounting in the Zero-U-Space reduces installation time. The integrated option for a Type 3 surge protection device provides additional protection against voltage surges, with discharge modules replaceable during operation. Compatibility with monitoring systems such as CMC III enables centralized control and monitoring of power distribution within the rack.

The PDU basic is thus a robust and flexible solution for power distribution in IT infrastructures, convincing in terms of performance, safety, and ease of installation.

General
ModelPDU Basic
MaterialAluminium extruded profile, anodized, socket positions: plastic
Scope of deliveryPlug lock for IEC C14, C20 plugs, including mounting hardware
OptionsSurge protection Type 3 with replaceable discharge devices during operation, with status monitoring, integrable in PDU enclosure, other enclosure colours available
Width44 mm
Depth70 mm
Length1.495 mm
Number of sockets and type42 x C13
Rated operating voltage400 V (AC)
Rated current (max.)16 A
Nominal power11 kW
Power suppliesNumber: 1, phases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979142, EAN: 4028177947580
