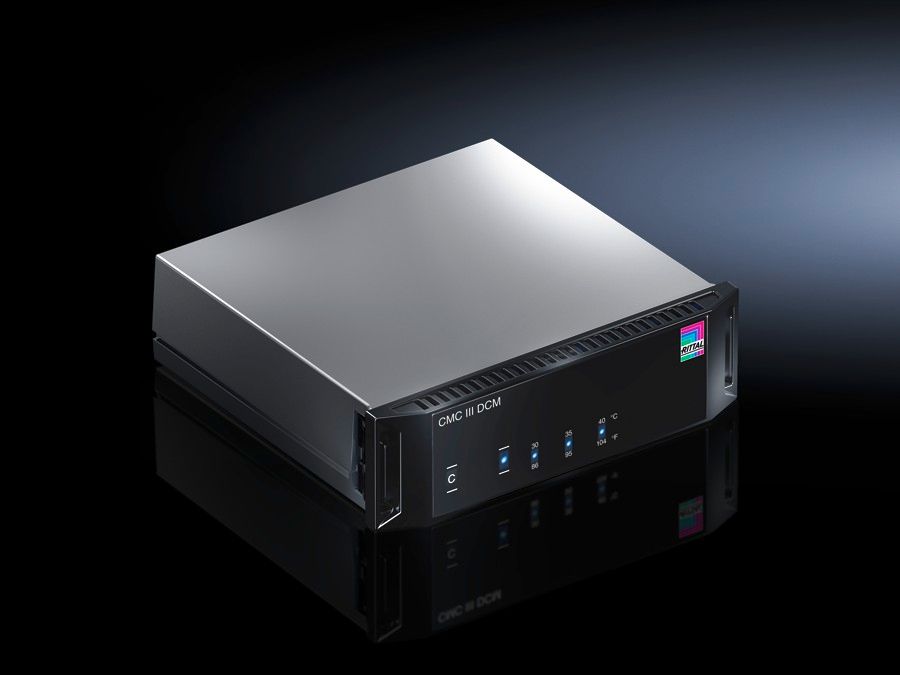

Rittal 7030501 CMC III Door Control Module DCM

Your rating:
Average rating
product review for Rittal 7030501 CMC III Door Control Module DCM
( 4 / 5 ) 1 ratings
Rittal 7030501
This image may differ from the desired article.
Rittal 7030501Rittal 7030501
-12% 270,02 EUR 305,19 EUR
( 321,32 EUR incl. VAT )
≈ £226.01  |  ≈ $296.75
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7030501 CMC III Door Control Module DCM
Datasheet:file_download Download
Lieske Part No.:1910648
Mfg Part No: 7030501
UPC/EAN: 4028177951570
Weight:0.66 kg
Type:DK 7030501

Product information for Rittal 7030501:

The Rittal DK 7030501 is a Door Control Module (DCM) used as a control unit for the automatic door opening system (ADO) in enclosures with viewing doors VX IT. It enables automatic control of ventilation flaps in the doors to ensure optimal cooling of the interior space when a specific temperature is reached. The module is specifically designed for use in the CMC III system with CAN-Bus and allows control of up to two Door Kits and two Door Kits Extension for LCP. Dimensions are 138 mm (width) × 40 mm (height) × 132 mm (depth), with the housing made of plastic. The front is finished in RAL 9005 (black), and the housing in RAL 7035 (grey). The control unit is supplied with a temperature sensor including connection cable and mounting hardware for installation on flat surfaces.

Applications

The DK 7030501 is designed for use in industrial enclosures, particularly in racks equipped with front and rear doors. It is used in environments where automatic ventilation control is required to regulate the temperature inside the enclosure. The integrated ventilation flaps open automatically once the preset temperature is reached, improving cooling and extending the service life of electronic components. The module is part of a comprehensive enclosure management system and operates in conjunction with the CMC III system.

Functions and Equipment in Detail

The module features a temperature sensor input to measure ambient temperature inside the enclosure. Additionally, there are three digital inputs for alarm, front door flap, and rear door flap. Another input is intended for reading devices, such as numeric code locks or transponder readers, to perform on-site functional testing of the ventilation flaps. Control is achieved via two outputs for viewing doors VX IT with integrated ventilation flaps, operated through a magnetic system with damper integrated into the door system. Communication is enabled through two CAN-Bus connections (RJ45), integrated into the CMC III system.

Technology Explained Simply

The control unit operates with a redundant supply voltage of 24 V (DC), ensuring high availability and reliability. The redundant power supply allows the second unit to act as a backup in case one power source fails, which is critical for demanding applications. Communication via CAN-Bus ensures reliable and interference-free data transmission within the enclosure management system. Automatic recognition by the CMC III system enables easy integration, with units being sequentially numbered. The front of the module is ventilated to ensure optimal cooling of internal components.

Compatibility and Accessories

The DK 7030501 is specifically developed for the CMC III system and is compatible with associated mounting units, CMC III power supply, numeric code locks, and the VX IT CMC III transponder reader in RAL 9005. These components can be used to expand and customize the system. Combining these accessories allows for individual configuration of the enclosure management system, especially when integrating access controls or additional sensors.

Mounting and Installation

Mounting is performed on flat surfaces within the enclosure. The included mounting hardware enables secure and stable installation. Connections for temperature sensors and CAN-Bus cables are clearly marked, simplifying installation. The unit is compactly dimensioned, allowing easy integration even in confined spaces. Wiring is done via standardized RJ45 connectors, ensuring quick and secure connections.

Advantages in Operation

The automatic door opening provided by the DK 7030501 ensures efficient cooling of the enclosure, enhancing the operational reliability of installed electronic components. The redundant power supply and CAN-Bus communication increase system reliability. Integration into the CMC III system enables centralized control and monitoring of all functions, simplifying maintenance and diagnostics. The predefined color scheme in RAL 9005 and RAL 7035 ensures visual harmony with other components in the enclosure.

General
MaterialPlastic
ColourFront: RAL 9005, housing: RAL 7035
Scope of deliveryBasic system, temperature sensor including connection cable (supplied), including mounting material for surface mounting


Product data sheet
Datasheet for Rittal 7030501, EAN: 4028177951570

Questions & answers

What is the delivery time of Rittal 7030501 CMC III Door Control Module DCM?

The article Rittal 7030501 CMC III Door Control Module DCM is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7030501 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7030501 CMC III Door Control Module DCM always at the best possible price. We can give you a discount of 2% on Rittal 7030501 CMC III Door Control Module DCM if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
