Rittal 7030088 CMC III mounting units
|
-24% 50,49 EUR 66,59 EUR |
|
|
( 60,08 EUR incl. VAT ) ≈ £42.26 | ≈ $55.49 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 199013 |
| Mfg Part No: | 7030088 |
| UPC/EAN: | 4028177709423 |
| Weight: | 0.539 kg |
| Type: | DK 7030088 |
Product information for Rittal 7030088:
Applications

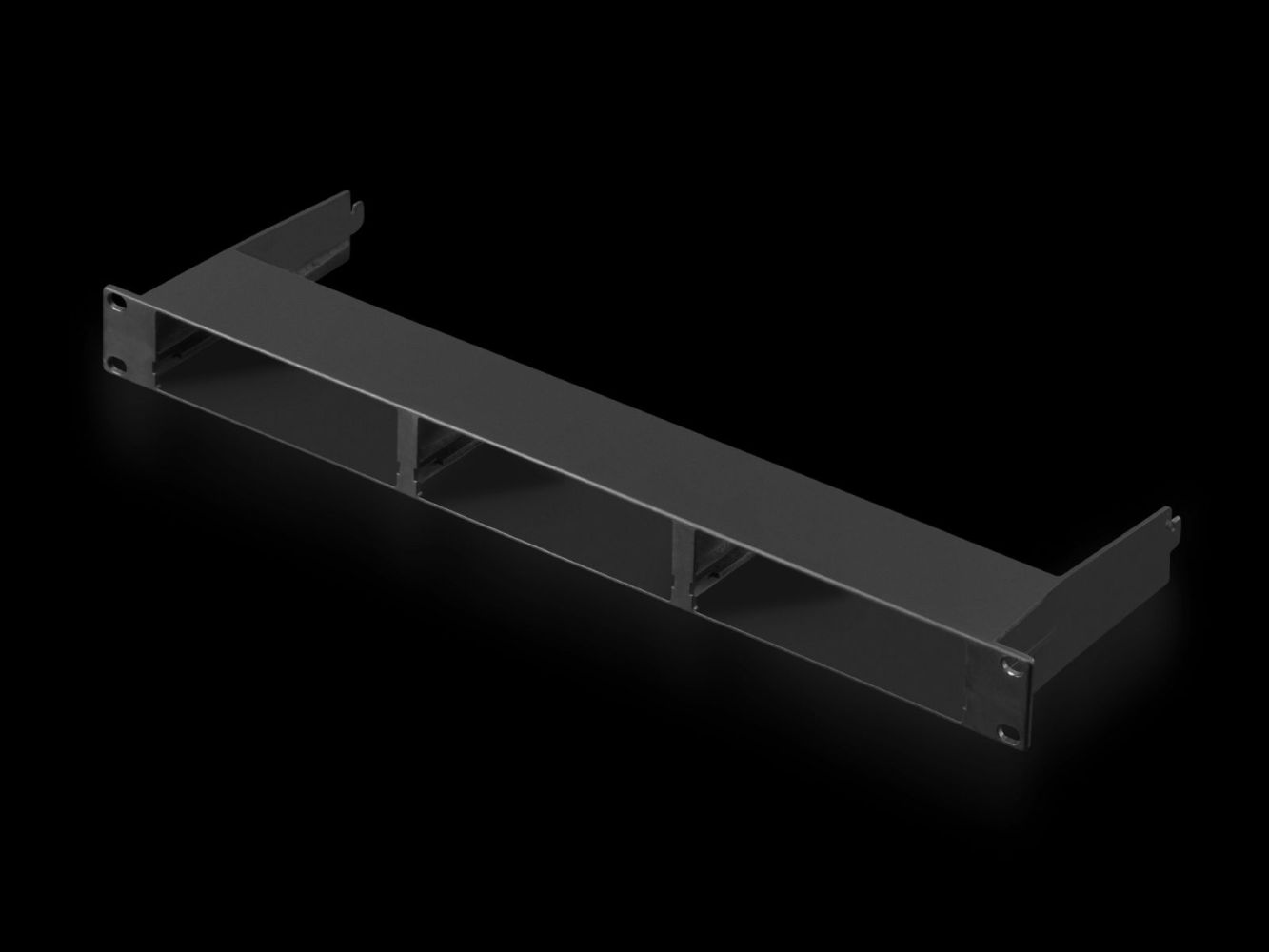

The mounting unit is designed for use in industrial and technical environments where CMC III components such as Processing Units, control units, power supply, LTE unit, or Door Control Module are installed. It is specifically intended for integration into enclosures with a 482.6 mm (48,3 cm ( 19 inch )) width and allows compact arrangement of up to three units in a 1 U format. The unit is therefore ideal for applications in automation technology, machine control, or IT infrastructures where structured and secure mounting of control modules is required.
Functions and Equipment in Detail

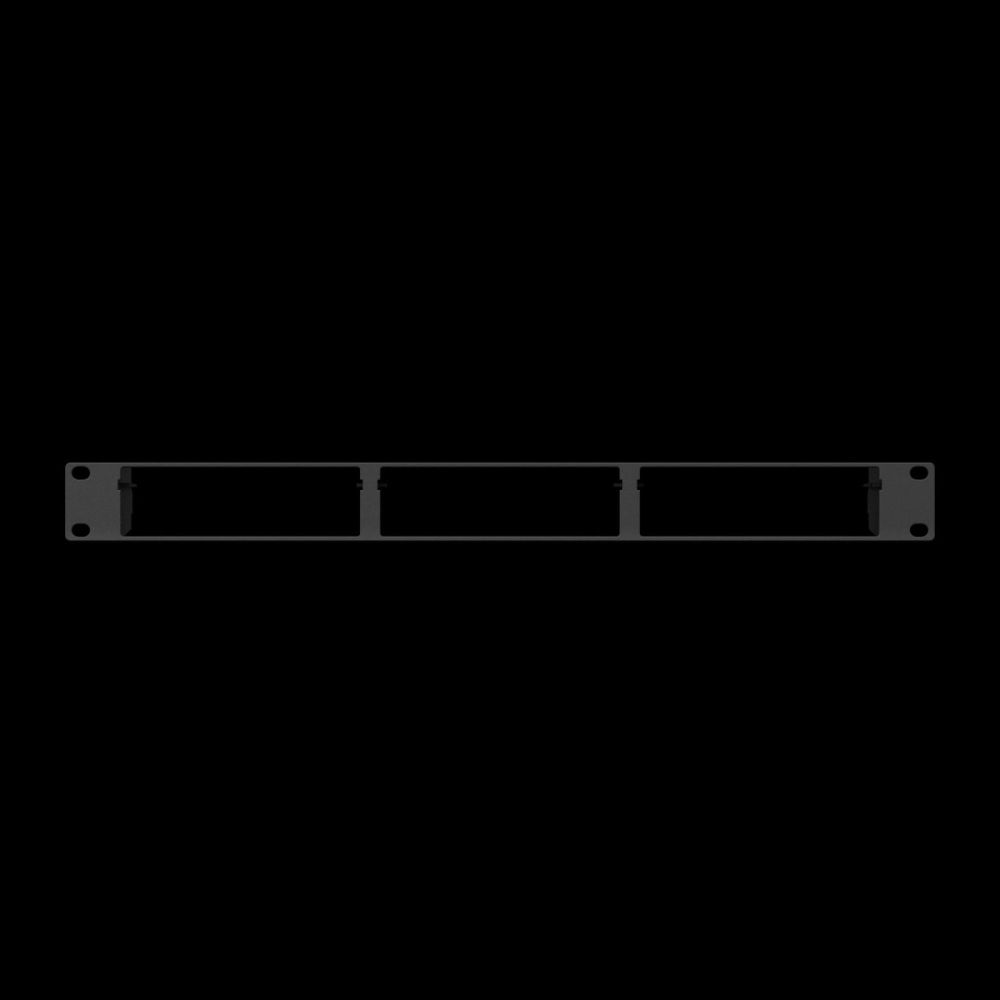

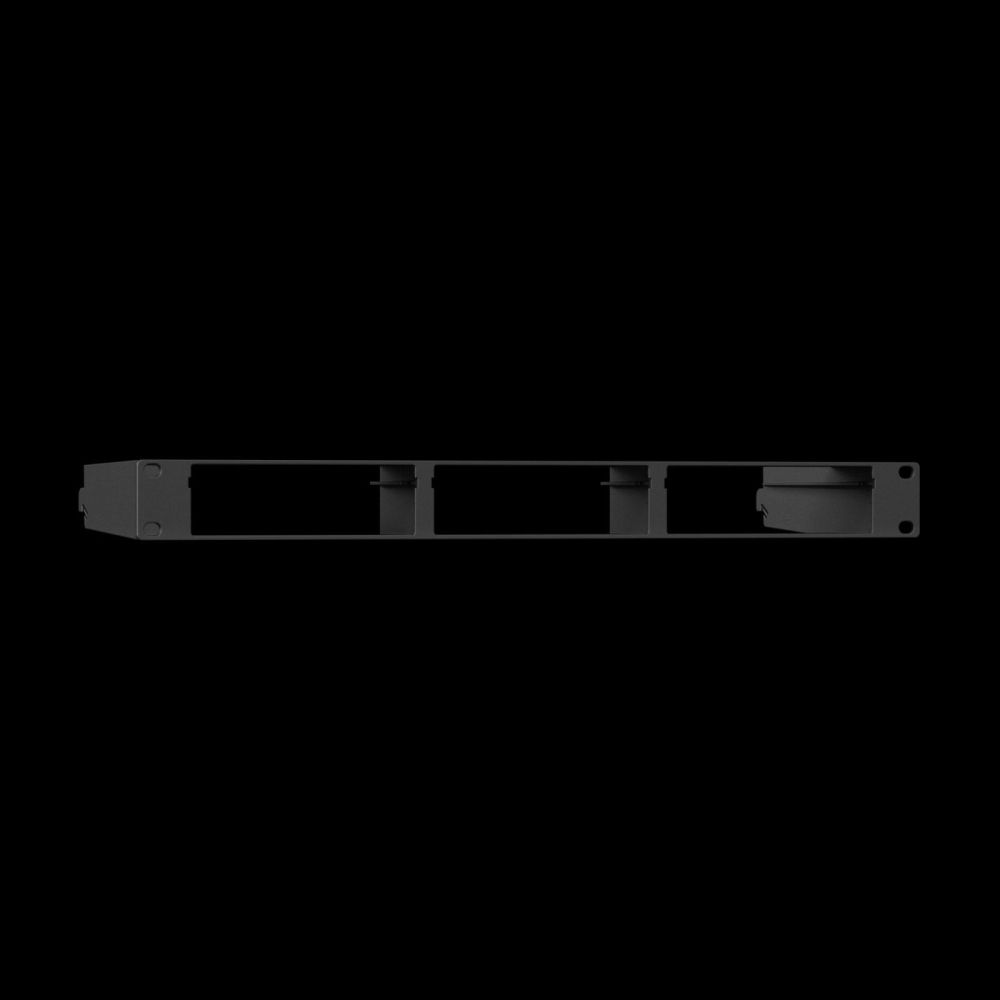

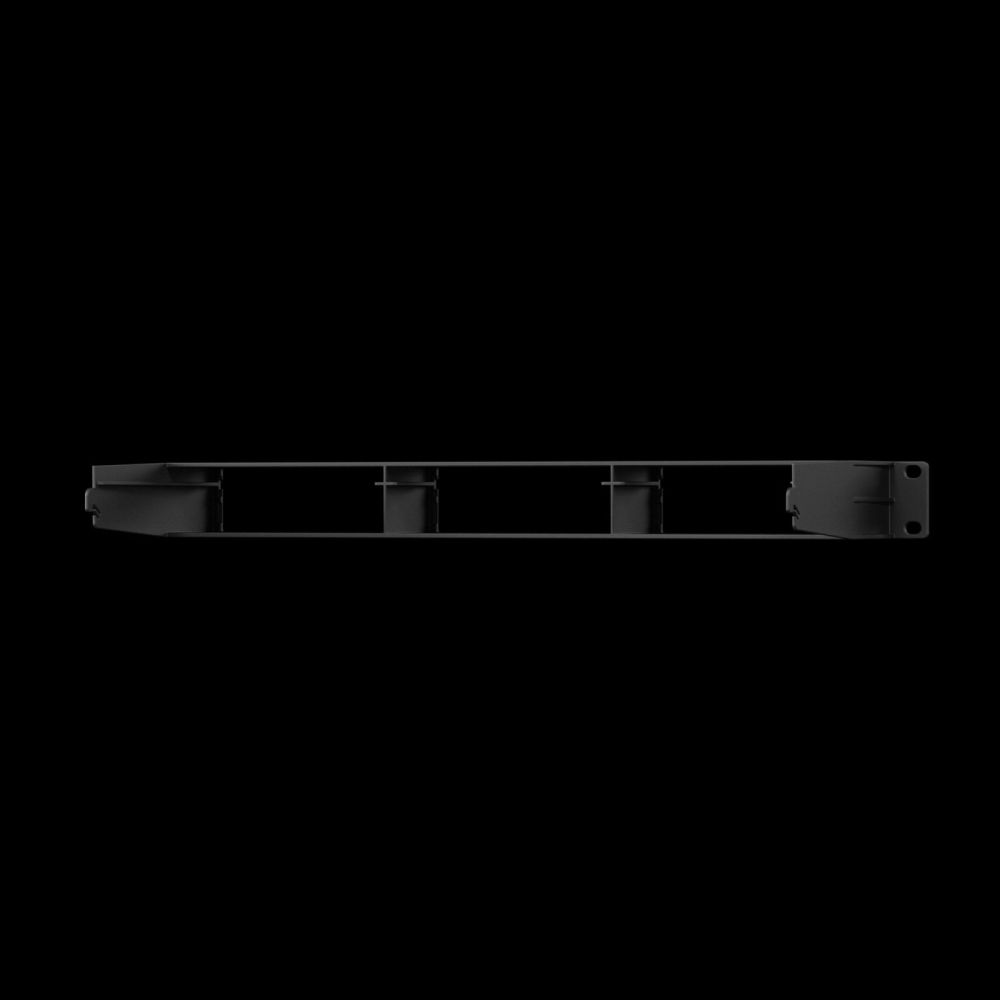

The mounting unit provides three mounting positions for CMC III modules, with the units secured via front-side mounting and an automatic locking mechanism. This simplifies installation and maintenance, as no additional tools are required. The unit includes 2 blanking covers to cover unused mounting positions, maintaining visual order within the enclosure. The fastening materials are included in the delivery scope, allowing immediate installation after unpacking.
Technology Explained Simply

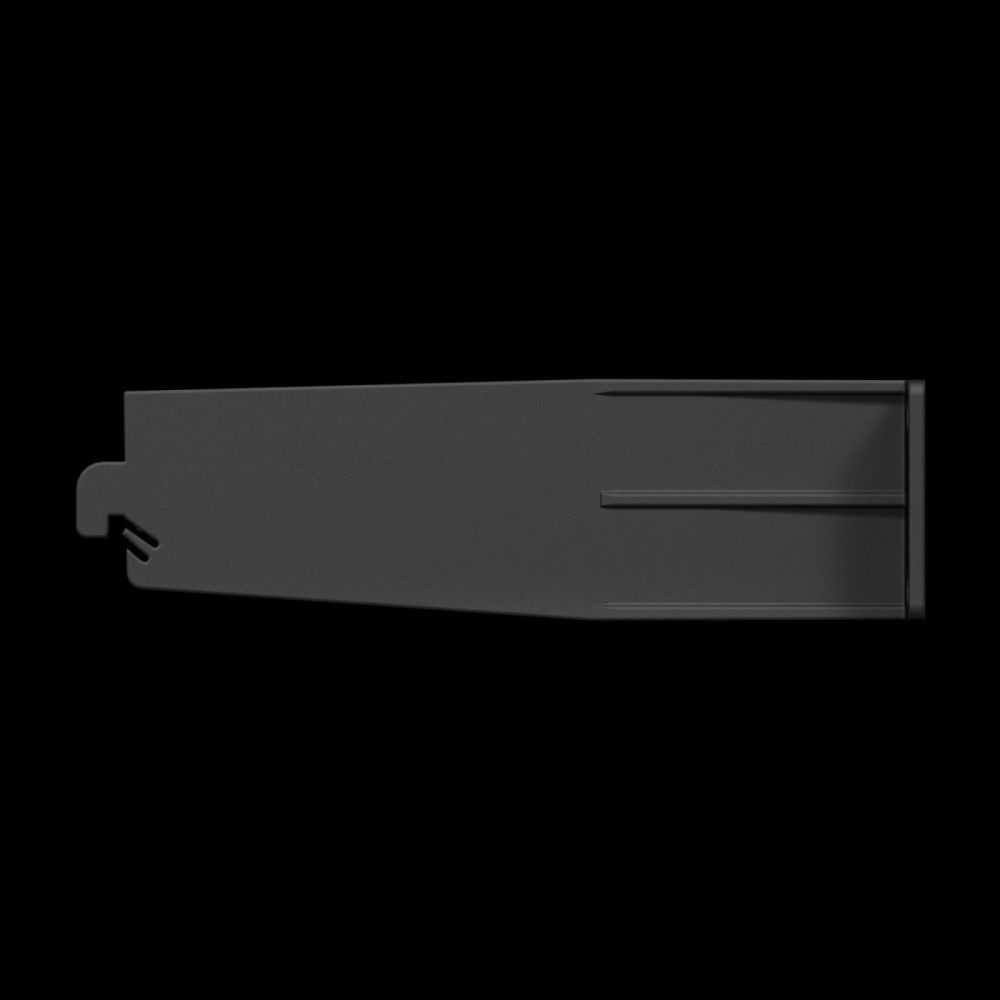

The mounting unit is designed for installation in 48,3 cm ( 19 inch ) enclosure structures, with a width of exactly 482.6 mm, matching the standard width for 48,3 cm ( 19 inch ) racks. The depth of the unit is 141 mm, sufficient to securely mount CMC III modules without protruding into the enclosure. The material is self-extinguishing according to UL 94 HB, providing enhanced fire safety. The color RAL 9005 (black) ensures uniform visual design within the enclosure.
Compatibility and Accessories
The mounting unit is compatible with various CMC III modules, including the CMC III Processing Unit, the CMC III Processing Unit Compact, the CMC III control unit, the CMC III power supply, the CMC III LTE Unit, and the CMC III Door Control Module. These components can be securely and stably mounted in the unit. The unit is specifically designed for the 482.6 mm (48,3 cm ( 19 inch )) width and cannot be used in other enclosure widths.
Mounting and Installation
Mounting is performed from the front into the 48,3 cm ( 19 inch ) width of the enclosure. The automatic locking mechanism ensures that the CMC III modules are securely fixed. The blanking covers serve to visually seal unused mounting positions.
Operational Advantages
The mounting unit provides structured and secure mounting of up to three CMC III modules in a 1 U format. The automatic locking mechanism and pre-fabricated fastening elements reduce installation time and increase reliability. The self-extinguishing property of the material according to UL 94 HB improves fire safety within the enclosure. The color RAL 9005 ensures uniform visual design, which integrates well in industrial and technical environments.
| General | |
| Model | For PU, PU Compact, control units, CMC III CAN-Bus Unit and CMC III power supply. |
| Applications | Reception of CMC III components. |
| Function principle | CMC III Processing Unit, CMC III Processing Unit Compact, CMC III control unit, CMC III power supply, CMC III LTE Unit, CMC III Door Control Module |
| Material | Plastic |
| Colour | RAL 9005 |
| Scope of delivery | Mounting unit, 1 U, 2 blanking plates, including mounting hardware |
| Number of mounting positions | 3 |
| Mounting options | 482.6 mm (19")-rack |
| Note | For installation of CMC III units in network and server cabinets, for accommodating up to three CMC III housings and mounting in 19" profile |
| Width | 482,6 mm |
| Depth | 141 mm |
| PCF/VE (Cradle-to-Gate) | 2.1 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 7030088 CMC III mounting units?
The article Rittal 7030088 CMC III mounting units is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7030088 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 7030088 CMC III mounting units always at the best possible price. We can give you a discount of 2% on Rittal 7030088 CMC III mounting units if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
