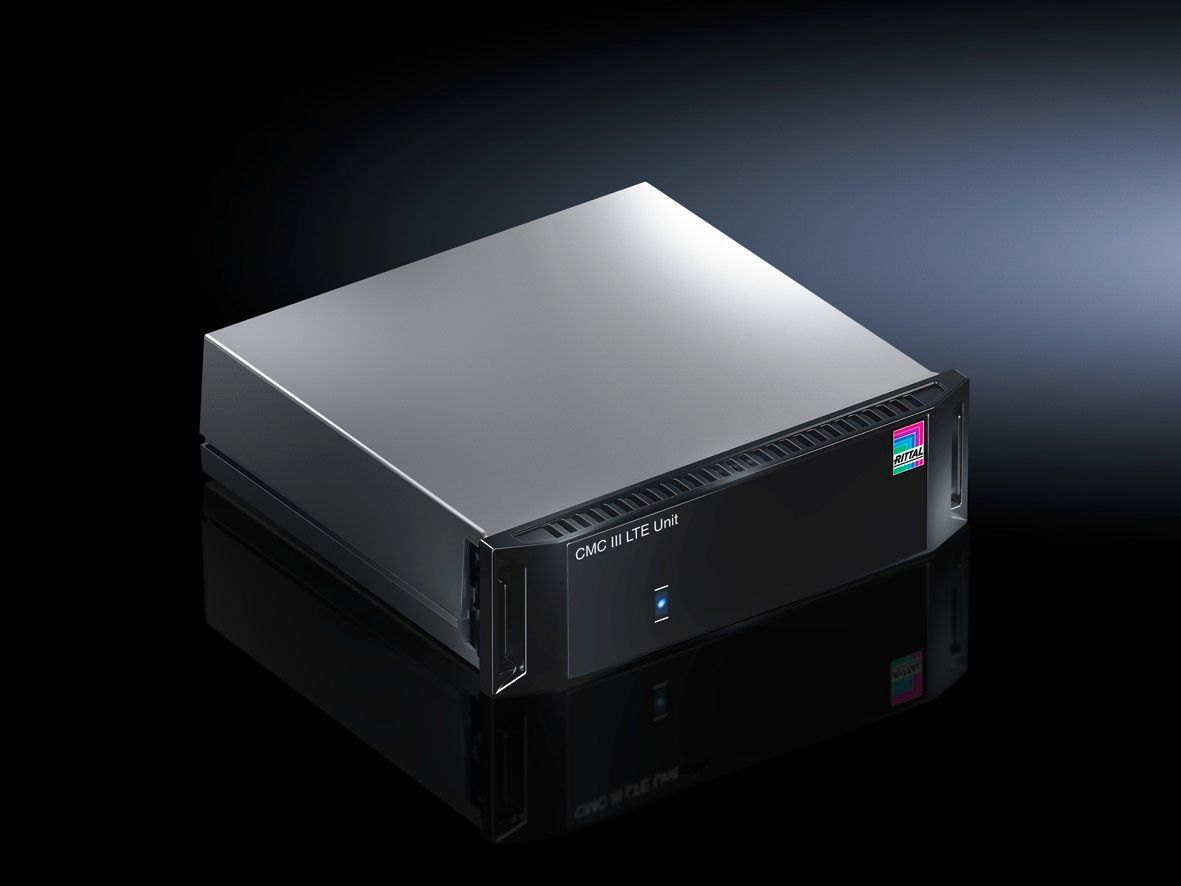

Rittal 7030571 CMC III LTE Unit incl. mounting bracket

Your rating:
Average rating
product review for Rittal 7030571 CMC III LTE Unit incl. mounting bracket
( 4.3 / 5 ) 3 ratings
Rittal 7030571
This image may differ from the desired article.
Rittal 7030571Rittal 7030571
-24% 847,42 EUR 1.113,75 EUR
( 1.008,43 EUR incl. VAT )
≈ £709.29  |  ≈ $931.31
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 4 pieces
1x Rittal 7030571 CMC III LTE Unit incl. mounting bracket
Datasheet:file_download Download
Lieske Part No.:1779779
Mfg Part No: 7030571
UPC/EAN: 4028177926011
Weight:0.645 kg
Type:DK 7030571

Product information for Rittal 7030571:

The Rittal CMC III LTE Unit (manufacturer number DK 7030571) is a communication component for alarm transmission via mobile networks. It serves as a redundant transmission path or as a replacement when no fixed network infrastructure is available. The unit transmits alarm messages in the form of SMS messages and is designed for use in industrial and technical installations where reliable and independent alarm transmission is required. Connection is made to the CMC Processing Unit, with the CMC III and a standard SIM card to be provided by the customer.

Applications

The CMC III LTE Unit is suitable for applications where a fixed network connection is not available or not sufficiently reliable. It is frequently used in industrial automation, security systems, or decentralized facilities where fast and independent alarm notification is necessary. The automatic switching function between different mobile network standards (LTE, UMTS, GSM) ensures high communication availability, even during network outages or in areas with poor reception quality.

Functions and Equipment in Detail

The unit supports mobile network standards LTE (4G), UMTS (3G), and GSM (2G) and can be used in the frequency bands 4G LTE Band 1 (2100 MHz), Band 3 (1800 MHz), Band 8 (900 MHz), Band 20 (800 MHz), and Band 28 (700 MHz), as well as 3G UMTS Band 1 (2100 MHz) and Band 8 (900 MHz), and 2G GSM (900 MHz) and (1800 MHz). The automatic switching function ensures that the unit uses the best available network. Alarm notification occurs exclusively via SMS, ensuring simple and universally understandable alerting. The unit features two serial interfaces of type RJ12, used for connection to the CMC Processing Unit.

Technology Explained Simply

The CMC III LTE Unit is a compact device made of plastic, manufactured in an industrial design. The front is in RAL 9005 (black) and the housing in RAL 7035 (grey). Dimensions are 138 mm width, 40 mm height, and 132 mm depth, enabling compact mounting in standard 48,3 cm ( 19 inch ) racks or other technical enclosures. The operating temperature ranges from 0 °C to 55 °C, making the unit suitable for indoor use or protected outdoor areas. The storage temperature is 45 °C to 85 °C. The unit is supplied with an antenna with a magnetic base, enabling flexible and quick installation.

Compatibility and Accessories

The CMC III LTE Unit is specifically designed for use with the CMC Processing Unit. Connection is made via the two RJ12 interfaces. Mounting units for the CMC III are available as accessories, enabling secure and orderly installation in the rack. The unit requires a standard SIM card, which must be provided by the customer. The SIM card must be connected to a mobile network provider that supports the specified frequency bands.

Mounting and Installation

Mounting is performed in a standard 48,3 cm ( 19 inch ) rack or a suitable enclosure. The unit is connected to the CMC Processing Unit via the RJ12 interfaces. The included antenna with magnetic base can be mounted at a suitable location in the room or enclosure to ensure optimal reception quality. Installation requires no special tools, as the unit is designed for standard mounting.

Advantages in Operation

The CMC III LTE Unit provides reliable and independent alarm transmission, not dependent on a fixed network connection. The automatic switching function between different mobile networks increases communication availability. SMS-based alarm notification is easy to understand and can be received by any mobile phone. The compact design and simple installation make the unit a practical solution for decentralized or mobile applications. The use of a standard SIM card enables flexible and cost-effective integration into existing mobile networks.

General
Technical dataThe CMC III LTE unit can be used in 4G, 3G and 2G mobile networks in the following frequency bands: 4G LTE Band 1 (2100 MHz), 4G LTE Band 3 (1800 MHz), 4G LTE Band 8 (900 MHz), 4G LTE Band 20 (800 MHz), 4G LTE Band 28 (700 MHz), 3G UMTS Band 1 (2100 MHz), 3G UMTS Band 8 (900 MHz), 2G GSM (900 MHz), 2G GSM (1800 MHz)
MaterialPlastic
ColourFront: RAL 9005, housing: RAL 7035
Scope of deliveryCMC III LTE Unit, RJ12 cable, antenna with magnetic base
Serial interface2 x RJ12
Width138 mm
Height40 mm
Depth132 mm
Operating temperature range0 °C...55 °C
Storage temperature range45 °C...85 °C


Product data sheet
Datasheet for Rittal 7030571, EAN: 4028177926011
