Rittal 7000630 DK-TS Socket strip, CEE 7/3 (type F), 8-way, 230 V, 16 A, LHD:
|
-7% 37,15 EUR 40,08 EUR |
|
|
( 44,21 EUR incl. VAT ) ≈ £31.87 | ≈ $43.06 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 188639 |
|---|---|
| Mfg Part No: | 7000630 |
| UPC/EAN: | 4028177438569 |
| Weight: | 0.933 kg |
Product information for Rittal 7000630:

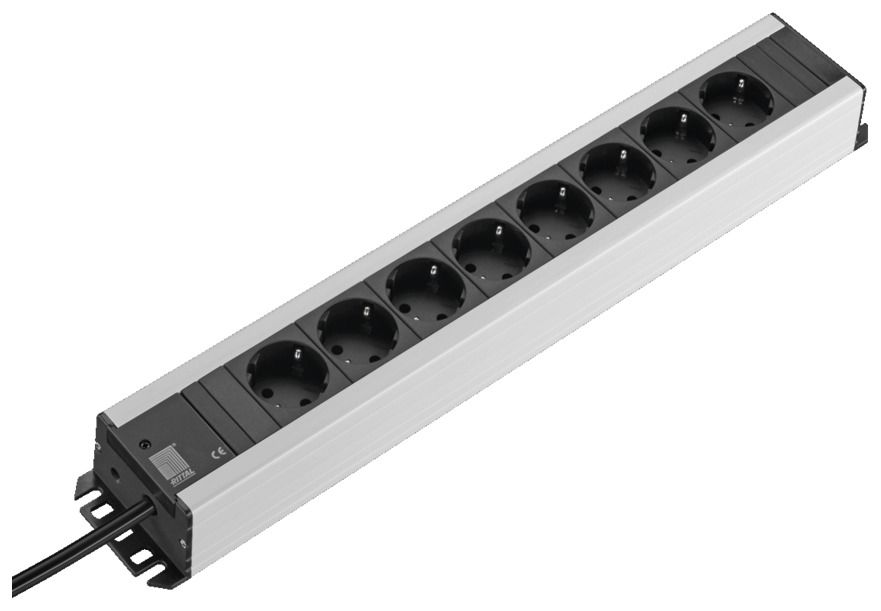

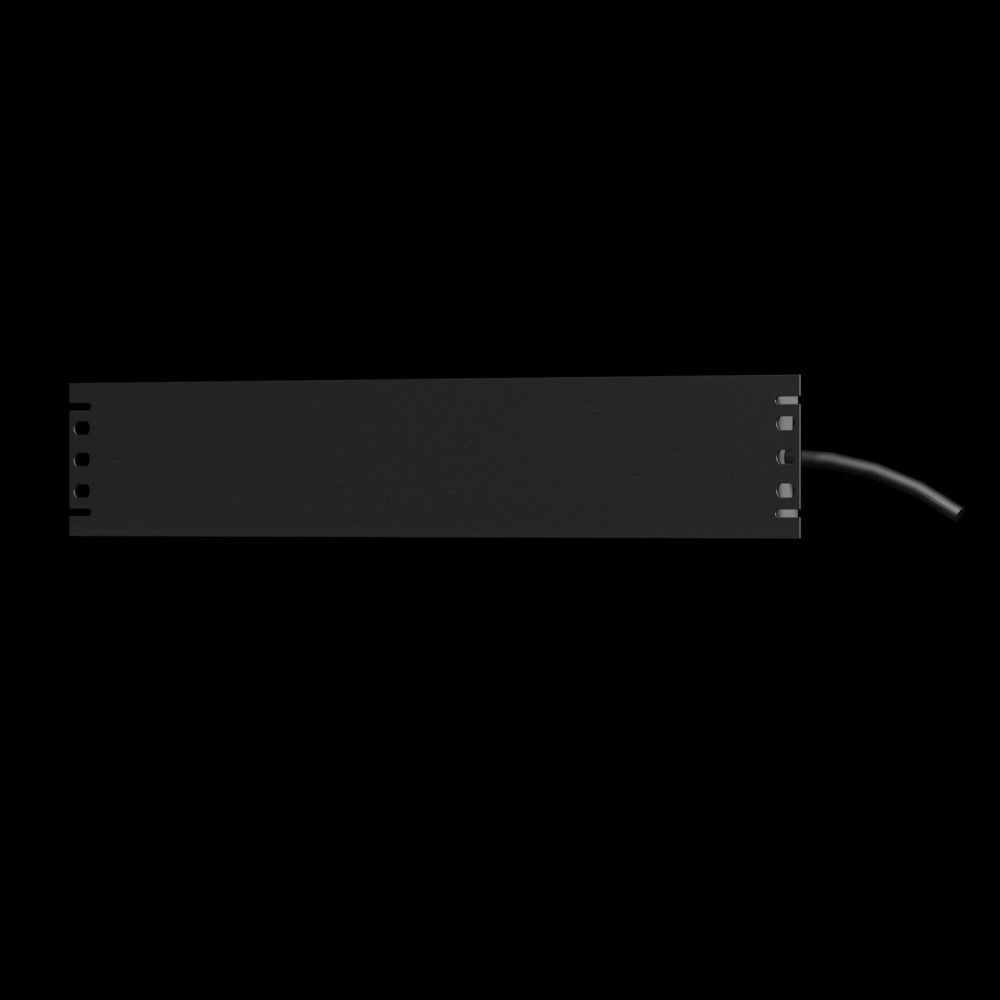

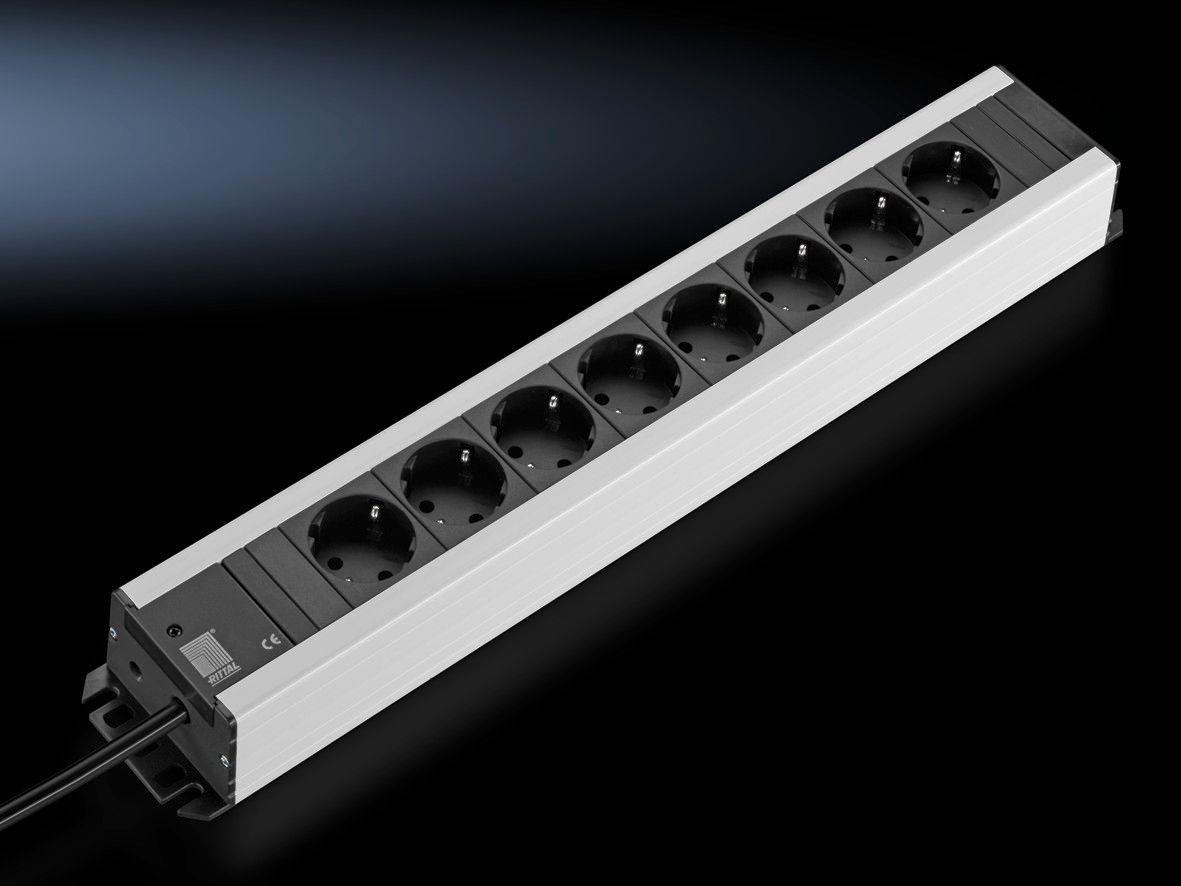

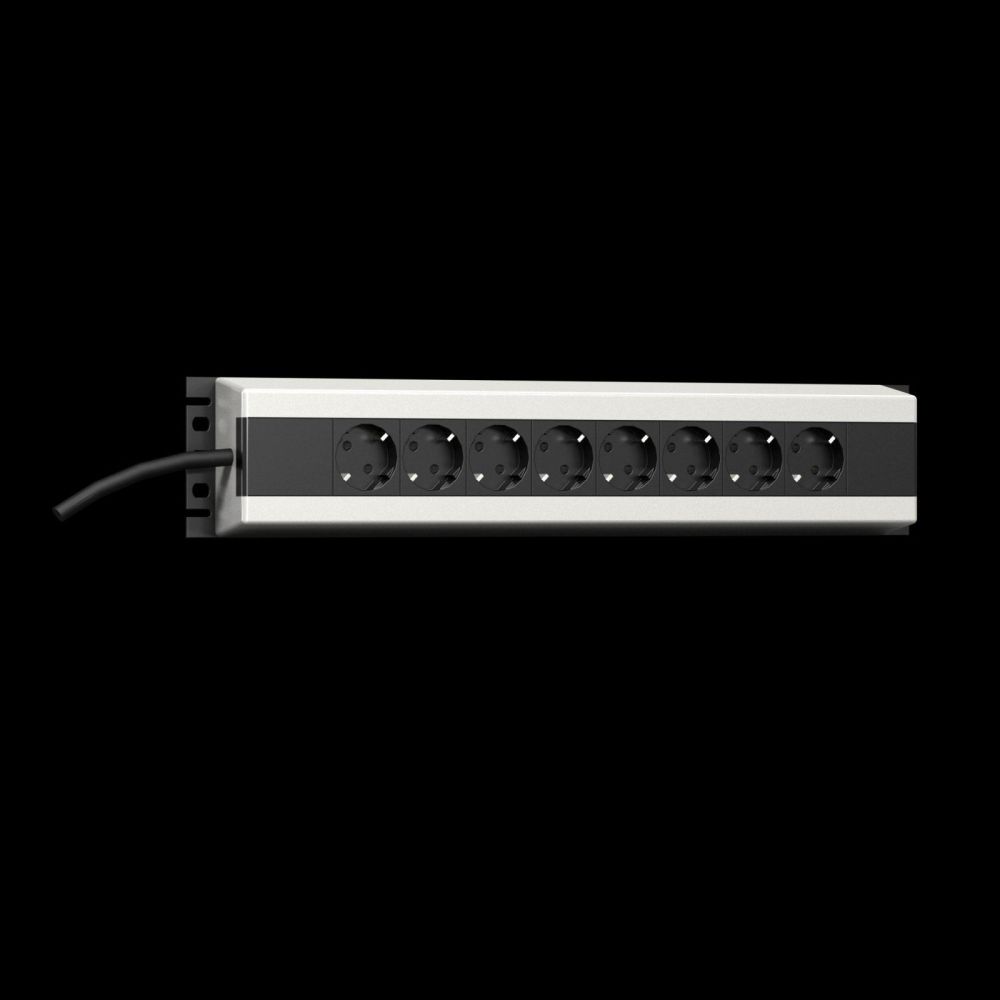

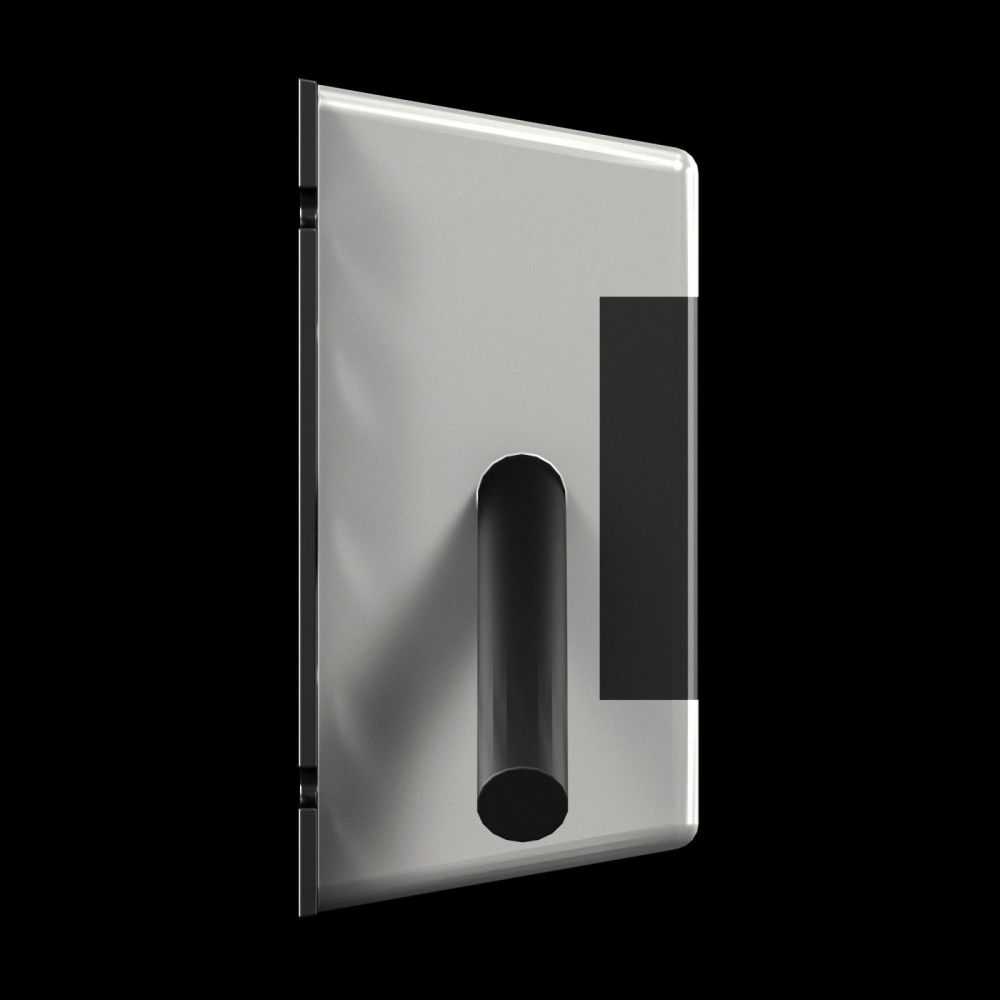

8-way socket strip for earthing-pin plug/version D. The strip may be mounted vertically on the enclosure frame or in the rear 482.6 mm (48,3 cm ( 19 inch )) section. In the 482.6 mm (48,3 cm ( 19 inch )) section, more than 2 U of space is required. The sockets are arranged at an angle of 45° so that angular connectors are also easily used. The connection cable is contacted in a terminal slot in the strip. The terminal slot has a separate cover and external terminals for separate earthing.
Material: Plastic
Supply includes: Connection cable
Socket strip
Assembly screws
2 serrated washers
Captive nuts M6, conductive
Nuts
Packs of: 1 pc(s).
EAN: 4028177438569
Customs tariff number: 85369085
eCl@ss 5.1: 27143401
eCl@ss 7.0: 27142604
ETIM 6.0: EC000330
Design: Without switch
Installation options: TE 7000, rear 482.6 mm (48,3 cm ( 19 inch )) section (
Rated voltage: 230 V
Rated current (max.): 16 A
Equipment (electrical): Number of sockets: 8
Jack/socket (type): D, earthing-pin (type F, CEE 7/4)
Colour of socket: Black
Length of connection cable: 2 m
Connection cable (type): H05VV-F3G1.5 with wire end ferrules
Weight/pack: 1.02 kg
Type: DK 7000630
Material: Plastic
Supply includes: Connection cable
Socket strip
Assembly screws
2 serrated washers
Captive nuts M6, conductive
Nuts
Packs of: 1 pc(s).
EAN: 4028177438569
Customs tariff number: 85369085
eCl@ss 5.1: 27143401
eCl@ss 7.0: 27142604
ETIM 6.0: EC000330
Design: Without switch
Installation options: TE 7000, rear 482.6 mm (48,3 cm ( 19 inch )) section (
2 U)
TE 7000, vertically mounted on the frameRated voltage: 230 V
Rated current (max.): 16 A
Equipment (electrical): Number of sockets: 8
Jack/socket (type): D, earthing-pin (type F, CEE 7/4)
Colour of socket: Black
Length of connection cable: 2 m
Connection cable (type): H05VV-F3G1.5 with wire end ferrules
Weight/pack: 1.02 kg
Type: DK 7000630
