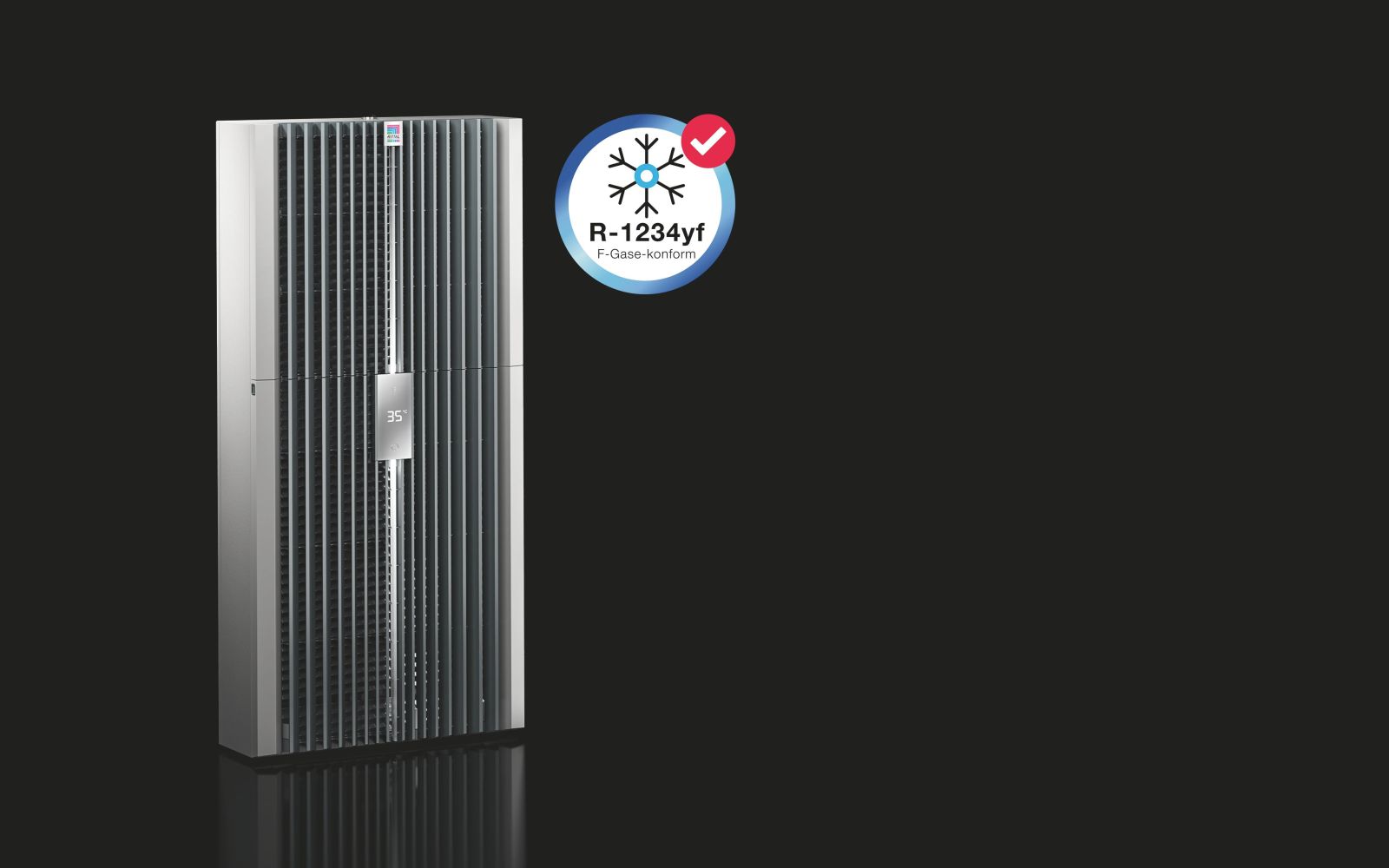

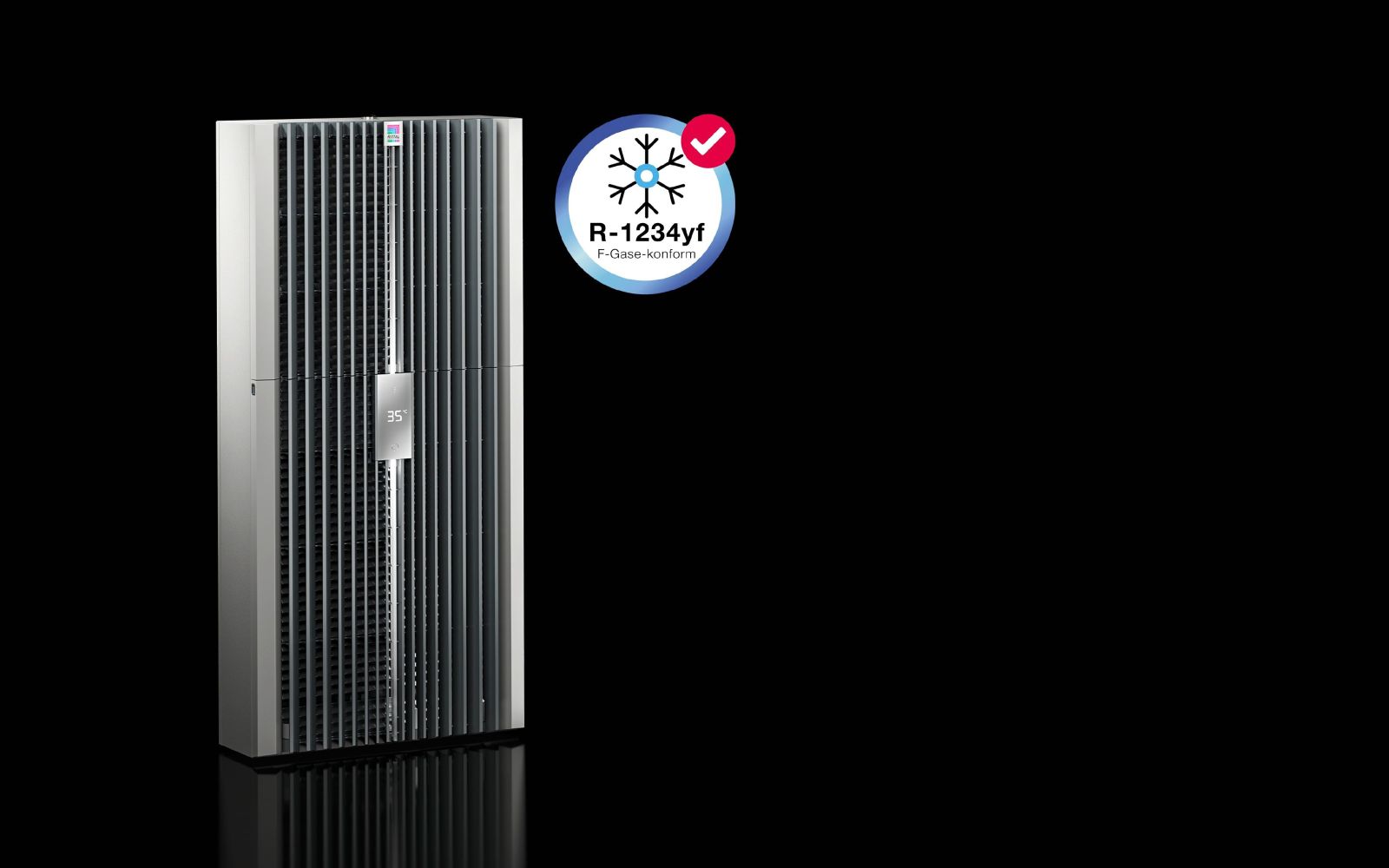

Rittal 3484840 SK 3484.840 Blue e+S wall-mounted cooling unit 920 W R-1234yf
|
1.782,50 EUR |
|
|
( 2.121,17 EUR incl. VAT ) ≈ £1,491.95 | ≈ $1,958.97 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 2034230 |
|---|---|
| Mfg Part No: | 3484840 |
| UPC/EAN: | 4069196016765 |
| Weight: | 32 kg |
| Type: | SK 3484.840 |
Product information for Rittal 3484840:
Applications
This cooling unit is suitable for industrial applications requiring continuous cooling performance of up to 0.92 kW. It is installed in enclosures operating in environments with temperatures ranging from -20 °C to 60 °C. The operating temperature of the refrigerant circuit is between 3 °C and 60 °C, while the heat-pipe system operates within a range of -20 °C to 45 °C. The maximum operating temperature for the entire unit is 60 °C, with a storage temperature up to 70 °C allowed. The unit is designed for use in semi-outdoor areas, with exact mounting conditions specified in the instruction manual.
Functions and Equipment in Detail
The unit features an integrated e+ controller, factory-set to a target temperature of +35 °C. The adjustable range is between 20 °C and 50 °C, allowing temperature adjustment according to specific requirements. The integrated electric condensate evaporation system ensures that condensate is evaporated directly within the unit, eliminating the need for additional drainage. The condenser is coated with a hydrophobic RiNano coating, improving condensate drainage. The unit is pre-wired and includes a plug-in terminal strip, simplifying installation. Mounting materials are included in the delivery scope.
Technology Explained Simply
The cooling unit operates with refrigerant R-1234yf, which has a very low Global Warming Potential (GWP) of 0.5, making it environmentally friendly. The total cooling capacity is 0.92 kW at an ambient temperature of 35 °C (L35) and an operating voltage of 380 V to 480 V, 2~, 50 Hz/60 Hz. The air flow rate is 680 m³/h for both the outdoor and indoor circuits. Energy efficiency is described by the Energy Efficiency Ratio (EER) of 2.19 at 50 Hz and 60 Hz, indicating high cooling efficiency relative to power consumption. The rated power is 0.59 kW, while the nominal power varies depending on operating conditions at 0.42 kW or 0.49 kW. The permissible operating pressure is 34 bar.
Compatibility and Accessories
For remote monitoring and networking of Blue e+ generation cooling units, the IoT Interface with article number 3124.300 can be used. This enables monitoring of device data, statuses, and system messages to increase machine availability and process safety. Compatible accessories include SK temperature sensors, condensate hoses (12 x 2 mm, length 10 m), metal filters, filter mats, support rollers (VX and TS), and door position switches. Air deflection units for SK 3184, 3186, 3187.xxx are also available to optimize airflow within the enclosure.
Mounting and Installation
The unit is designed for wall mounting and requires a mounting cutout with a width of 383 mm and a height of 929 mm. The unit dimensions are 400 mm (width) × 950 mm (height) × 196 mm (depth). Mounting is performed using the included materials. The pre-wired connection with a plug-in terminal strip simplifies electrical integration. Mounting instructions are included in the delivery scope and must be followed.
Operational Advantages
The cooling unit offers high energy efficiency with an EER value of 2.19, resulting in an average energy saving of 75 %. The use of refrigerant R-1234yf with a GWP of 0.5 reduces the CO₂ footprint. The integrated condensate evaporation and the hydrophobic RiNano coating on the condenser minimize maintenance requirements. Global usability is enabled by multi-voltage capability (380 V – 480 V, 2~, 50 Hz/60 Hz) and country-specific certifications. The IP 55 protection rating for the indoor circuit and NEMA certifications UL Type 1 and UL Type 12 ensure reliable operation in industrial environments. Operation is conveniently managed via the Rittal Scan & Service App.
Protection Rating and Operating Conditions
The IP 55 protection rating for the indoor circuit protects against dust and splashing water, suitable for industrial environments. The NEMA certifications UL Type 1 and UL Type 12 confirm suitability for indoor use and protected outdoor areas. The operating temperature of the unit ranges from -20 °C to 60 °C, with a storage temperature up to 70 °C allowed. The operating temperature of the refrigerant circuit is between 3 °C and 60 °C, while the heat-pipe system operates within a range of -20 °C to 45 °C. The permissible operating voltage is 380 V to 480 V, 2~, with a tolerance of -10 % (342 V) to +10 % (528 V).
| General | |
| Model | Wall surface mounted |
| Material | steel sheet |
| Basic colour | RAL 7035 |
| Colour | Housing: RAL 7035, louver grille: RAL 7012 |
| Scope of delivery | Condenser with hydrophobic RiNano coating, incl. mounting material, pre-wired (pluggable terminal block), integrated electrical condensate evaporation |
| Options | For remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages. |
| Total cooling capacity according to DIN EN 14511 | Cooling capacity L35 L35/50 Hz: 0.92 kW, Cooling capacity L35 L35/60 Hz: 0.92 kW, Cooling capacity L35 L50/50 Hz: 0.55 kW, Cooling capacity L35 L50/60 Hz: 0.55 kW |
| Rated operating voltage | 380 V - 480 V, 2~, 50 Hz/60 Hz |
| Note | Please note the mounting instructions., By downloading the software, a contract is established between the contracting party and Rittal regarding the free use of the software according to these license terms., Only suitable for semi-outdoor use (see instruction manual for description) |
| Note on part number | Tolerance: 380 V -10 % (342 V) and 480 V +10 % (528 V) |
| Rated power | 0,59 kW |
| Air performance (free blowing) | External circuit: 680 m³/h, Internal circuit: 680 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Cooling performance ratio L35 L35 (EER) 50 Hz: 2.19, Cooling performance ratio L35 L35 (EER) 60 Hz: 2.19 |
| Width | 400 mm |
| Height | 950 mm |
| Depth | 196 mm |
| Required mounting cutout | Cutout width: 383 mm, cutout height: 929 mm |
| Degree of protection IP according to EN 60 529 | Internal circuit IP 55 |
| NEMA degree of protection | UL Type 1, UL Type 12 |
| Refrigerant/cooling medium | Refrigerant: R-1234yf, quantity: 0.34 kg, quantity compression system: 0.22 kg, quantity heat pipe system: 0.12 kg, Global Warming Potential (GWP): 0.5, CO₂ equivalent (CO₂e): 0 t |
| Temperature control | e+ Controller (factory setting +35 °C) |
| Operating temperature range | -20 °C...60 °C |
| Storage temperature range | -40 °C...70 °C |
| Operating temperature range refrigerant circuit (active) | 3 °C...60 °C |
| Operating temperature range heat pipe | -20 °C...45 °C |
| Adjustment range | 20 °C...50 °C |
| Rated power Pel | Rated power L35 L35/50 Hz: 0.42 kW, rated power L35 L35/60 Hz: 0.42 kW, rated power L35 L50/50 Hz: 0.49 kW, rated power L35 L50/60 Hz: 0.49 kW |
| Permissible operating pressure (p max.) | 34 bar |
| PCF/VE (Cradle-to-Gate) | 144.43 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
