Rittal 3285950 Filter mat for SK 3184.800/3184.840

Your rating:
Average rating
product review for Rittal 3285950 Filter mat for SK 3184.800/3184.840
( 4.2 / 5 ) 5 ratings
Rittal 3285950
This image may differ from the desired article.
Rittal 3285950Rittal 3285950Rittal 3285950
21,83 EUR
( 25,98 EUR incl. VAT )
≈ £18.27  |  ≈ $23.99
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 3285950 Filter mat for SK 3184.800/3184.840
Datasheet:file_download Download
Lieske Part No.:1101771
Mfg Part No: 3285950
UPC/EAN: 4028177965539
Weight:0.12 kg
Type:SK 3285950

Product information for Rittal 3285950:

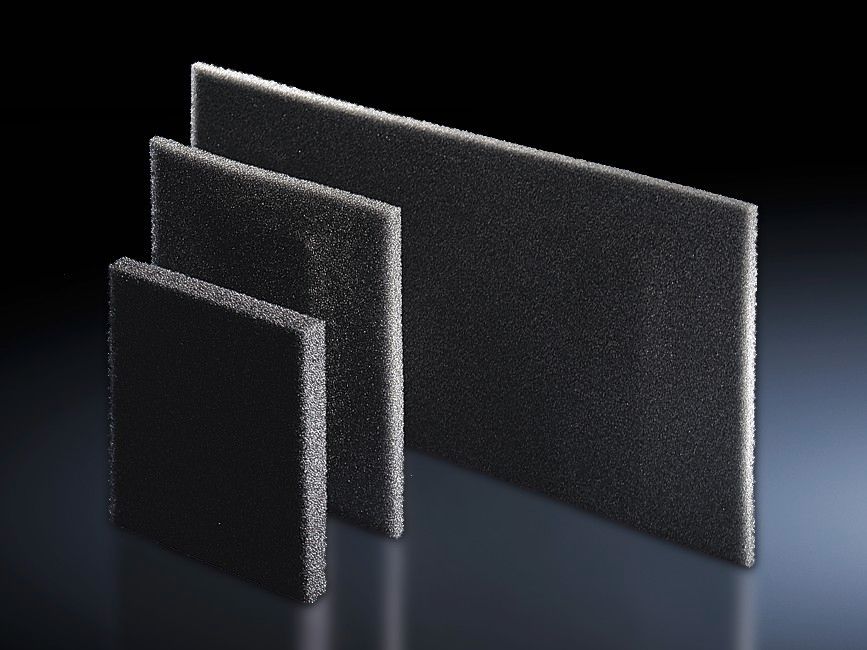

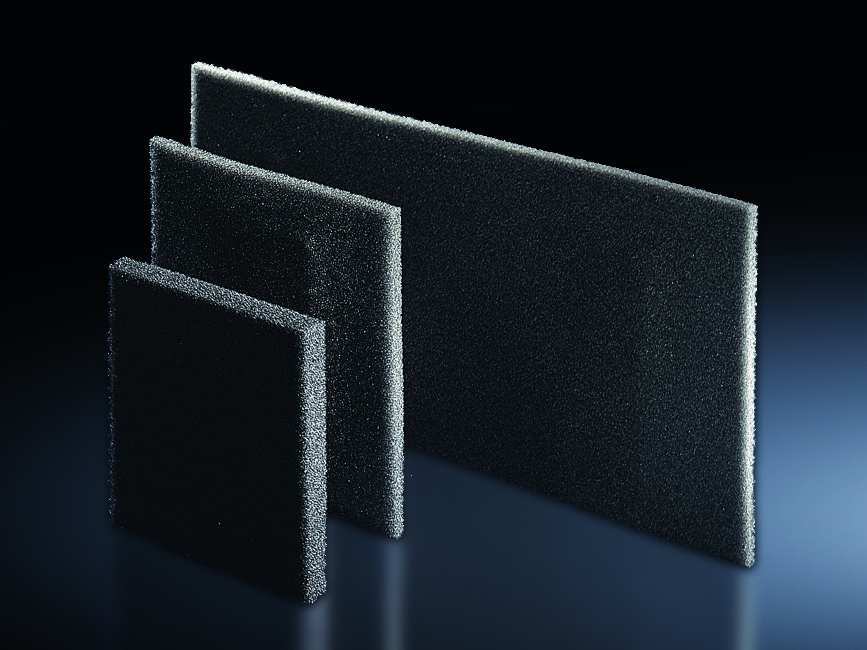

The SK 3285950 is a filter mat from Rittal, specifically developed for use with cooling units of article numbers 3184.8x0 and 3484.8x0. This filter mat serves a protective function against dust and particles that could enter the cooling units, particularly in environments with increased contamination risk. The filter mat is not supplied standard with the cooling units, but is intended as an addition for demanding operating conditions. It is made of an open-cell polyurethane foam, which enables effective filtration without significantly impeding airflow. The dimensions are 323 mm width, 379 mm height, and 10 mm depth, ensuring a precise fit for the intended cooling units.

Applications

The filter mat is designed for industrial applications where air contamination by dust, fine particles, or other foreign matter is an issue. It is recommended when cooling units are operated in environments with high dust loads, for example in production halls, workshops, or during material processing that releases fine particles. Using the filter mat reduces contamination of the internal components of the cooling units and simplifies maintenance, as cleaning of the units becomes easier.

Functions and Equipment in Detail

The SK 3285950 consists of an open-cell polyurethane foam, offering high filtration performance with low air resistance. The material properties enable efficient separation of dust particles from the incoming air, thereby extending the service life of the cooling units and reducing maintenance intervals. The filter mat is temperature resistant from -40 °C to +80 °C, making it suitable for a wide range of operating conditions, including climate-controlled rooms with extreme temperature fluctuations. The dimensions of 323 mm (width), 379 mm (height), and 10 mm (depth) ensure an exact fit in the intended cooling units.

Technology Explained Simply

The open-cell polyurethane foam functions as a mechanical filter, removing particles from the air by physical separation. The open cell structure allows for uniform airflow, minimizing pressure loss in the system. The temperature resistance from -40 °C to +80 °C ensures the filter mat remains functional even under extreme environmental conditions. The filter mat is not self-cleaning and must be replaced regularly depending on the level of contamination to maintain filtration performance.

Compatibility and Accessories

The filter mat is specifically developed for cooling units with article numbers 3184.8x0 and 3484.8x0. These units include various cooling and climate control systems used in enclosures or industrial housings. The filter mat is supplied in a packaging unit of three pieces, enabling economical stock management.

Installation and Mounting

Installation of the filter mat is done by simply inserting it into the designated holders of the cooling units. The exact fit of the dimensions (323 mm × 379 mm × 10 mm) ensures a secure and tight installation without requiring additional fastening elements. The filter mat is not self-adhesive and does not require special tools or mounting aids. Maintenance involves regular inspection and replacement of the filter mat as soon as visible contamination or reduced air permeability is detected.

Operational Advantages

Using the SK 3285950 reduces contamination of the cooling units, extending maintenance intervals and increasing operational reliability. The filter mat simplifies cleaning of the units, as particles are captured on the surface of the mat and do not reach internal components. The temperature resistance from -40 °C to +80 °C allows flexible use in various industrial environments. The supply in a pack of three pieces enables economical stock management and reduces the frequency of orders.

General
MaterialOpen-cell polyurethane foam
Suitable for part no.3184.8x0 / 3484.8x0
Width323 mm
Height379 mm
Depth10 mm


Product data sheet
Datasheet for Rittal 3285950, EAN: 4028177965539
