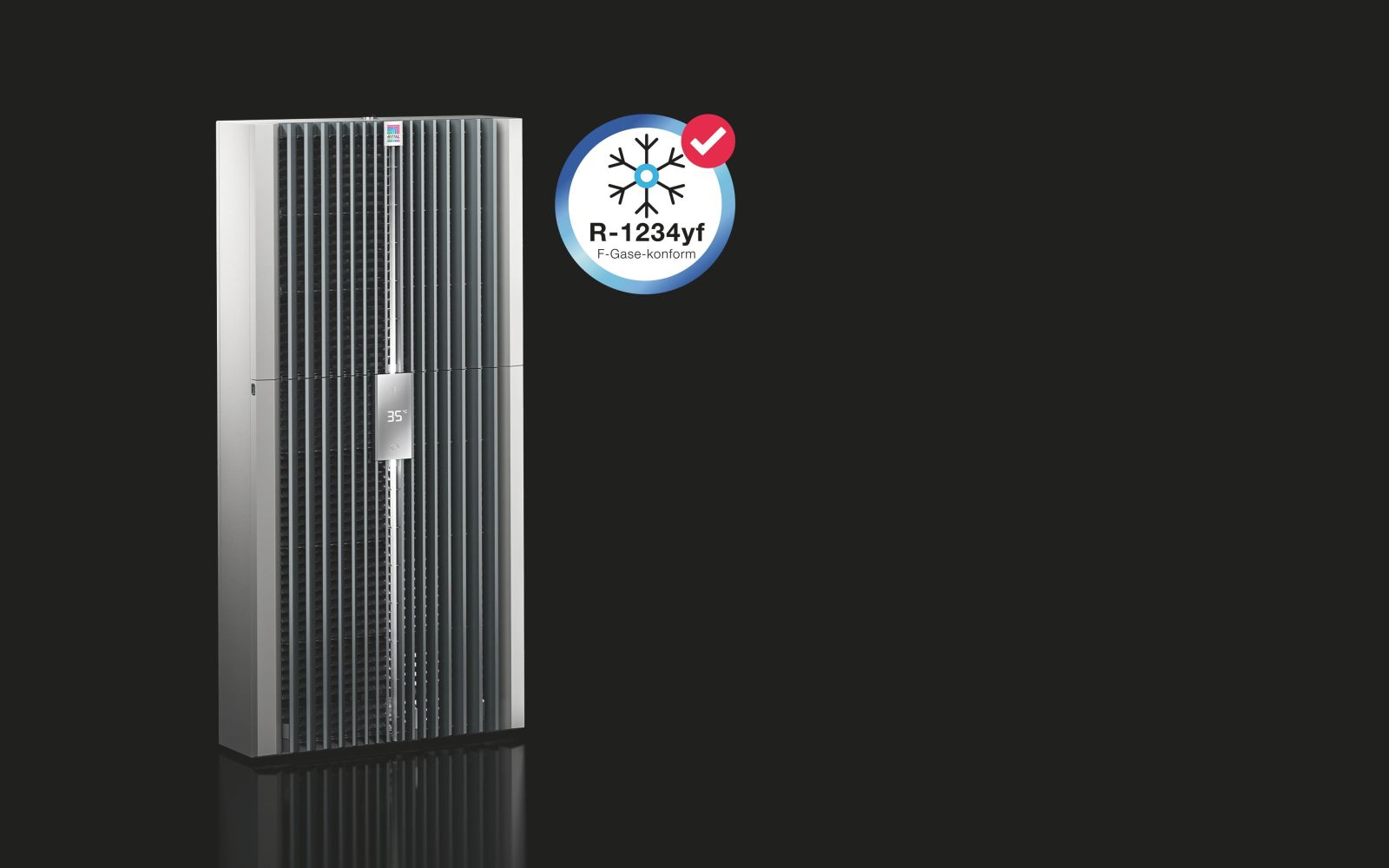

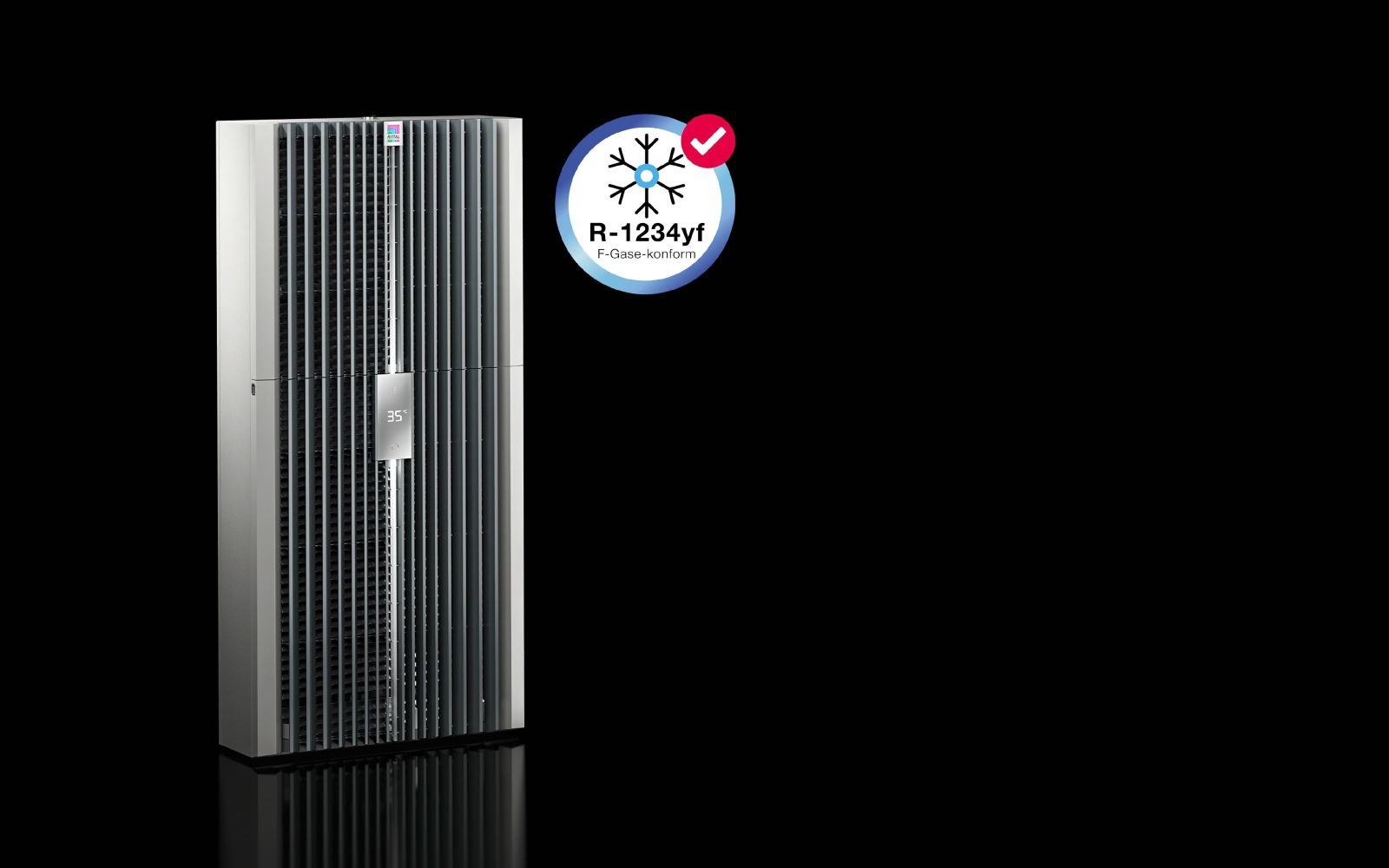

Rittal 3484800 SK 3484.800 Blue e+S wall-mounted cooling unit 920 W R-1234yf

Your rating:
Average rating
product review for Rittal 3484800 SK 3484.800 Blue e+S wall-mounted cooling unit 920 W R-1234yf
( 0 / 5 ) 0 ratings
Rittal 3484800
This image may differ from the desired article.
Rittal 3484800Rittal 3484800
1.578,95 EUR
( 1.878,95 EUR incl. VAT )
≈ £1,321.58  |  ≈ $1,735.27
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 3484800 SK 3484.800 Blue e+S wall-mounted cooling unit 920 W R-1234yf
Lieske Part No.:2034228
Mfg Part No: 3484800
UPC/EAN: 4069196016758
Weight:31.5 kg
Type:SK 3484.800

Product information for Rittal 3484800:

The Rittal SK 3484.800 is a wall-mounted cooling unit of the Blue e+ S series, specifically designed for climate control of enclosures and electronic devices in semi-outdoor environments. The unit features a total cooling capacity of 0.92 kW at an operating temperature of 35 °C (L35) and a frequency of 50 Hz or 60 Hz. It is designed for a rated operating voltage of 110 V to 240 V, 1~, 50 Hz/60 Hz, with voltage tolerance ranging from 110 V to 99 V and 240 V to 264 V. The cooling capacity at L50 operation is 0.55 kW. The unit is made of sheet steel and has a base color of RAL 7035; the louver grille is finished in RAL 7012. Dimensions are 400 mm (width) × 950 mm (height) × 196 mm (depth), requiring a mounting cutout of 383 mm (width) × 929 mm (height).

Applications
This cooling unit is intended for use in enclosures and technical housings in semi-outdoor environments where controlled cooling of electronic components is required. It is suitable for applications in industrial environments where a stable operating temperature between -20 °C and 60 °C must be maintained. Storage temperature can range between -40 °C and 70 °C. The refrigerant circuit operating temperature ranges from 3 °C to 60 °C, while the Heat Pipe operation occurs between -20 °C and 45 °C. Temperature control is managed by an e+ controller, factory-set to +35 °C, with an adjustable range between 20 °C and 50 °C.

Functions and Equipment in Detail
The unit features a condenser with hydrophobic RiNano coating, which reduces moisture absorption and extends the unit’s service life. The integrated electrical condensate evaporation ensures that condensate is evaporated directly within the unit, eliminating the need for external drainage. The unit is pre-wired for connection and includes a plug-in terminal strip, simplifying installation. Mounting materials are included in the delivery scope.

Technology Explained Simply
The cooling unit uses refrigerant R-1234yf, which has a very low Global Warming Potential (GWP) of 0.5, making it environmentally friendly. The total refrigerant charge is 0.34 kg, with 0.22 kg in the compression system and 0.12 kg in the Heat Pipe system. Airflow capacity is 680 m³/h for both the external and internal circuits. Energy efficiency (EER) is 2.19, indicating high cooling efficiency relative to power consumption. Rated power is 0.6 kW, with nominal power varying between 0.42 kW and 0.48 kW depending on operating conditions. Maximum operating pressure is 34 bar.

Compatibility and Accessories
For remote monitoring and networking of Blue e+ generation cooling units, the IoT Interface with article number 3124.300 can be used. This enables monitoring of device data, statuses, and system alerts to enhance machine availability and process safety. Compatible accessories include filter mats, air deflectors, temperature sensors, condensate hoses, door position switches, and support rollers for various Rittal systems.

Mounting and Installation
Mounting is done on the wall of the enclosure. The required mounting cutout is 383 mm in width and 929 mm in height. Installation is simplified by the pre-connected plug-in terminal strip and included mounting materials. The ready-to-connect design enables quick and secure commissioning.

Operational Advantages
The unit offers high energy efficiency with an average saving of 75 % compared to conventional cooling units. Global usability is enabled by multi-voltage capability and country-specific approvals. The integrated electrical condensate evaporation reduces maintenance requirements. Remote monitoring via the IoT Interface enables proactive maintenance and increases operational safety. Protection rating IP 55 for the internal circuit and NEMA approvals UL Type 1 and UL Type 12 ensure reliable operation in various environments. The PCF values (Cradle-to-Gate) are 141.81 kg CO₂ eq (Category B), reflecting the product’s environmental footprint.

General
ModelWall surface mounted
Materialsteel sheet
Basic colourRAL 7035
ColourHousing: RAL 7035, louver grille: RAL 7012
Scope of deliveryCondenser with hydrophobic RiNano coating, incl. mounting material, pre-wired (pluggable terminal block), integrated electrical condensate evaporation
OptionsFor remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages.
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 0.92 kW, Cooling capacity L35 L35/60 Hz: 0.92 kW, Cooling capacity L35 L50/50 Hz: 0.55 kW, Cooling capacity L35 L50/60 Hz: 0.55 kW
Rated operating voltage110 V - 240 V, 1~, 50 Hz/60 Hz
NotePlease note the mounting instructions., By downloading the software, a contract is established between the contracting party and Rittal regarding the free use of the software according to these license terms., Only suitable for semi-outdoor use (see instruction manual for description)
Note on part numberTolerance: 110 V -10 % (99 V) and 240 V +10 % (264 V)
Rated power0,6 kW
Air performance (free blowing)External circuit: 680 m³/h, Internal circuit: 680 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling performance ratio L35 L35 (EER) 50 Hz: 2.19, Cooling performance ratio L35 L35 (EER) 60 Hz: 2.19
Width400 mm
Height950 mm
Depth196 mm
Required mounting cutoutCutout width: 383 mm, cutout height: 929 mm
Degree of protection IP according to EN 60 529Internal circuit IP 55
NEMA degree of protectionUL Type 1, UL Type 12
Refrigerant/cooling mediumRefrigerant: R-1234yf, quantity: 0.34 kg, quantity compression system: 0.22 kg, quantity heat pipe system: 0.12 kg, Global Warming Potential (GWP): 0.5, CO₂ equivalent (CO₂e): 0 t
Temperature controle+ Controller (factory setting +35 °C)
Operating temperature range-20 °C...60 °C
Storage temperature range-40 °C...70 °C
Operating temperature range refrigerant circuit (active)3 °C...60 °C
Operating temperature range heat pipe-20 °C...45 °C
Adjustment range20 °C...50 °C
Rated power PelRated power L35 L35/50 Hz: 0.42 kW, Rated power L35 L35/60 Hz: 0.42 kW, Rated power L35 L50/50 Hz: 0.48 kW, Rated power L35 L50/60 Hz: 0.48 kW
Permissible operating pressure (p max.)34 bar
PCF/VE (Cradle-to-Gate)141.81 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
