Rittal 3213360 SK air deflector for SK 3184, 3186, 3187.xxx

Your rating:
Average rating
product review for Rittal 3213360 SK air deflector for SK 3184, 3186, 3187.xxx
( 4 / 5 ) 1 ratings
Rittal 3213360
This image may differ from the desired article.
Rittal 3213360Rittal 3213360Rittal 3213360
85,97 EUR
( 102,30 EUR incl. VAT )
≈ £71.96  |  ≈ $94.48
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3213360 SK air deflector for SK 3184, 3186, 3187.xxx
Datasheet:file_download Download
Lieske Part No.:683088
Mfg Part No: 3213360
UPC/EAN: 4028177976276
Weight:0.64 kg
Type:SK 3213360

Product information for Rittal 3213360:

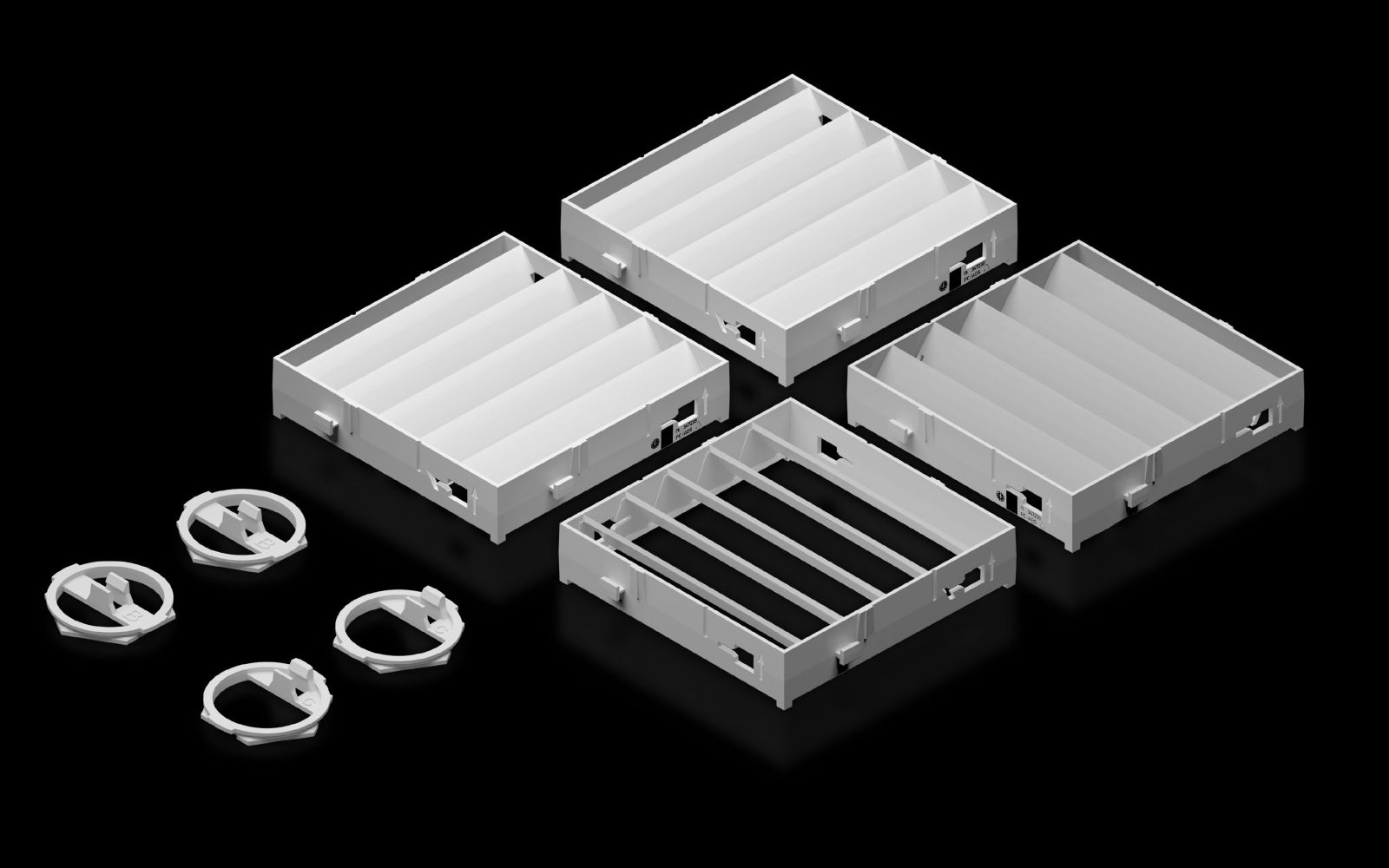

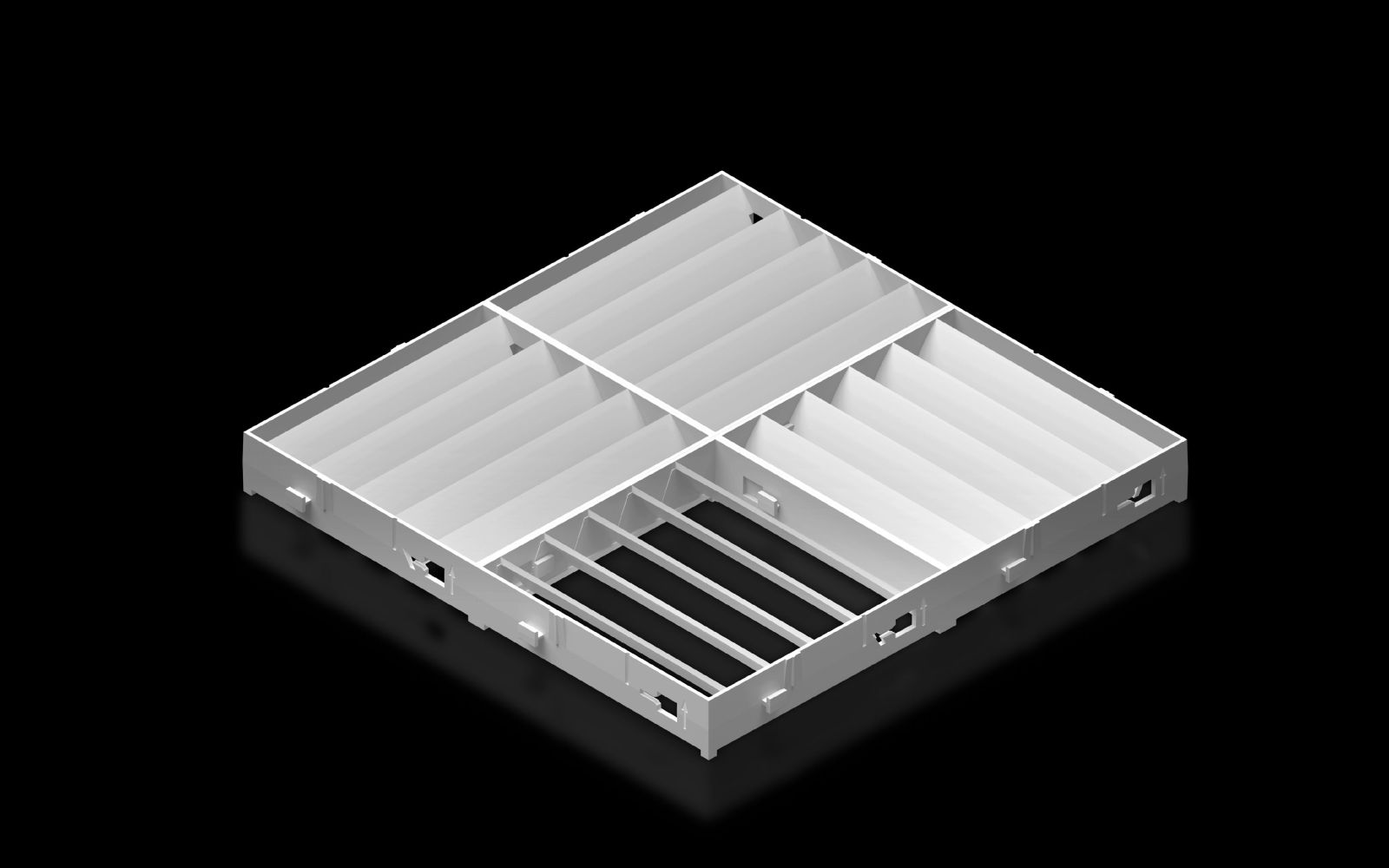

The Rittal SK 3213360 is an air deflector for wall-mounted cooling units of the Blue e+ series, specifically designed for targeted guidance of cold air within an enclosure. The component serves to avoid heat pockets, particularly in cases of high packing density of electrical components in the lower section of the enclosure. The air deflector allows for individual adjustment of the air outlet direction, directing cooling performance precisely to critical areas. It is compatible with cooling units identified by article numbers 3184.xx0 / 3484.xx0, 3186.93x / 3486.93x, 3186.630 / 3486.630, 3187.93x / 3487.93x, and 3187.630 / 3487.630. However, it is not suitable for the wall-mounted cooling unit Blue e+ Outdoor.

Applications
The air deflector is used in industrial enclosures where efficient and even cooling of electronic modules is required. It is particularly advantageous in densely populated enclosures, where heat dissipation by natural convection alone is insufficient. The targeted cold air guidance ensures that sensitive components, especially in the lower section of the enclosure, are optimally cooled. This contributes to extending the service life of devices and enhancing the stability of electrical systems.

Functions and Equipment in DetailThe SK 3213360 enables individual adjustment of the air outlet direction, allowing cold air to be directed precisely to the required area within the enclosure. Installation is tool-free and quick to retrofit, without requiring drilling into the enclosure. The shallow installation depth of 30 mm ensures that the component can be easily integrated even in narrow enclosures, without significantly restricting internal space.

Technology Explained SimplyThe component is made of ABS (Acrylonitrile Butadiene Styrene), a robust plastic known for its mechanical strength and heat resistance. The material meets the fire protection requirement according to UL 94-V0, meaning it extinguishes quickly when exposed to flame and does not propagate combustion. The colour is RAL 7035, a grey tone that blends well visually in industrial environments. Dimensions are 330 mm width, 330 mm height, and 30 mm depth, enabling a compact and space-saving design.

Compatibility and AccessoriesThe air deflector is specifically developed for wall-mounted cooling units of the Blue e+ series, identified by article numbers 3184.xx0 / 3484.xx0, 3186.93x / 3486.93x, 3186.630 / 3486.630, 3187.93x / 3487.93x, and 3187.630 / 3487.630. It is not intended for the Blue e+ Outdoor model. Combining it with these cooling units enables optimised airflow, improving cooling performance within the enclosure. The air deflector is supplied as a single unit.

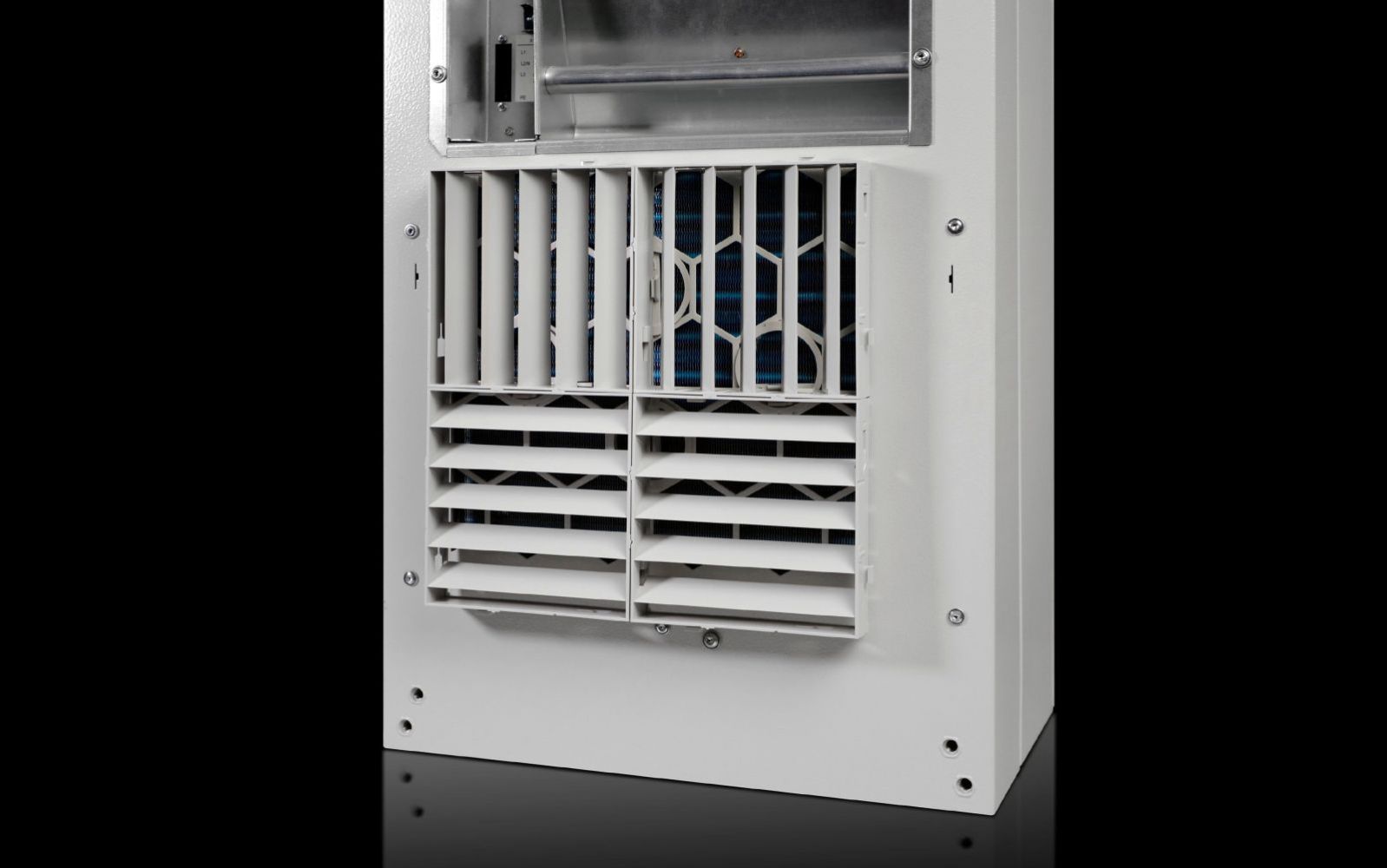

Installation and MountingInstallation is tool-free and does not require drilling. The air deflector is directly attached to the cooling unit, with exact mounting instructions following the respective cooling unit’s manual. The shallow installation depth of 30 mm ensures easy integration even in narrow enclosures. The simple mounting allows for quick retrofitting, even during ongoing operations.

Operational AdvantagesTargeted cold air guidance improves heat dissipation within the enclosure, extending the service life of electronic components and enhancing operational reliability. Tool-free mounting and quick retrofitting reduce installation time and minimise operational downtime. The shallow installation depth ensures space-saving integration without impairing the enclosure’s functionality. The use of ABS with UL 94-V0 fire behaviour ensures high safety during operation.

General
MaterialABS, flammability according to UL 94-V0
ColourRAL 7035
Suitable forWall-mounted cooling unit Blue e+
Note on part numberNot suitable for wall-mounted cooling unit Blue e+ Outdoor
Suitable for part no.3184.xx0 / 3484.xx0, 3186.93x / 3486.93x, 3186.630 / 3486.630, 3187.93x / 3487.93x, 3187.630 / 3487.630
Width330 mm
Height330 mm
Depth30 mm


Product data sheet
Datasheet for Rittal 3213360, EAN: 4028177976276
