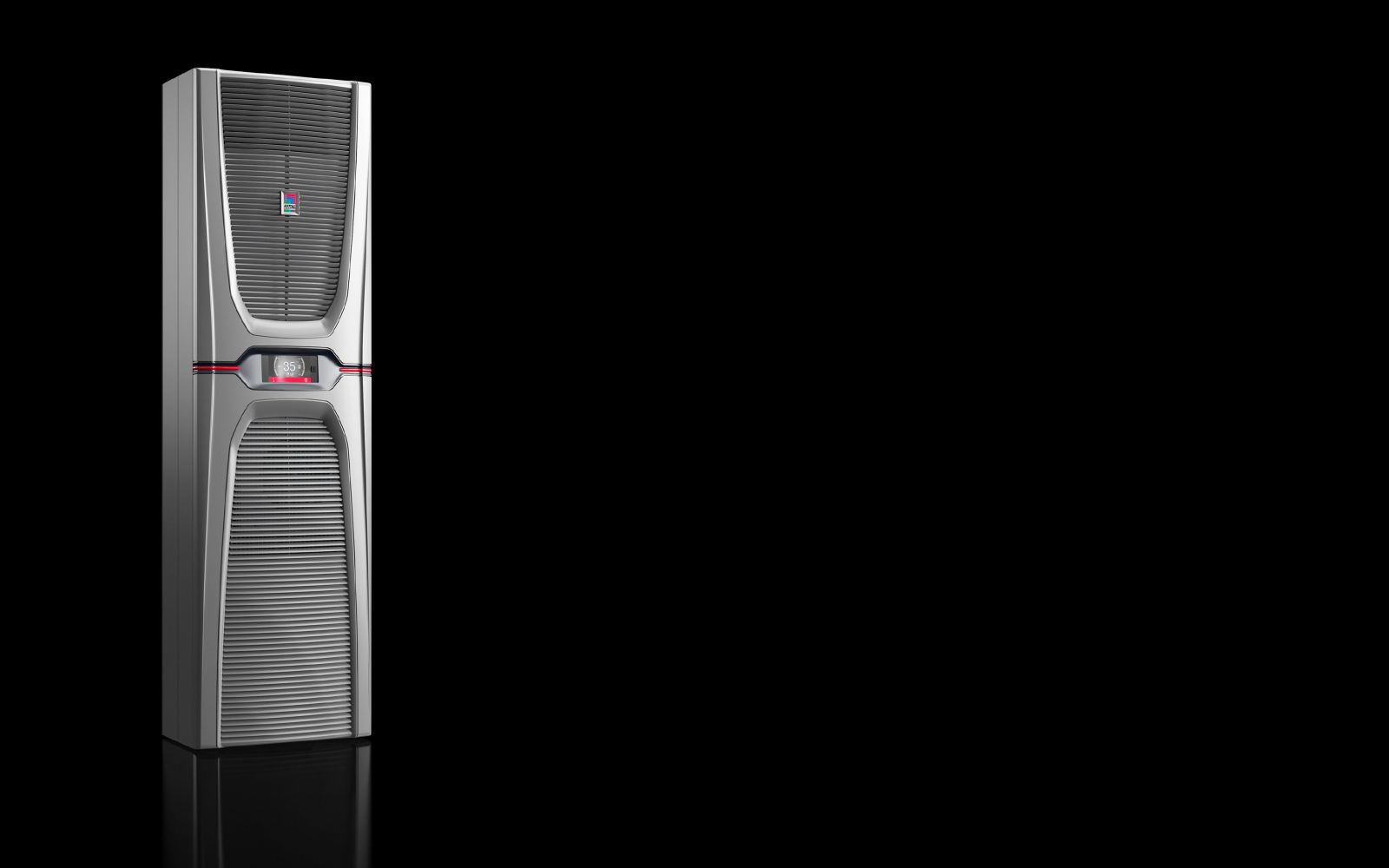

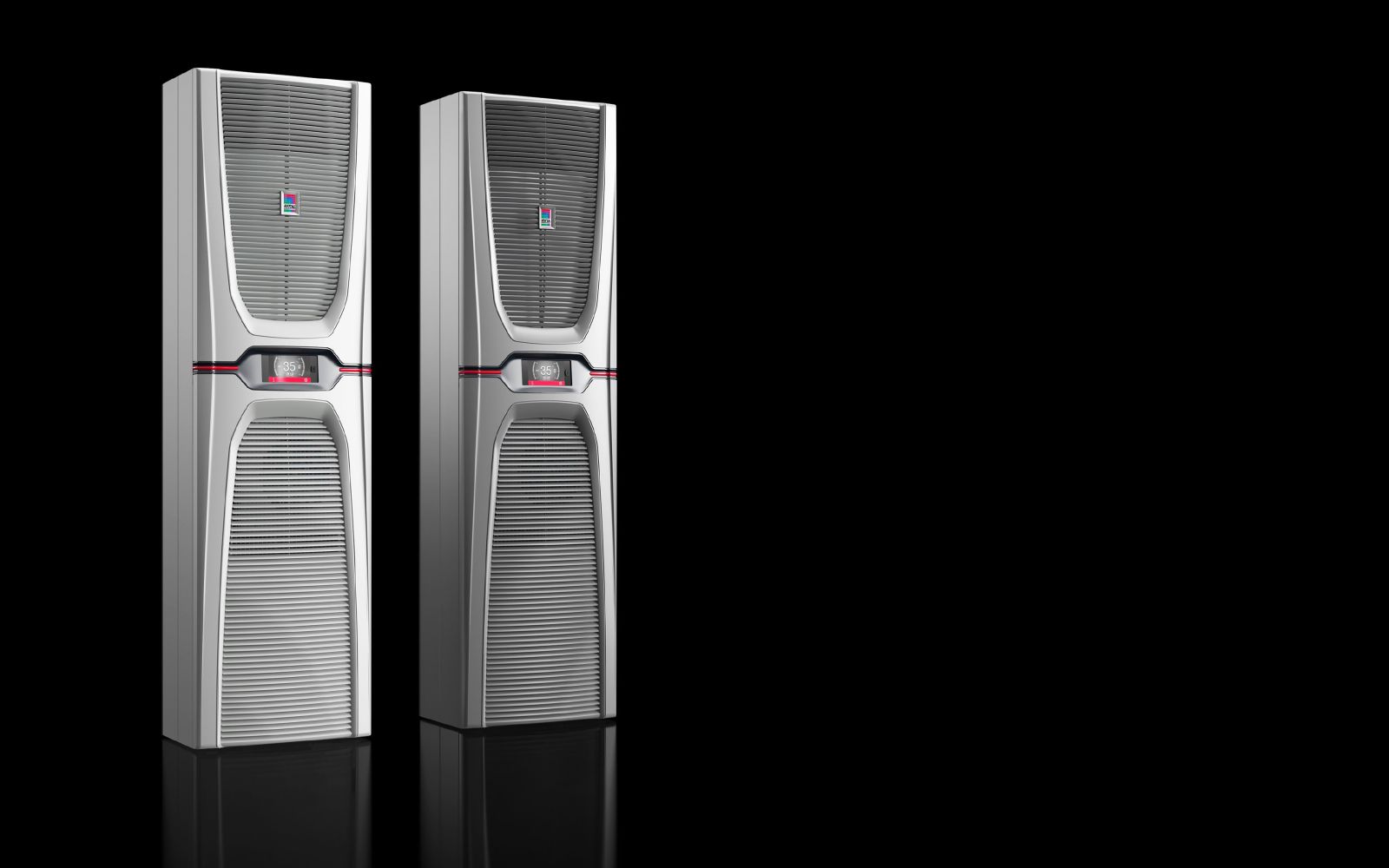

Rittal 3187630 Blue e+ wall-mounted cooling unit, 2600 W, stainless steel
|
4.213,51 EUR 4.356,20 EUR |
|
|
( 5.014,08 EUR incl. VAT ) ≈ £3,526.71 | ≈ $4,630.65 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1907672 |
| Mfg Part No: | 3187630 |
| UPC/EAN: | 4028177934672 |
| Weight: | 75.5 kg |
| Type: | SK 3187630 |
Product information for Rittal 3187630:
Applications
This cooling unit is intended for use in industrial environments, particularly in semi-outdoor areas where high ambient temperatures or high humidity prevail. It is suitable for cooling enclosures containing electronic components, controls, or power electronics. The operating temperature range of the unit is -20 °C to 60 °C, with the refrigerant circuit operating between 3 °C and 60 °C. The Heat Pipe technology enables gentle component cooling, extending the service life of components installed in the enclosure.
Functions and Equipment in Detail
The unit features an e+ controller, factory-set to a temperature of +35 °C. The temperature control range is between 20 °C and 50 °C. The air flow rate is 1,250 m³/h for both the outdoor and indoor circuits. The refrigerant type is R-513A, with a quantity of 1.07 kg, a Global Warming Potential (GWP) of 631, and a CO₂ equivalent of 0.68 t. Energy efficiency is supported by variable-speed components and Heat Pipe technology, achieving an average energy saving of 75 %. The coefficient of performance (EER) is 2.63 at 50 Hz and 60 Hz, while the Seasonal Energy Efficiency Ratio (SEER) is 6.2.
Technology Explained Simply
The Heat Pipe technology ensures efficient heat transfer from the indoor to the outdoor circuit, achieving cooling performance with lower energy consumption. Variable-speed components adjust their output to match the current load, reducing noise emission and extending service life. The integrated electric condensate evaporation prevents condensate accumulation inside the enclosure, enhancing operational safety. The hydrophobic RiNano coating on the condenser reduces moisture buildup and protects against corrosion.
Compatibility and Accessories
For remote monitoring and networking of Blue e+ units, the IoT Interface with article number 3124.300 can be used. This enables monitoring of device data, statuses, and system messages. Available accessories include the SK condensate hose 12 x 2 mm (length 10 m), cover 3355.210 for the connection box, SK IT steel sheet door for VX, as well as air deflectors and temperature sensors for the Blue e+ series.
Mounting and Installation
The unit is wall-mounted and requires a mounting cutout of 433 mm (width) × 1,579 mm (height). Mounting is done using the included hardware. The terminal strip is plug-in, enabling easy and secure wiring. The operating voltage must match the specified values, with tolerances of -10 % to +10 % (for 110 V to 240 V) and -10 % to +6 % (for 380 V to 480 V) permitted. For operational safety, appropriate overvoltage protection must be provided: for operating voltages below 460 V (3~), overvoltage protection with Uc 275 V, Imax 40 kA, In 20 kA, and Up 1.5 kV is required; for voltages above 460 V (3~), Uc 385 V, Imax 40 kA, In 20 kA, and Up 1.5 kV applies.
Operational Advantages
The cooling unit offers high energy efficiency due to variable-speed components and Heat Pipe technology. The integrated condensate evaporation ensures a dry environment inside the enclosure, enhancing operational safety. The robust stainless steel construction ensures long service life and high corrosion resistance. Remote monitoring via the IoT Interface enables proactive maintenance and increases machine availability. The multi-voltage capability allows worldwide use without adapting the electrical supply.
Protection Rating and Operating Conditions
The indoor circuit of the unit complies with protection rating IP 55 according to EN 60 529, meaning it is dust-tight and protected against water spray. The NEMA protection rating corresponds to UL Type 12 and UL Type 3R, suitable for industrial environments with increased humidity and dust exposure. The unit is designed for operation in environments with temperatures from -20 °C to 60 °C, with a storage temperature up to 70 °C allowed. The permissible operating pressure is 24 bar.
| General | |
| Model | Wall surface mounted |
| Market-relevant product changes | The cover for the connection box to protect the electrical connection on the cooling unit is no longer included in the scope of delivery from the beginning of 2024. The covers 3355.200 and 3355.210 can be ordered optionally as accessories. |
| Material | Stainless steel 1.4301 (AISI 304) |
| Colour | RAL 9007 |
| Scope of delivery | Condensate trap with hydrophobic RiNano coating, Integrated electric condensate evaporation, Including mounting material, Pre-wired for connection (pluggable terminal block) |
| Options | For remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages. |
| Total cooling capacity according to DIN EN 14511 | Cooling capacity L35 L35/50 Hz: 2.6 kW, cooling capacity L35 L35/60 Hz: 2.6 kW, cooling capacity L35 L50/50 Hz: 1.7 kW, cooling capacity L35 L50/60 Hz: 1.7 kW |
| Rated operating voltage | 110 V - 240 V, 1~, 50 Hz/60 Hz, 380 V - 480 V, 3~, 50 Hz/60 Hz |
| Note | By downloading the software, a contract is established between the contracting party and Rittal for the free use of the software according to these license terms. Only suitable for semi-outdoor use (see instruction manual). For protection of Blue e+ cooling units, appropriate surge protection must be provided: - Operating voltage < 460 V (3~): Uc 275 V, Imax 40 kA, In 20 kA, Up 1.5 kV. - Operating voltage > 460 V (3~): Uc 385 V, Imax 40 kA, In 20 kA, Up 1.5 kV. |
| Note on part number | Tolerance: 110 V -10 % (99 V) and 240 V +10 % (264 V) / 380 V -10 % (342 V) and 480 V +6 % (509 V) |
| Rated power | 1,05 kW |
| Air performance (free blowing) | External circuit: 1,250 m³/h, internal circuit: 1,250 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Cooling performance factor L35 L35 (EER) 50 Hz: 2.63, Cooling performance factor L35 L35 (EER) 60 Hz: 2.63 |
| Seasonal energy efficiency ratio (SEER) 50/60 Hz | 6,2 |
| Width | 450 mm |
| Height | 1.600 mm |
| Depth | 294 mm |
| Required mounting cutout | Cutout width: 433 mm, cutout height: 1,579 mm |
| Degree of protection IP according to EN 60 529 | Internal circuit IP 55 |
| NEMA degree of protection | UL Type 12, UL Type 3R |
| Refrigerant/cooling medium | Refrigerant: R-513A, Quantity: 1.07 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.68 t |
| Temperature control | e+ Controller (factory setting +35 °C) |
| Operating temperature range | -20 °C...60 °C |
| Storage temperature range | -40 °C...70 °C |
| Operating temperature range refrigerant circuit (active) | 3 °C...60 °C |
| Operating temperature range heat pipe | -20 °C...45 °C |
| Adjustment range | 20 °C...50 °C |
| Rated power Pel | Rated power L35 L35/50 Hz: 0.99 kW, Rated power L35 L35/60 Hz: 0.99 kW, Rated power L35 L50/50 Hz: 0.94 kW, Rated power L35 L50/60 Hz: 0.94 kW |
| Permissible operating pressure (p max.) | 24 bar |
| PCF/VE (Cradle-to-Gate) | 952,2 |
Questions & answers
What is the delivery time of Rittal 3187630 Blue e+ wall-mounted cooling unit, 2600 W, stainless steel?
The article Rittal 3187630 Blue e+ wall-mounted cooling unit, 2600 W, stainless steel is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3187630 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3187630 Blue e+ wall-mounted cooling unit, 2600 W, stainless steel always at the best possible price. We can give you a discount of 2% on Rittal 3187630 Blue e+ wall-mounted cooling unit, 2600 W, stainless steel if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
