Rittal 3312820 SK IT air duct for Blue e+ wall-mounted cooling unit

Your rating:
Average rating
product review for Rittal 3312820 SK IT air duct for Blue e+ wall-mounted cooling unit
( 5 / 5 ) 2 ratings
Rittal 3312820
This image may differ from the desired article.
Rittal 3312820Rittal 3312820Rittal 3312820Rittal 3312820
519,17 EUR
( 617,81 EUR incl. VAT )
≈ £434.55  |  ≈ $570.57
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 3312820 SK IT air duct for Blue e+ wall-mounted cooling unit
Datasheet:file_download Download
Lieske Part No.:1101030
Mfg Part No: 3312820
UPC/EAN: 4028177944541
Weight:17 kg
Type:IT 3312820

Product information for Rittal 3312820:

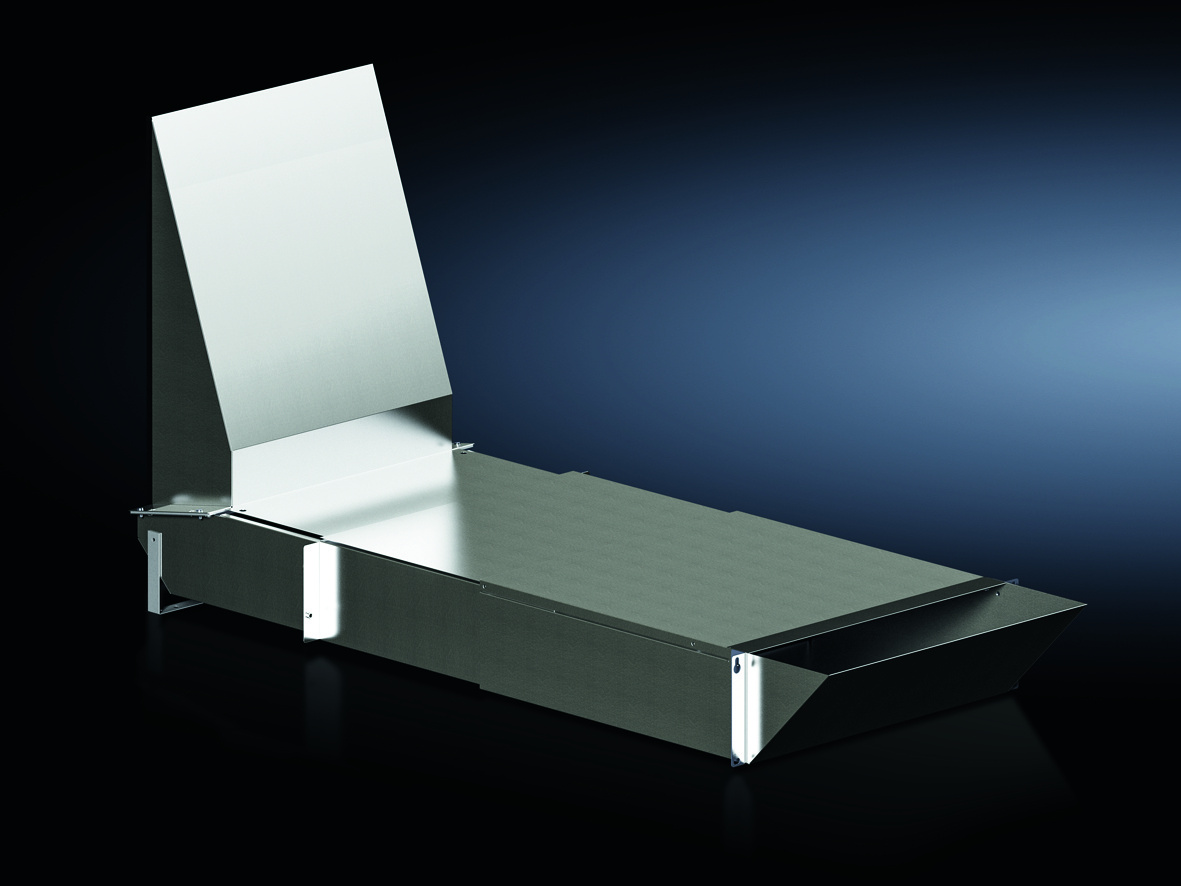

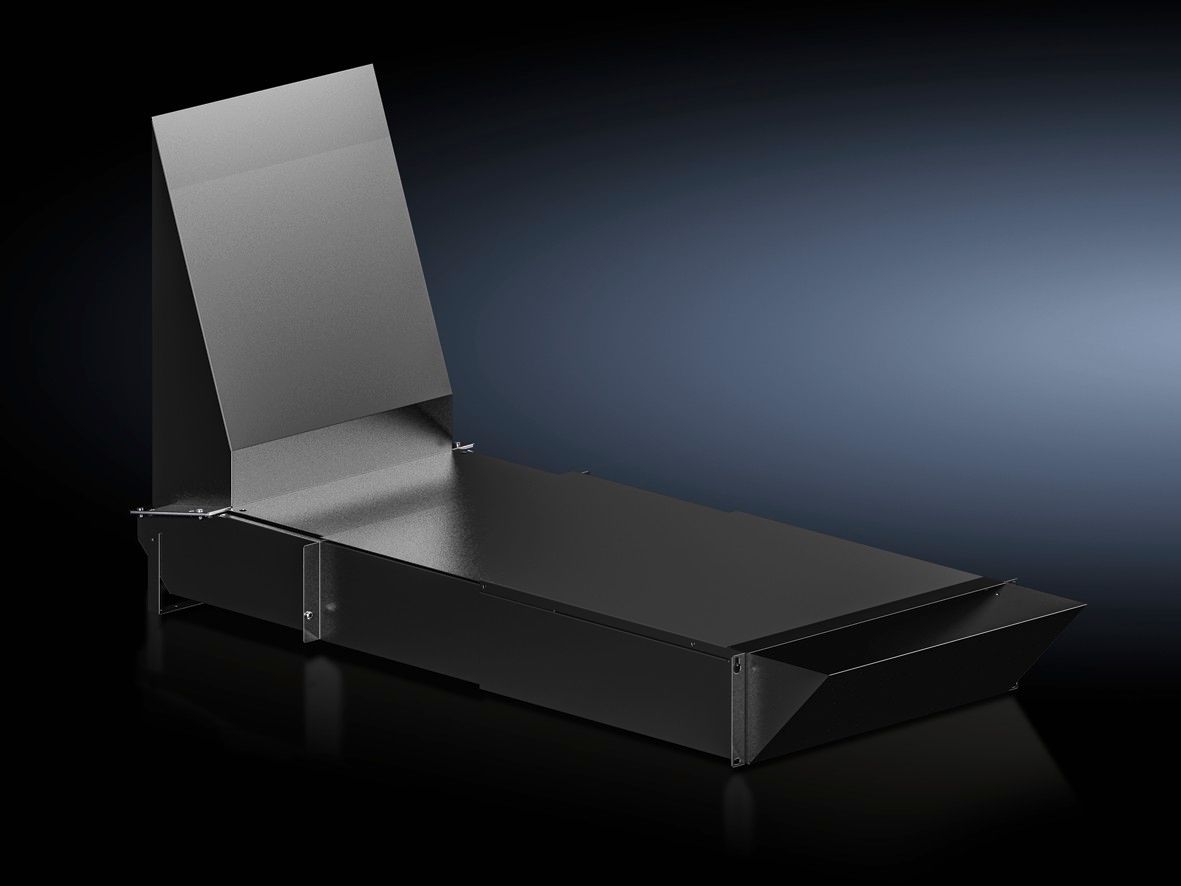

The Rittal SK IT air duct, type 3312820, is a specially developed component for cold air supply in enclosures. It serves as a connection component for the wall-mounted cooling unit Blue e+ IT (article number 3312810) and enables efficient distribution of cooled air directly in front of the 48,3 cm ( 19 inch )-rack level within the enclosure. The unit is made of sheet steel and features a durable paint finish in RAL 9005, ensuring high mechanical stability and corrosion resistance. The design is intended for integration into industrial enclosure environments, with mounting planned in the lowest 3 HE of the 48,3 cm ( 19 inch )-rack level.

Applications

The air duct is designed for use in industrial enclosures, particularly in systems where electronic components are cooled via a wall-mounted cooling unit. It is suitable for enclosure depths of 800 mm, 1,000 mm, and 1,200 mm, allowing flexible use in various enclosure configurations. Connection to the Blue e+ wall-mounted cooling unit enables targeted air supply, optimizing cooling performance inside the enclosure and enhancing the operational reliability of installed devices.

Functions and Equipment in Detail

The air duct functions as an air guide, directing air from the cooling unit into the enclosure space. It is dimensioned to evenly distribute airflow, ensuring homogeneous temperature distribution within the enclosure. The width is 482.6 mm, matching exactly the standard width of the 48,3 cm ( 19 inch )-rack level. The height of 3 HE allows for compact mounting without affecting the available mounting area for other components. The product is supplied with mounting hardware, simplifying installation and ensuring the air duct is securely fastened in the enclosure.

Technology Explained Simply

The air duct operates as a passive air conduit, directing cooled air generated by the Blue e+ IT wall-mounted cooling unit into the enclosure space. The air is discharged directly in front of the 48,3 cm ( 19 inch )-rack level, ensuring optimal cooling of electronic components mounted in this area. The material choice of painted sheet steel ensures high mechanical strength and resistance to environmental influences, especially in industrial environments. The RAL 9005 color ensures visual harmony with other Rittal products and allows for a uniform design of the enclosure.

Compatibility and Accessories

The air duct is specifically developed for use with the Rittal Blue e+ wall-mounted cooling unit 3312810. It is not intended for use with other cooling units or enclosure configurations. Compatibility is limited to enclosure depths of 800 mm, 1,000 mm, and 1,200 mm. Mounting is performed in the lowest 3 HE of the 48,3 cm ( 19 inch )-rack level, ensuring air supply directly beneath the installed devices.

Mounting and Installation

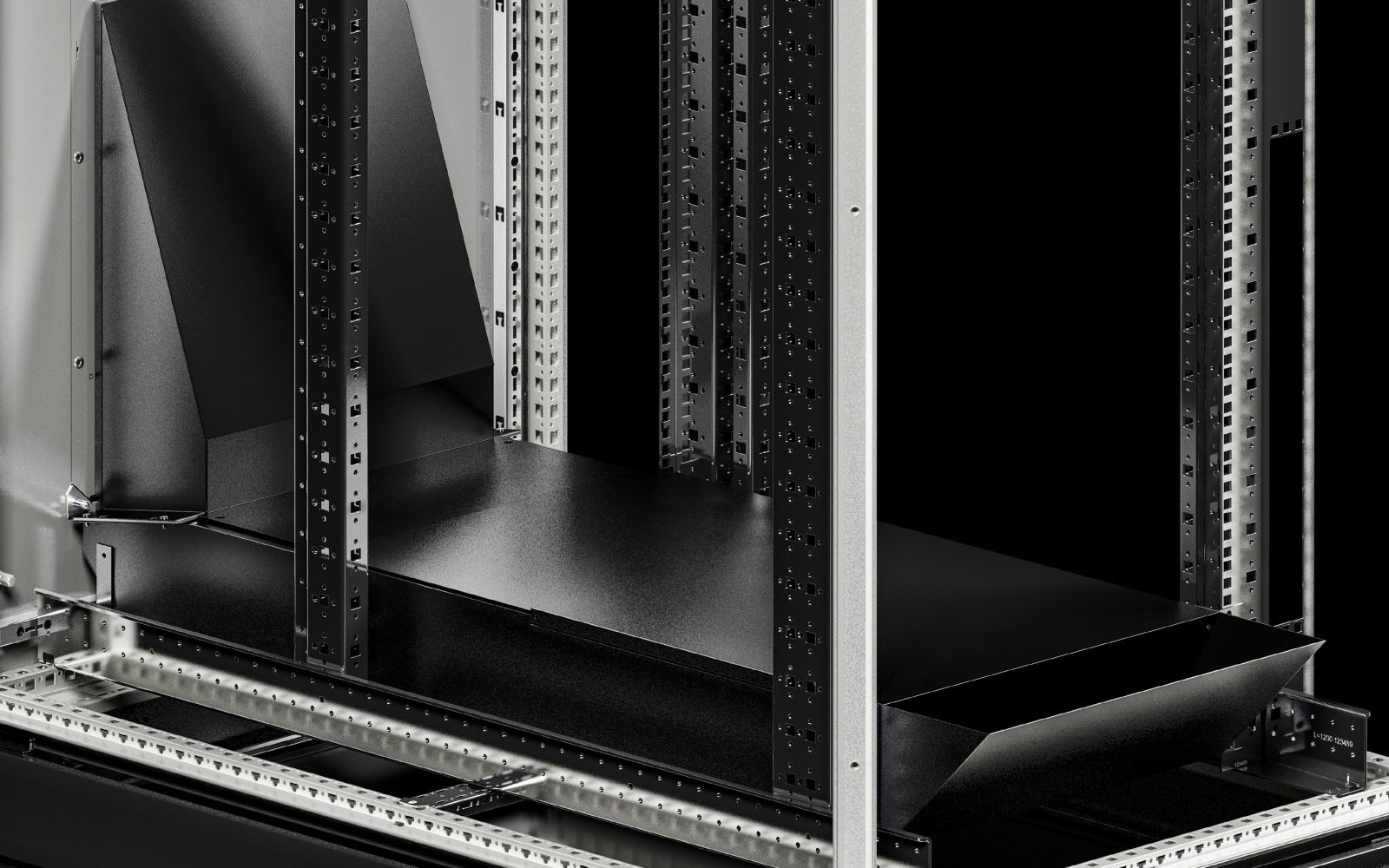

Installation is carried out by mounting in the lowest 3 HE of the 48,3 cm ( 19 inch )-rack level. The included mounting hardware enables secure and stable fastening in the enclosure. Positioning directly beneath the 48,3 cm ( 19 inch )-rack level ensures optimal airflow direction toward the components below.

Operational Advantages

Using the air duct improves cooling performance in the enclosure, as cooled air is directed precisely to where it is needed most – directly in front of the 48,3 cm ( 19 inch )-rack level. This reduces thermal stress on electronic components and increases their service life. The uniform color design in RAL 9005 supports visual integration into existing enclosure systems. The robust construction from painted sheet steel ensures long service life even under industrial conditions.

General
Materialsheet steel, painted
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Mounting optionsMounting in the lowest 3 HE of the 19" plane
Width482,6 mm
Height3 HE
Suitable forDepth: = 800 mm, = 1.000 mm, = 1.200 mm


Product data sheet
Datasheet for Rittal 3312820, EAN: 4028177944541

Questions & answers

What is the delivery time of Rittal 3312820 SK IT air duct for Blue e+ wall-mounted cooling unit?

The article Rittal 3312820 SK IT air duct for Blue e+ wall-mounted cooling unit is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3312820 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3312820 SK IT air duct for Blue e+ wall-mounted cooling unit always at the best possible price. We can give you a discount of 2% on Rittal 3312820 SK IT air duct for Blue e+ wall-mounted cooling unit if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
