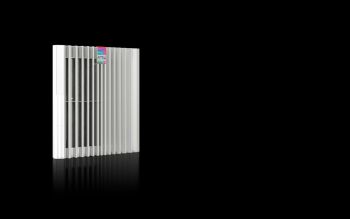

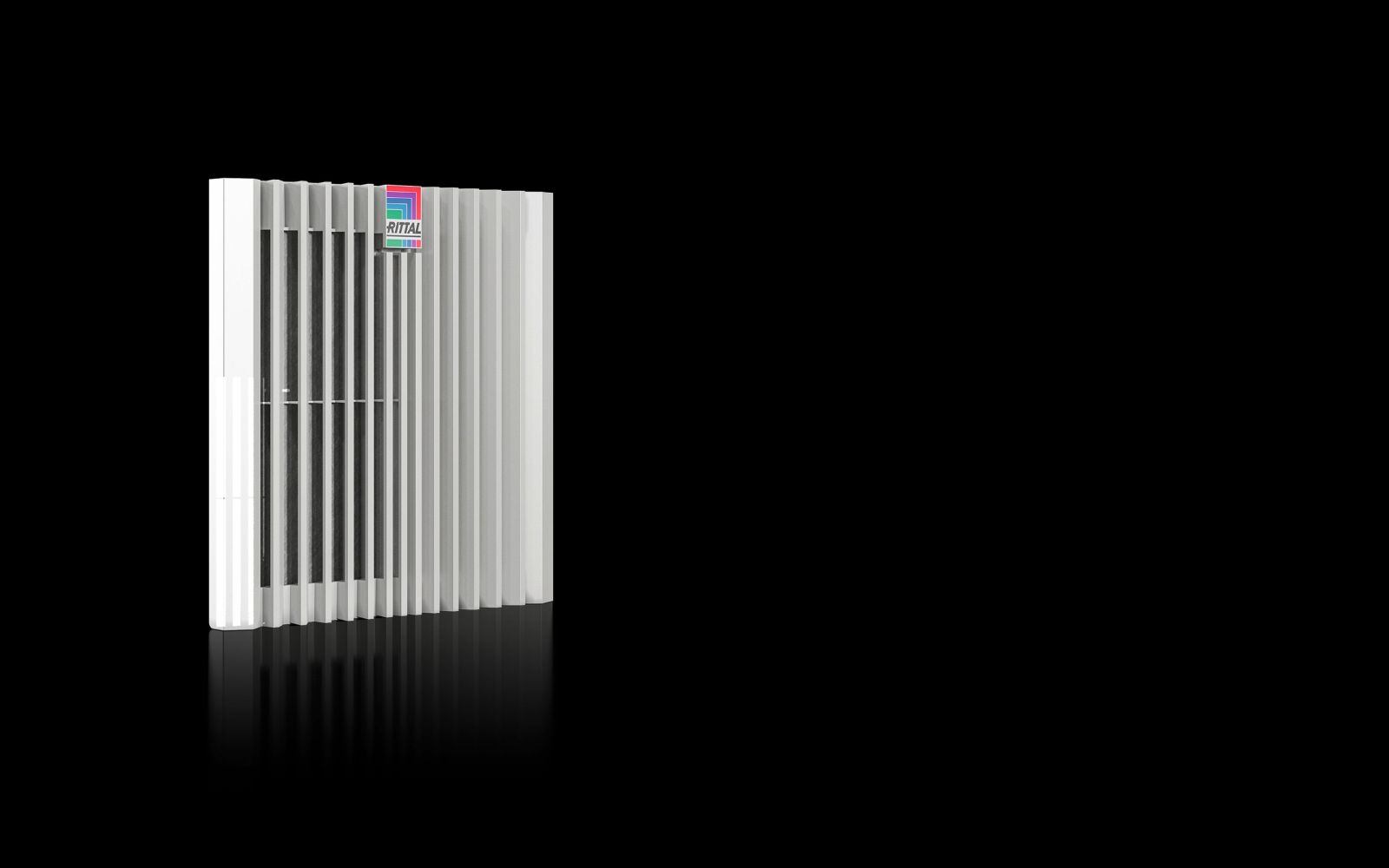

Rittal 3240400 Blue e+ outlet filter EMV, RAL 7035

Your rating:
Average rating
product review for Rittal 3240400 Blue e+ outlet filter EMV, RAL 7035
( 5 / 5 ) 3 ratings
Rittal 3240400
This image may differ from the desired article.
Rittal 3240400Rittal 3240400Rittal 3240400Rittal 3240400Rittal 3240400Rittal 3240400
106,03 EUR
( 126,18 EUR incl. VAT )
≈ £88.75  |  ≈ $116.53
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3240400 Blue e+ outlet filter EMV, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683831
Mfg Part No: 3240400
UPC/EAN: 4028177998346
Weight:0.661 kg
Type:SK 3240.400

Product information for Rittal 3240400:

The Rittal SK 3240.400 is an outlet filter for enclosure climate control, specifically designed for use with filter fans of types SK 3240.8xx and SK 3241.8xx. The device serves to remove waste heat from enclosures, ventilate the interior space, and protect temperature-sensitive components. Cooling is achieved by direct intake of ambient air, whose temperature must be below the permissible enclosure internal temperature. The unit is designed for wall mounting with integrated EMC protection function, which reduces electromagnetic interference. The color is RAL 7035, a gray-beige standard design that blends well in industrial environments.

Applications

The outlet filter is intended for use in industrial enclosures where continuous cooling and ventilation are required. It is used in combination with filter fans to regulate the internal temperature of enclosures and extend the service life of electronic components. The application is suitable for environments with moderate dust and moisture exposure, but without direct water ingress or heavy splashing. Protection ratings IP 54 (with nonwoven filter) and IP 54 (with nonwoven filter and spray hood) enable use in various environmental conditions. NEMA protection ratings Type 12, 3, 3R, 4, and 4X (with appropriate additional components) expand the application possibilities in industrial and outdoor installations.

Functions and Equipment in Detail

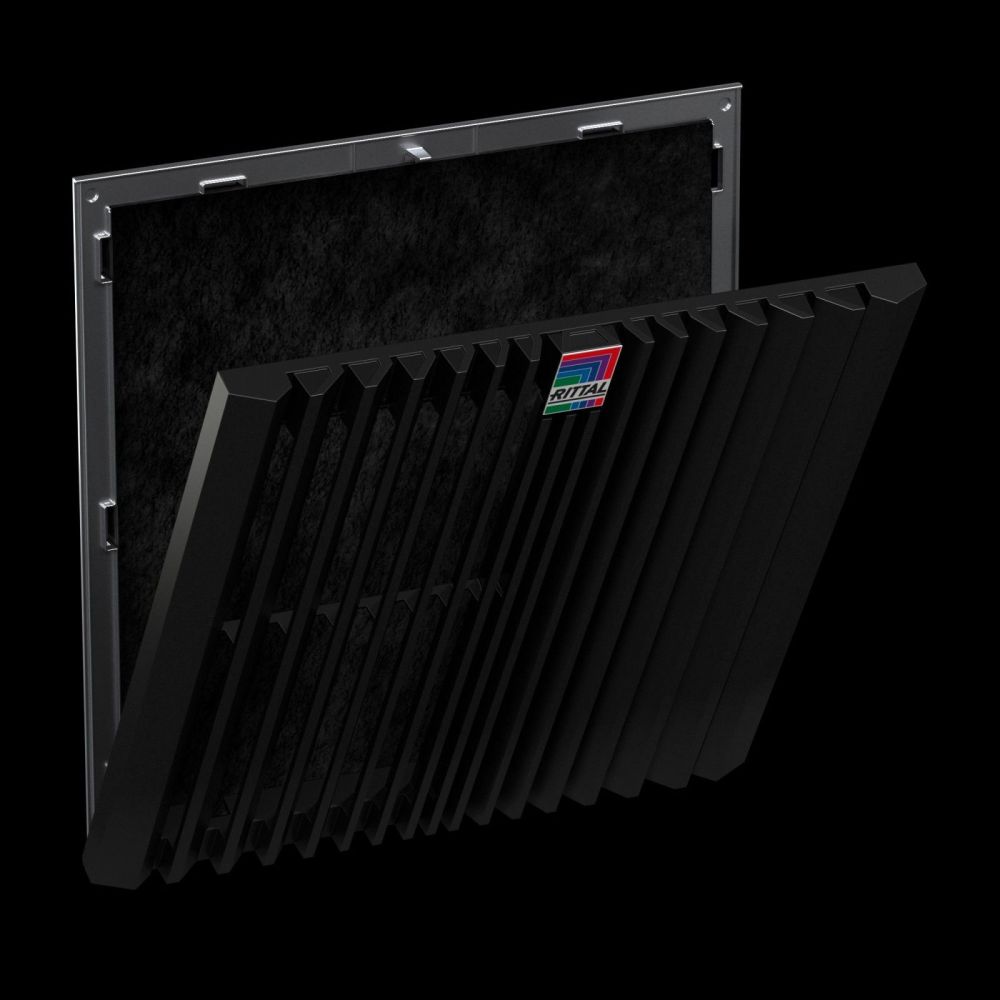

The filter features a new opening mechanism on the louver grille, simplifying filter replacement. Installation on the enclosure is achieved via optimized snap hooks, enabling faster and tool-free mounting. Tool-free installation reduces installation effort and maintenance time. The delivery includes the outlet filter and an EMC filter mat, which contributes to reducing electromagnetic interference. The filter dimensions are 255 mm width, 255 mm height, and 45.2 mm depth. The mounting cutout in the enclosure requires a 224 mm width and 224 mm height opening.

Technology Explained Simply

The function of the outlet filter is based on controlled air extraction from the enclosure. Air is drawn through the filter, retaining dust particles and dirt. The EMC filter mat ensures that electromagnetic interference generated by electronic devices inside the enclosure is not radiated outward. Protection ratings IP 54 and IP 54 (in combination with spray hood) protect against dust and splashing water, allowing the filter to operate safely in humid or dusty environments. NEMA protection ratings enable use in various industrial environments, including outdoor installations.

Compatibility and Accessories

The outlet filter is specifically designed for filter fan types SK 3240.8xx and SK 3241.8xx. As an accessory, a spray hood is available for types SK 3240 and SK 3241, extending the protection rating to IP 54 and NEMA Type 4/4X. Additionally, an EMC filter mat is available for types SK 3240/41.6xx, also serving EMC reduction. Combining the filter with these accessories expands its application in more demanding environments.

Mounting and Installation

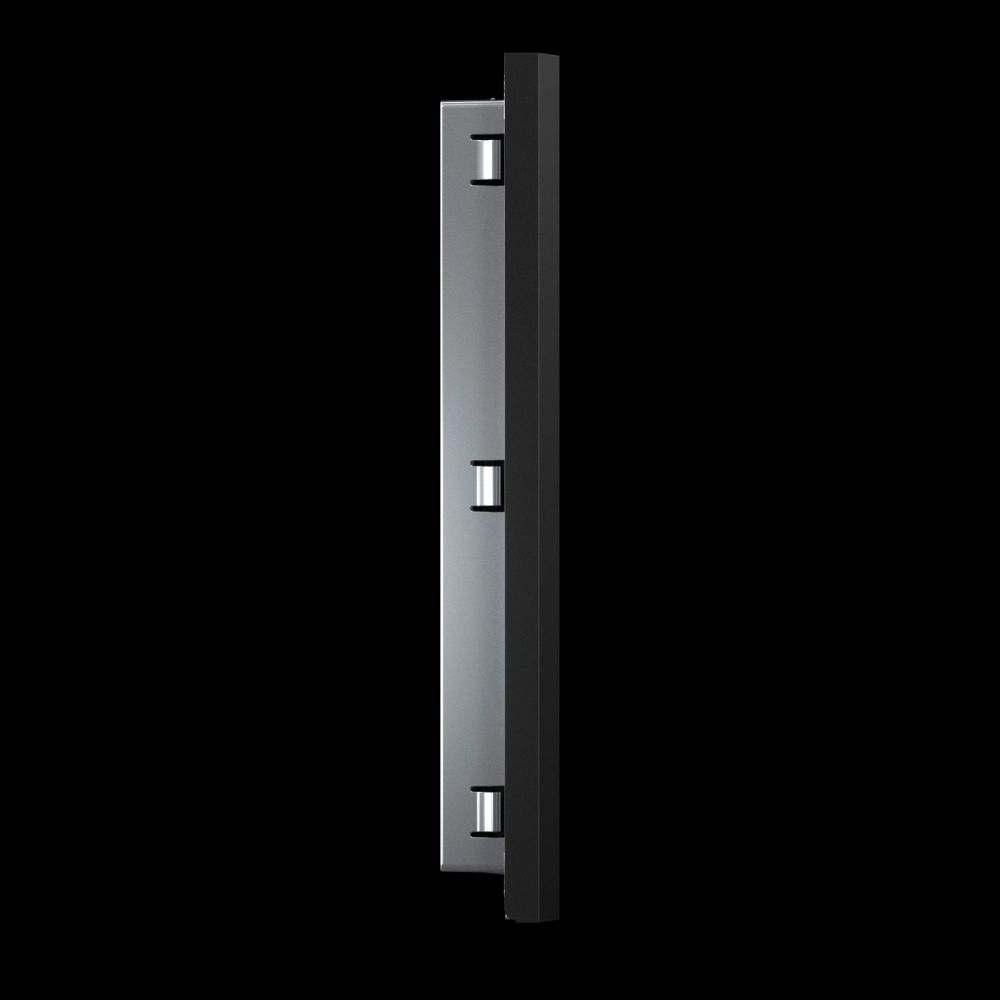

Mounting is tool-free onto the enclosure wall. The optimized snap hooks allow for quick and secure fastening. The mounting cutout in the enclosure must be 224 mm wide and 224 mm high. The filter dimensions themselves are 255 mm width, 255 mm height, and 45.2 mm depth. Tool-free mounting reduces installation effort and enables quick maintenance.

Operational Advantages

The filter offers simple and quick maintenance thanks to the new opening mechanism on the louver grille. Tool-free mounting and optimized snap hooks reduce installation time. The EMC filter mat reduces electromagnetic interference, increasing operational safety. Protection ratings IP 54 and IP 54 (with spray hood) along with NEMA ratings allow use in various industrial environments, including outdoor installations. Combining with suitable accessories expands the functionality and protection scope of the filter.

General
ModelWall mounting, EMC
ColourRAL 7035
Scope of deliveryExhaust filter, EMI filter mat
Mounting cutoutCutout width: 224 mm, cutout height: 224 mm
Suitable for part no.SK 3240.8xx/3241.8xx
Width255 mm
Height255 mm
Depth45,2 mm
NEMA degree of protectionType 12 with felt filter, Type 3, 3R, 4, 4X with felt filter and spray shield
Degree of protection IP according to IEC 60 529IP 54 with felt filter, IP 56 with felt filter and spray hood


Product data sheet
Datasheet for Rittal 3240400, EAN: 4028177998346

Questions & answers

What is the delivery time of Rittal 3240400 Blue e+ outlet filter EMV, RAL 7035?

The article Rittal 3240400 Blue e+ outlet filter EMV, RAL 7035 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3240400 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3240400 Blue e+ outlet filter EMV, RAL 7035 always at the best possible price. We can give you a discount of 2% on Rittal 3240400 Blue e+ outlet filter EMV, RAL 7035 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
